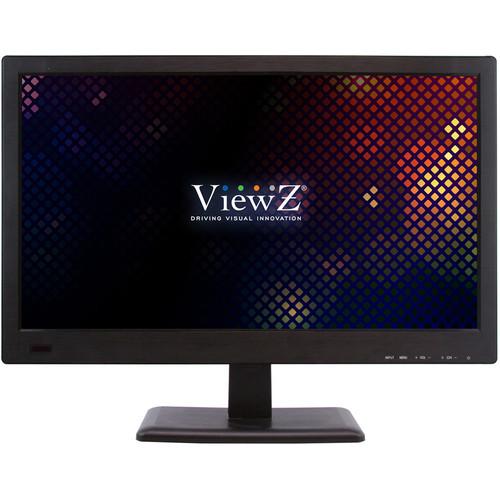

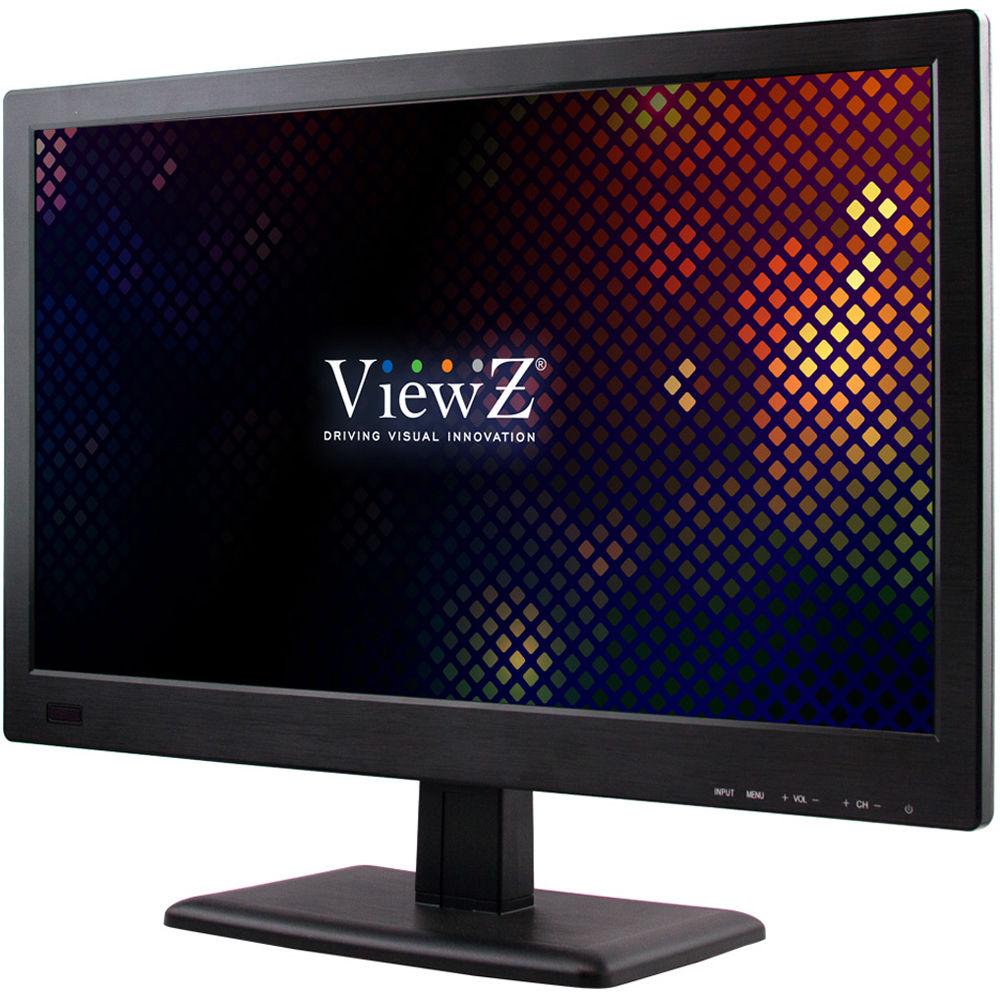

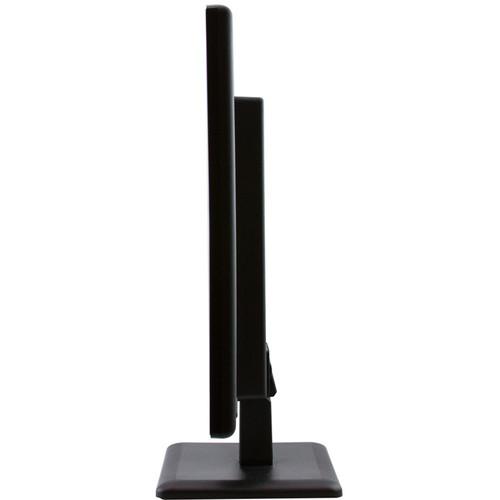

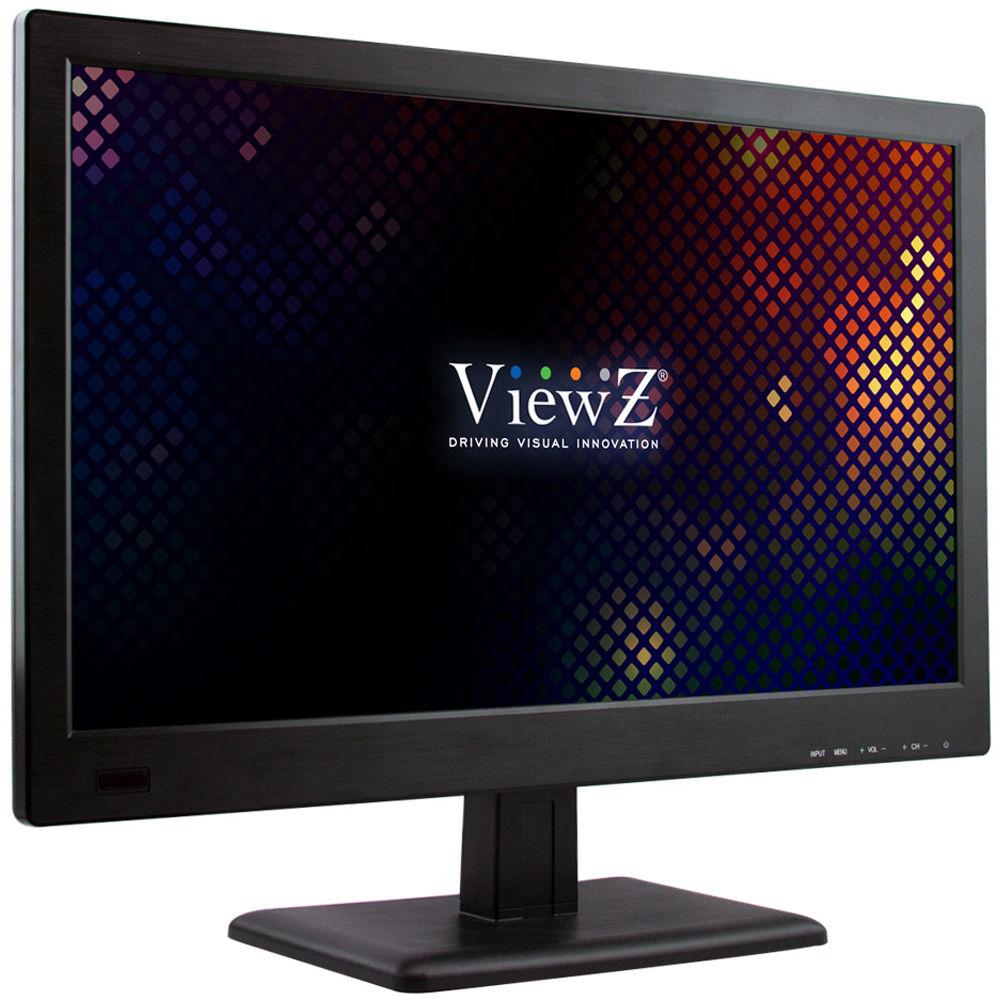

User Manual for ViewZ 22" Professional LED CCTV Monitor Click to enlarge the picture
Contents of the user manual for the ViewZ 22" Professional LED CCTV Monitor
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
 |
User manual for the ViewZ 22" Professional LED CCTV Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|

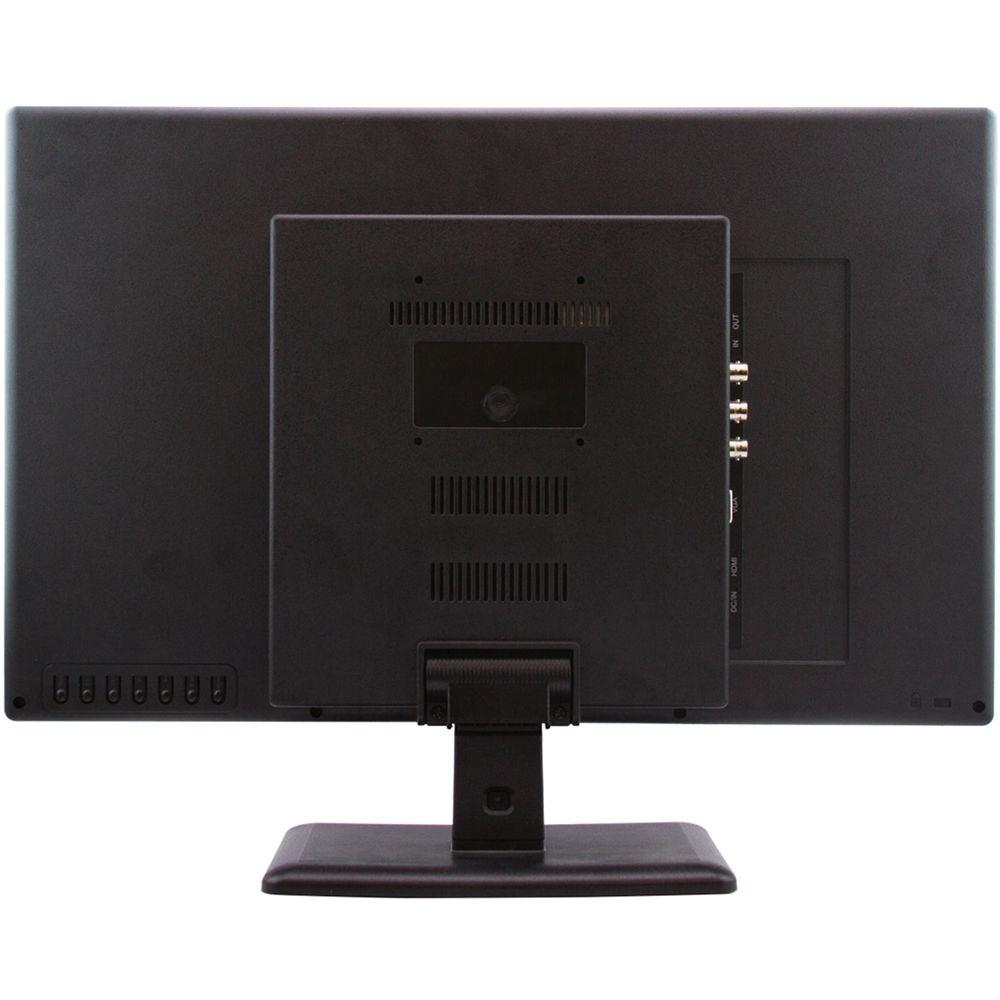

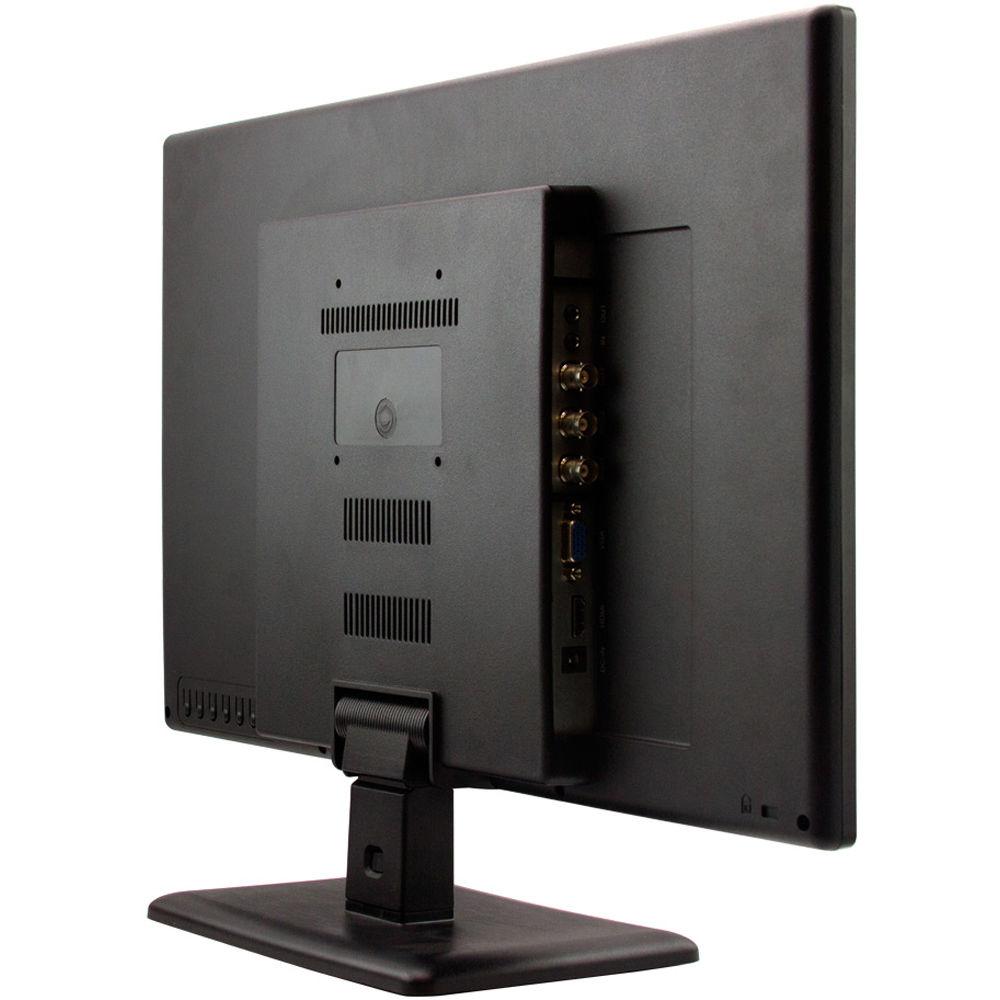

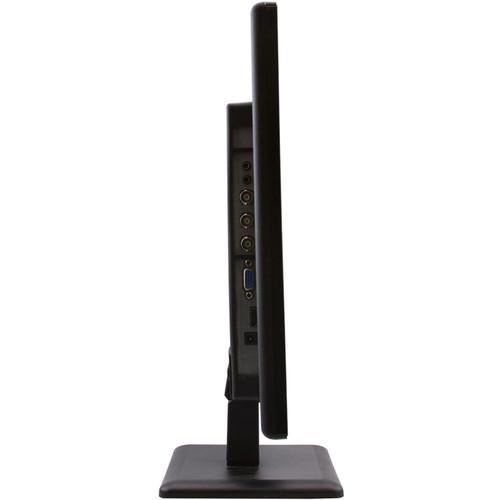

Product description The 22” Professional LED CCTV Monitor from ViewZ features 1 x HDMI, 1 x VGA, 2 x BNC (composite) inputs, and 1 x BNC (composite) output (loop-through). It can display images at a maximum resolution of 1920 x 1080 while offering a brightness rating of 250 cd/m² and contrast ratio of 1000:1. Built-in 3D comb filter and deinterlace circuitry helps in improving color saturation and image clarity for various video sources. In addition, the monitor can be wall, ceiling, or rack mounted using the VESA mount on the rear. - Offers a maximum resolution of 1920 x 1080
- 3D Comb-filter, deinterlace, and 600 TVL
- 2 BNC (composite) inputs and 1 BNC (composite) output (loop-through)
UPC: 815562020041 In the Box ViewZ 22" Professional LED CCTV Monitor Limited 3-Year Warranty Brochure PDF 318.7kbtsebwbwrazrvbzzurwsrrsfbvs Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ 22" Professional LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-22CMP Specs | Screen Size | 21.5" (54.6 cm) | | Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.2482 x 0.2482 mm | | Brightness | 250 cd/m² (typical) | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 170°/160° | | Display Colors | 16.7 million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency (H) | 30 to 80 kHz | | Frequency (V) | 50 to 75 Hz | | Interface | 2 x AV (composite) in / 1 x out
1 x HDMI in
1 x VGA in (15-pin D-Sub)
1 x Audio in / 1 x out | | Built-in Speaker | 2 x 2.5 W | | Filter Type | 3D Comb-filter / Deinterlace | | Analog Video | Resolution: 600 TVL (maximum) | | Language | English, Deutsch, French, Spanish, Italian | | VESA Compatibility | 75 x 75 mm | | Power | 100 to 240 VAC, 50/60 Hz
12 VDC, 3 A
Consumption: 22 W | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Humidity | 20 to 70% RH | | Regulations | FCC (A), CE, ENERGY STAR, WEEE | | Dimensions (W x H x D) | 20.2 x 15.1 x 1.61" (51.4 x 38.4 x 4.1 cm) | | Weight | 7.7 lb (3.5 kg) |
