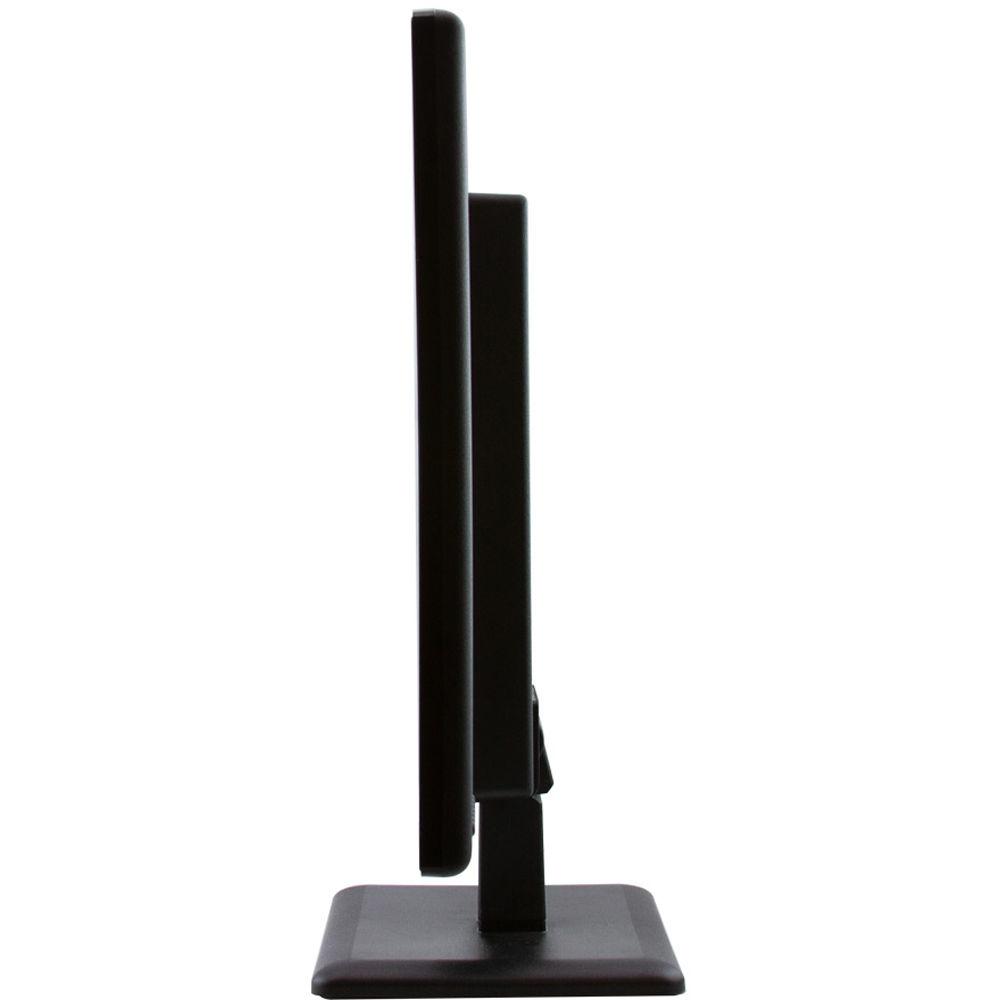

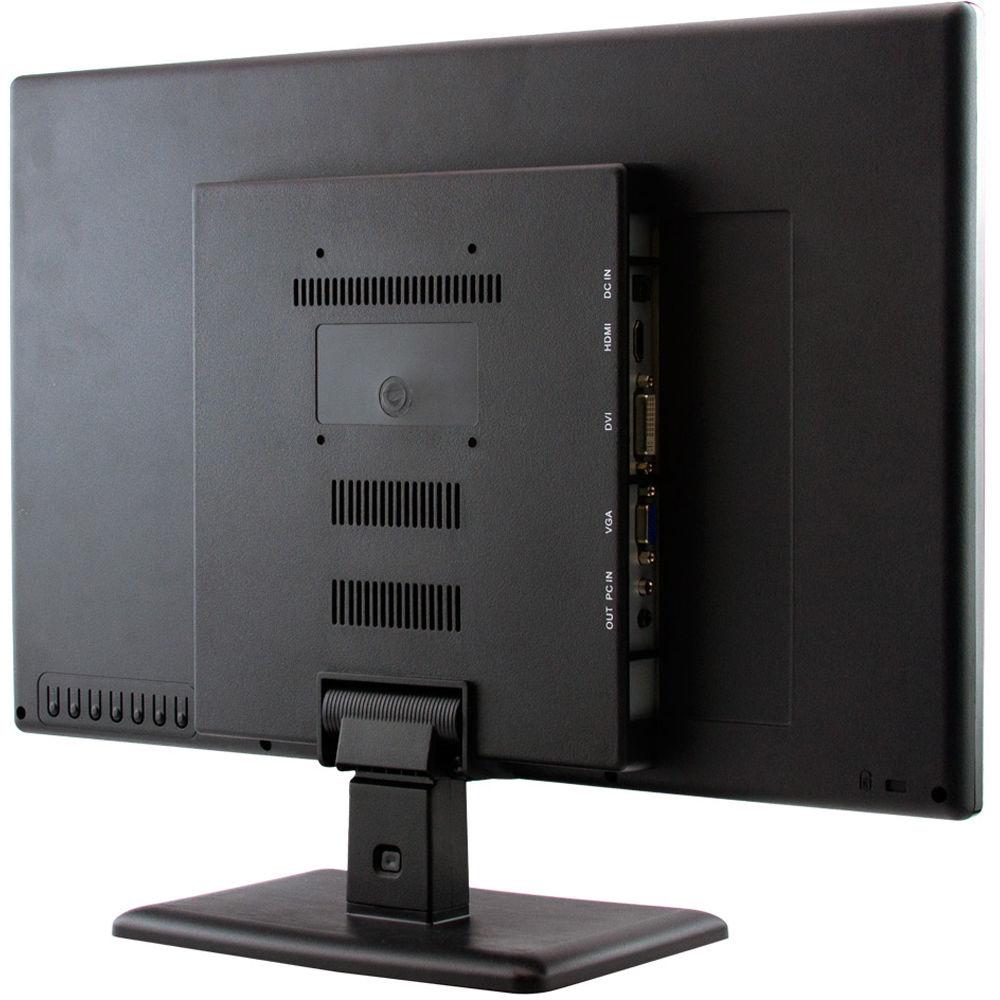

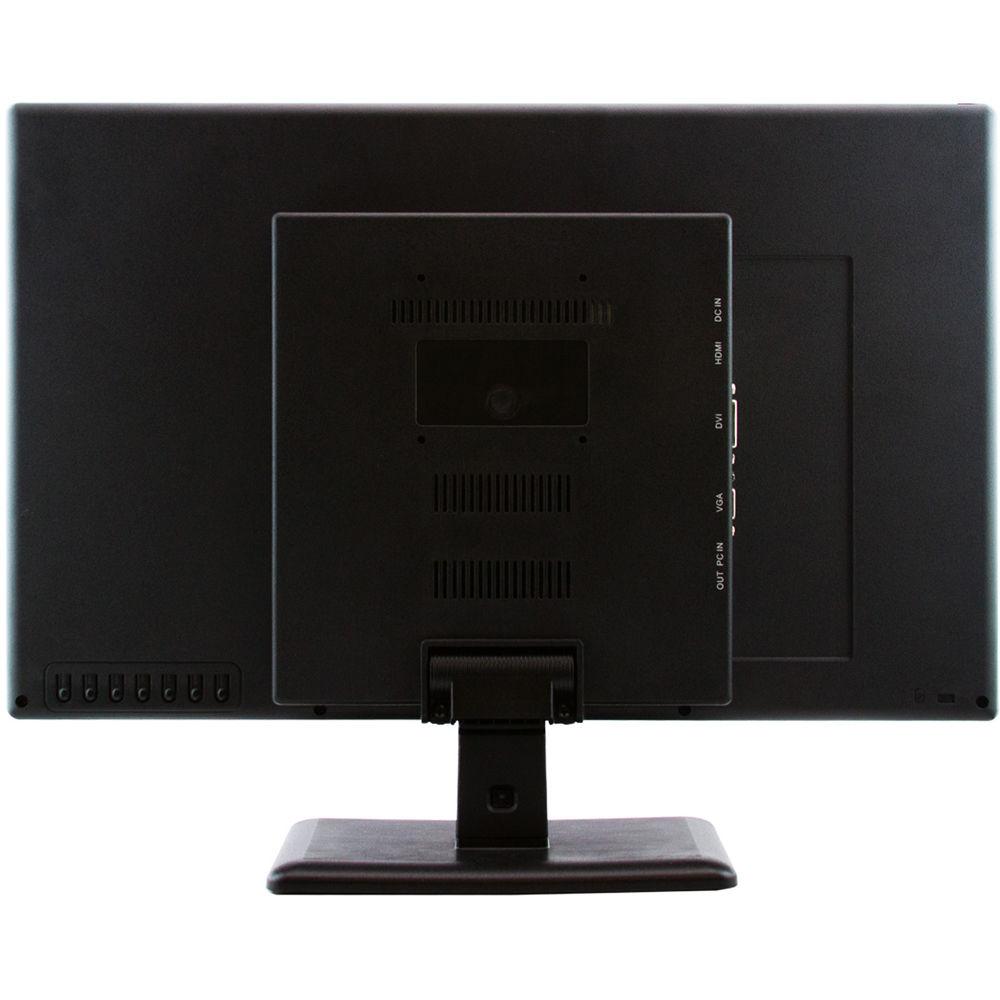

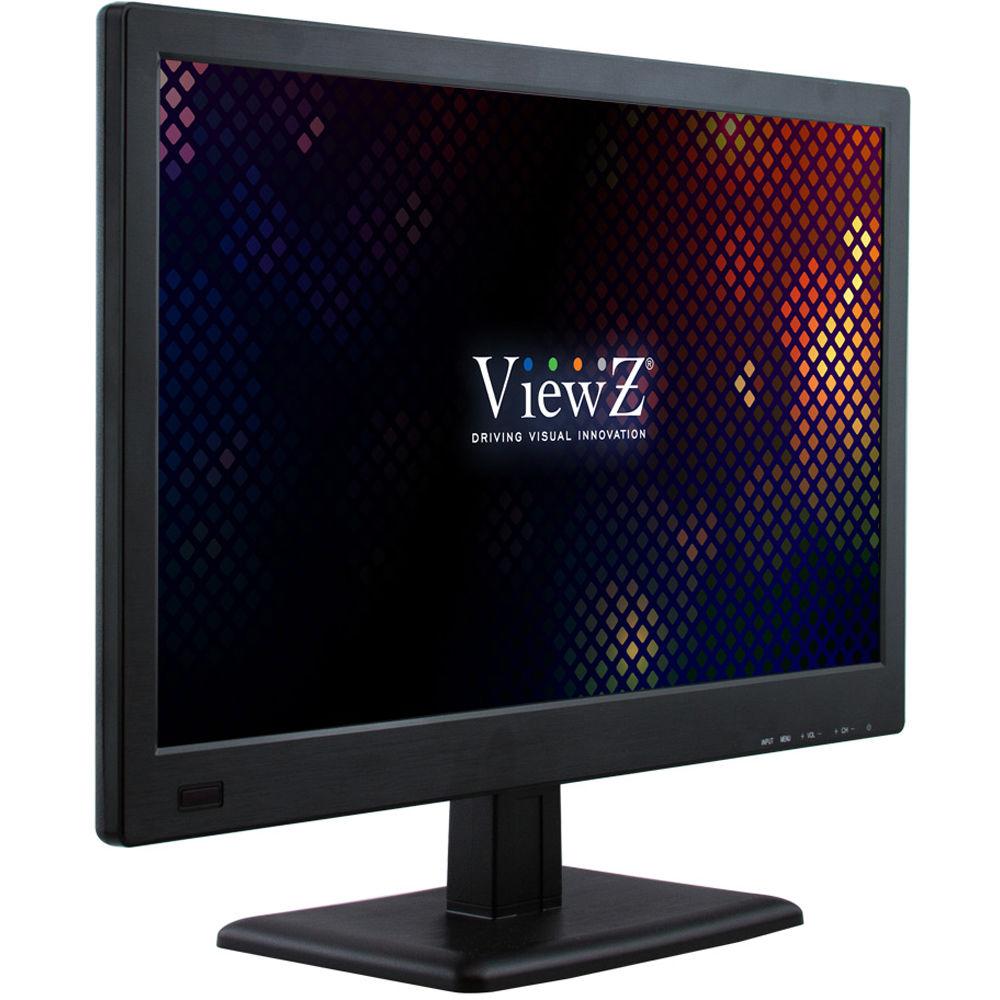

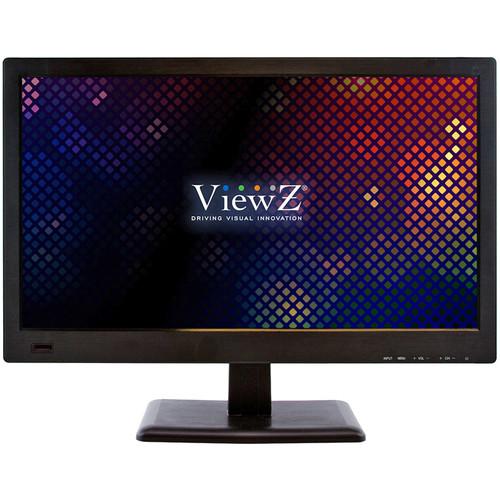

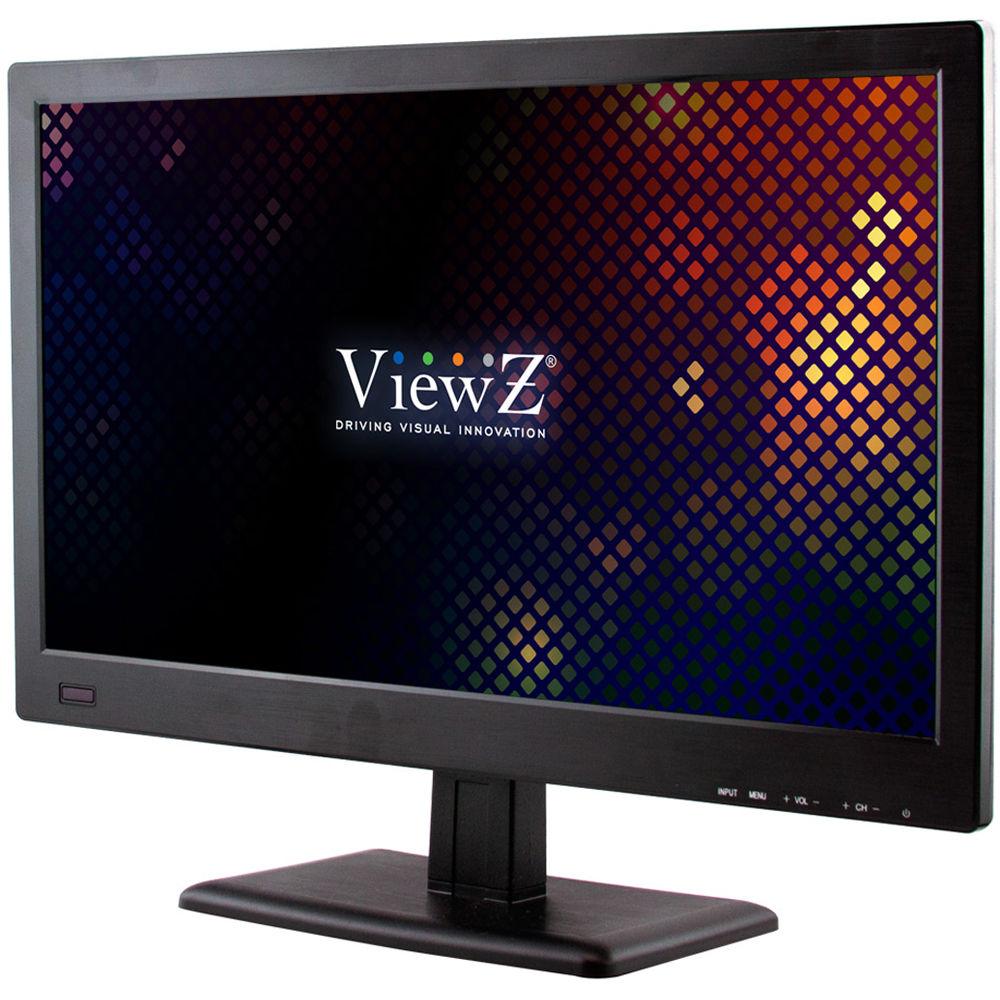

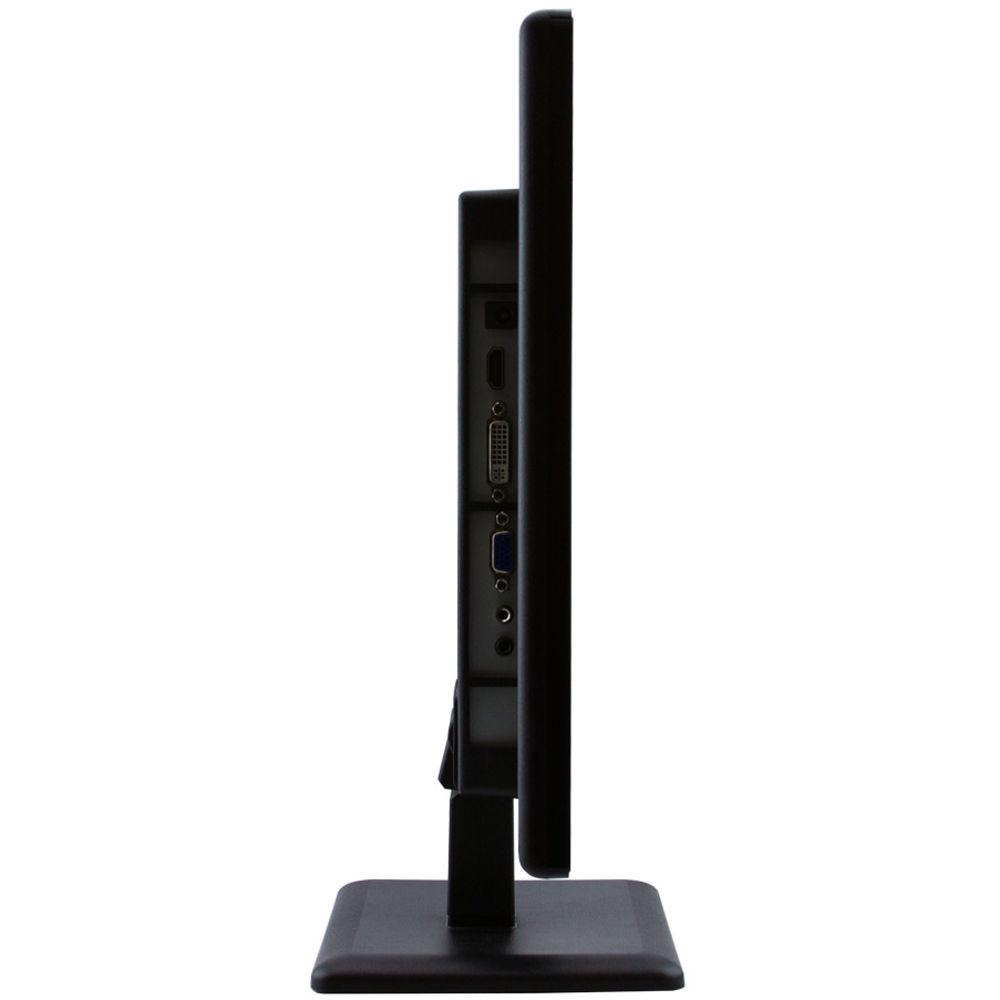

Product description The 23.6" Economic LED CCTV Monitor from ViewZ displays images at a maximum resolution of 1920 x 1080 @ 60 Hz. It offers a brightness rating of 300 cd/m2 and contrast ratio of 1000:1. The monitor features 1 HDMI, 1 DVI, and 1 VGA inputs, and 1 audio input/output. This 23.6" CCTV monitor can be wall, ceiling, or rack mounted using the VESA mount on the rear. - Offers maximum resolution of 1920 x 1080 @ 60 Hz
- HDMI, DVI, and VGA inputs
UPC: 815562020027 In the Box ViewZ 23.6" Economic LED CCTV Monitor Limited 3-Year Warranty Brochure PDF 325.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ 23.6" Economic LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-24CME Specs | Screen Size | 23.6" | | Resolution | Maximum: 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.2767 x 0.2767 mm | | Brightness | 300 cd/m2 (typical) | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 170° / 160° | | Display Colors | 16.7 million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency (H) | 30 to 80 kHz | | Frequency (V) | 56 to 75 Hz | | Interface | 1 x HDMI in
1 x DVI in
1 x VGA In (15-pin D-Sub)
1 x Audio in / out | | Built-in Speaker | 2 x 2.5 W | | Language | English, Deutsch, French, Spanish, Italian | | Mounting | VESA (75 x 75 mm) | | Power | Electrical Ratings: 12 VDC, 3 A (100 to 240 VAC, 50/60 Hz)
Consumption: ≤ 28 W | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Humidity | 20 to 70% RH | | Regulations | FCC(A), CE, Energy Star, WEEE | | Dimensions (W x H x D) | 22.38 x 16.49 x 1.61" (568.56 x 352.49 x 41 mm) | | Weight | 8.81 lb (4 kg) |
