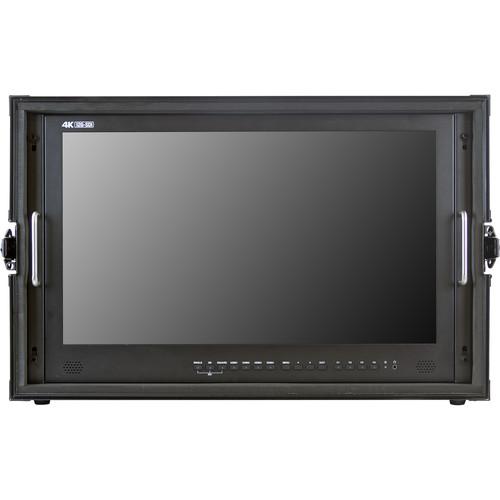

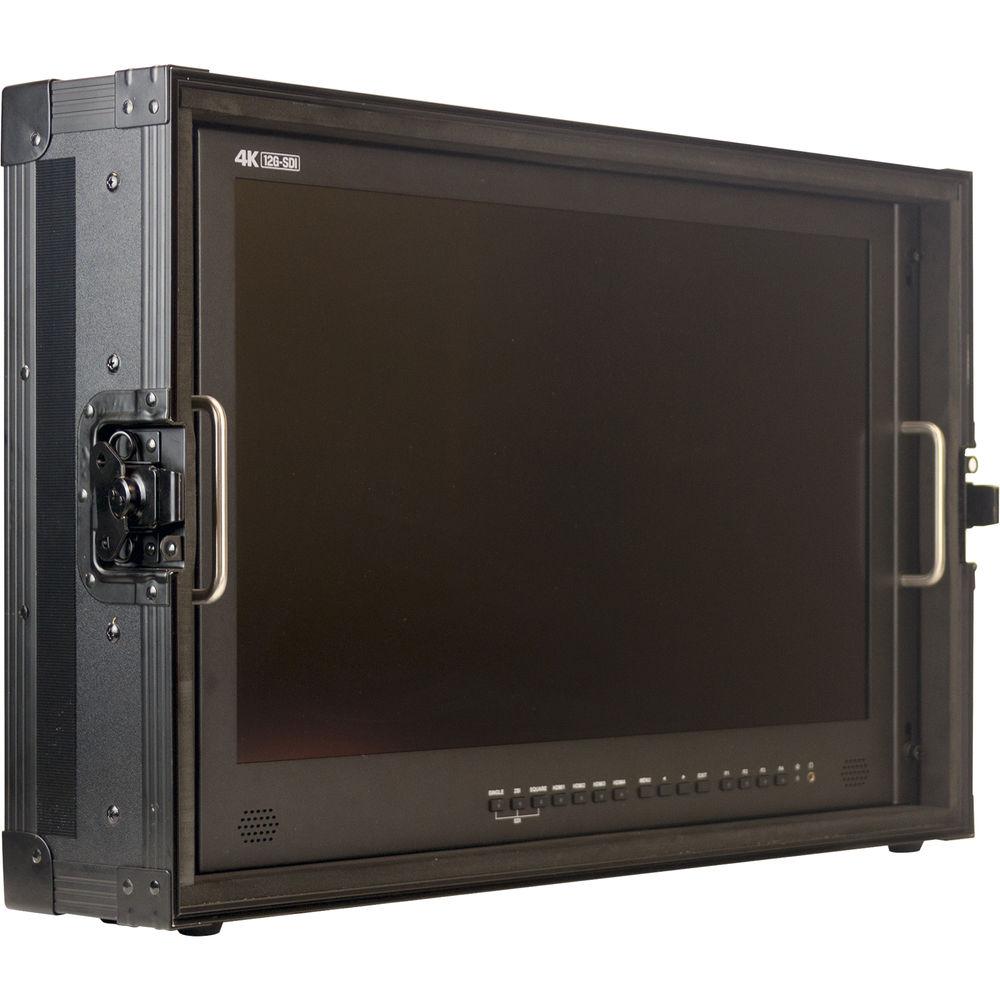

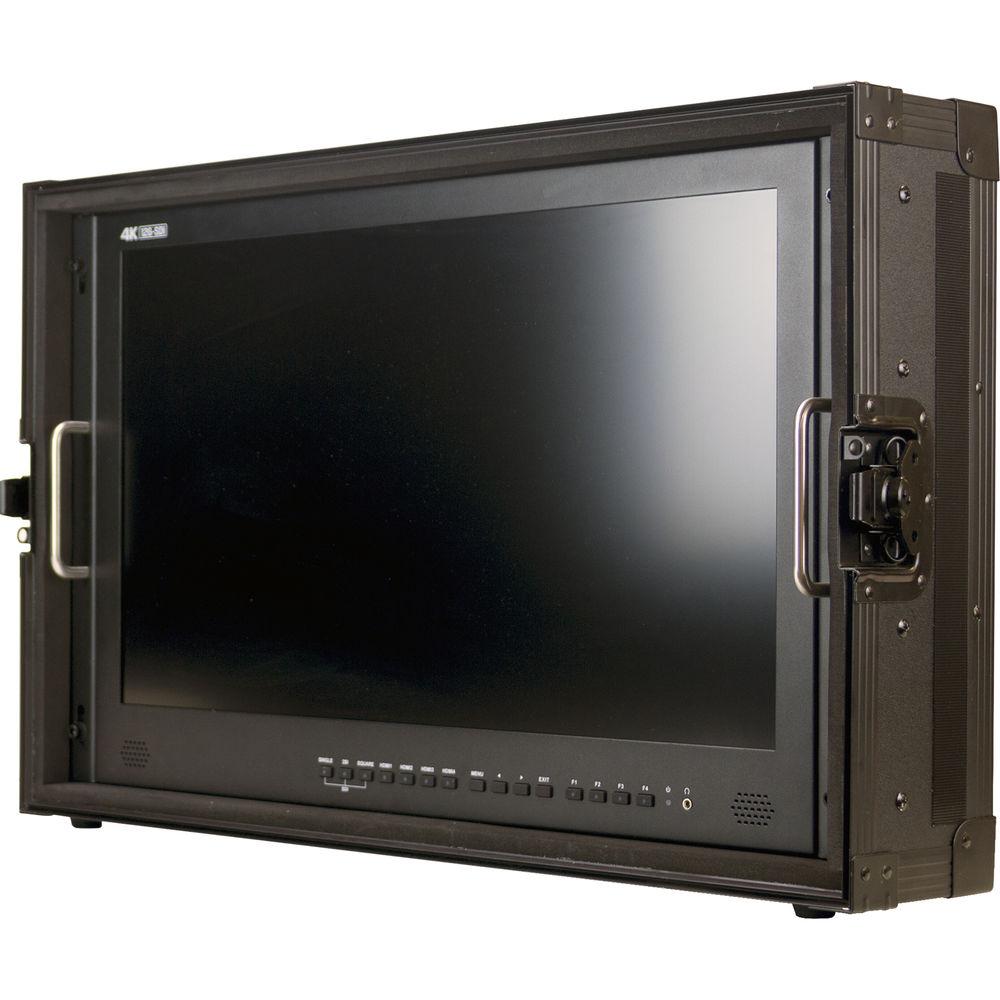

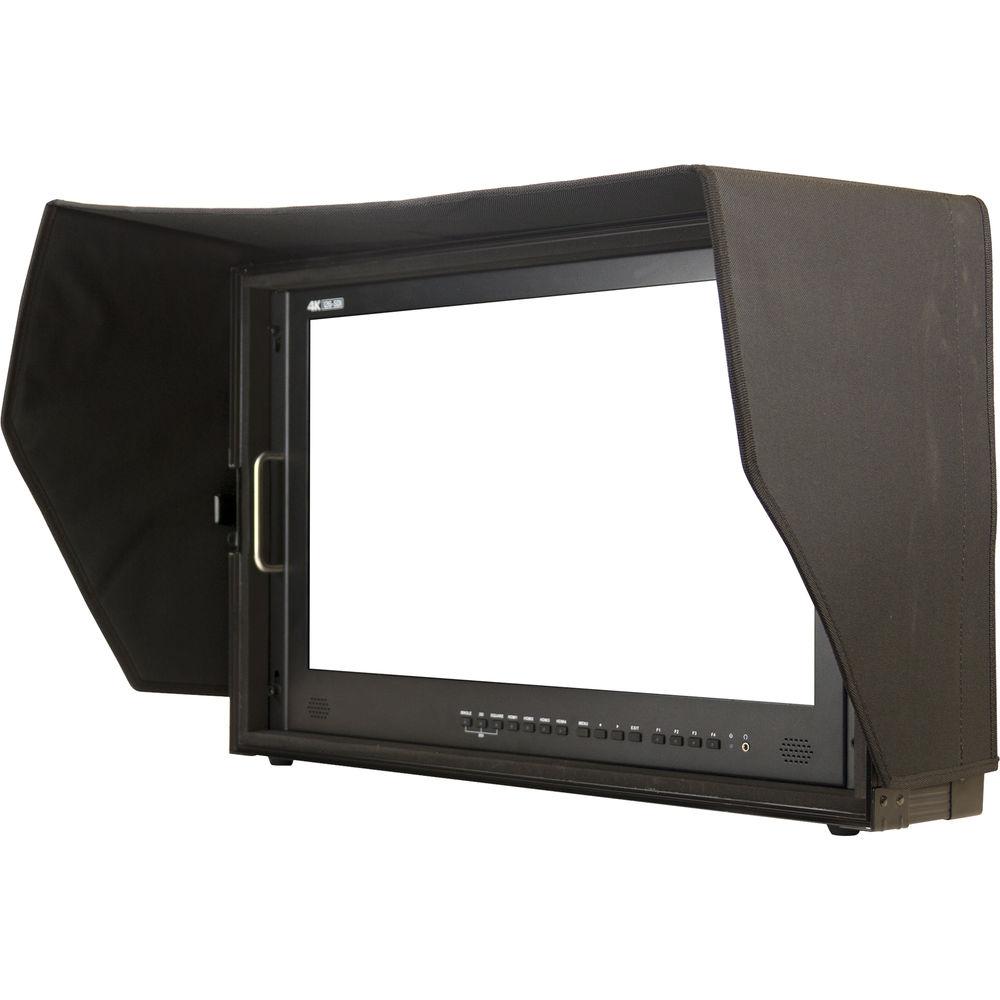

Product description The 23.8" DCI 4K 12G-SDI Broadcast Monitor from ViewZ supports 12G-SDI, 6G-SDI, 3G-SDI (Level A, DL-B, and DS-B), HD-SDI, SD-SDI, and HDMI input, making it a versatile choice for 4K filmmaking and photography. With a 16:9 aspect ratio and 300:1 contrast ratio, the IPS LCD panel displays 4K and Full HD images, and it also supports NTSC and PAL SD resolutions.
The 3840 x 2160 monitor can input up to 4096 x 2160 at 60 fps via two 12G-SDI, two 3G-SDI, or four HDMI inputs. The SDI loop-through function allows you to output up to 12G-SDI to other compatible devices. 3D LUTs are also supported for color calibration such as gamma, gamut, and color temperature. The monitor has four user-definable buttons and supports features such as markers, pixel-to-pixel, overscan, audio meter, rotate, mirror, peaking, freeze, H/V delay, and false color.

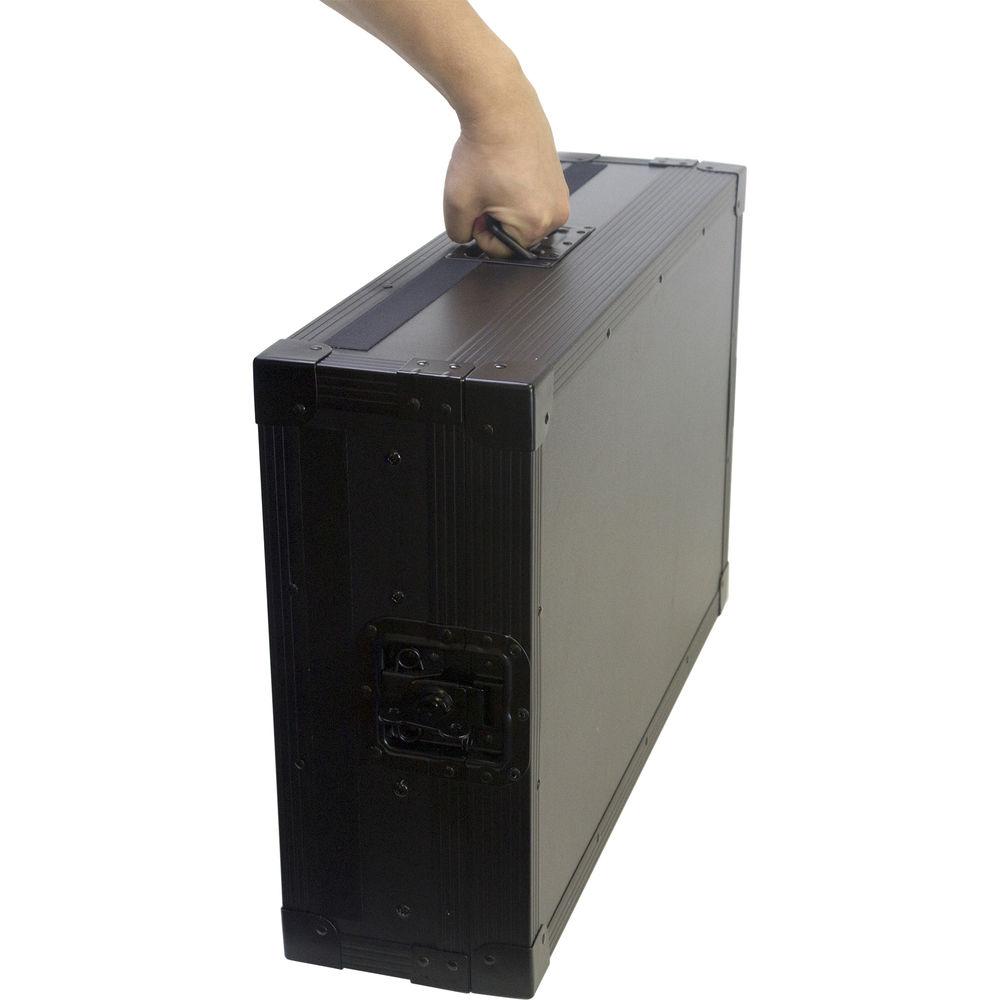

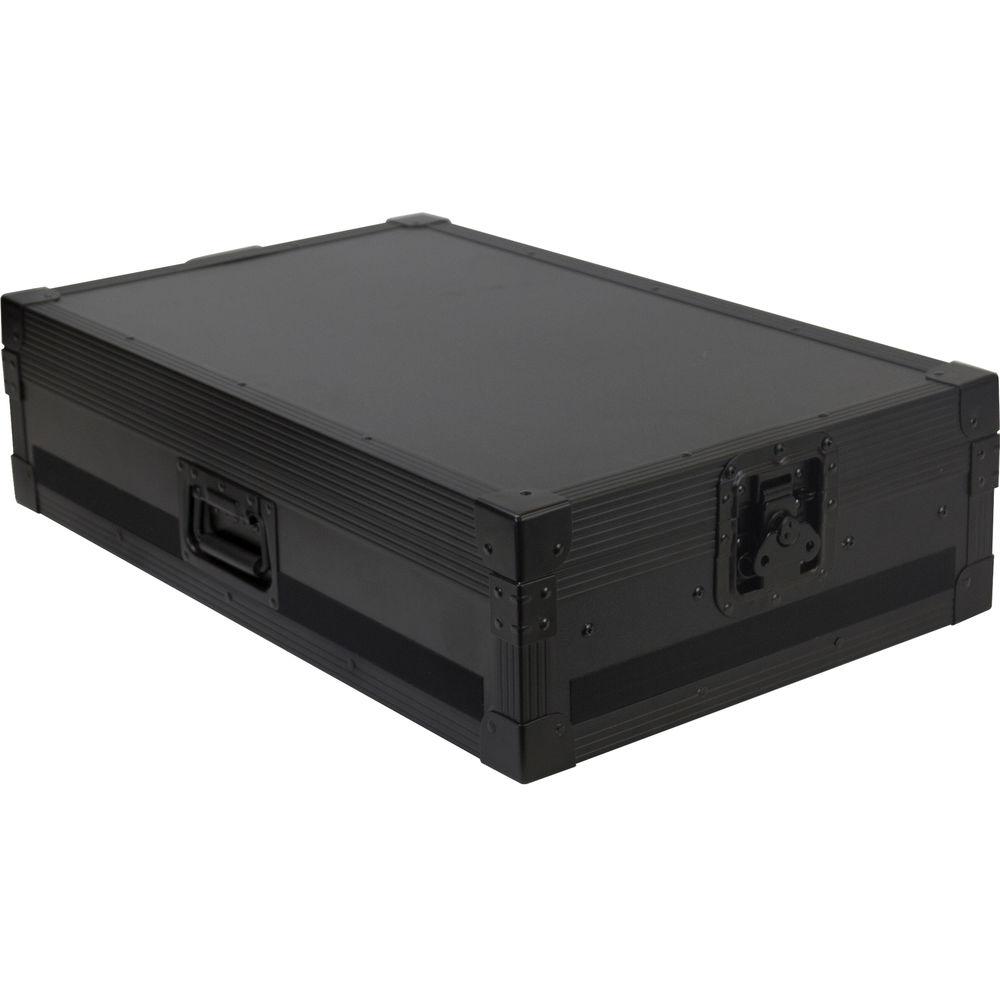

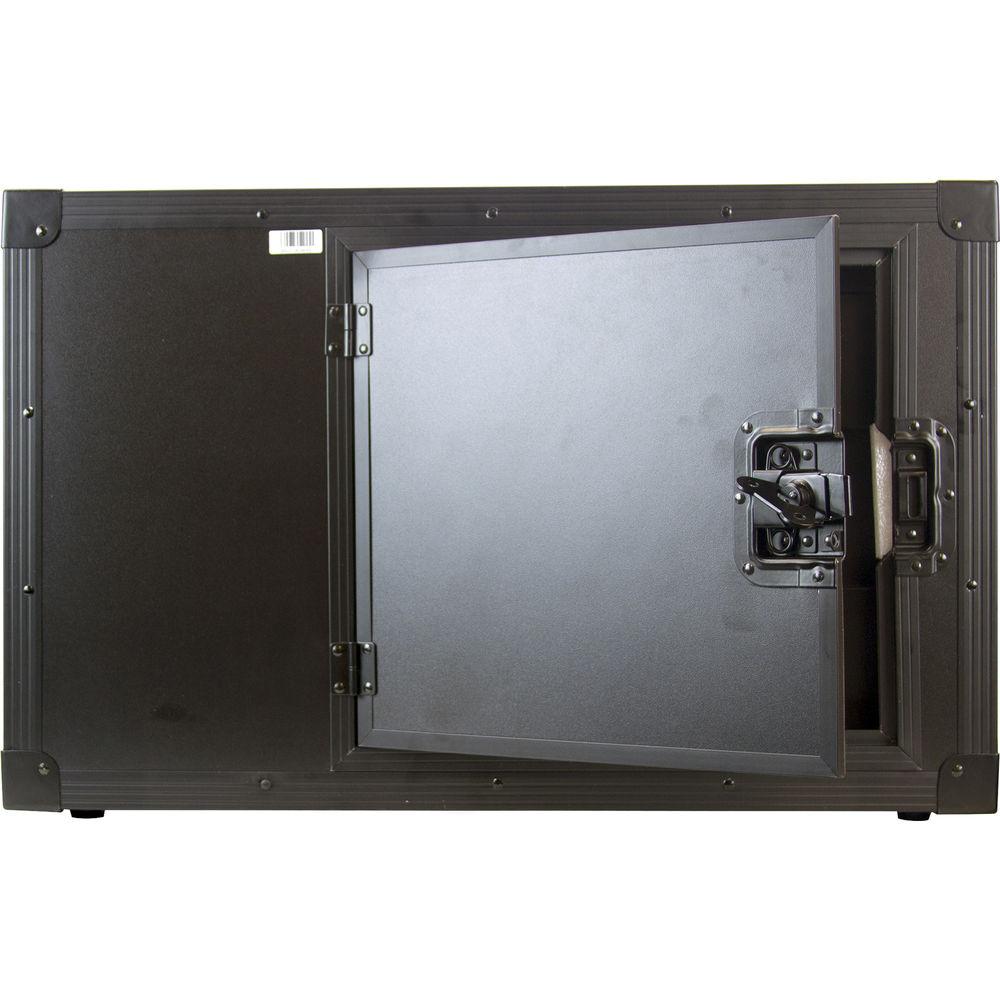

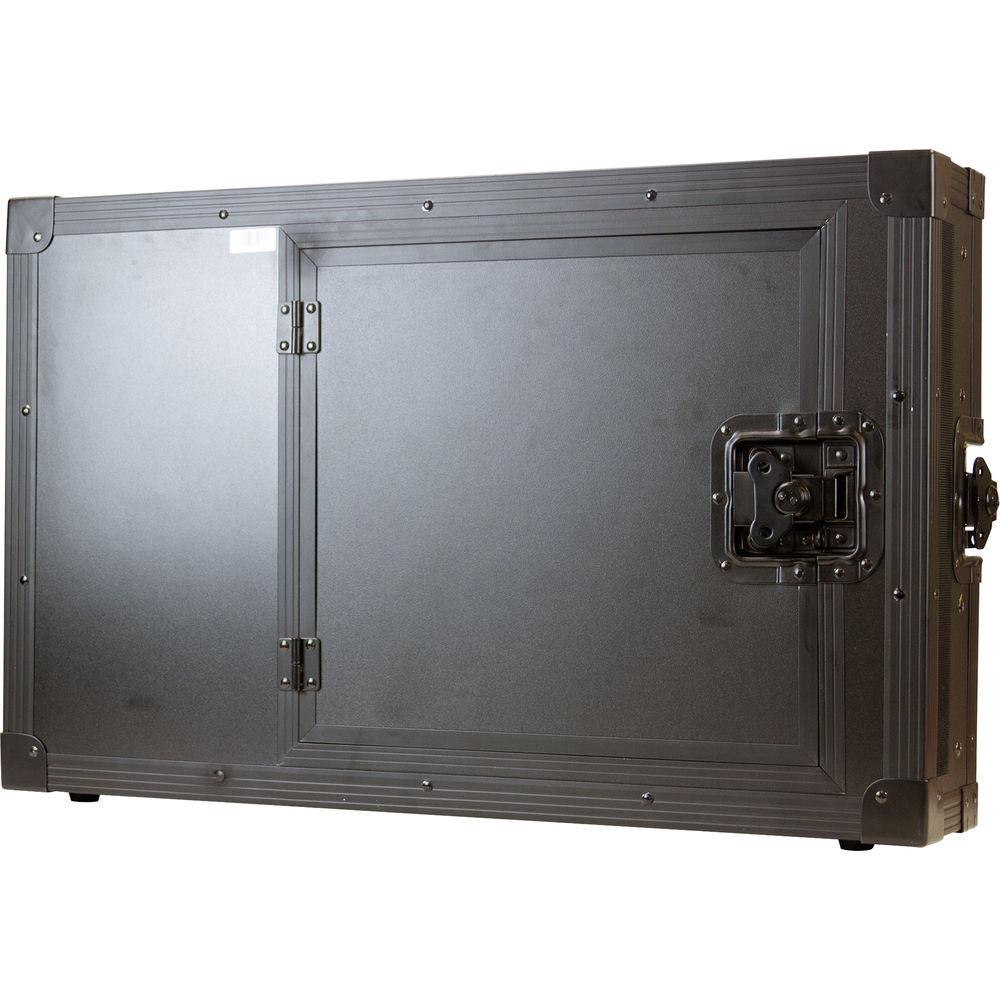

The monitor can be mounted onto the included adjustable table stand and carried in the included aluminum carry case. Also included with the monitor are a V-Mount battery plate, a sun hood, a 4-pin XLR cable, a DB-9 tally cable, a 15 VDC power adapter, and a belt to secure the power adapter. - 23.8" IPS LCD broadcast field monitor with a maximum resolution of UHD 4K, supported input up to DCI 4K, a brightness of 300 cd/m², and a contrast ratio of 1000:1
- SDI and HDMI inputs and SDI loop outputs that support 12G-SDI, DL-6G, 6G-SDI, 2SI-3G, SQ-HD, 2SI DL-3G, SQ DL-3G, SQ-3G, DL 3G-SDI-Level B, 3G-SDI Level A, and analog input; 12-bit to 8-bit processing
- Features include markers, color temperature settings, pixel-to-pixel, overscan, audio meter, rotate, mirror, peaking, freeze, H/V delay, and false color
- 3D LUT Cube file support, value control calibration for gamut, gamma, and color temperature; custom 3D LUTs can be loaded via the USB port
- Four user-definable control buttons, built-in 1W stereo speakers, tally input with red and green mode
- Supports full 12G- and 3G-SDI input signal conversion transparency from SDI to SDI with test and measurement overlays
- The monitor is powered by a 15 VDC 4-pin XLR cable and an aluminum carry case is included
In the Box ViewZ 23.8" DCI 4K 12G-SDI Broadcast Monitor Desktop Stand V-Mount Battery Bracket Sun Hood 15 VDC Power Adapter Adapter Belt Tally Cable Aluminum Carry Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ 23.8" DCI 4K 12G-SDI Broadcast Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-238PM-12G Specs | | | Panel Type | IPS-Type LCD | | Display Size | 23.8" / 60.5 cm | | Screen Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Touchscreen | No | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.13725 x 0.13725 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Real-Time LUT Monitoring | SDR | | Image Controls | Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 2 x BNC (12G-SDI) Input
2 x BNC (12G-SDI) Output
2 x BNC (3G-SDI) Input

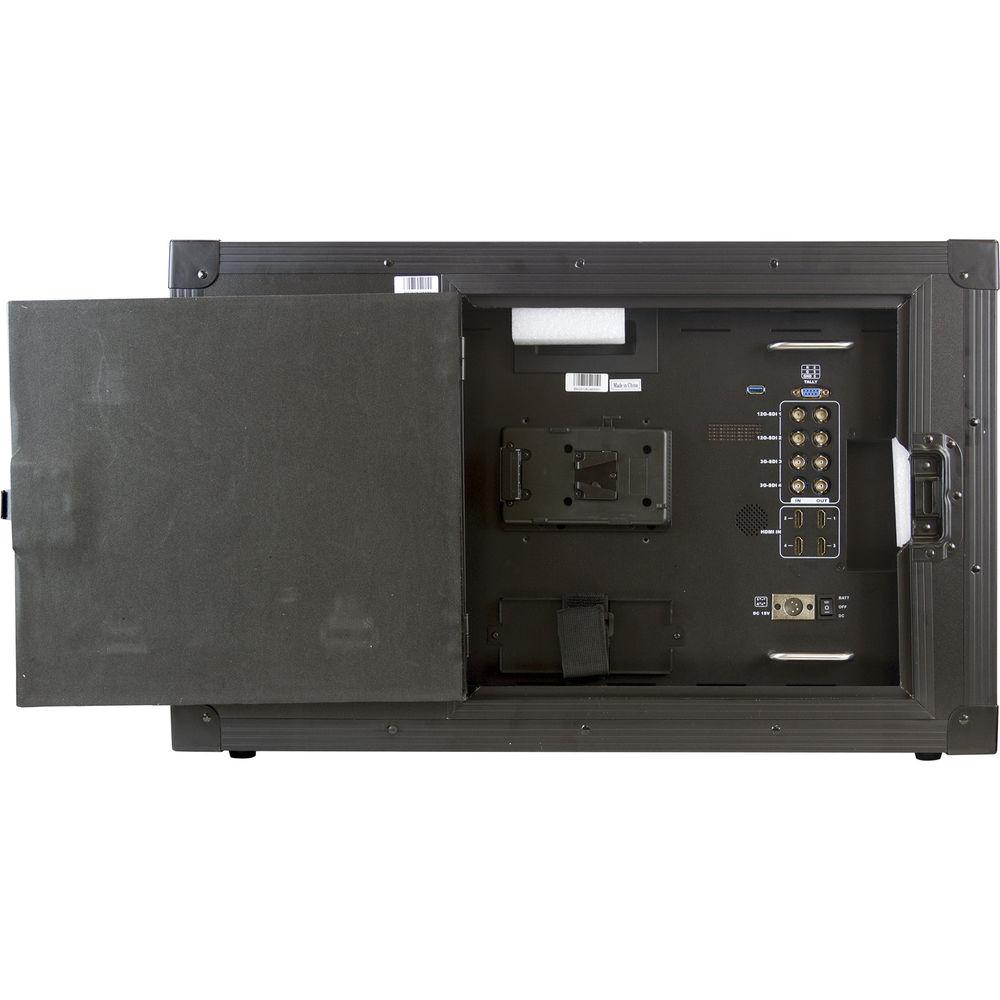

2 x BNC (3G-SDI) Output
4 x HDMI Type A (HDMI 1.4) Input | | Embedded Audio | SDI: 16-Channel
HDMI: 16-Channel | | Audio | None | | Built-In Speaker | 2 x 1 W | | Power | 1 x 4-Pin XLR (15 VDC) Input | | Other I/O | 1 x Tally (DE-9/DB-9)
1 x USB 2.0 (USB Type-A) | | Card Slot | None | | | | Video Format | SDI (8/12-Bit 4:4:4/4:2:2)
DCI 4K: 60/59.94/50/48/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/48/30/29.97/25/24/23.98
DCI 2K: 60/59.94/50/48
1080p: 60/59.94/50/48/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
PAL
NTSC
HDMI (8/12-Bit 4:4:4/4:2:2)
DCI 2K
1080p
720p | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 24 VDC | | Battery Type | 1 x V-Mount | | Power Consumption | 34 W (Maximum) | | | | Operating Humidity | 90% | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Storage Temperature | -4 to 140°F / -20 to 60°C |
