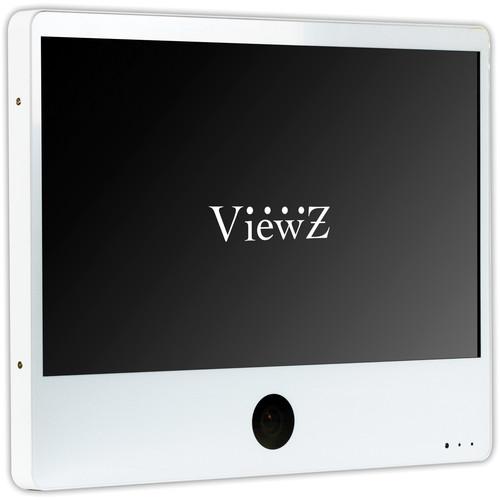

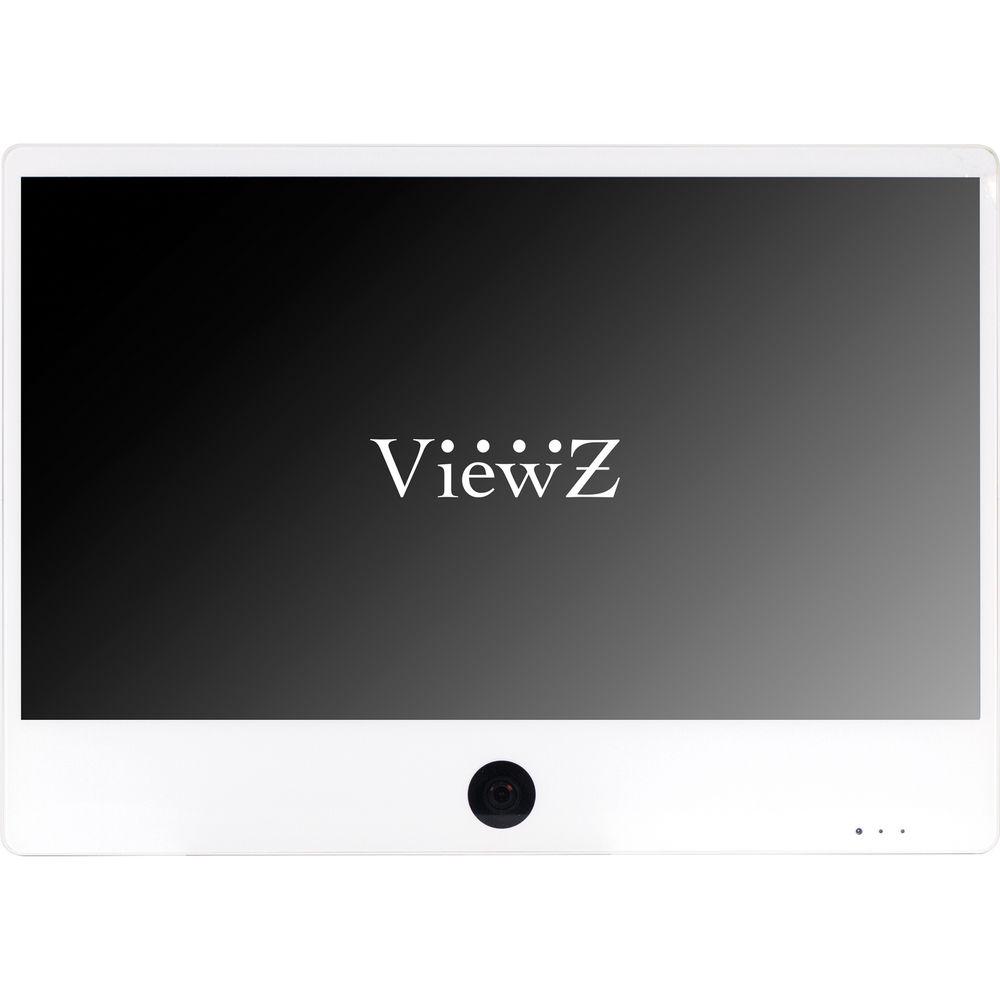

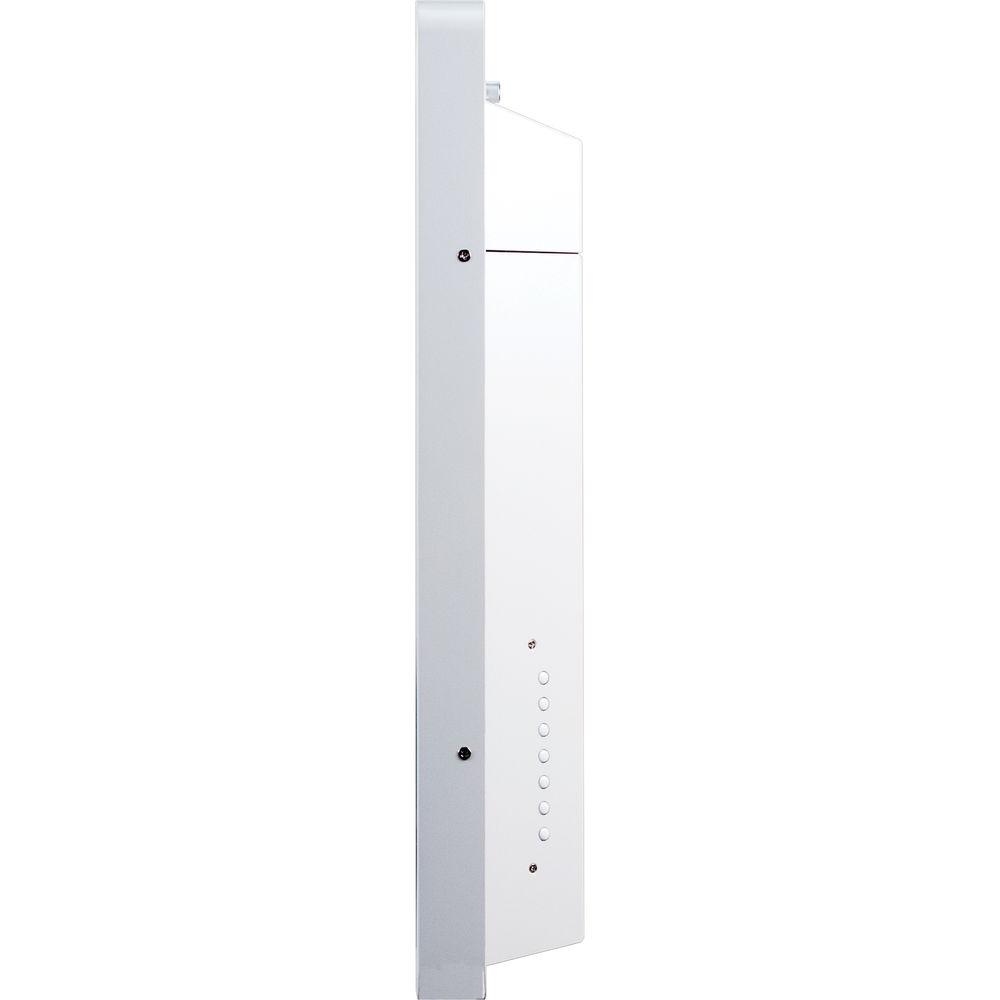

Product description Increase theft prevention in your establishment with this 23" IP Public View Monitor with Ethernet, in white, from ViewZ. Featuring a built-in 1080p camera and 1080p display, it provides a sharp contrast to the low resolution displays commonly found in stores. By comparatively enhancing your image, it highly increases the rate of deterrence success. Additionally, featuring an Ethernet port, it also allows you to output 1080p to an optional NVR for recording, so altogether you get 1080p capture, 1080p display, and 1080p output.
You can also output to a DVR or other device for recording via a composite output connector, but at the lower resolution of 720 x 480. The monitor can also be used as a media signage display. You can upload video, photo, and audio files via USB flash drives or SD cards for playback at 720 x 576 resolution. A speaker output is available for audio playback.
The built-in camera features a varifocal lens adjustable between 3.6mm - 16mm and has wide dynamic range (WDR) capability. WDR balances between the bright and dark aspects of the captured image and eliminates shadows and other unwanted effects. - Key Features
-
- Full HD deterrence solution for retail establishments
- 1080p capture, display, and output to an optional NVR for recording
- Digital signage playback via optional USB drives and SD cards
- 3.6mm - 16mm varifocal lens
- Wide dynamic range (WDR) capability
- Multi-display functions: PIP, PBP, VOV

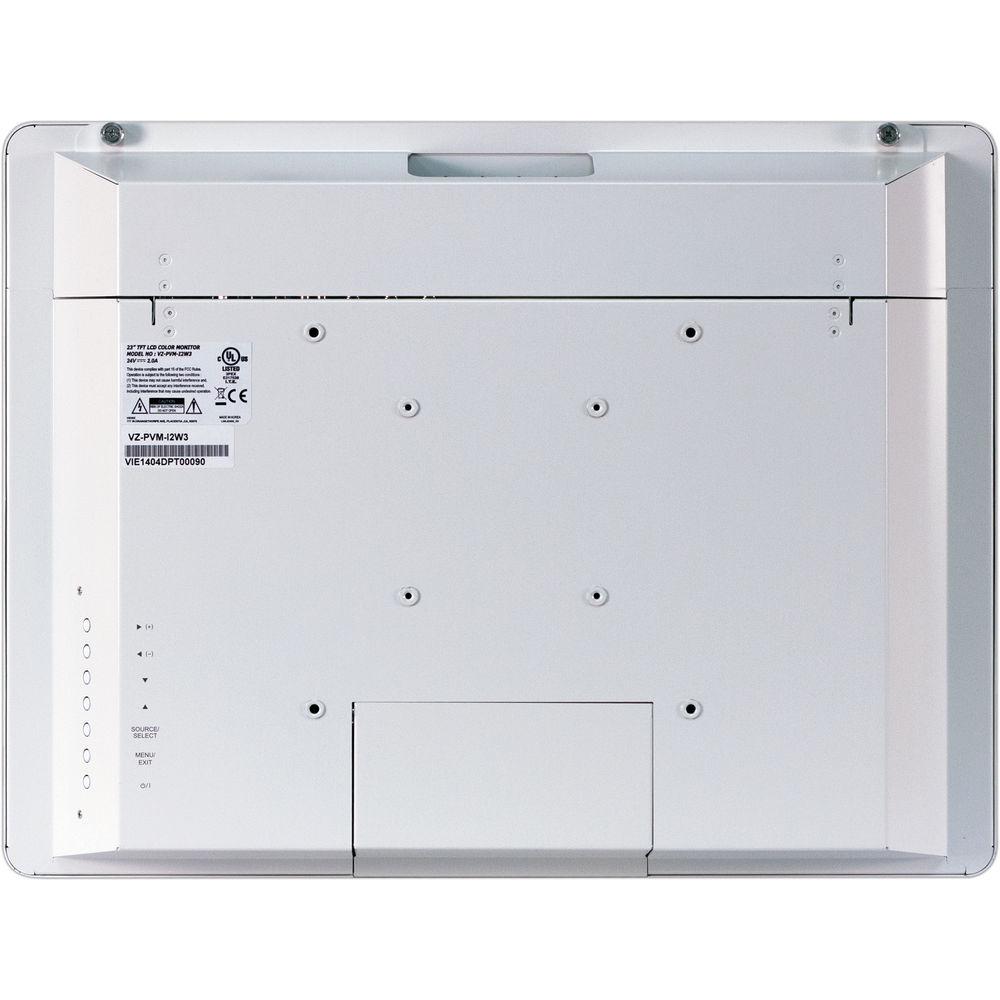

- VESA 200mm x 200mm wall mount
- Supported ViewZ Mounts
-
- VZ-AM02 and VZ-WM50 wall mounts
- VZ-CMK01, VZ-CMK02, and VZ-CMK03 ceiling mounts
In the Box ViewZ 23" IP Public View Monitor with Ethernet (White) 110V AC Power Cord Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ 23" IP Public View Monitor with Ethernet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

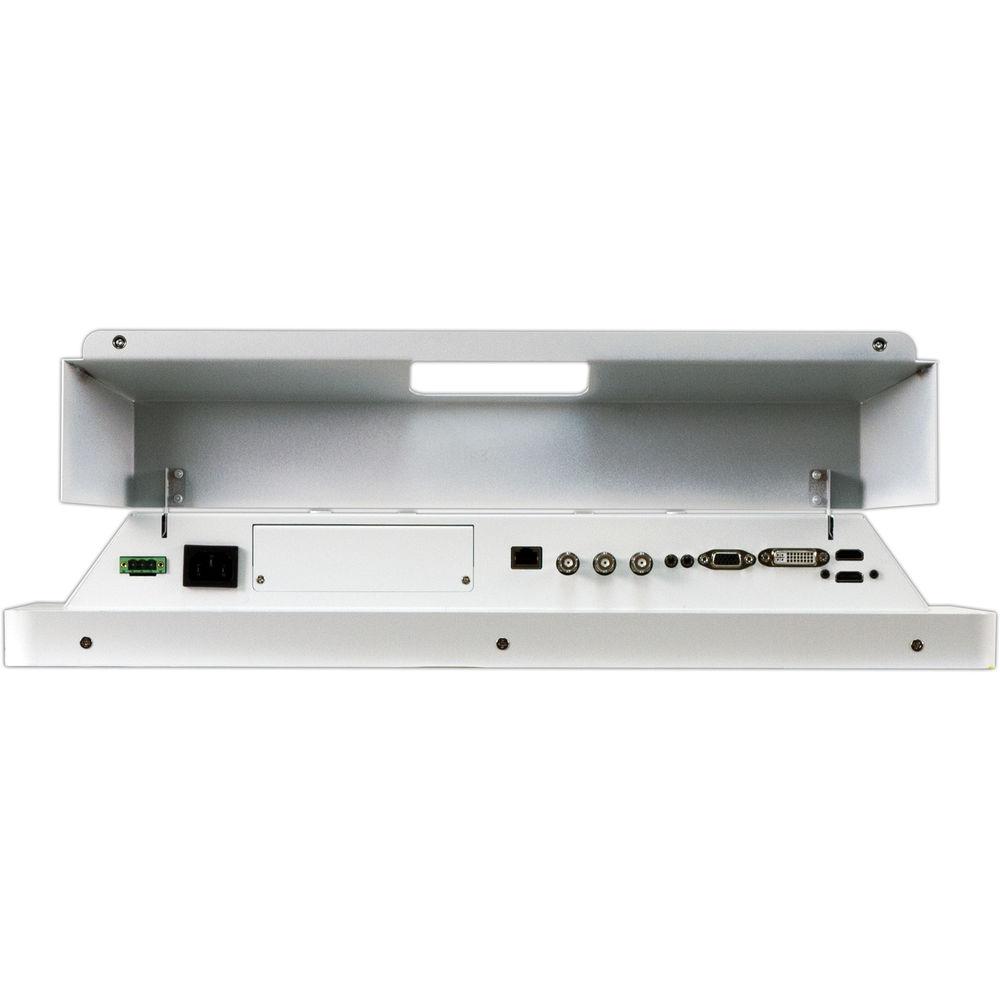

Technical parametersViewZ VZ-PVM-I2W3 Specs | Screen Size | 23" (58 cm) | | Maximum Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.265 x 0.2655 mm | | Brightness | 250 cd/m² (Typical) | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle | 160°/160° | | Display Colors | 16.7 million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency | 31 - 80 KHz / 56 - 75 Hz | | Inputs | 1x Composite on BNC
1x DVI
1x HDMI
1x VGA
1x PC stereo | | Outputs | 1x Composite on BNC
1x Composite camera out on BNC (at 720 x 480)
1x Speaker out | | Filter Type | 3D Comb-filter / De-Interlace | | Video Resolution | 600 TV Lines (max) | | Languages | English, Dutch, French, German, Italian, Portuguese, Spanish | | VESA Mount | 200 x 200 mm | | Compatible ViewZ Mounts | Wall: VZ-AM02, VZ-WM50
Ceiling: VZ-CMK01, VZ-CMK02, VZ-CMK03 | | Camera | Megapixel IP Camera
Panasonic 2.1 Megapixel CMOS image sensor
DC Auto Iris 3.6 - 16 mm varifocal lens
1920 x 1080p/30 resolution/frame rate
Video Compression: H.264 CBR, VBR support
1x RJ-45 output, 10/100Base-T
Web Client Protocol: TCP/IP
Support Protocol: IPv4, TCP/IP, ARP, HTTP, SMTP, FTP, DHCP, RTP, RTSP, PPPoE
Function: 2D/3DNR, FRC, D-ZOOM, DPC, CI, LSC, HLC/BLC, Defog
Motion detection support | | Media Support | Supports media playback via (at 720 x 576 resolution):
USB port (supporting USB 2.0 and 1.1 flash drives up to 32 GB)
SD card slot (supporting SD/MMC/MS/XD cards up to 64 GB)
Supported File Formats: MPEG1, MPEG4, JPEG, BMP, GIF, PNG, MP3
512 MB NAND flash internal memory for firmware | | Power | Dual Voltage:
Electrical Ratings: 110 V AC (50/60 Hz) / 24 V DC
Consumption: 0.6 A (66 W) / 2.8 A (66 W) | | MTBF | Approx. 50,000 hours | | Regulations | TUV-NRTL (=UL), FCC(A) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 21 x 16.2 x 3.3" (53 x 41 x 8.4 cm) | | Weight | 22 lb (10 kg) | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 28.0 x 23.0 x 8.0" |
