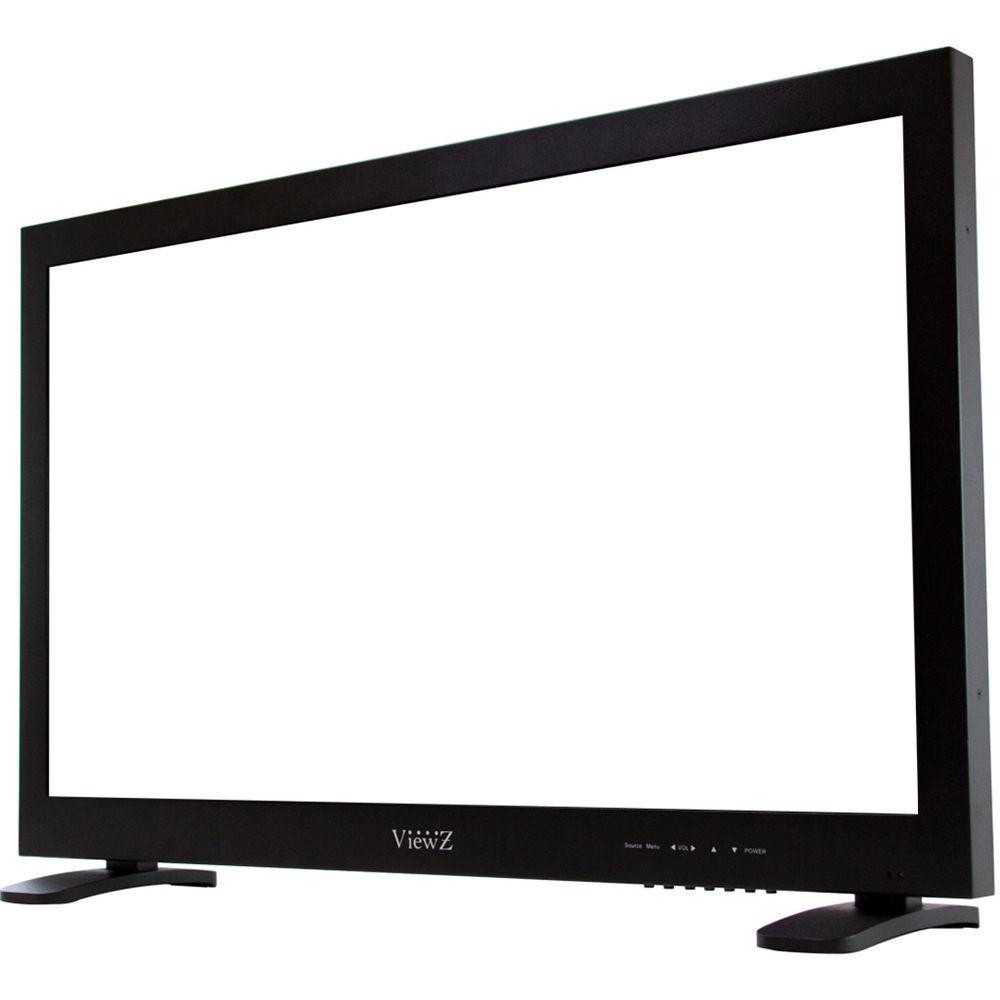

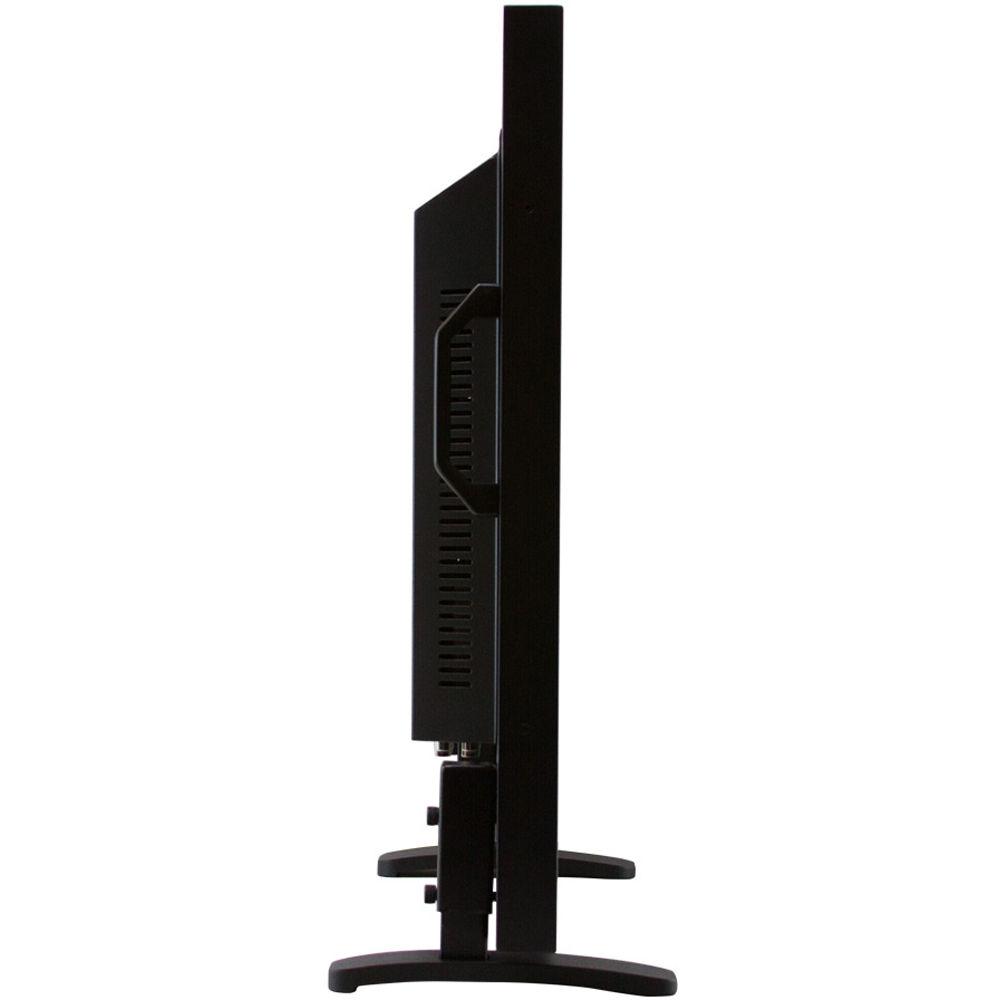

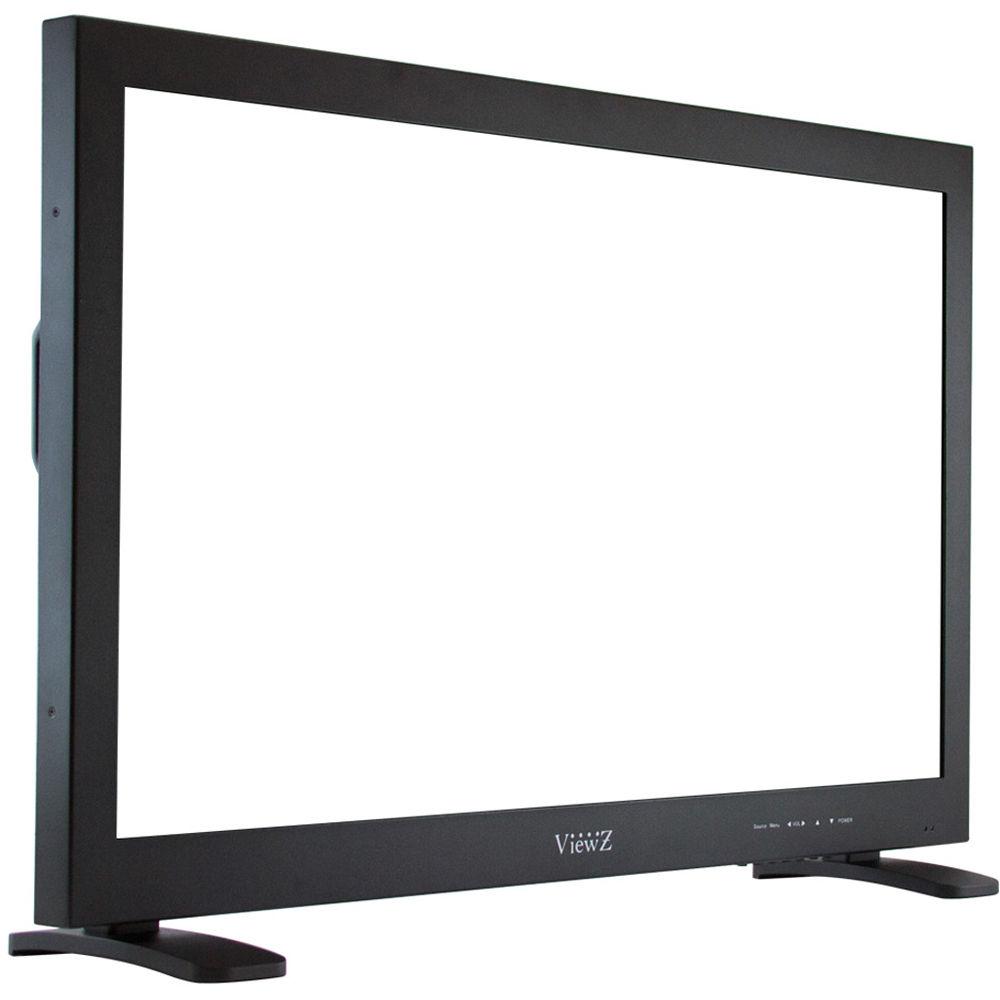

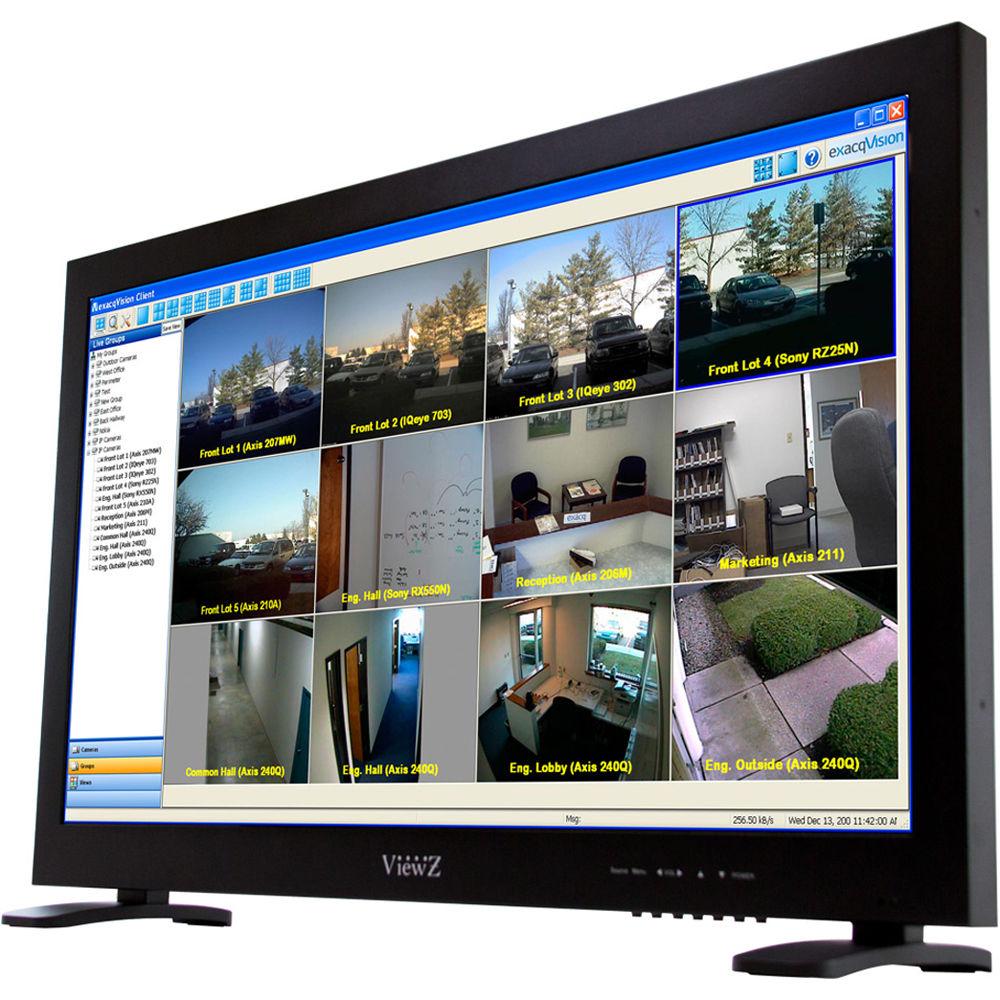

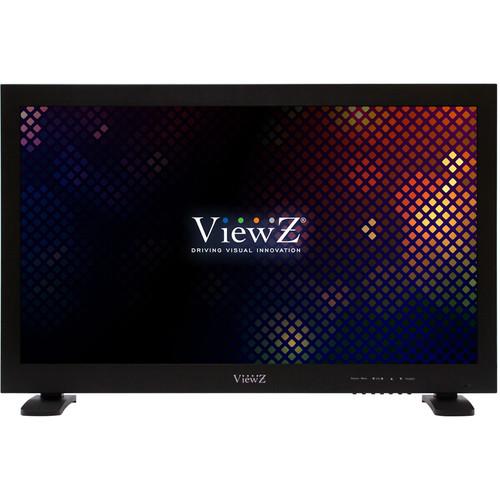

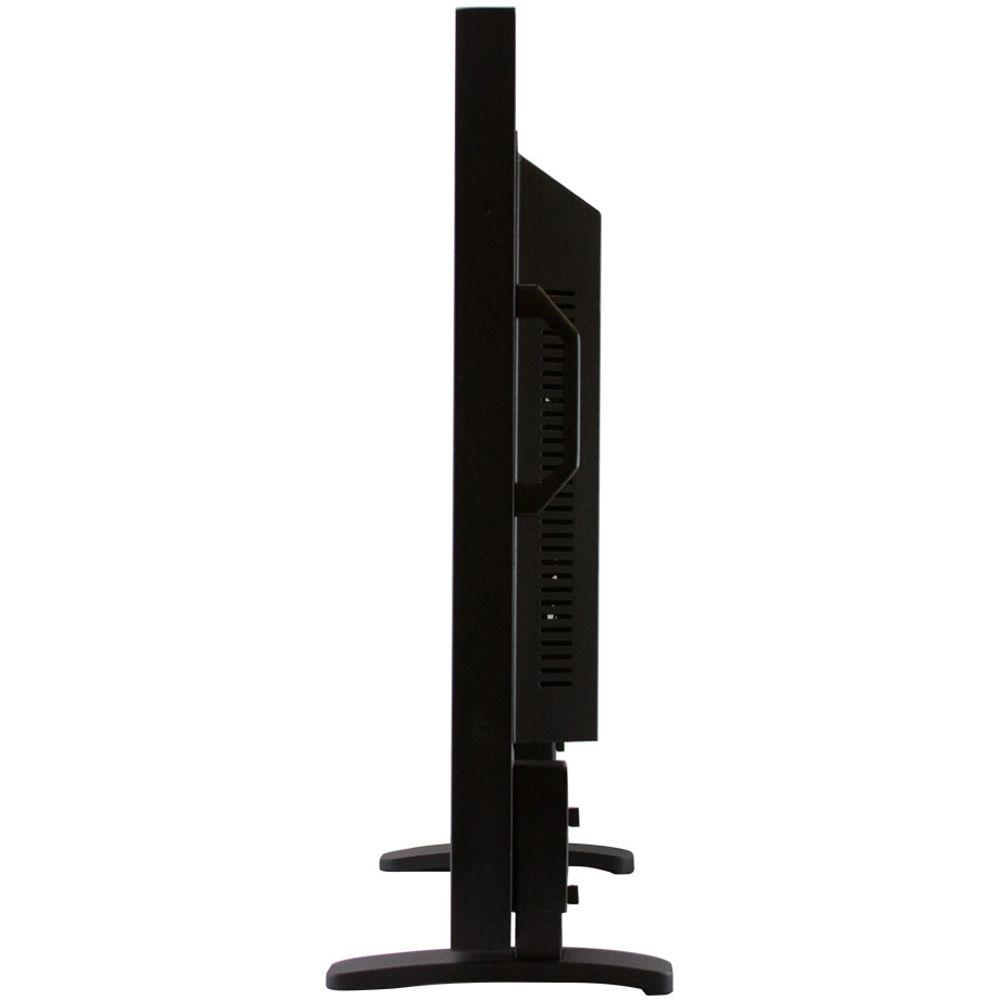

Product description The VZ-27LX Premium 1080p LED CCTV Monitor from ViewZ features a 27" LED panel with 1920 x 1080 resolution and 16:9 aspect ratio. The maximum analog video resolution supported by this monitor is 600 TVL. With a wide horizontal viewing angle of 170°;, the Premium Full HD LED CCTV monitor ensures no color deviation or distortion from virtually any angle. Additionally, the built-in 3D comb filter and de-interlace features help improve image quality. -
- 27” 1080p CCTV LED Monitor
- Built-in speakers

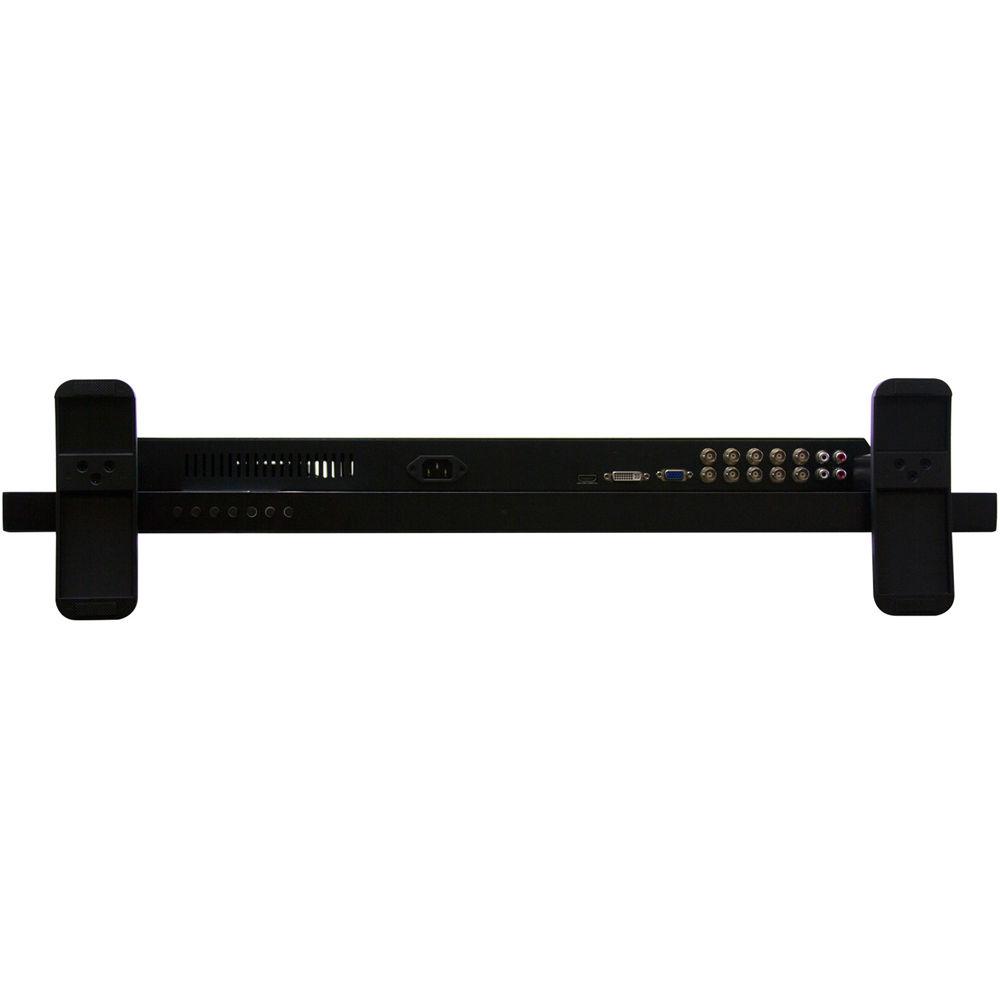

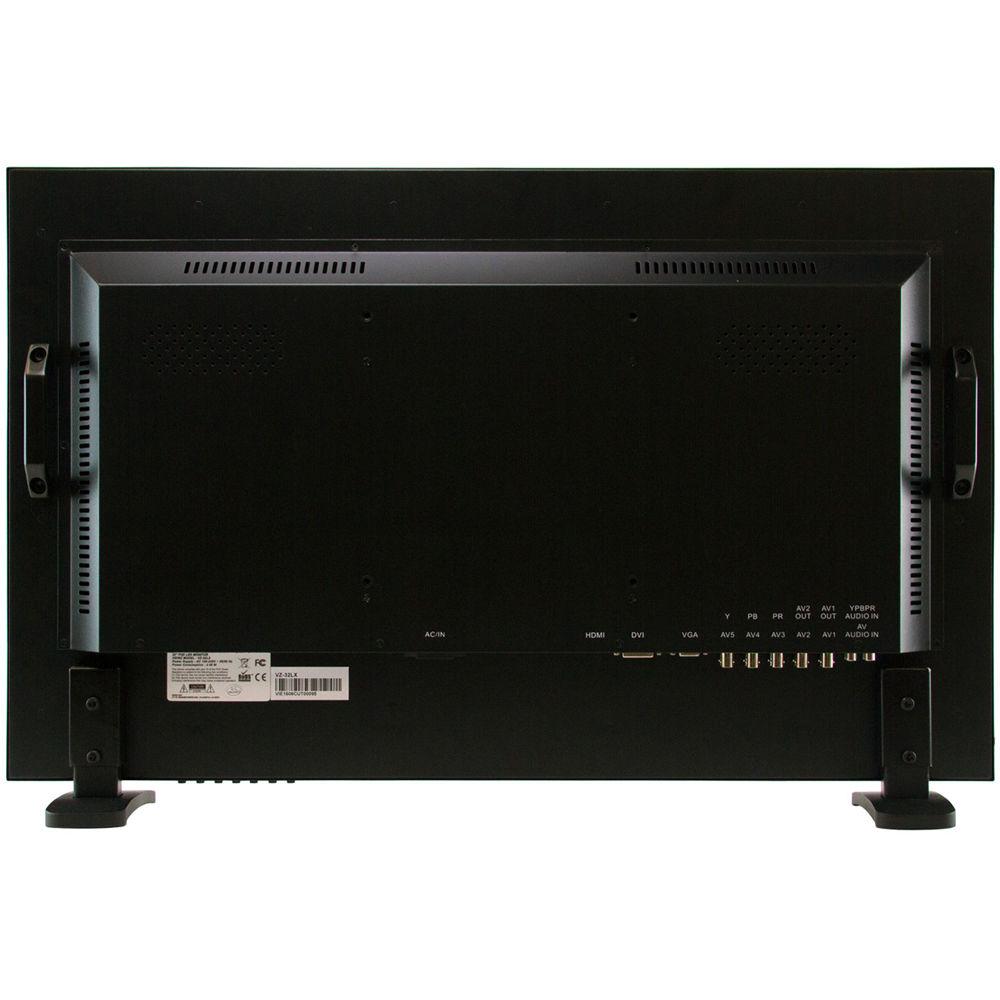

- Digital and analog inputs; BNC loop-through out, YPbPr, VGA, HDMI, and DVI
- Image retention feature prevents pixel burn-in
- Supports PiP, PBP / Auto Source, and Power Recovery
- Supports image rotation
- Equipped with trigger sensor
UPC: 815562020270 In the Box ViewZ 27" VZ-27LX Premium 1080p LED CCTV Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ 27" VZ-27LX Premium 1080p LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-27LX Specs | | | Screen Size | 27" (69 cm) | | Maximum Resolution | 1920 x 1080 at 60 Hz | | Pixel Pitch | 0.012 x 0.012" (0.311 x 0.311 mm) | | Brightness | 250 cd/m² (typical) | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 170° / 160° (CR > 10) | | Display Color | 16.7 million | | Response Time | < 5 ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 30 to 80 kHz
Vertical: 50 to 75 Hz | | | | VGA | 1 x 15-pin D-sub in | | Composite | 5 x AV in
2 x AV out | | Component | 1 x Y, Pb, Pr in | | DVI | 1 x DVI in | | HDMI | 2 x HDMI in | | RCA | 1 x YPbPr sound (left)
1 x YPbPr sound (right)
AV Sound:
1 x AV sound (left)
1 x AV sound (right) | | | | Maximum Analog Resolution | 600 TVL | | Multi-lingual Language | English, Spanish, French, Russian, Portuguese | | Built-in Speaker | 2 x 5 W | | Display Modes | PiP / PBP | | Filter Type | 3D Comb filter / De-Interlace | | Regulation | CE, FCC (A), ROHS | | Power | 100 to 240 VAC (50 / 60 Hz) | | Power Consumption | ≤40 W | | MTBF | 50,000 hours | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | VESA Mounting | 2.9 x 2.9" (75 x 75 mm)
3.9 x 3.9" (100 x 100 mm)
4 x (M4 x L10) screw hole | | Compatible Mounts | Wall:
VZ-AM02, VZ-WM50
Ceiling:
VZ-CM06, VZ-CM18, VZ-CMKiT-01, VZ-CMKiT-02 | | | | Dimension | 22.40 x 14.46 x 6.29" (56.89 x 36.73 x 15.98 cm) including stand | | Weight | 20.65 lb (9.37 kg) |
