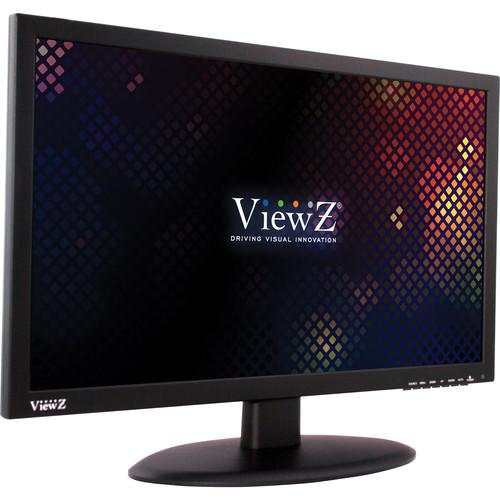

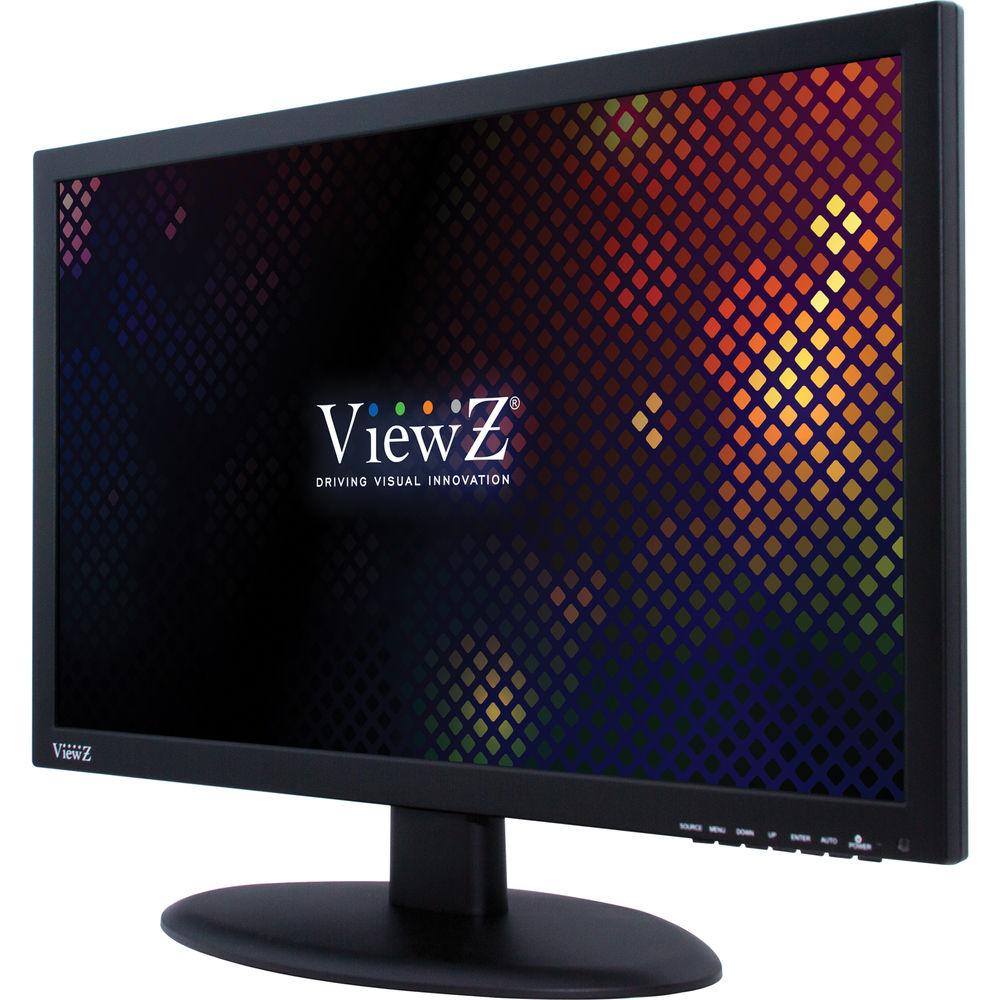

Product description The 3G-SDI Economic LED Video Production Monitor from ViewZ is a 21.5" broadcast production monitor which provides an HD-SDI broadcasing source input with Marker, Audio Level Meter, Safety Area, and Color Calibration at a low cost. This monitor supports 1920 x 1080 resolution and 3G-SDI level A/B. It comes with two built-in speakers, and features blue and mono screen color modes. - 3G SDI level A/B (YCbCr, RGB 4:4:4) Support
- Screen color modes: Blue & Mono
In the Box ViewZ 3G-SDI Economic LED Video Production Monitor (21.5") 110 VAC to 12 VDC Power Adapter 110 VAC Power Cable Limited 2-Year Warranty on Parts Limited 3-Year Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ 3G-SDI Economic LED Video Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

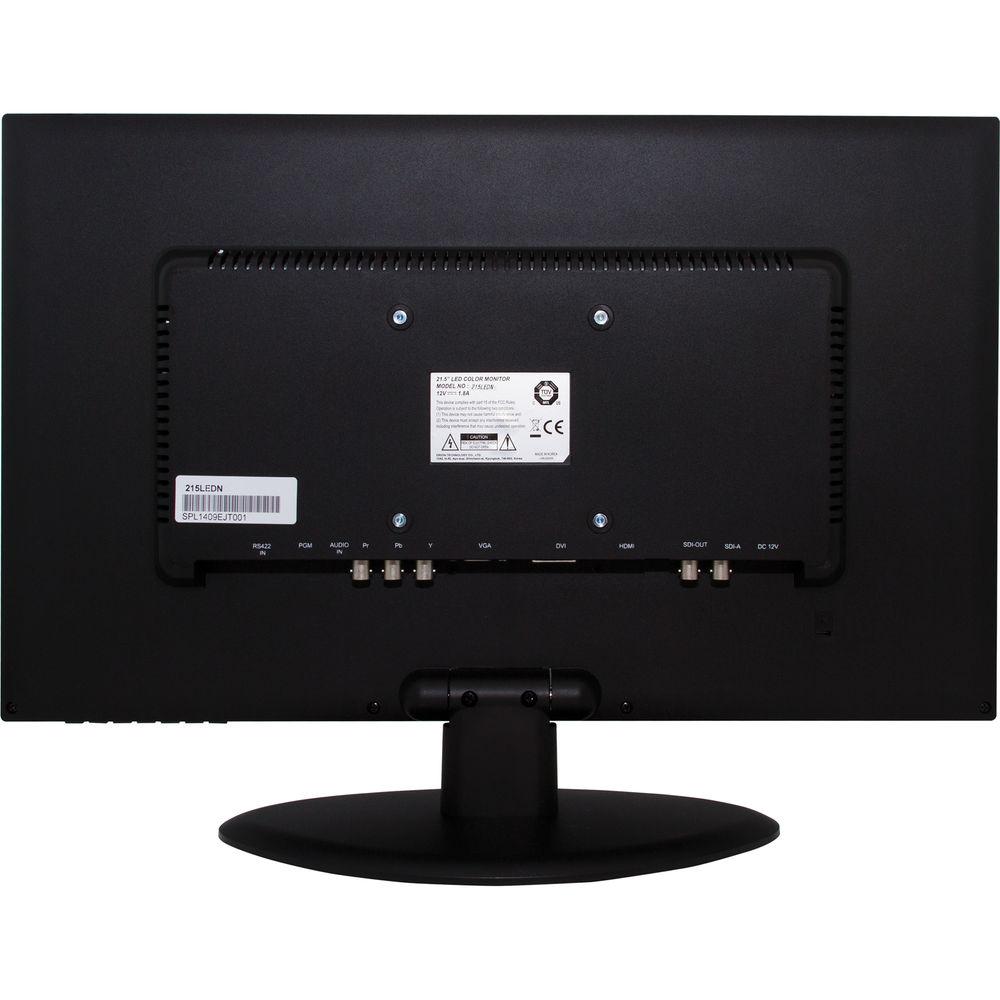

Technical parametersViewZ VZ-215LED-SN Specs | Screen Size | 21.5" (54.6 cm) | | Maximum Resolution | 1920 x 1080 pixel | | Pixel Pitch | 0.24825 x 0.24825 mm | | Brightness | 250 cd/m² (typical) | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 170/160° | | Color Depth | 16.7 million | | Response Time | 5 ms | | Color Temperature | 3200 K, 6500 K, 9300 K, and user settings | | Markers | Line Marker Options: 16:9, 4:3, 4:3 (on air), 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1, 4:3 | | RGB | Gain: -128 to 128
Bias: -50 to 50 | | Video Inputs | 1 x SDI
1 x HDMI
1 x DVI
3 x BNC, component/S-Video/3CVBS
1 x 15-pin Sub-D, VGA
1 x 1/8" phone jack, stereo audio
1 x RJ-45, RS422 remote control
1 x HDMI, PGM port | | Output | SDI, active loop through | | Input Format | SDI:
SMPTE 425M-A (YCbCr 4:2:2): 1080p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE 274M (YCbCr 4:2:2): 1080p (30/29.97/25/24/23.98), 1080i (60/59.94/50) 1080psf (30/29.97/25/24/23.98)
SMPTE 296M (YCbCr 4:2:2): 720p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE 125M (YCbCr 4:2:2): 525i (NTSC 59.94)
ITU-R BT.601 (YCbCr 4:2:2): 625i (PAL 50)
2K Format (YCbCr 4:2:2): 2048 x 1080p (24/23.98/24sF/23.98sF)
Analog Component: 1080p (60/59.94/50/ 30/29.97/25/24/23.98), 1080i (60/59.94/50), 720p (60/59.94/50)
HDMI: 480i/480p/576i/576p/1080i/1080p
DVI: VGA, SVGA, XGA, SXGA, WXGA, WUXGA
VGA: VGA, SVGA, XGA, SXGA, WXGA, WUXGA | | Audio | 2 x built-in 2 W speaker | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power Requirements | 12 VDC (100 - 240 VAC), 50 / 60 Hz | | Power Consumption | Approx. 24 W | | MTBF | Approx. 33,000 h | | Dimensions | 20.3 x 14.6 x 1.8" (51.5 x 37.0 x 4.5 cm) | | Weight | 8.4 lb (3.8 kg) | | | | Package Weight | 11.45 lb | | Box Dimensions (LxWxH) | 22.3 x 16.3 x 5.1" |
