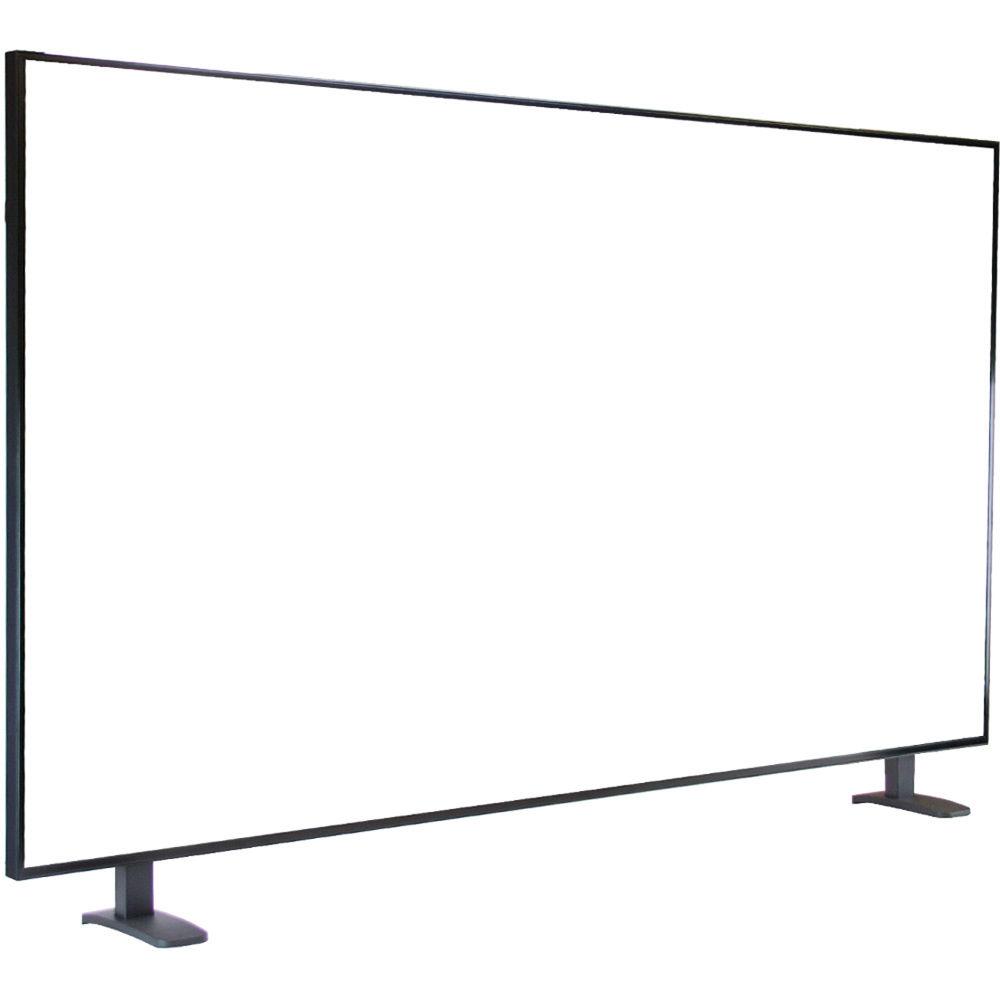

User Manual for ViewZ 65" Quad View 4K UHD LED Monitor Click to enlarge the picture
Contents of the user manual for the ViewZ 65" Quad View 4K UHD
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
 |
User manual for the ViewZ 65" Quad View 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|

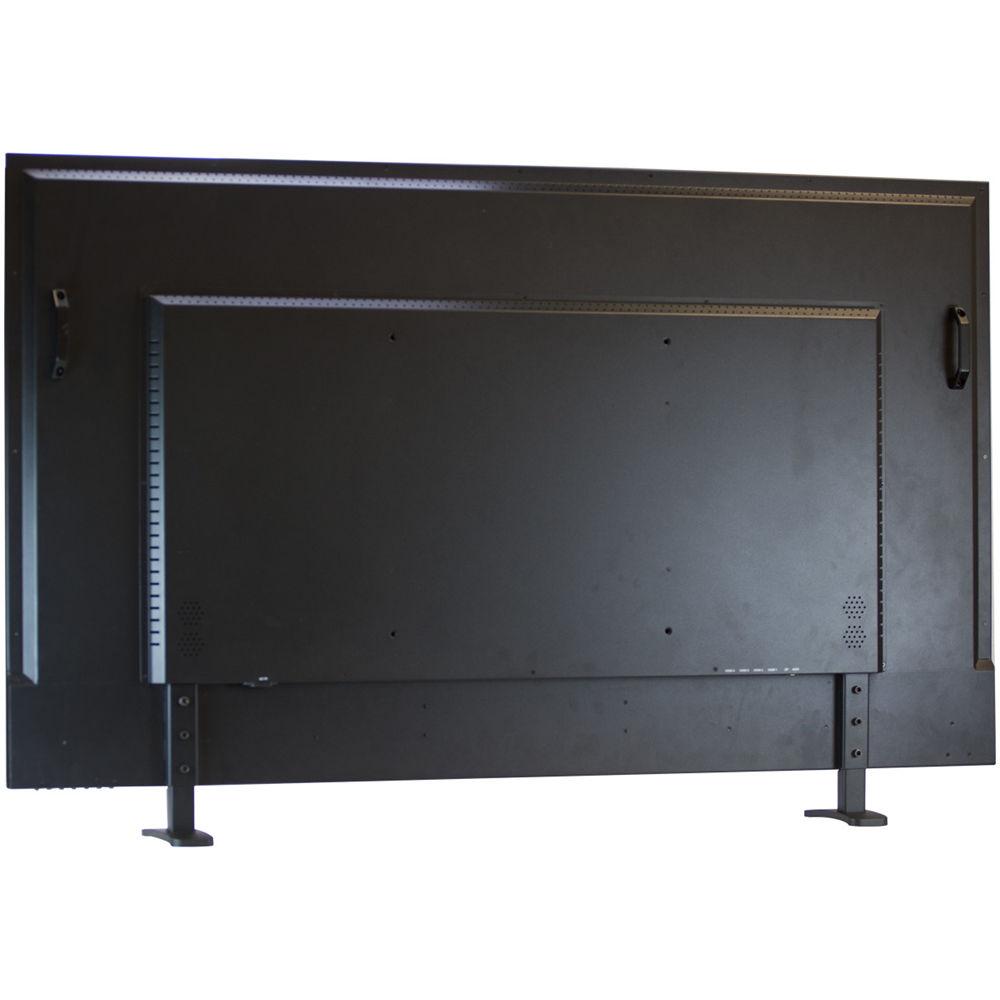

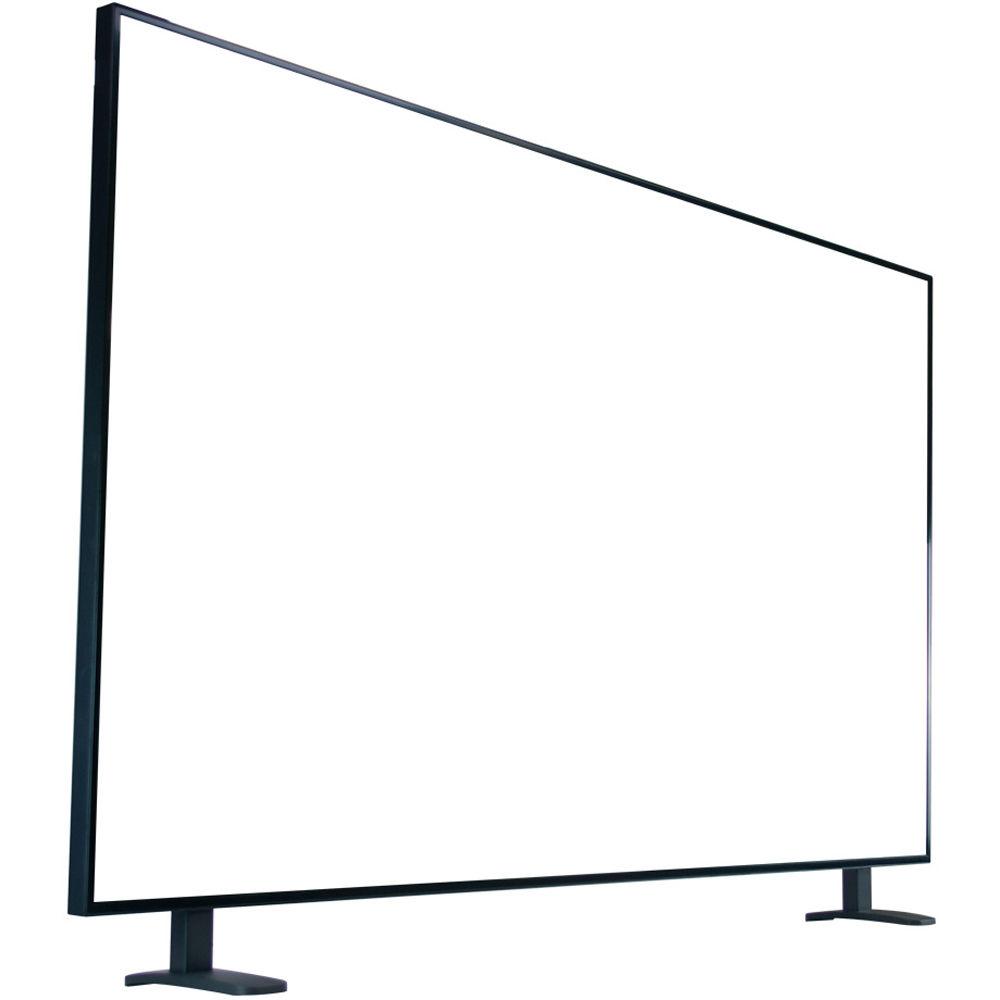

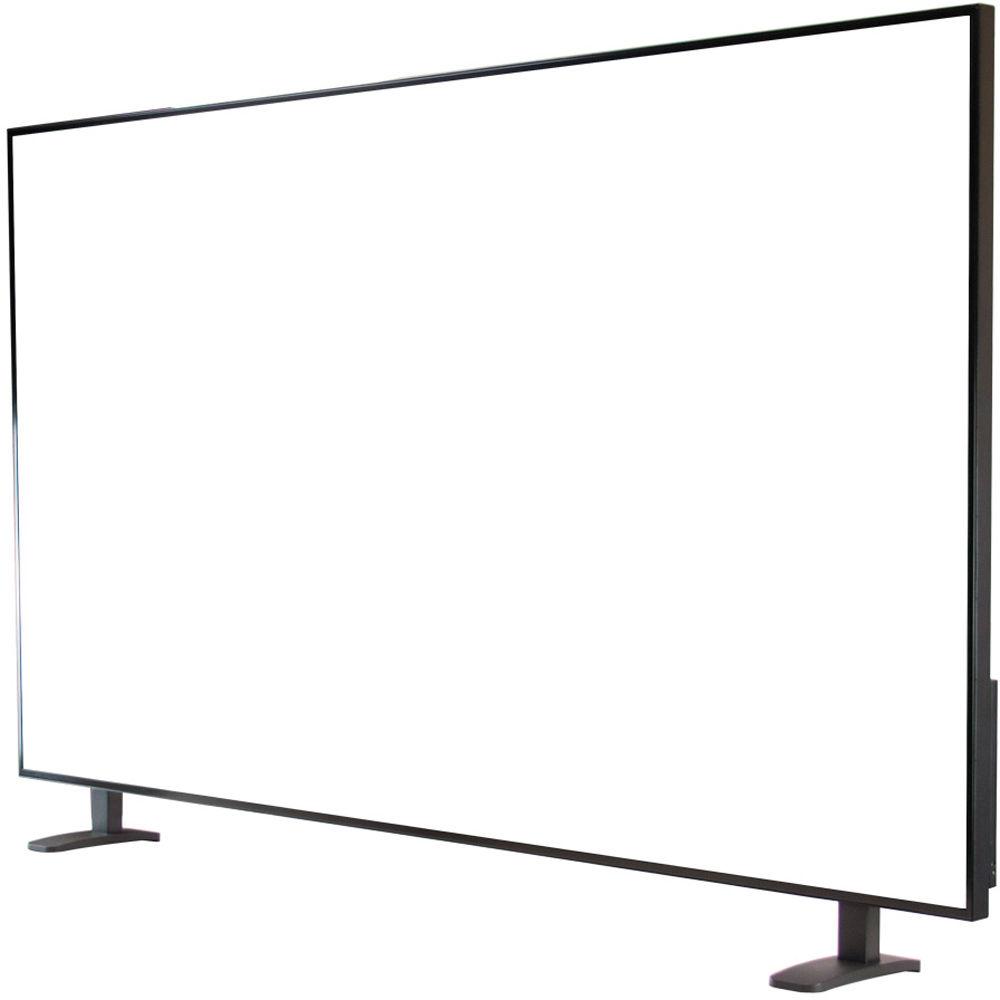

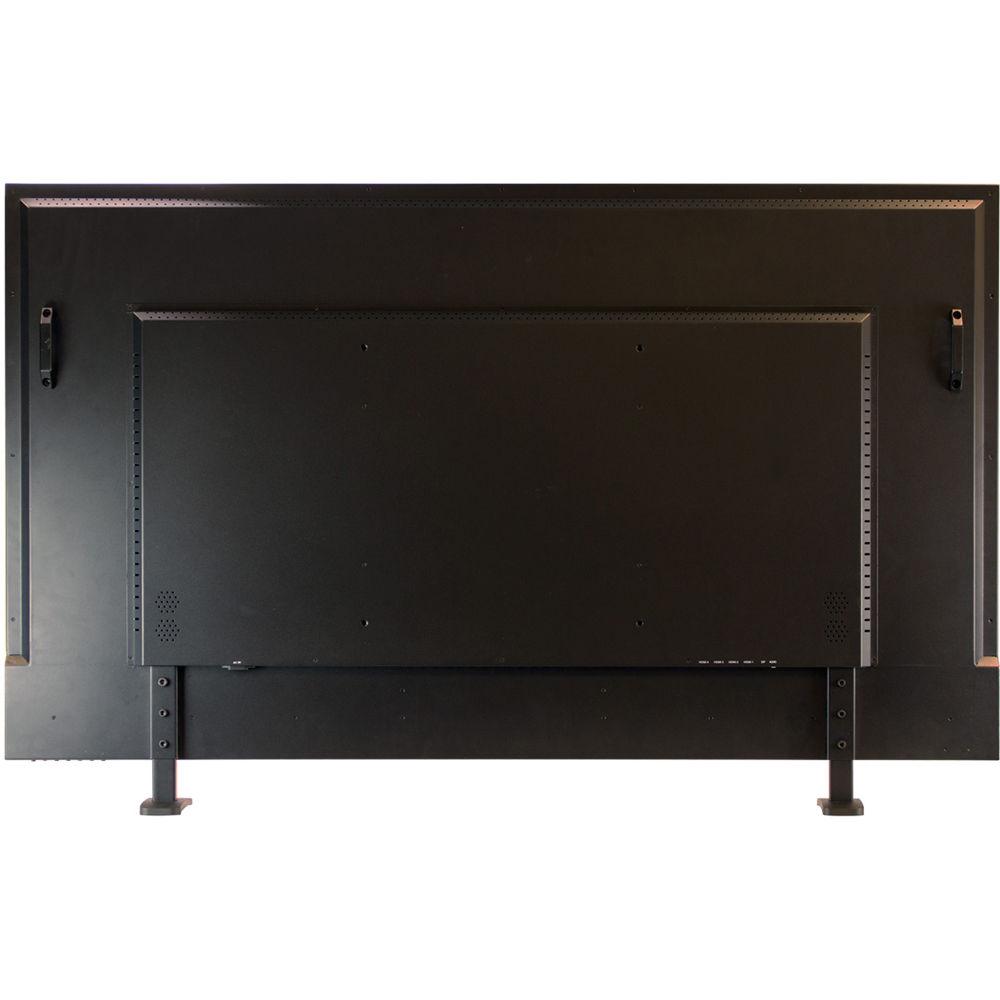

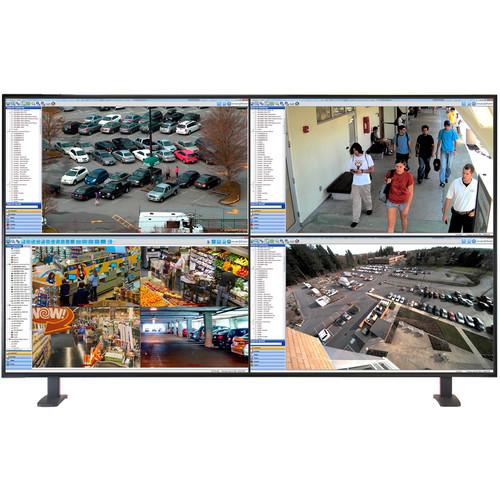

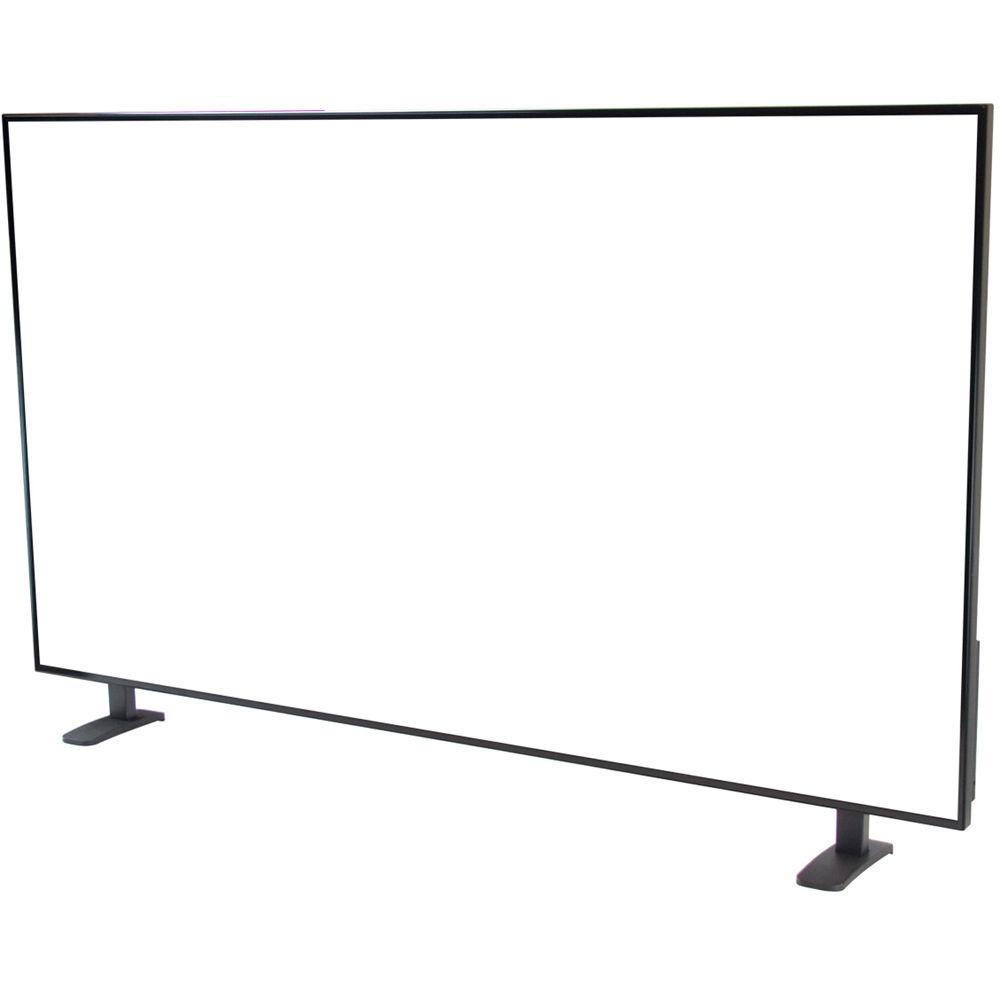

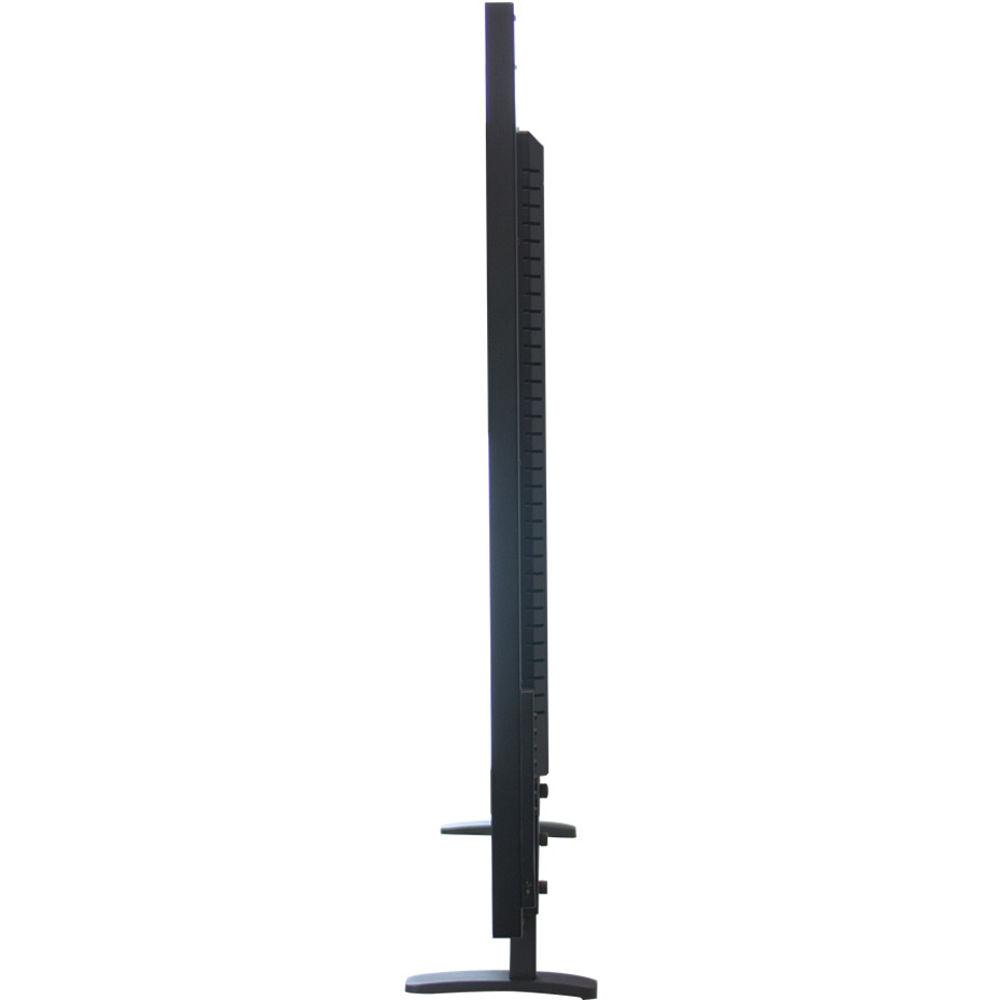

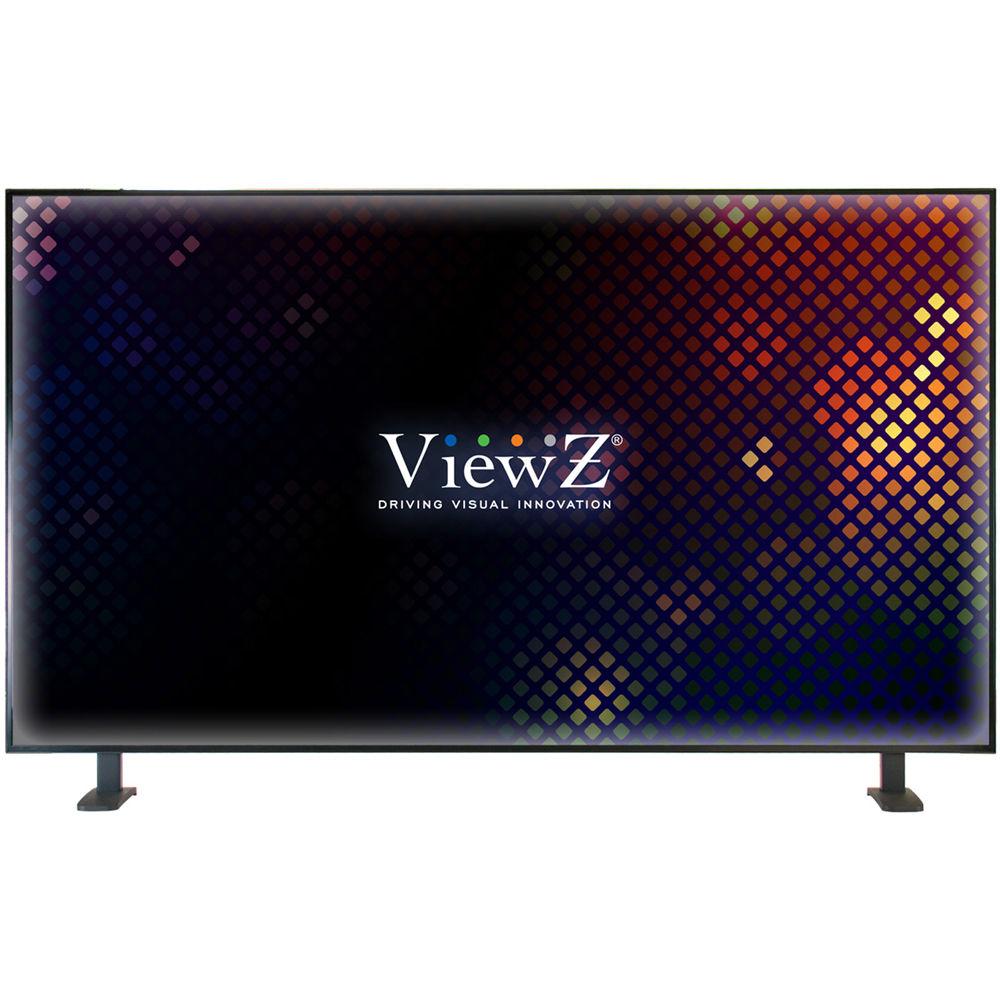

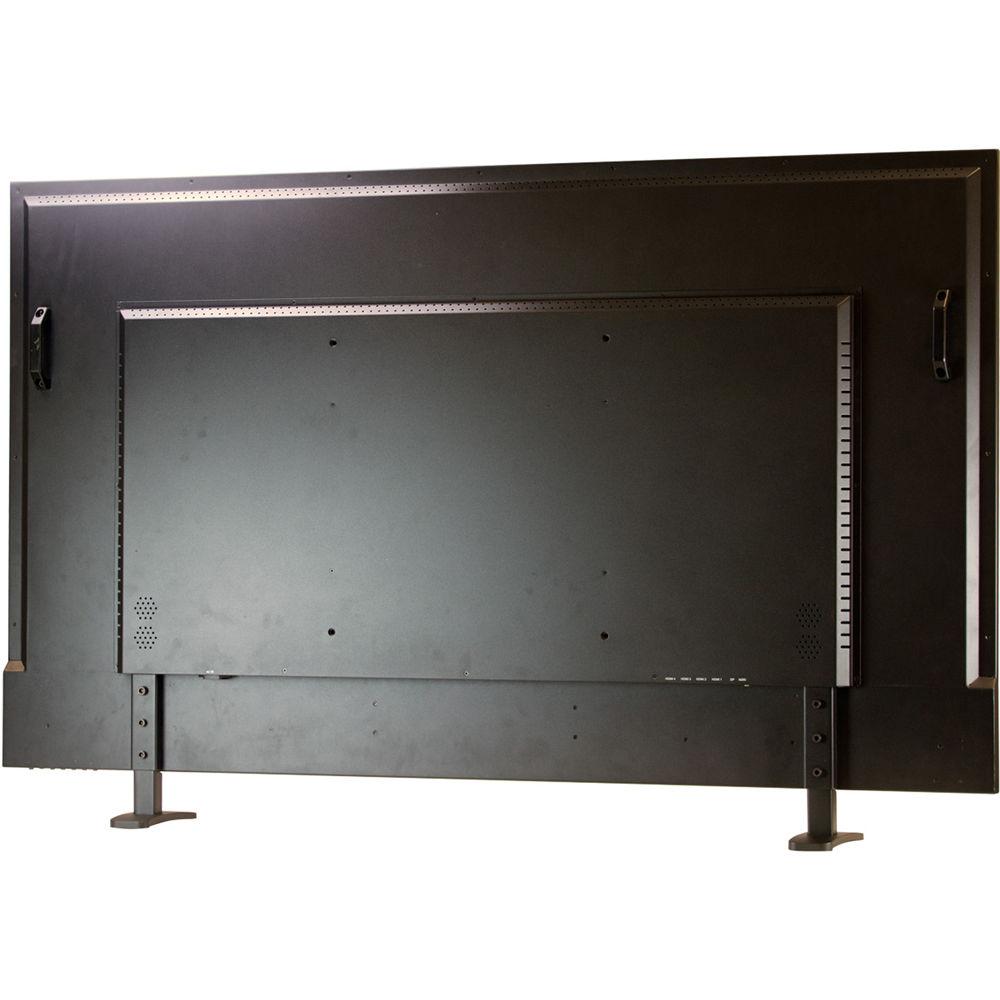

Product description The 65" Quad View 4K UHD LED Monitor from ViewZ supports up to 4K UHD (3840 x 2160) resolution video at 60 Hz with 400 cd/m2 brightness output for displaying high-quality surveillance footage. It features 400 x 400mm (M8 x L12) universal wall mounting and two built-in speakers. The 4K UHD LED panel has a 4000:1 contrast ratio and <9.5 ms response time. - Multi-display function (PIP / Dual / Quad)
- Supports Display Port (1.2) and HDMI (2.0 & 1.4)
- Wide viewing angle (IPS panel)
- Auto source and power recovery
UPC: 815562020874 In the Box ViewZ 65" Quad View 4K UHD LED Monitor Stand Set Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ 65" Quad View 4K UHD LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-65UHD Specs | Screen Size | 65" (165.1 cm) | | Maximum Resolution | 3840 x 2160 at 60 Hz | | Pixel Pitch | 0.124 x 0.374 mm | | Brightness | 400 cd/m2 (typical) | | Contrast Ratio | 4000:1 | | Aspect Ratio | 16:9 (1.78:1) | | Viewing Angle (H/V) | 178°/178° | | Display Color | 1.07G | | Response Time | <9.5 ms | | Interface | 1 x Display Port input
1 x 2.0 HDMI input
3 x 1.4 HDMI input
1 x Audio output | | Speaker | 2 x 5 W built-in speakers | | Refresh Rate | HDMI 2.0 In: 3840 x 2160 at 60 Hz
HDMI 1.4 In: 3840 x 2160 at 30 Hz
Display Port In: 3840 x 2160 at 60 Hz | | Supported Modes | Mode 1: Displays 4K (3840 x 2160) resolution
Mode 2: PBP, PIP, and Quad (1920 x 1080) PIP | | Wall Mount | Universal Wall Mount: 400 x 400 mm (M8 x L12) | | Power | Voltage: 100 to 240 VAC (50/60 Hz)
Consumption: ≤215 W | | Operating temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 40 to 60% RH | | Regulations | CE, FCC (A), RoHS | | Language | English OSD | | Compatible Mounts | Wall: VZ-WM71 | | Dimensions | 57.2 x 33.2 x 2.2" (145.2 x 84.3 x 5.6 cm) | | Weight | 127.9 lb (58 kg) |
