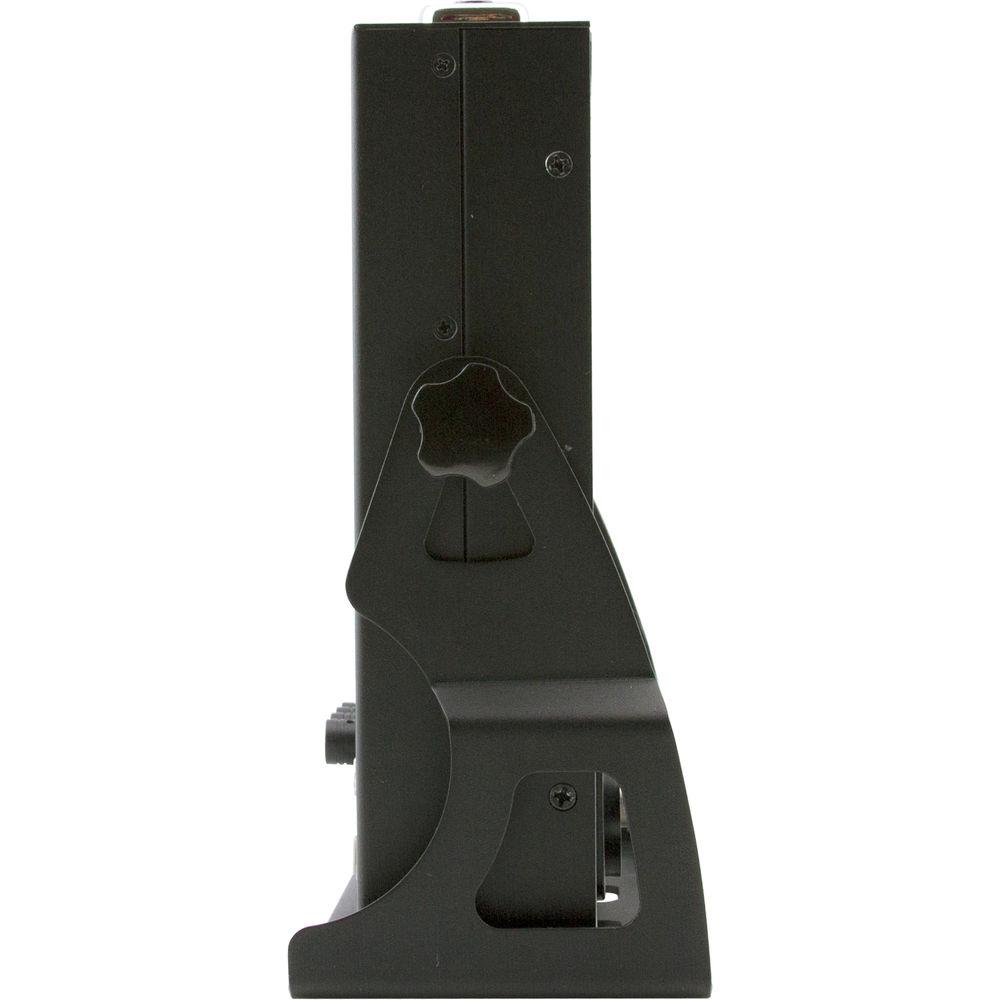

User Manual for ViewZ 9" 3G-SDI HD ENG EFP Production Monitor Click to enlarge the picture
Contents of the user manual for the ViewZ 9" 3G-SDI HD ENG EFP
- Product category: On Camera Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ On Camera Monitors
 |
User manual for the ViewZ 9" 3G-SDI HD ENG EFP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|

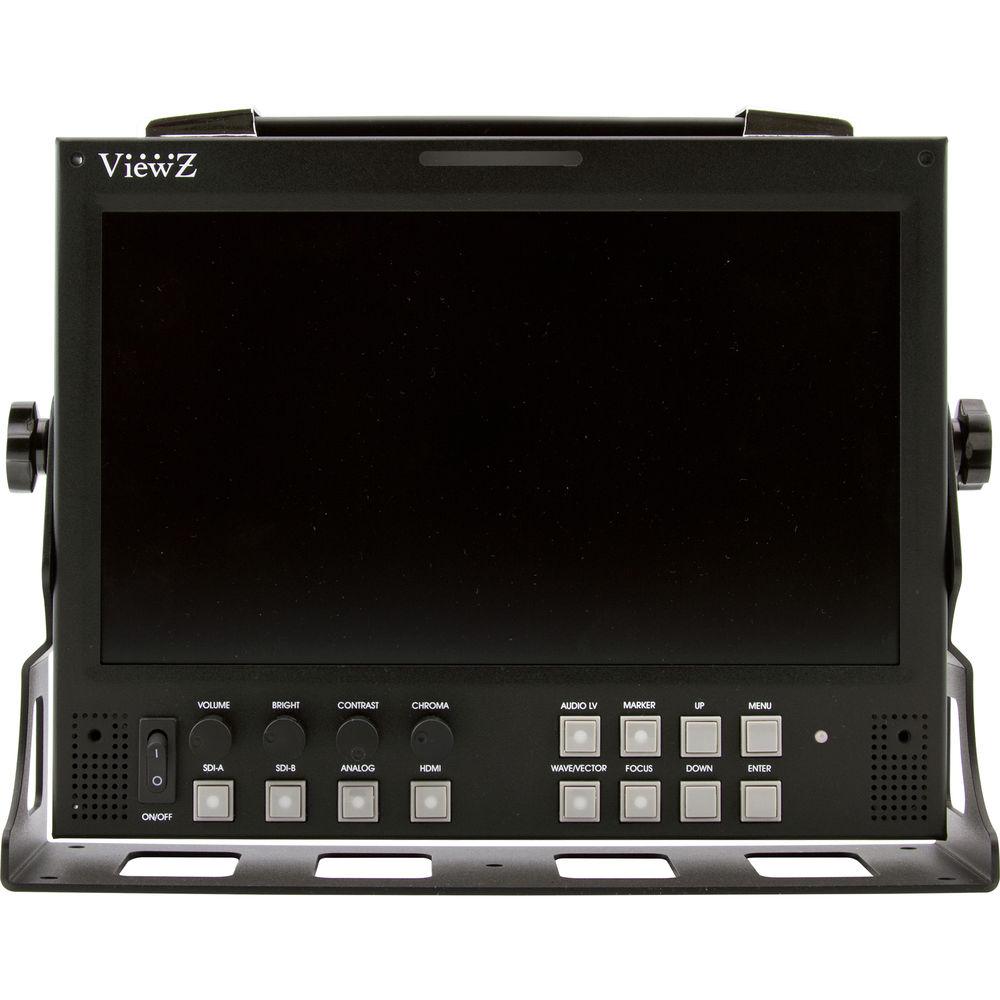

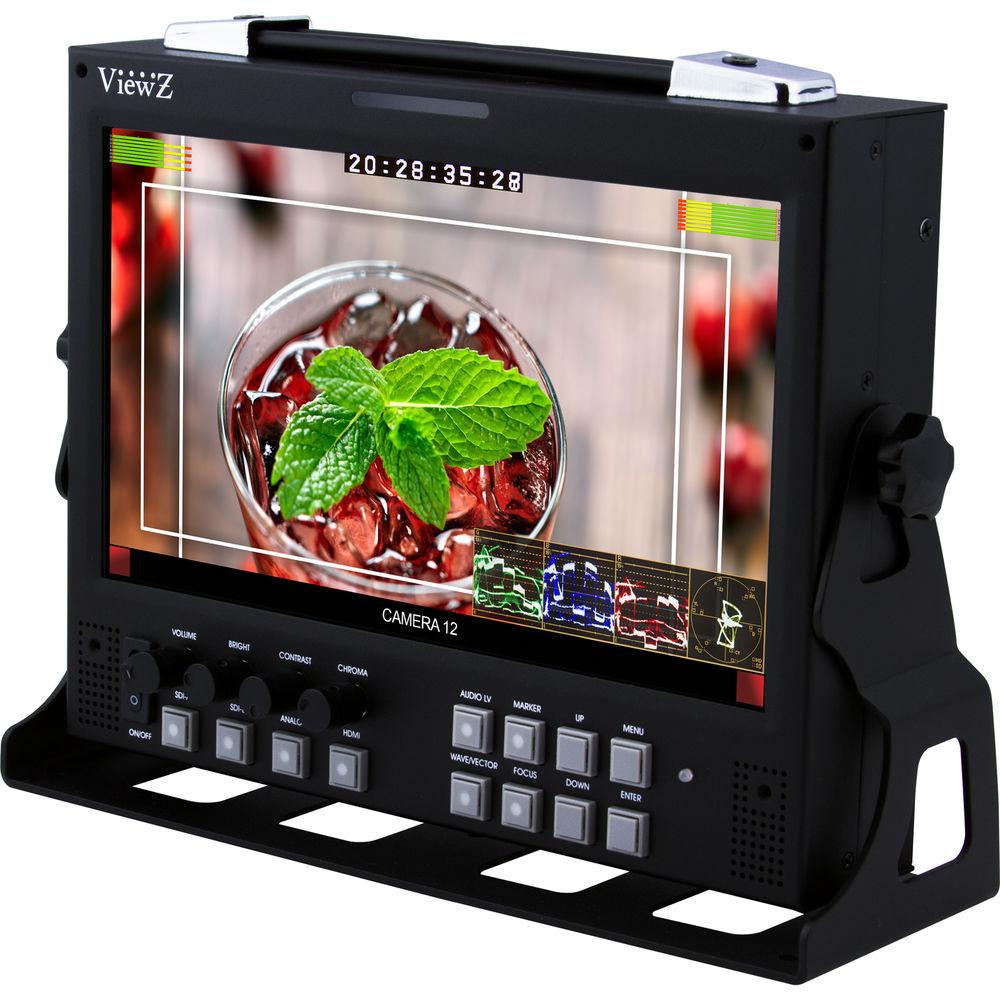

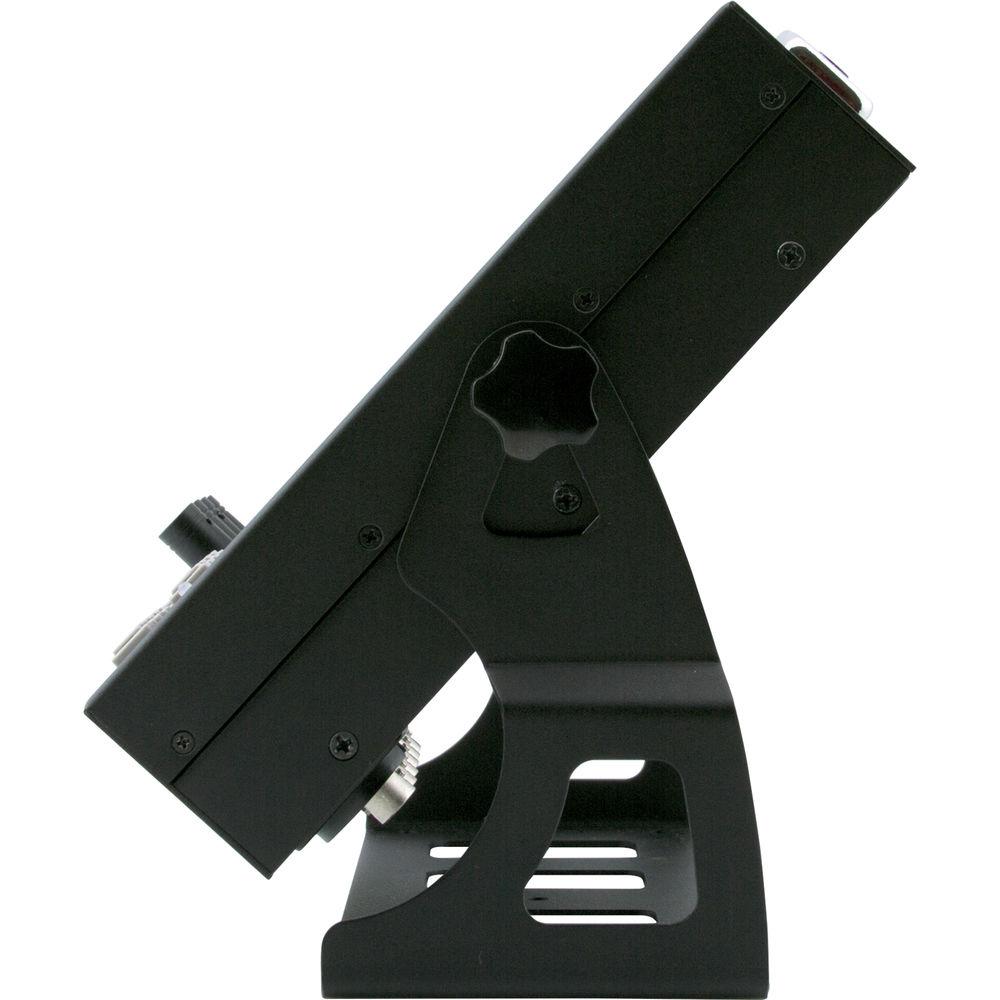

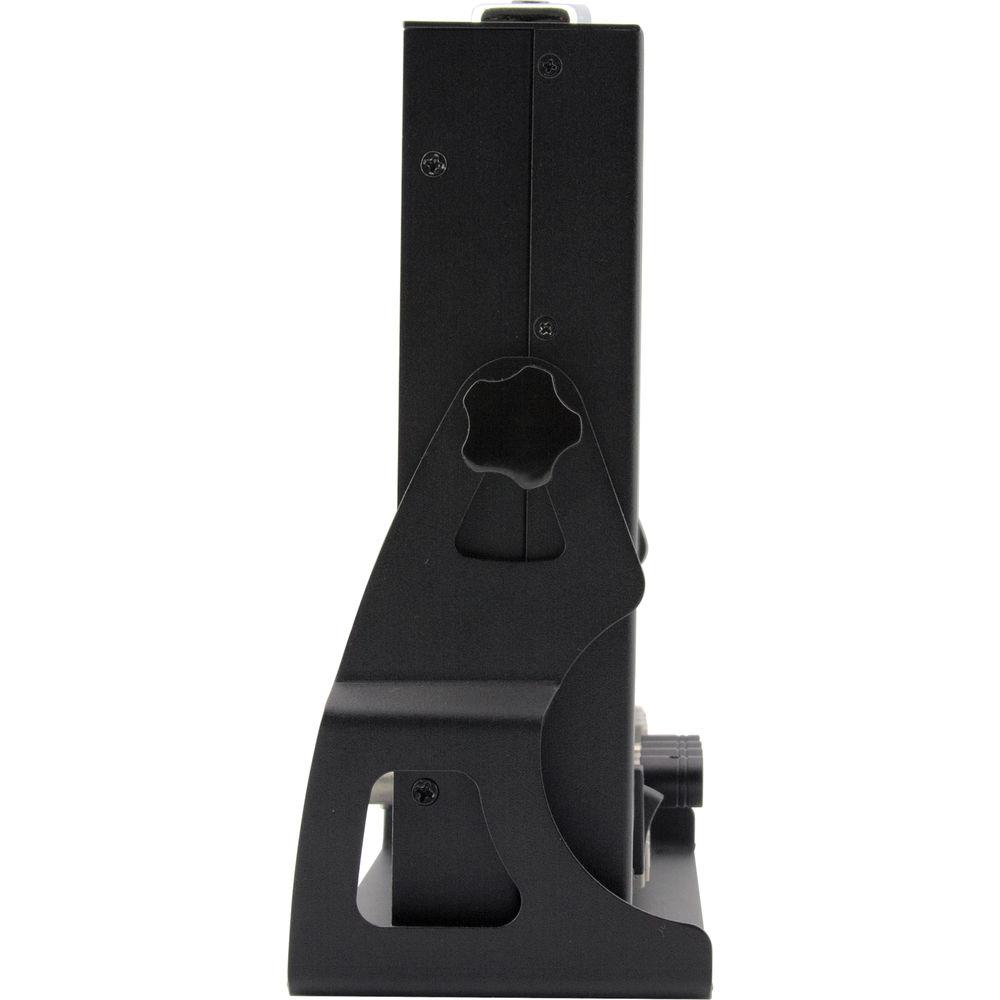

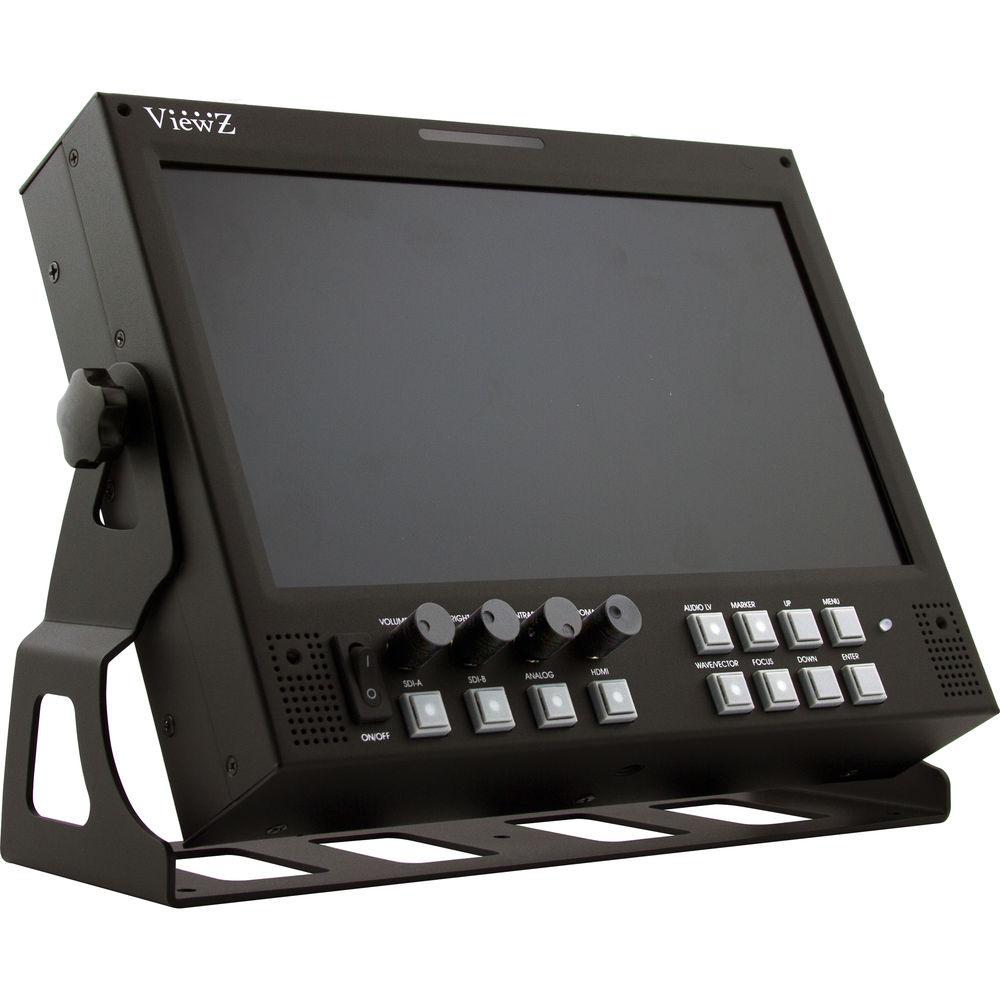

Product description The 9" 3G-SDI HD ENG/EFP Production Monitor from ViewZ is a monitor with a resolution of 960 x 540 and an SDI to HDMI converter. It features 12-bit to 8-bit dithering, and Gamma 2.2-base calibration. The monitor is compatible with VZ-CSP Color Calibration Software, and provides a full screen audio level meter. This monitor can be remotely controlled via an RJ45 connector. - 12-bit to 8-bit dithering

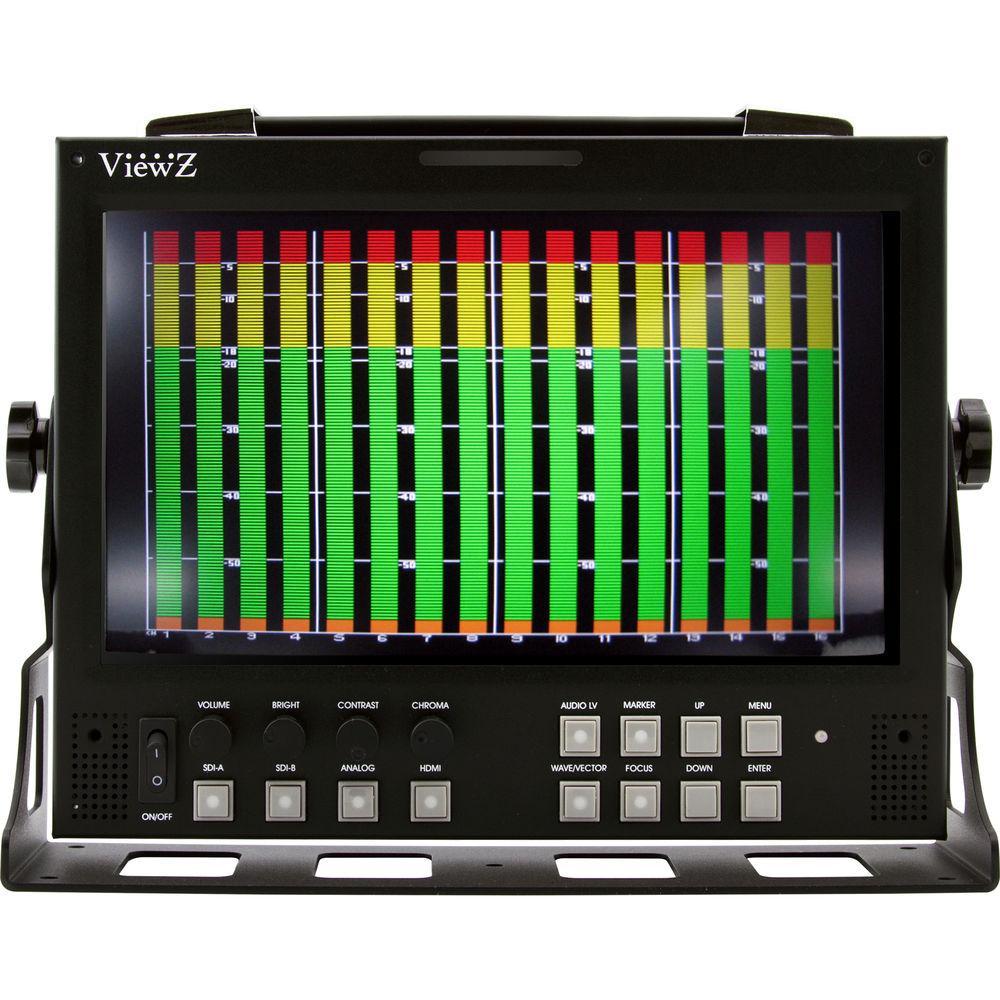

- 16 channel full screen audio level meter / built-in speaker
- Integrated two-channel audio Waveform & Vectorscope
- 3G SDI level A/B (YCbCr, RGB 4:4:4) support
- Selectable Y/R/G/B histogram (SD/HD SDI)
- Y-clip guide min/max select (SD/HD SDI)
- False color (SD/HD- SDI) & focus assist (SD/HD-SDI)
- DSLR scaling (HDMI) & DPMS select
- H/V delay, red, and green mode tally
- Zero, over, and pixel to pixel scan

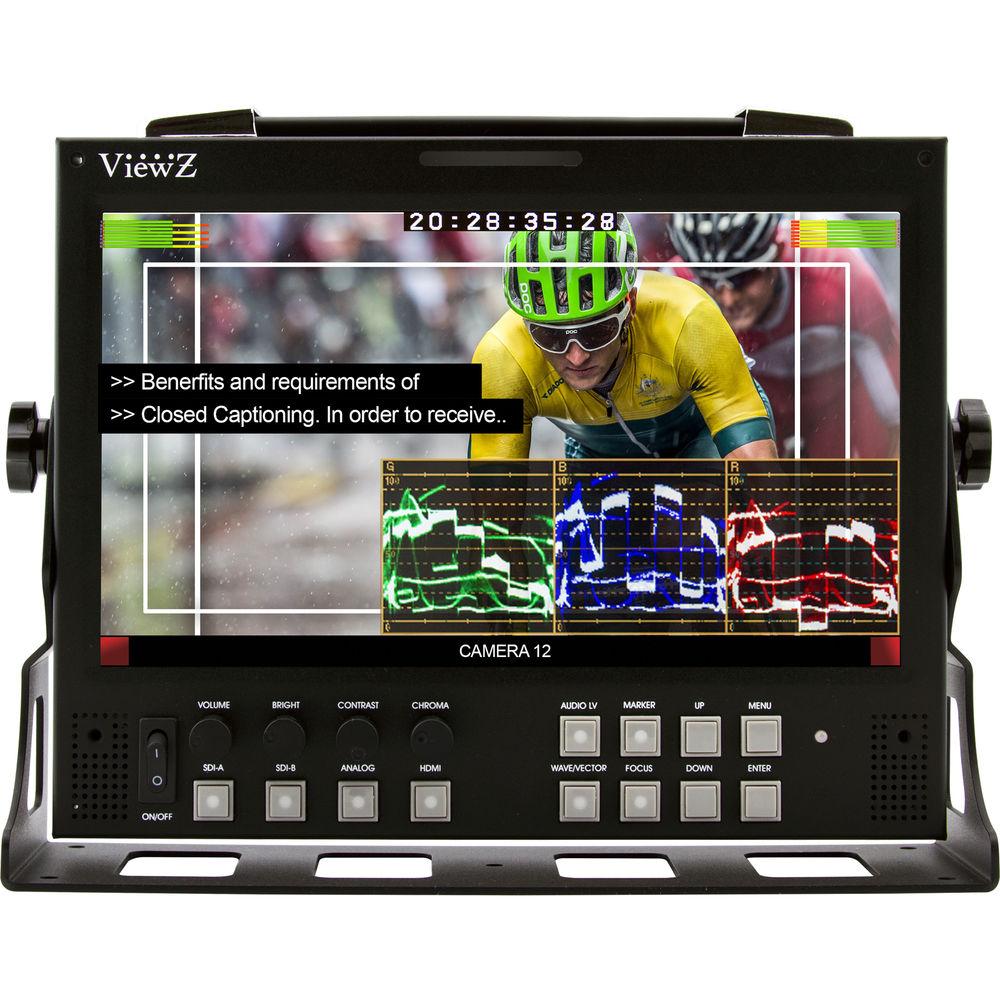

- Closed caption (CEA-608/708)
- UMD (TSL protocol) & timecode
- Blue and Mono screen color modes
- Precise white balance and gamma
- Compatible with color calibration software package (VZ-CSP)
In the Box ViewZ 9" 3G-SDI HD ENG/EFP Production Monitor Limited 2-Year Warranty (Parts) Limited 90-Day Warranty (Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ 9" 3G-SDI HD ENG EFP Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-090PM-P Specs | | | Screen Size | 9" (22.9 cm) | | Max Resolution | 960 x 540 | | Brightness | 400 cd/m² | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 170°/170° | | Color Depth | 16.7 m (8 bit) | | | | SDI | SMPTE 425 M-AB:
1080p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080 Psf (30/29.97/25/24/23.98)
SMPTE 274M:
1080P (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080Psf (30/29.97/25/24/23.98)
SMPTE 260M:
1035i (60/59.94)
SMPTE 296M:
720P (60/59.94/50/30/29.97/25/24/23.98)
SMPTE 125M:
525i (NTSC 59.94)
ITU-R BT.601:
625i (PAL 50)
2K Format:
2048 x 1080P (24/23.98/24sF/23.98sF) | | Analog | CVBS, S-video:
NTSC (525/59.94i), PAL (625/50i)
Component:
1080P (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)

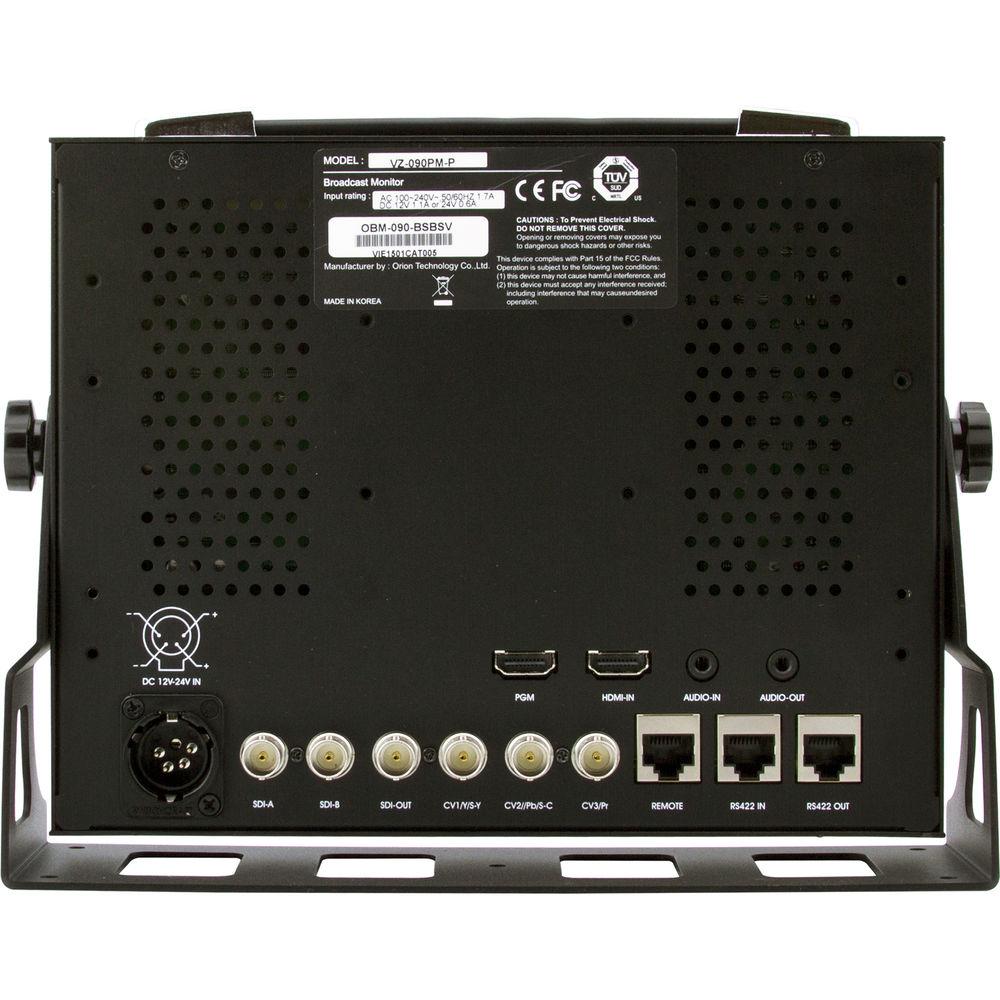

720P (60/59.94/50) | | HDMI | 1080P/1080i/576P/576i/480P/480i | | | | Power Requirements | 12 - 24 VDC / Consumption: 15 W approx. | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Gamut Coverage | Panel native value | | Gamma | 2.2 base | | Color Temperature | 3200K, 6500K, and 9300K | | Connectors | 2 x SDI input
1 x SDI ouput
1 x HDMI input
3 x BNC, input (CVBS, S-video, component)
1 x RS-422 input
1 x RS-422 output
1 x Audio input
1 x Audio output (analog stereo)
1 x RJ-45 input (remote control)
1 x PGM port, (program update/HDMI connector)
1 x 4-pin XLR, 12 - 24 VDC input | | Speaker | 2 x 1 W | | Screen Mode | Blue and mono | | Dimensions | 8.93 x 6.85 x 1.80" (226.82 x 174.00 x 45.80 mm) | | Weight | 5.51 lb (2.5 kg) | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 12.8 x 12.2 x 6.3" |
