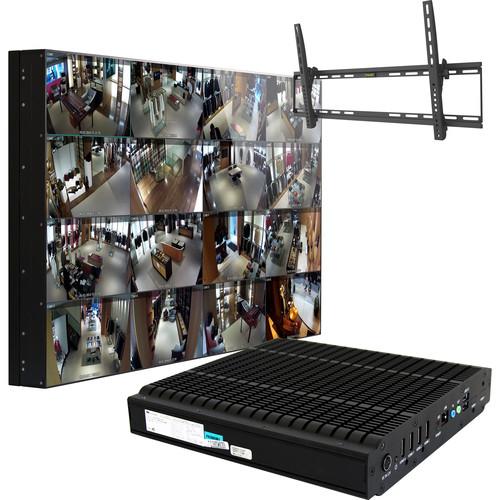

User Manual for ViewZ CCTV Video Wall In A Box

• Product category: Commercial Monitors ViewZ
• Brand: ViewZ
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ViewZ Commercial Monitors

Product description

• VZ-55UNL 55" LED-Backlit Video Wall Monitor The VZ-55UNL 55” LED-Backlit Video Wall Monitor from ViewZ displays images in 500 cd/m² brightness, making it suitable for indoor environments that receive a high amount of external daylight. Equipped with D-Sub, DVI-D, HDMI, and DisplayPort inputs, the display delivers Full HD video in a slim LED-backlit design. Image protection technology automatically moves the image location on the screen without visible detection to protect the screen from screen burn-in. The monitor also features and RS-232C, RJ45, and PC stereo audio ports.This VESA mount compatible monitor features a slim 3mm bezel that allows a 5.9mm bezel-to-bezel width, making it suitable for use in video wall applications. The monitor is built using a commercial-grade "A" panel that ensures optimum color reproduction and low defect ratio, making it durable enough for continuous use.
  • Image protection technology prevents screen burn-in
  • 55" commercial-grade "A" panel for optimum color reproduction and low defect ratio
  • Full HD resolution
  • LED-backlit technology for reduced energy consumption
  • Digital Sub, DVI-D, HDMI, and DisplayPort inputs
  • RS-232C, RJ45, and PC stereo audio ports
  • 3mm seamless bezel
  • 5.9mm bezel-to-bezel width
  • Suitable for indoor environments that receive a high amount of external daylight such as airports, shopping centers, and storefront window displays
  • OSD functionality via RJ45 & RJ-232C protocol
  • IR remote control
  • Built-in 3D comb and de-interlace image processor for clear and crisp images
  • Auto power and source recovery features will automatically restore power as well as the source after a power failure
  • VESA mount compatible interface
• VZ-PRO-MINI 1x4 Full HD Video Wall Controller The VZ-PRO-MINI 1x4 Full HD Video Wall Controller from ViewZ is a rugged and fanless embedded system with 4-display HDMI support, and powered by quad-core 1.0+ GHz CPU and an S3 5400E graphics onboard processor. The 1-channel Full HD video wall processor displays video from a single source across four HDMI compatible displays. The VZ-PRO-MINI offers a 2.5” SATA SSD bay, mSATA slot, and optional 3G/3.5G and WLAN connectivity. The controller is suitable for use in various digital signage, video wall, gaming, industrial, and embedded applications.
  • One Full HD video input and up to four Full HD video outputs
  • Industrial-grade high-performance systems based on 1.0 GHz quad-core E-Series CPU Windows 7 Professional
  • Simultaneous 1080p video playback support
  • Content management software
  • Designed for all-day, all-year operation in mission-critical installations
  • Maximum bit rate of 100 Mb/s (4-channel)
  • Fanless and rugged chassis
• VZ-WM71 Wall Mount for 40 to 65" Flat Panel Displays The VZ-WM71 Wall Mount for 40 to 65" Flat Panel Displays is a VESA-compliant tilting wall mount for a flat panel display with a maximum capacity of 165 lb and a VESA pattern of 800 x 400. It allows you to tilt your display down to as low as -10°. UPC: 853177002854

• Remote Control

• Limited 3-Year Warranty on Parts and Labor

• Power Cord (6')

• 12V/8.5A 102W Power Adapter

• 4-Hole DC-In Jack Power Cable

• 2 x HDMI Cable Strap Holder

• 4 x SATA SSD Screw

• 4 x Mounting Screw

• 2 x Screw for Mini Card (Module) Installation

• 0.392cc Thermal Grease in Tube Syringe

• Limited 3-Year Warranty

• Mounting Hardware

• Limited 3-Year Warranty

Also Includes

• License-Free Central Management Software

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VZ-55UNL 55" LED-Backlit Video Wall Monitor

  Screen Size	55.0" (139.7 cm)
  Maximum Resolution	1920 x 1080 @ 60 Hz
  Pixel Pitch	0.63025 x 0.63025 mm
  Brightness	500 cd/m2 (Typical)
  Contrast Ratio	3500:1
  Aspect Ratio	16:9
  Viewing Angle (H/V)	178°
  Display Color	16.7 million
  Response Time	< 8 ms
  Video System	NTSC / PAL
  Frequency (H)	31 to 80 kHz
  Frequency (V)	56 to 75 Hz
  Interface	VGA in (15-Pin D-Sub), DVI-D in, HDMI, RJ45, and PC stereo (in/out)
  Built-In Speakers	2 x 2 W
  Filter Type	3D Comb filter / DeInterlace
  Bezel Width	Top & Left Side: 0.12" (3.00 mm) Bottom & Right Side: 0.11" (2.90 mm) Active to Active Area: 0.23" (5.90 mm)
  Multi-lingual Language	English, Spanish, French, German, Italian, Portuguese, Dutch
  VESA Mount	600 x 100 x 100 mm, M8 x 12 screws
  Electrical Ratings	100 to 240 VAC (50/60 Hz)
  Power Consumption	Typical: 152 W Maximum: 166 W
  MTBF	50,000 hours approximately
  Operating Temperature	32 to 104°F (0 to 40°C)
  Dimensions (W x H x D)	47.8 x 27.0 x 5.5" (121.6 x 68.6 x 14.0 cm)
  Weight	91.5 lb (41.5 kg)

  Box Dimensions (LxWxH)	56.0 x 38.0 x 17.0"

• VZ-PRO-MINI 1x4 Full HD Video Wall Controller

  Processor	Quad-core U4650E 1.0+ GHz processor 800 MHz front-side bus 4 MB L2 cache memory NanoBGA2 package
  Chipset	VX11H media system processor 33 x 33 mm FCBGA
  System Memory	One SODIMM slot for DDR3 1066/1333 MHz SDRAM Support up to 8 GB memory size
  Storage	SATA or mSATA 256 GB
  RAM	8 GB DDR3
  Graphics	Integrated Chrome 645/640 DX11 3D/2D graphics with MPEG-2, WMV9, VC-1, and H.264 video decoding acceleration Optimized UMA supports up to 256 MB to 1 GB frame buffer using system memory Discrete S3 5400E graphics processor Supports four onboard HDMI ports for 4-display video wall, dual-view, or other combination
  Display Resolution	Up to 1920 x 1080 Full HD
  Interface	In/Out 1 x HDMI input 4 x HDMI outputs 1 x RJ-45 LAN port 1 x 3.5 mm stereo line in audio 1 x 3.5 mm stereo line out audio 1 x DC jack power 2 x USB 3.0 2 x USB 2.0 1 x Digital I/O connector 1 x COM connector 1 x 3G antenna hole 1 x Wi-Fi antenna holeButton 1 x Power on/off buttonIndicators (LED) 1 x SSD/HDD 1 x Power 1 x 3G 1 x Wi-Fi
  LAN	Onboard RTL8111G Gigabit Ethernet controller Supports Wake-On LAN and Pre-Boot Execution Environment (PXE) Wireless LAN (Optional): WLAN USB card interface of Wi-Fi module 3G/3.5G (Optional): Mini PCIe card interface of 3G/3.5G module
  Audio	VT2021 high-definition audio codec
  Storage Interface	Serial ATA: Built-in SSD hard drive bay for 2.5" SATA SSD mSATA: Built-in mini PCIe card slot for mSATA module; supports Gen2
  Expansion Slot	Mini PCIe Card Interface: One mini PCIe slot (PCIe + USB 2.0) for 3G/3.5G module SIM Card Interface: One SIM card slot
  Watchdog Timer	System reset Programmable: 1 to 255 sec
  BIOS	AMI BIOS, 32 Mbit EFI SPI flash memory
  Shock	During operation (with 2.5" SATA SSD): 50G, IEC 60068-2-27, half-size, 11 ms duration
  Vibration	Loading During Operation (2.5" SATA SSD): 5 Grms, IEC 60068-2-64, random, 5 to 500 Hz, 1 hour/axis
  EMC	CE, FCC Class A, CCC
  Software Compatibility	Windows 7 Professional Windows Embedded Standard 7 with Magic View
  VESA Compatibility	100 x 100 mm
  Chassis	Aluminum chassis housing with metal I/O plates
  Operating Temperature	32 to 113°F / 0 to 45°C, with 2.5" SATA SSD 32 to 122°F / 0 to 50°C, with mSATA module
  Storage Temperature	50 to 140°F / 10 to 60°C @ 90%, non-condensing
  Operating Humidity	0 to 90% RH, non-condensing
  Dimensions (L x W x H)	10.0 x 9.8 x 1.8" / 25.5 x 25.0 x 4.6 cm
  Weight	8.1 lb / 3.7 kg

• VZ-WM71 Wall Mount for 40 to 65" Flat Panel Displays

  Supported Screen Sizes	40 to 65" / 102.0 to 165.0 cm
  Supported Weight Capacity	165 lb / 74.8 kg
  Mounting-Hole Pattern	300 x 200 to 805 x 410 mm
  Number of Displays Supported	1

  Tilt Adjustment
