User Manual for ViewZ NB Series 49" 1080p Professional LED CCTV Video Wall Mount Monitor Click to enlarge the picture
Contents of the user manual for the ViewZ NB Series 49" 1080p Professional
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
 |
User manual for the ViewZ NB Series 49" 1080p Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|

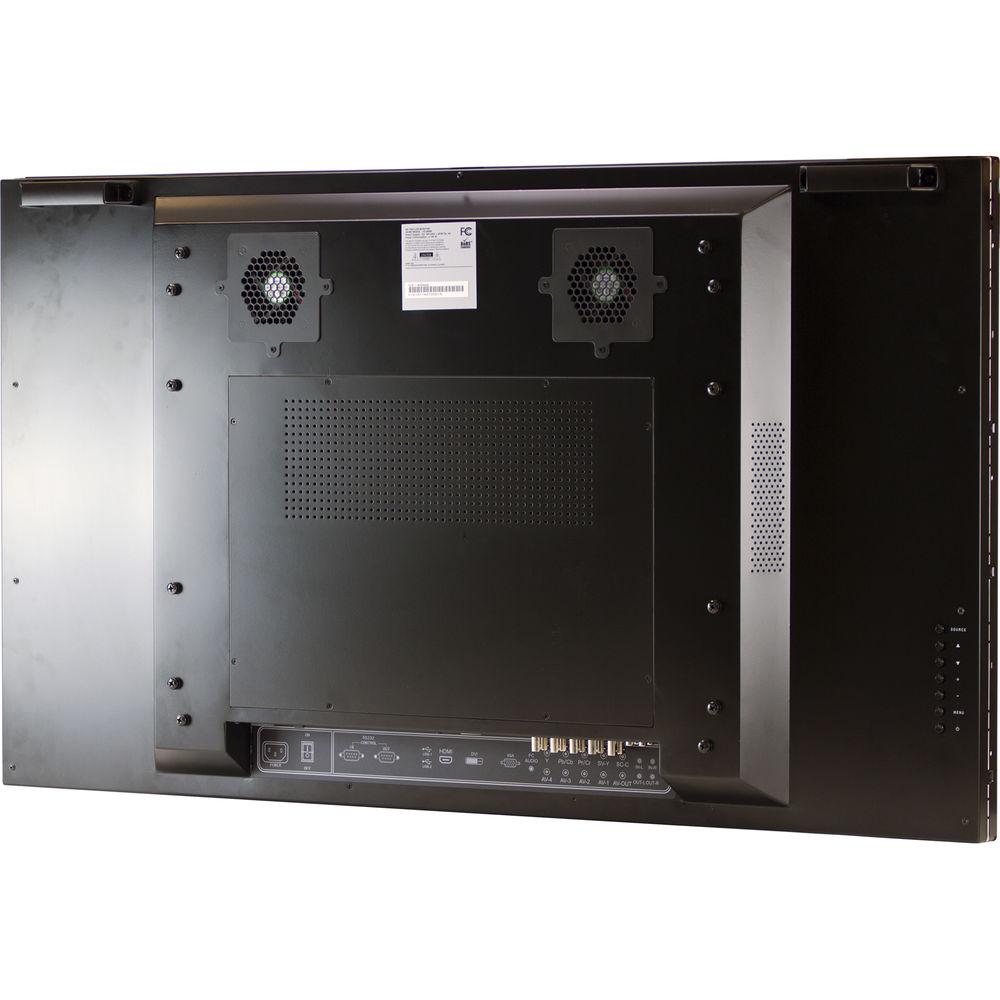

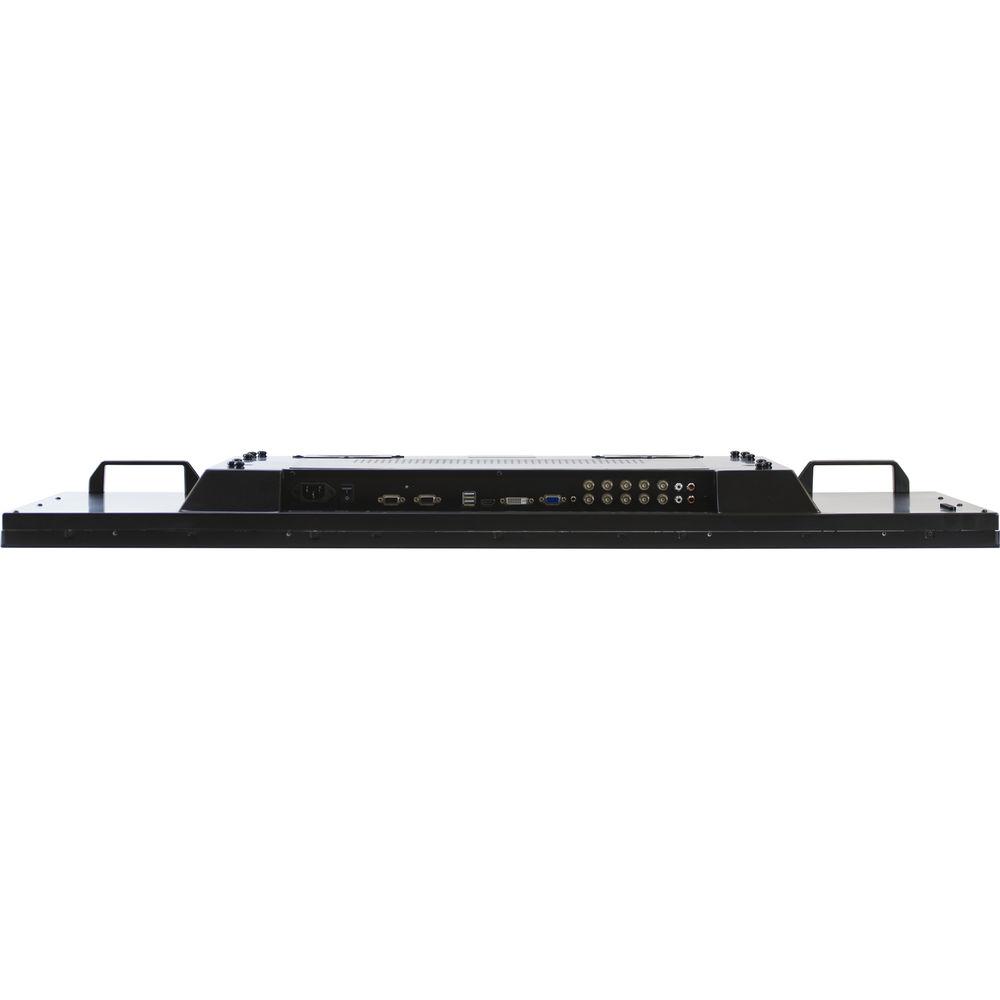

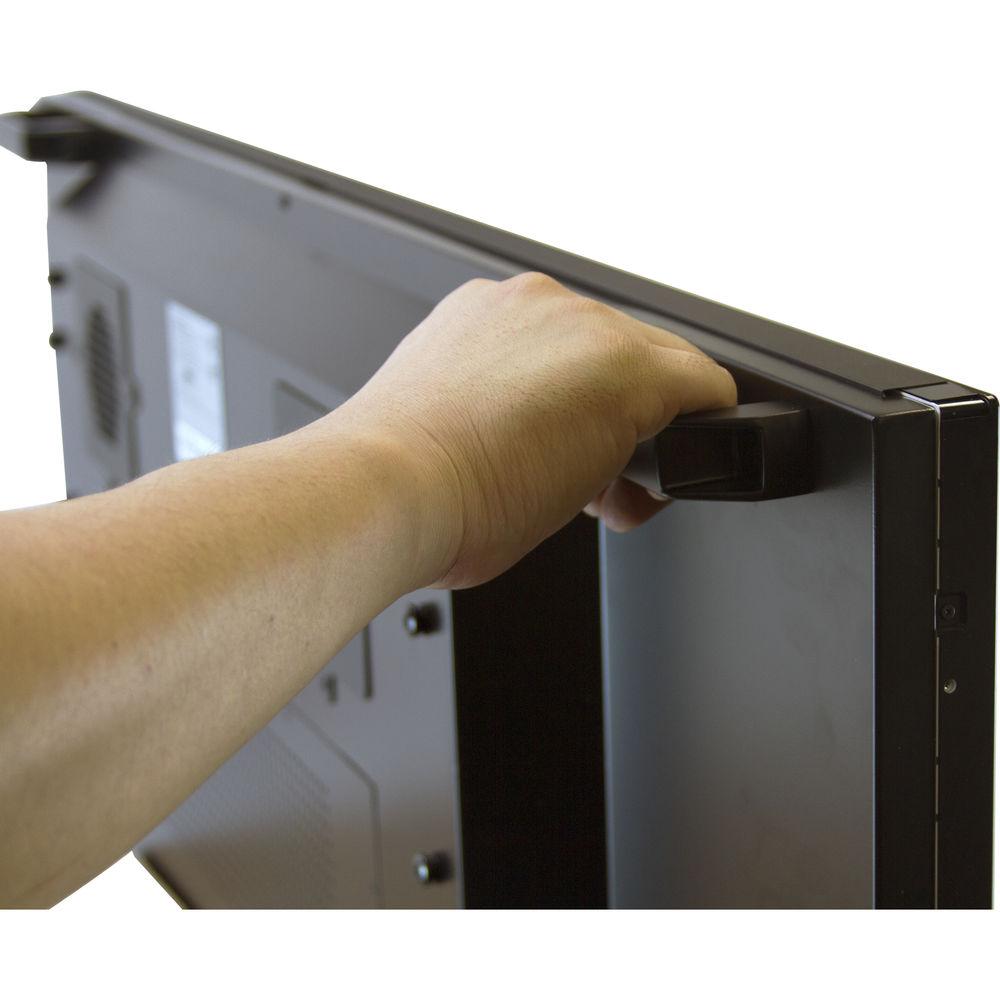

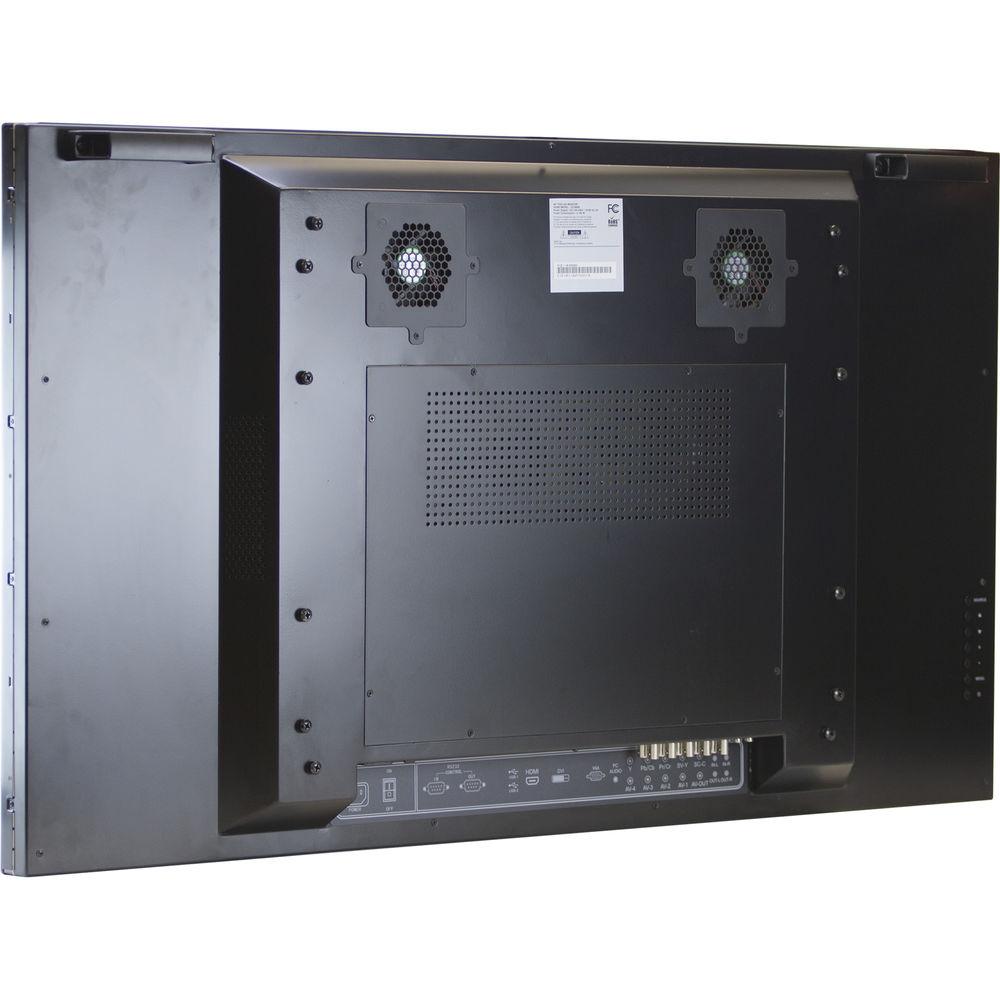

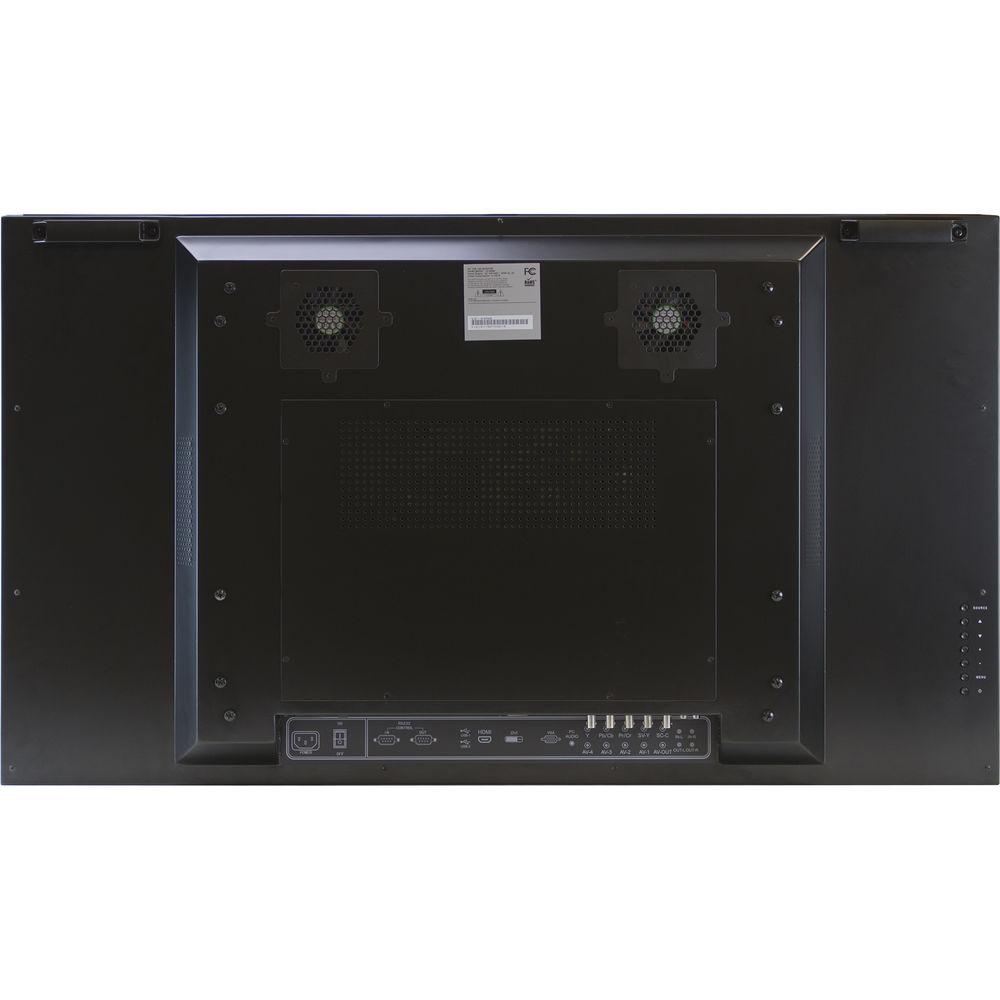

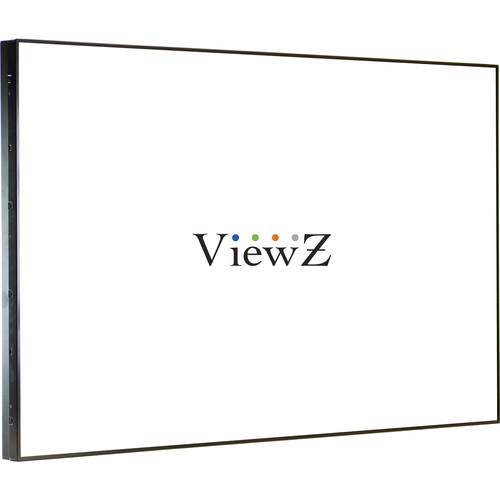

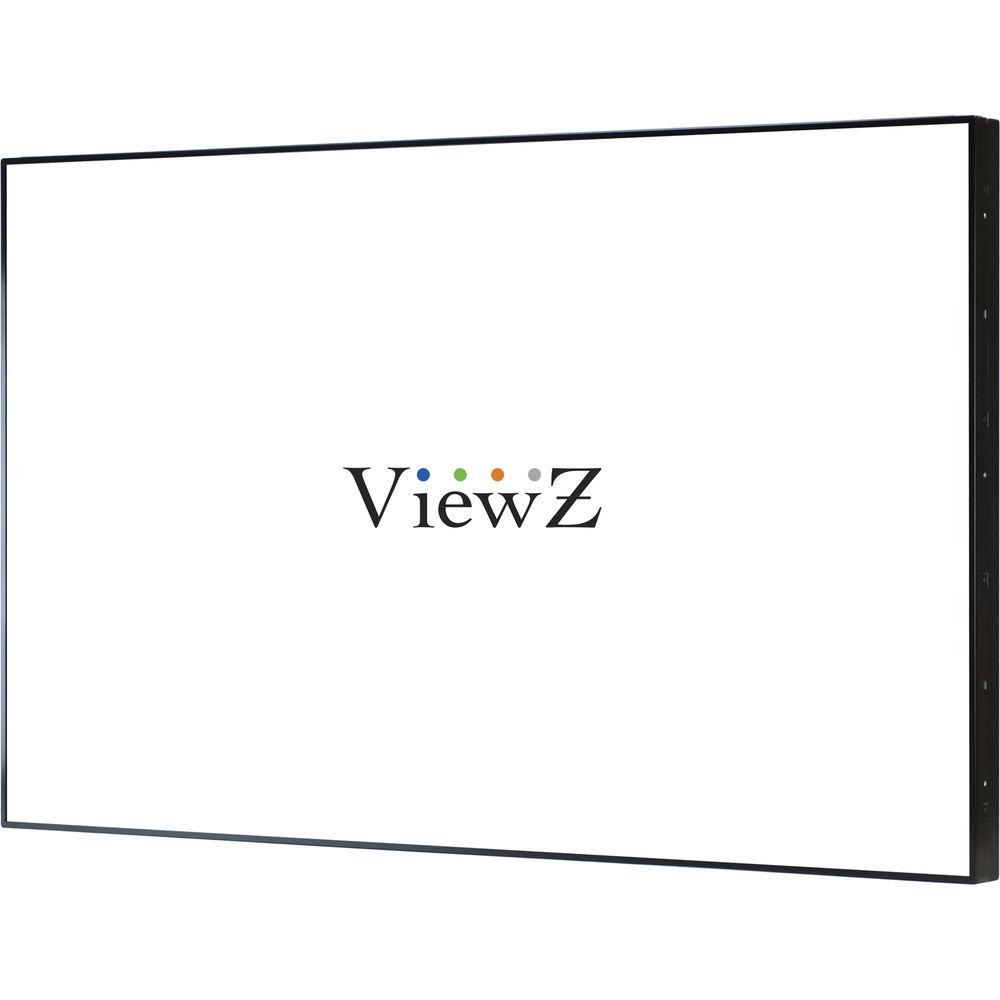

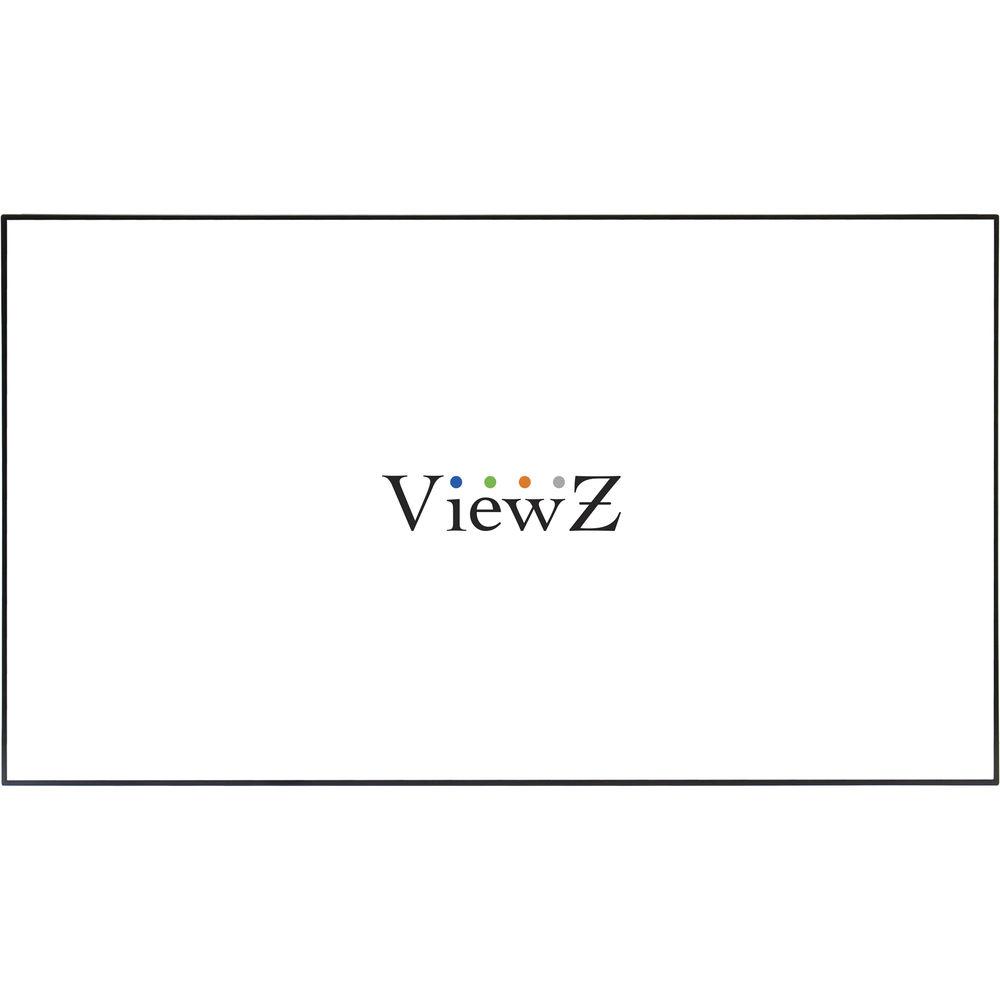

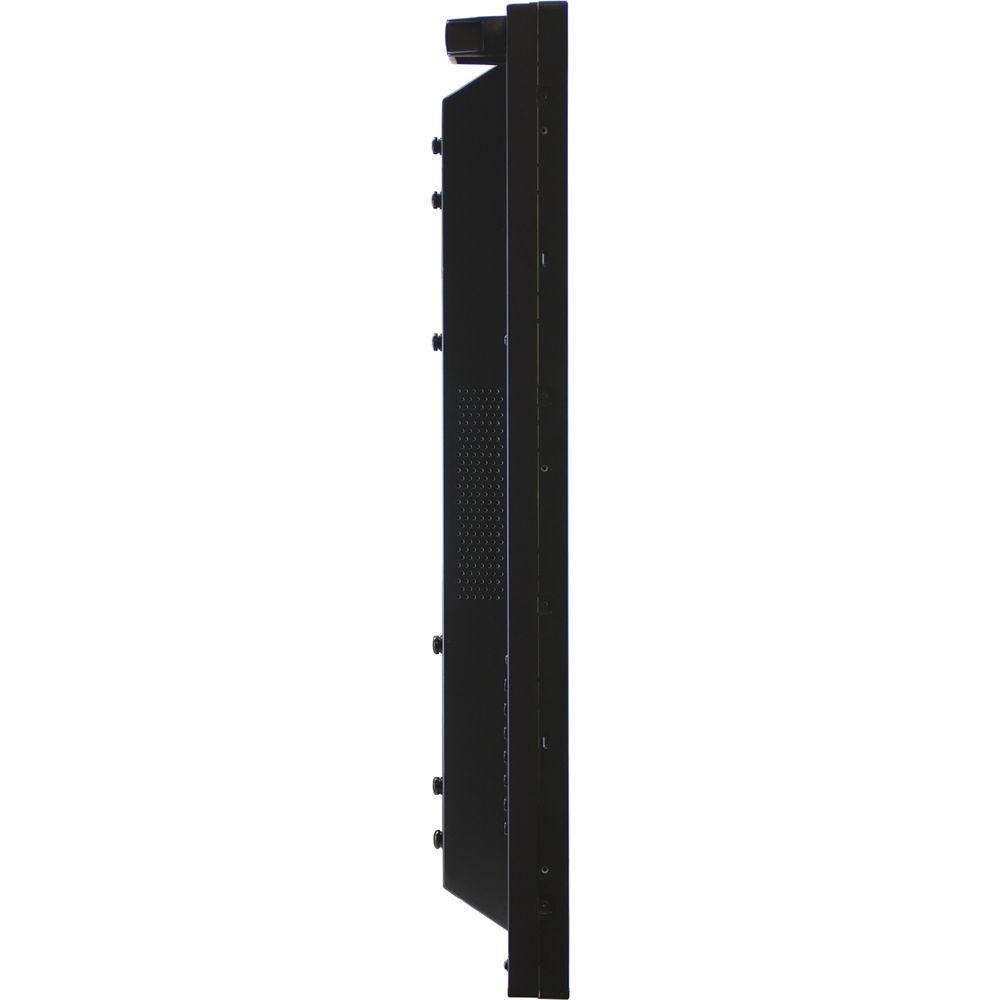

Product description The 49" NB Series Professional LED CCTV Video Wall Mount Monitor from ViewZ is a backlit LED display with a 700 cd/m2 brightness output. For viewing detailed high-definition content, the monitor features a 1920 x 1080 native resolution. A contrast ratio of 1300:1 showcases the monitor's ability to handle light and dark on-screen images. Wide horizontal and vertical viewing angles of 178° ensure no color deviation or distortion from virtually any angle. -
- Creates a seamless display effect in multi-screen splicing
- Supports m rows and n columns (1 ≤ m ≤ 10, 1 ≤ n ≤ 10) in splicing and 10 x 10 at most
- Each unit supports one RS-232 input and loop-out
- Auto-color adjustment guarantees color uniformity in multi-screen splicing with a built-in control unit to make the best adjustment of color
- Built-in picture cutting and compensation function can work with system software to accommodate large screen splicing project
- AV (composite) ports support a loop-through connection in video wall usage
- Industrial cooling fan is equipped for heat dissipation and improved reliability
- Supports 24/7 operation
UPC: 815562020355 In the Box ViewZ NB Series 49" 1080p Professional LED CCTV Video Wall Mount Monitor RS-232 Cable 110 VAC Power Cable Remote Controller Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ NB Series 49" 1080p Professional LED CCTV Video Wall Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-49NB Specs | Size | 49" / 125 cm | | Type | LED backlit | | Resolution | 1920 x 1080 | | Pixel Pitch (H x V) | 0.55926 x 0.55926 mm | | Brightness | 700 cd/m2 | | Contrast Ratio | 1300:1 | | Aspect Ratio | 16:9 | | Viewing Angle | 178/178° | | Display Color | 1.07 billion (10-bit) | | Response Time | 8 ms (gray to gray) | | Active Display Area | 42.27 x 23.78" / 107.38 x 60.40 cm | | Frequency | Horizontal: 57 to 70 kHz
Vertical: 47 to 63 Hz | | Color Temperature | Warm/Standard/Cool | | Speaker | 2 x 10 W | | Interface | VIDEO #1 (1-channel loop-through out), VIDEO #2, VIDEO #3, VIDEO #4
1 x YPbPr 1
1 x S-Video(Y/C-BNC)
1 x VGA (15-pin D-Sub)
1 x DVI
1 x HDMI
2 x USB
RCA (audio) input/output
PC stereo input | | Bezel | Width: 0.23" (5.9 mm)
Active to Active: 0.46" (11.8 mm) | | Case Type | Black metal | | Safety & EMI | FCC/RoHS | | Electrical Ratings | 100 to 240 VAC, 50/60 Hz, 2 A | | Power Consumption | Maximum: ≤140 W
Standby: 0.5 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 20 to 85% RH | | Storage Humidity | 10 to 90% RH | | Dimensions | Not specified by the manufacturer | | Weight | 54.01 lb / 24.5 kg |
