ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS

Search your instruction manual in PDF to download

User Manual for ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor

Click to enlarge the picture
ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor Contents of the user manual for the ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS
  • Product category: On Camera Monitors ViewZ
  • Brand: ViewZ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ViewZ On Camera Monitors

ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor
User manual for the ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ViewZ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!



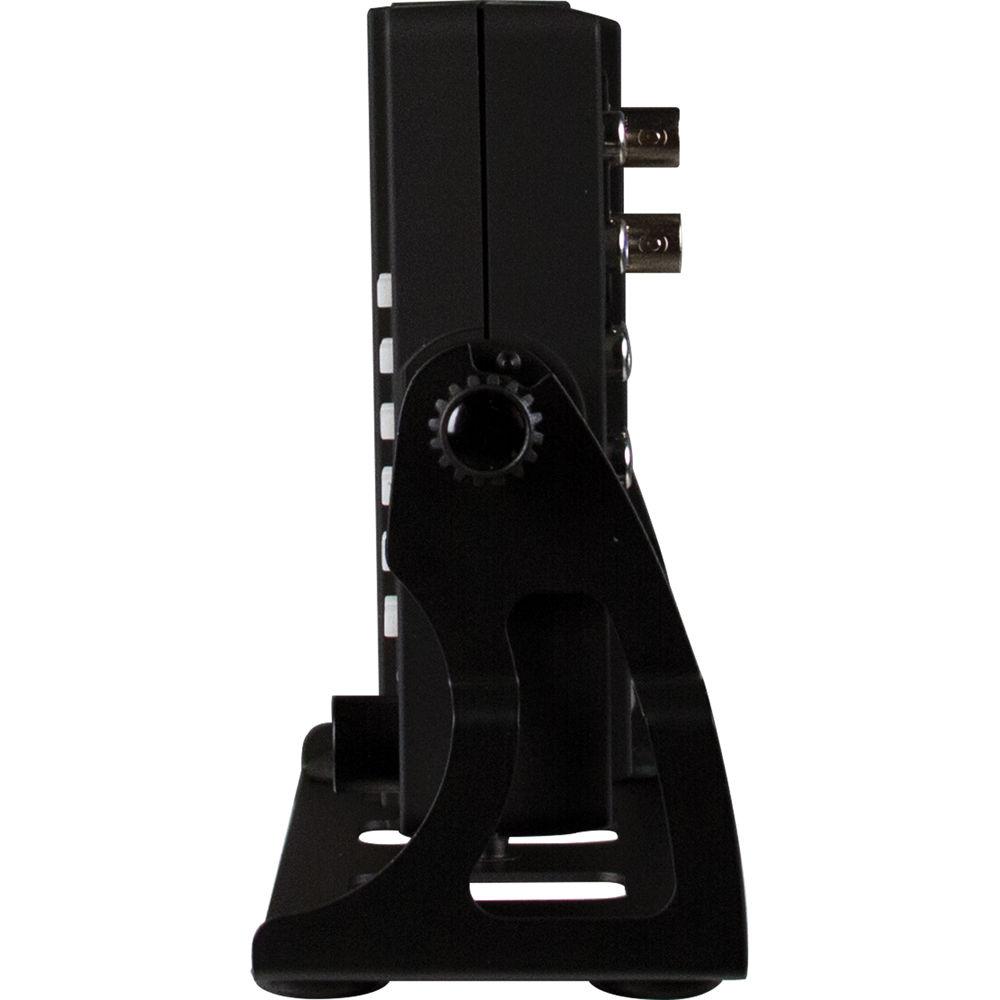

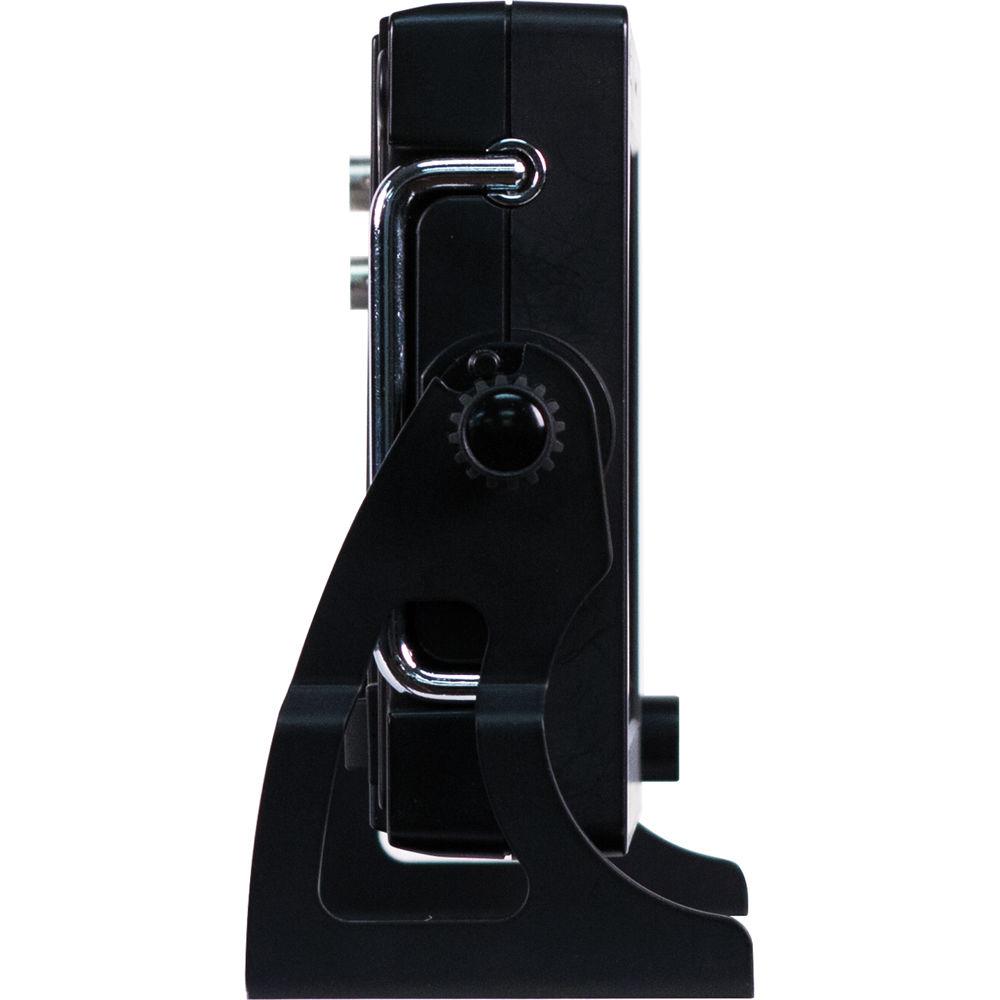

Product description

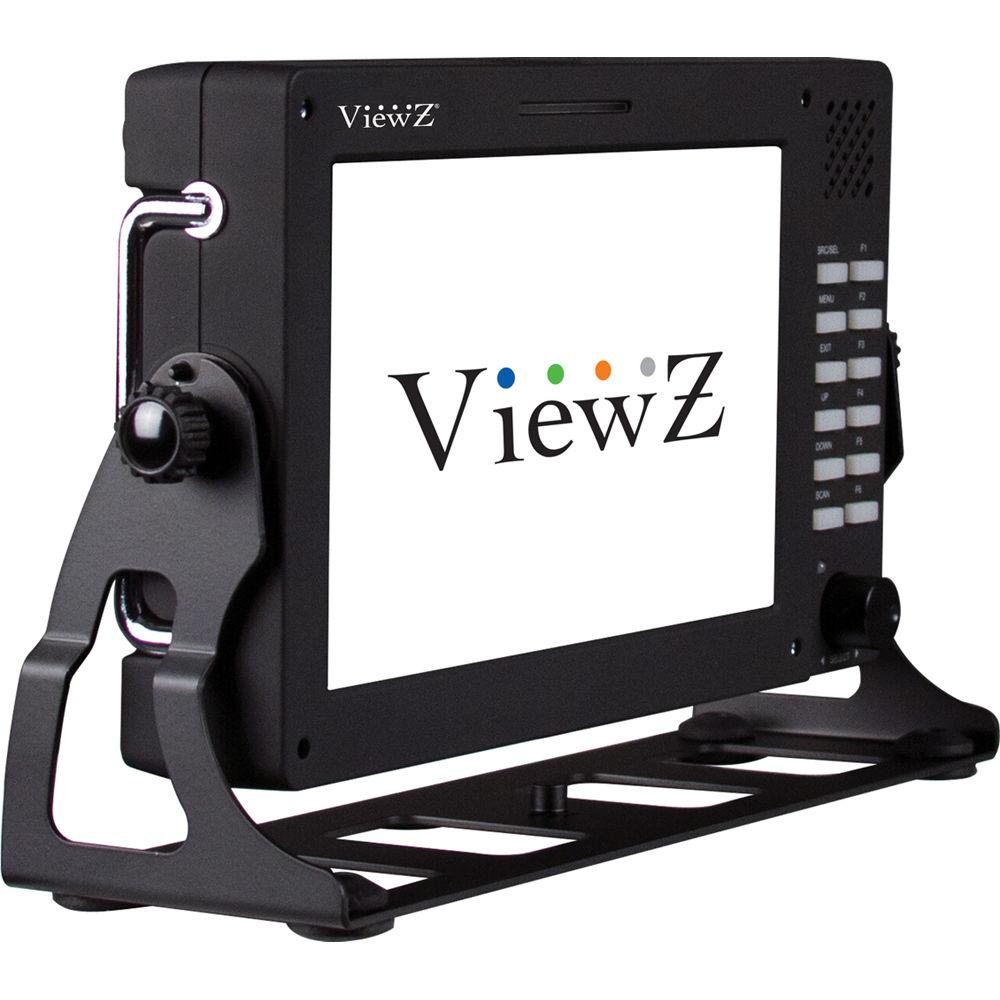

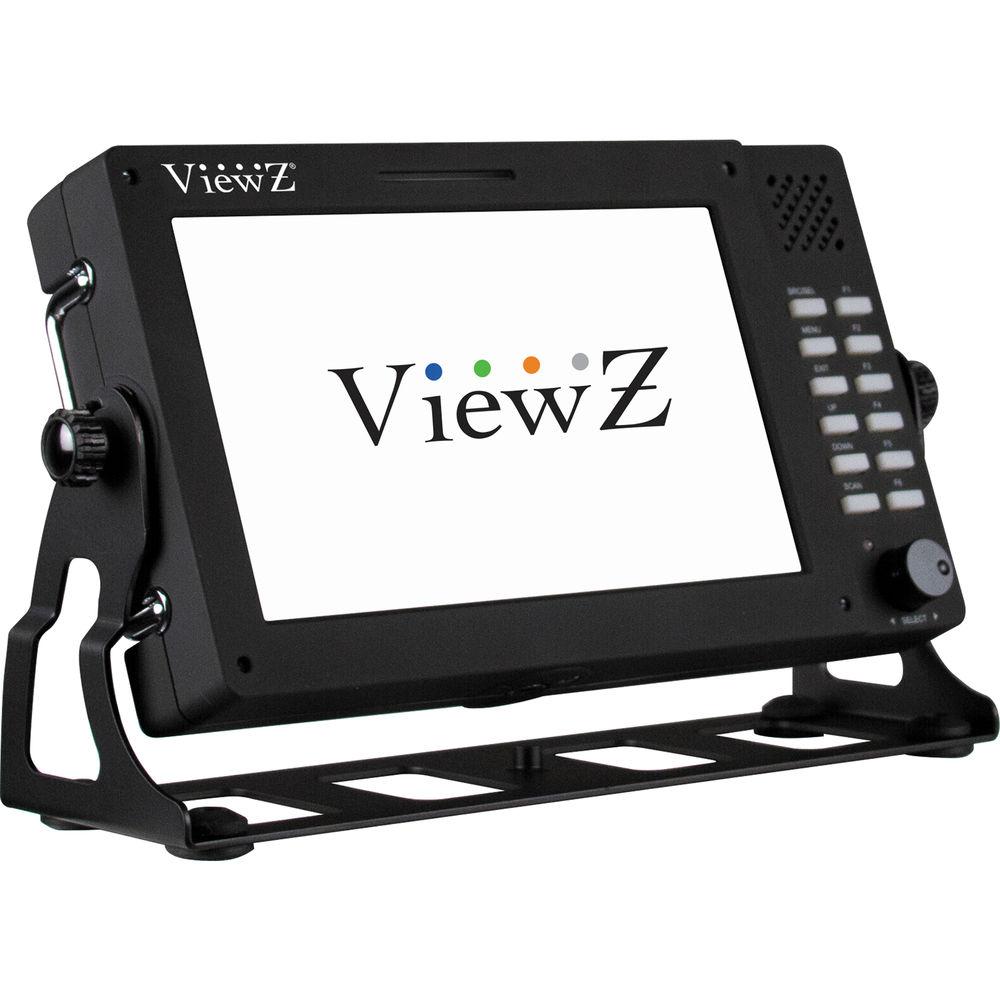

The VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor from ViewZ features an 8-bit, 1024x600 resolution display and an integrated SDI to HDMI and HDMI to SDI converter. It has a single 3G/HD/SD-SDI input which supports up to 1080p60 with 4:4:4 color sampling and 2K (2048 x 1080) resolutions at 23.94 or 24p. Other video inputs include composite, component, and HDMI.

Video outputs on the monitor consist of 3G/HD/SD-SDI, HDMI, and composite. An active signal converter integrated into the monitor allows for HDMI to SDI and SDI to HDMI conversions, with support for full 1080p60 signals on the HDMI output with test and measurement overlays. A rich set of professional monitoring features are provided, including vector scope, DSLR scaling, false color, 1:1 pixel mapping, focus peaking, and aspect ratio format markers. The monitor also has an Under Monitor Display function which displays ancillary data at the foot of the screen.

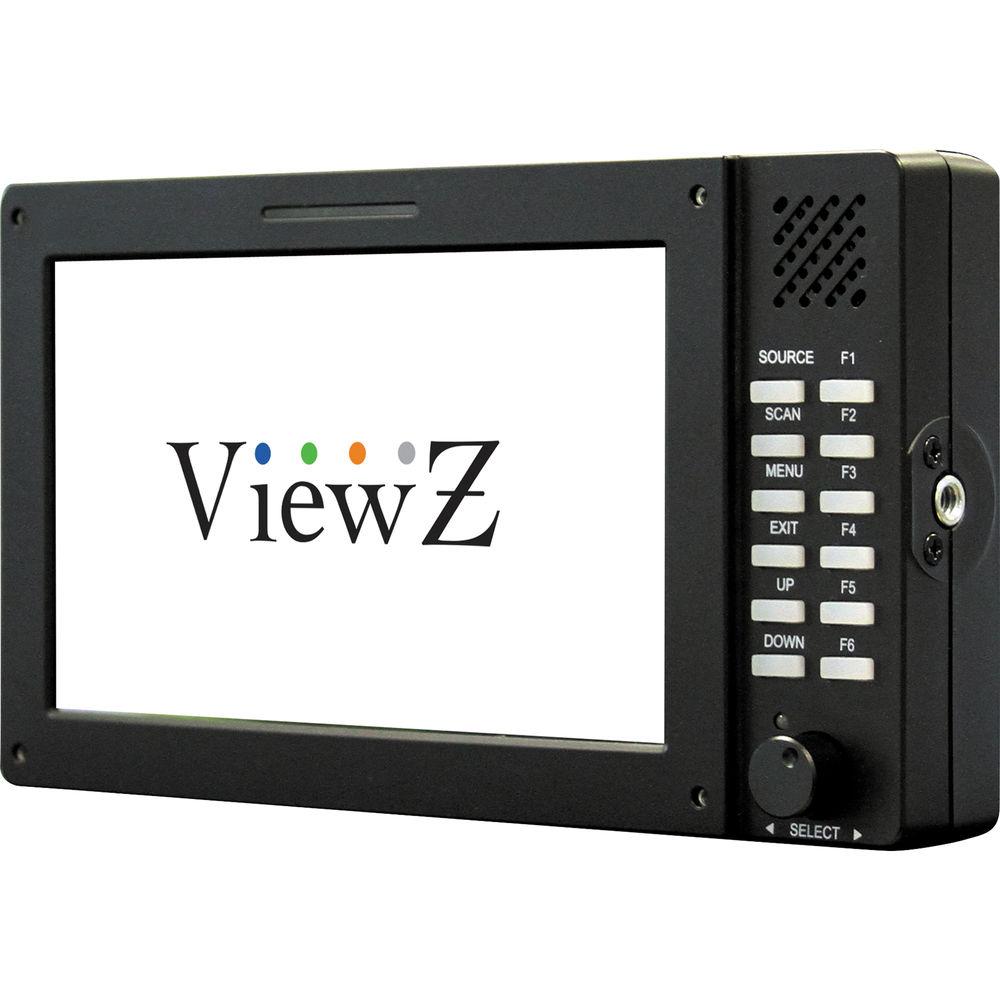

Settings can be controlled using the buttons and jog dial on the front of the monitor, with six programmable functions buttons provided for quick access to your favorite features. You can also control the monitor remotely via RS-485 using the RJ-45 input/output. The monitor is powered using 12 VDC from external sources via the DC or 4-pin XLR power inputs. It can also be powered by battery with optional battery plate and mount installed.
    • 8-bit IPS LCD with LED backlight panel
    • 1024 x 600 resolution
    • SMPTE 425 compliant HD display, with support for frame rates of 50/60 in 1080p, 1080i and 720p
    • 12-bit to 8-bit internal processing
    • Integrated SDI to HDMI and HDMI to SDI converter
    • 2K input support; downscaled to fit screen
    • Real-time RGB parade & vector scope display
    • False color
    • DSLR scaling
    • Peaking filter / focus assist
    • 1:1 Pixel mapping
    • Time code reader displays embedded LTC or VITC formats
    • De-embedded audio level meter
    • Aspect format markers: 4:3, 14:9, 15:9, and 16:9 area; line, safety, and center markers
    • 1.0 to 3.0 Gamma encoding select
    • Under Monitor Display (UMD) function displays Ancillary data at the foot of the screen
    • H/V Delay: View the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen
    • Freeze display
    • Red/Green mode tally
    • Screen color mode: Blue, Red, Green, and Mono
    • Menu jog dial control
    • Programmable function buttons
    • Key lock
    • RJ-45 Remote control input/output (RS-485 standard)
    • Requires 12 VDC power via DC or 4-pin XLR input connectors
In the Box ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor
  • Limited 2-Year Warranty on Parts
  • Limited 90-Day Warranty on Labor
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ViewZ VZ-070FM-3G 7" Portable 3G-SDI IPS LED Backlight Panel Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ViewZ VZ-070PM-3G Specs

    Type IPS LCD
    Screen Size 7" (17.8 cm)
    Aspect Ratio 16:9
    Resolution 1024 x 600
    Pixel Pitch 0.05 mm x 0.15 mm
    Brightness 400 cd/m2 (typical)
    Contrast Ratio 800:1
    Viewing Angle (H/V) 170° / 170°
    Color Depth 8-bit (16.7 million colors)

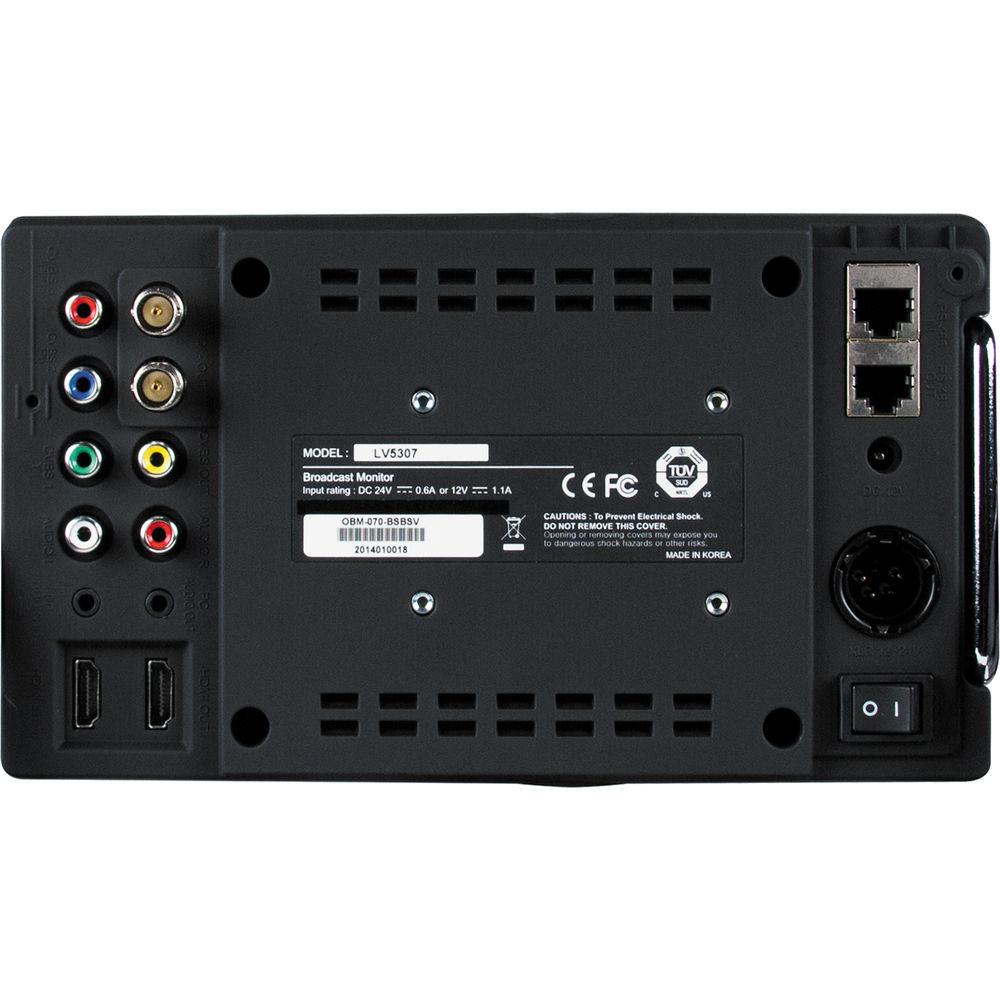

    Inputs 1 x 3G/HD/SD-SDI (BNC connector)
    1 x HDMI (DVI-D support)
    1 x Component / Composite (3 RCA connectors)
    1 x RS-485 (RJ-45 connector)
    1 x PC audio
    1 x Audio L/R (RCA connectors)
    Outputs 1 x 3G/HD/SD-SDI (BNC connector)
    1 x HDMI (DVI-D support)
    1 x Composite (RCA connector)
    1 x RS-484 (RJ-45 connector)
    1 x PC audio
    1 x Audio L/R (RCA connector)
    Built-in Speaker 2 W
    SDI SMPTE 425M-A/B
    1920x1080p 60/59.94/50/30/29.97/25/24/23.98
    1920x1080psf 23.98
    1920x1080i 60/59.94/50

    SMPTE 274M
    1920x1080p 30/29.97/25/24/23.98
    1920x1080psf 23.98 1920x1080i 60/59.94/50

    SMPTE 296M
    1280x720p 60/59.94/50

    SMPTE 260M
    1280x1035i 60/59.94

    ITU-R BT.656
    720x576i 50

    2K Format
    2048x1080p 24/23.98
    2048x1080psf 24/23.98
    Analog 1080p 50/60
    1080i 50/60
    720p 50/60
    576p 50
    576i 50
    480p 60
    480i 50/60
    HDMI 1080p 24/25/30/50/60
    1080psf 24
    1080i 50/60
    720p 24/25/30/50/60

    PC resolutions:
    1920 x 1200
    1920 x 1080
    1360 x 768
    1280 x 768
    1024 x 768
    800 x 600
    720 x 400
    640 x 480
    Power Input 1 x XLR 4-pin, 12 to 24 VDC
    1 x 12 VDC input
    Power Consumption Approx. 14.4 W
    Operating Temperature 32 to 104° (0 to 40°C)
    Dimensions (W x H x D) 8.7 x 5.0 x 1.9" (21.1 x 12.6 x 4.8 cm)
    Weight 2.02 lb (0.92 kg)
    Package Weight 3.25 lb
    Box Dimensions (LxWxH) 13.0 x 12.0 x 6.0"
