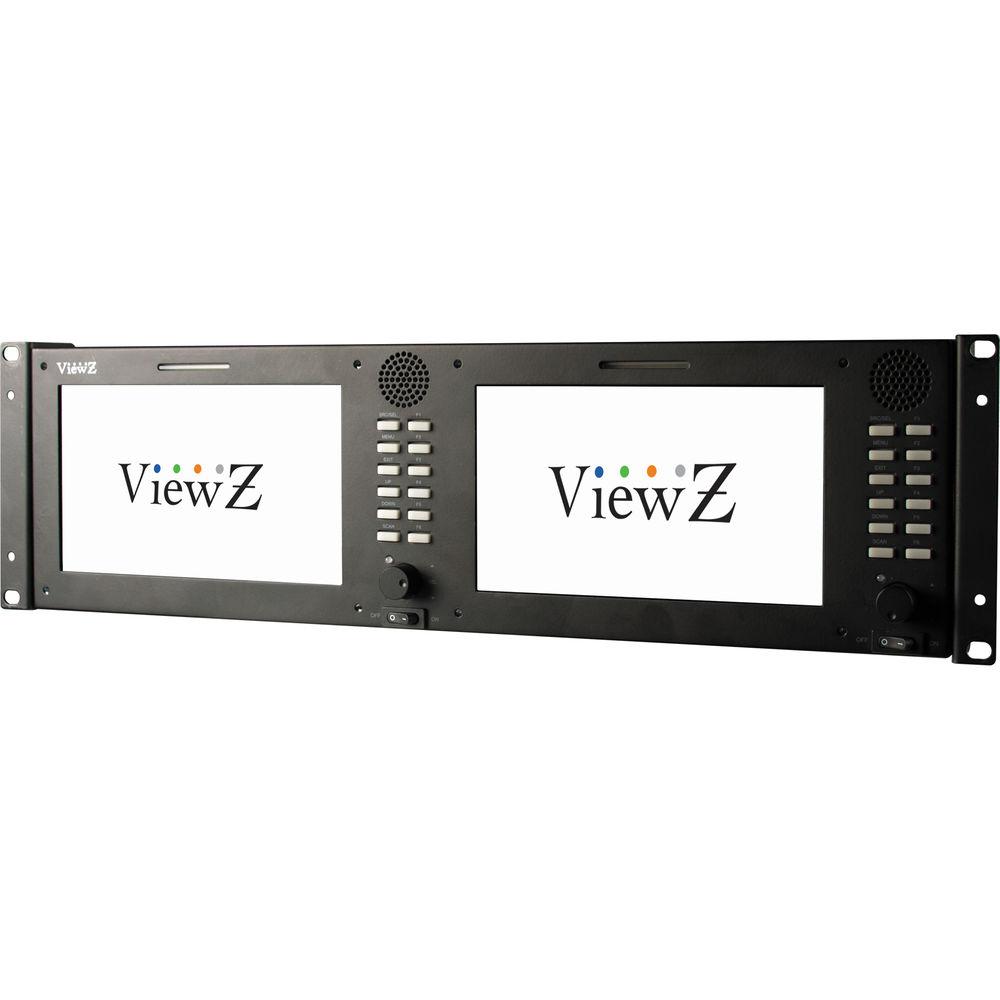

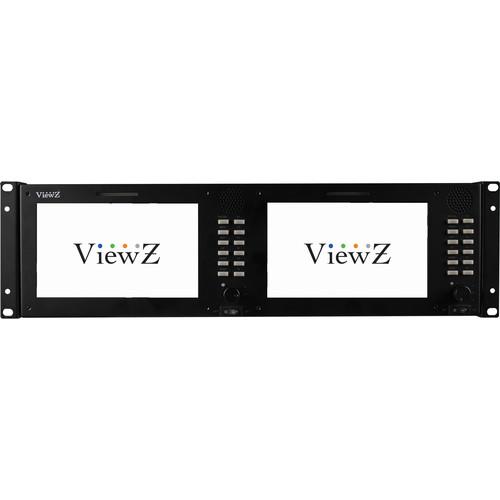

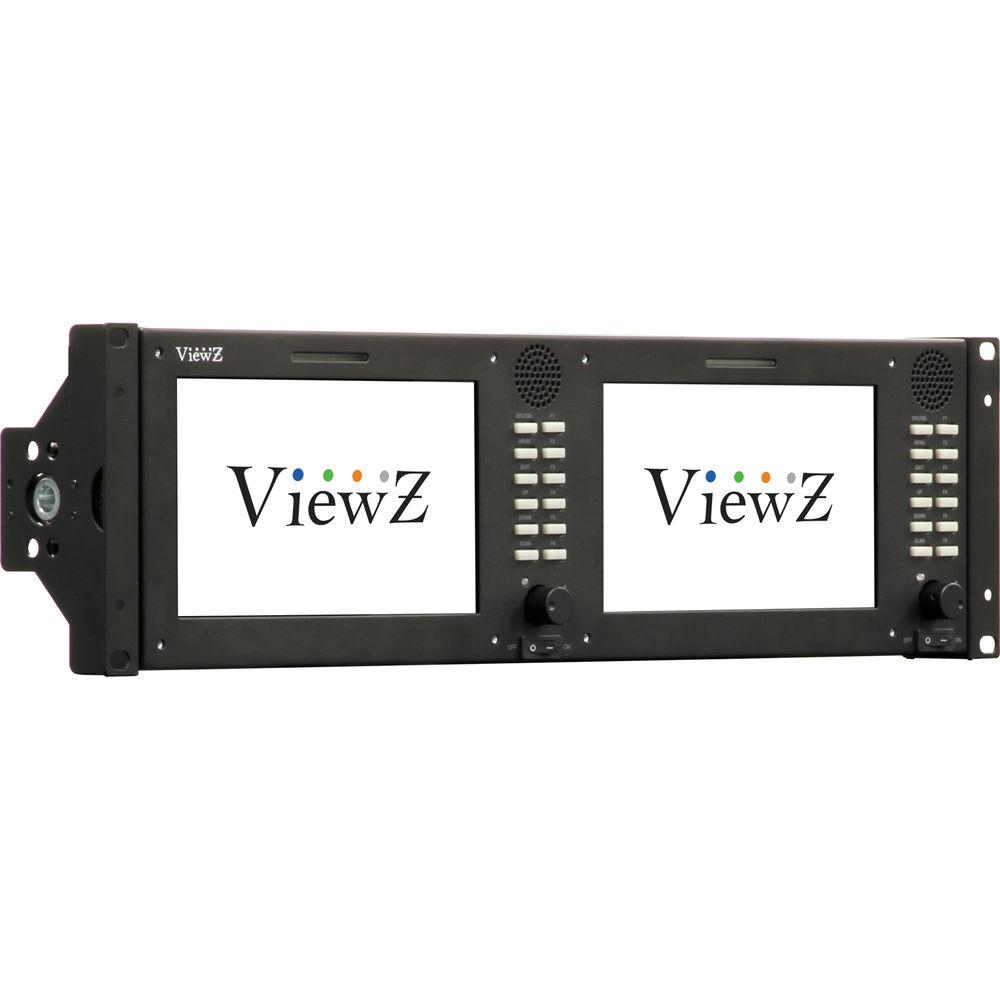

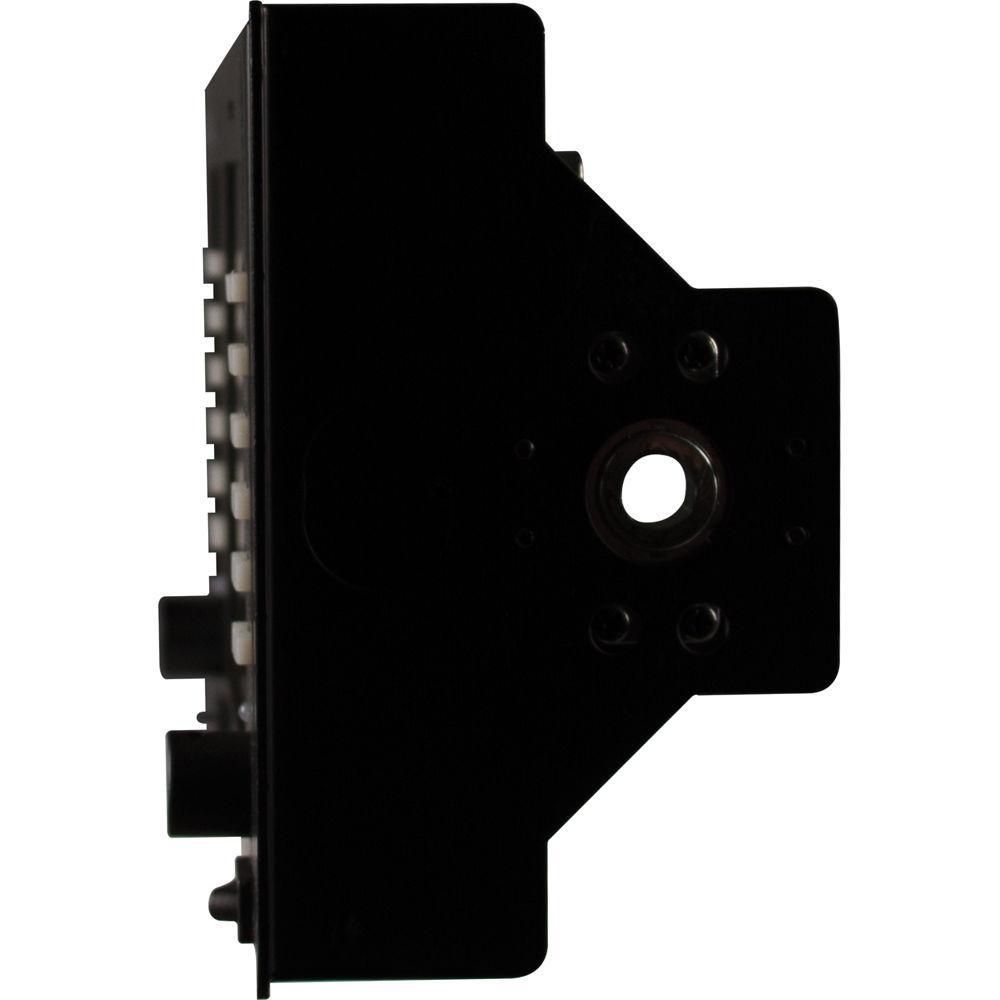

Product description The VZ-070RM-3G 3RU Dual 7.0" 3G-SDI Rackmount Monitor from ViewZ allows you to monitor two input sources on location or in the studio. It features two 8-bit, 1024x600 resolution displays housed in a 3RU rackmountable frame, with integrated SDI to HDMI and HDMI to SDI converters. Each display has a single 3G/HD/SD-SDI input which supports up to 1080p60 with 4:4:4 color sampling, and 2K (2048 x 1080) resolutions at 23.94 or 24p. Other video inputs for each display include composite, component, and HDMI.
Video outputs on the monitors consist of 3G/HD/SD-SDI, HDMI, and composite. Active signal converters integrated into the monitors allows for HDMI to SDI and SDI to HDMI conversions, with support for full 1080p60 signals on the HDMI output with test and measurement overlays. A rich set of professional monitoring features are provided, including vector scope, DSLR scaling, false color, 1:1 pixel mapping, focus peaking, and aspect ratio format markers. The monitor also has an Under Monitor Display function which displays ancillary data at the foot of the screen.
Settings can be controlled using the buttons and jog dials on the front of the monitors, with six programmable functions buttons provided on each monitor for quick access to your favorite features. You can also control the monitors remotely via RS-485 using the RJ-45 connectors. The monitors are powered using 12VDC from external sources via the DC or 4-pin XLR power inputs. A power cord and power supply comes included. -
- Dual 8-bit IPS LCDs with LED backlight panels
- 1024 x 600 resolution
- SMPTE 425 compliant HD display, with support for frame rates of 50/60 in 1080p, 1080i and 720p
- 12-bit internal processing
- Integrated SDI to HDI and HDMI to SDI converter
- 2K input support; downscaled to fit screen
- Real-time RGB parade & vector scope display
- False color
- DSLR scaling
- Peaking filter / focus assist
- 1:1 Pixel mapping
- Time code reader displays embedded LTC or VITC formats
- De-embedded audio level meter
- Aspect format markers: 4:3, 14:9, 15:9, and 16:9 area; line, safety, and center markers
- 1.0 to 3.0 Gamma encoding select
- Under Monitor Display (UMD) function displays Ancillary data at the foot of the screen
- H/V Delay: View the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen
- Freeze display
- Red/Green mode tally
- Screen color mode: Blue, Red, Green & Mono
- Menu jog dial control
- Programmable function buttons
- Key lock
- RJ-45 Remote control input/output (RS-485 standard)
- Requires 12VDC power via DC or 4-pin XLR input connectors
UPC: 853177002090 In the Box ViewZ VZ-070RM-3G 3RU Dual 7.0" 3G-SDI Rackmount Monitor Power Cord Power Supply Limited 2-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-070RM-3G 3RU Dual 7.0" 3G-SDI Rackmount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

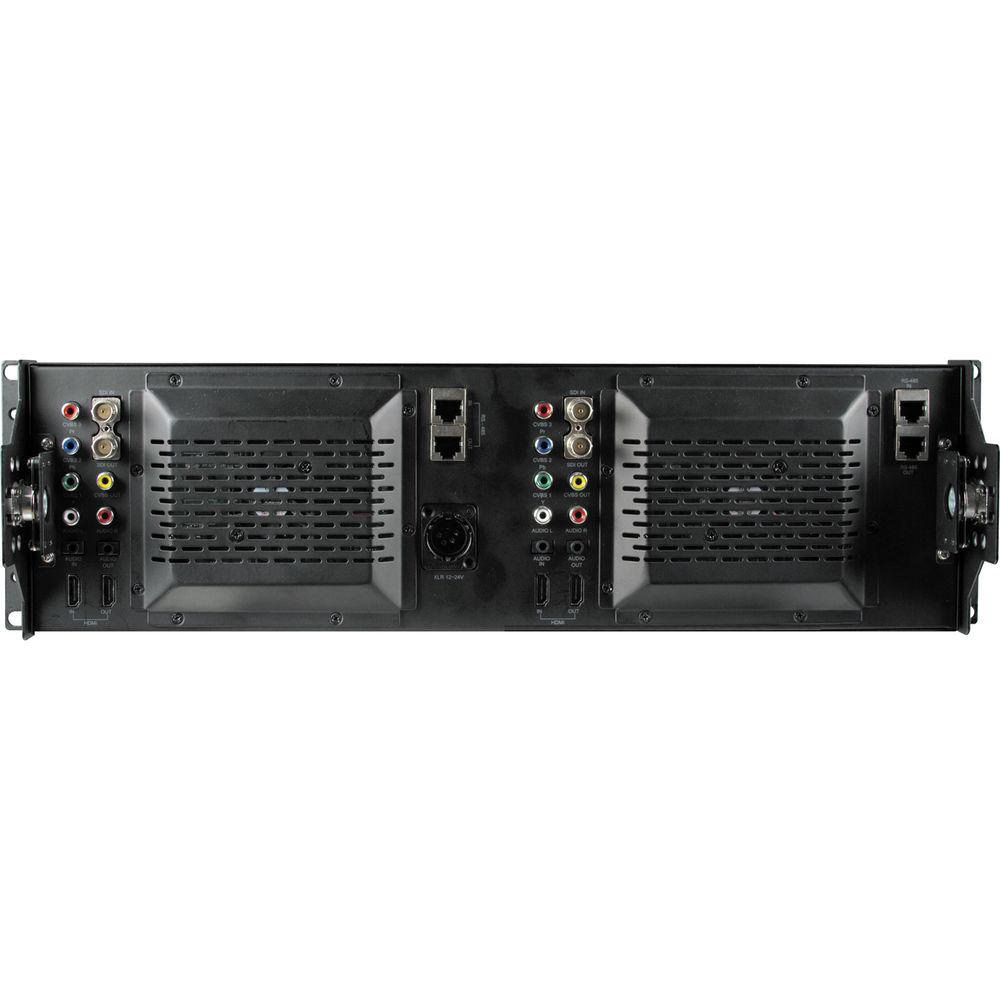

Technical parametersViewZ VZ-070RM-3G Specs | | | Type | 2 x 7" (17.8 cm) IPS LCD | | Aspect Ratio | 16:9 | | Resolution | 1024 x 600 | | Pixel Pitch | 0.05 mm x 0.15 mm | | Brightness | 400 cd/m2 (typical) | | Contrast Ratio | 800:1 | | Viewing Angle (H/V) | 170° / 170° | | Color Depth | 8-bit (16.7 million colors) | | | | Inputs | For each monitor:
1 x 3G/HD/SD-SDI (BNC connector)
1 x HDMI (DVI-D support)
1 x Component / Composite (3 RCA connectors)
1 x RS-485 (RJ-45 connector)
1 x PC audio
1 x Audio L/R (RCA connectors) | | Outputs | For each monitor:
1 x 3G/HD/SD-SDI (BNC connector)
1 x HDMI (DVI-D support)
1 x Composite (RCA connector)
1 x RS-484 (RJ-45 connector)
1 x PC audio
1 x Audio L/R (RCA connector) | | Built-in Speaker | 2 x 2 W (one per monitor) | | | | SDI | SMPTE 425M-A/B
1920x1080p 60/59.94/50/30/29.97/25/24/23.98
1920x1080psf 23.98
1920x1080i 60/59.94/50
SMPTE 274M
1920x1080p 30/29.97/25/24/23.98
1920x1080psf 23.98 1920x1080i 60/59.94/50
SMPTE 296M
1280x720p 60/59.94/50
SMPTE 260M
1280x1035i 60/59.94
ITU-R BT.656
720x576i 50
2K Format
2048x1080p 24/23.98
2048x1080psf 24/23.98 | | Analog | 1080p 50/60
1080i 50/60
720p 50/60
576p 50
576i 50
480p 60
480i 50/60 | | HDMI | 1080p 50/60
1080i 50/60
720p 50/60
576p 50
576i 50
480p 60
480i 50/60 | | | | Power Input | 1 x XLR 4-pin, 12 to 24 VDC
2 x 12 VDC input (one per monitor) | | Power Consumption | Approx. 28.8 W | | Operating Temperature | 32 to 104° (0 to 40°C) | | Dimensions (W x H x D) | 19.0 x 5.2 x 3.1" (48.3 x 13.2 x 8.0 cm) | | Weight | 5.5 lb (2.5 kg) |
