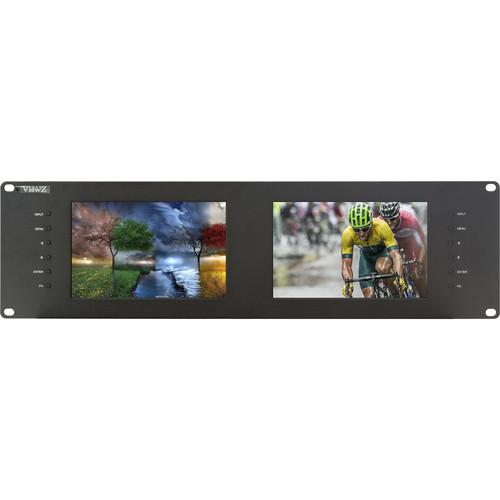

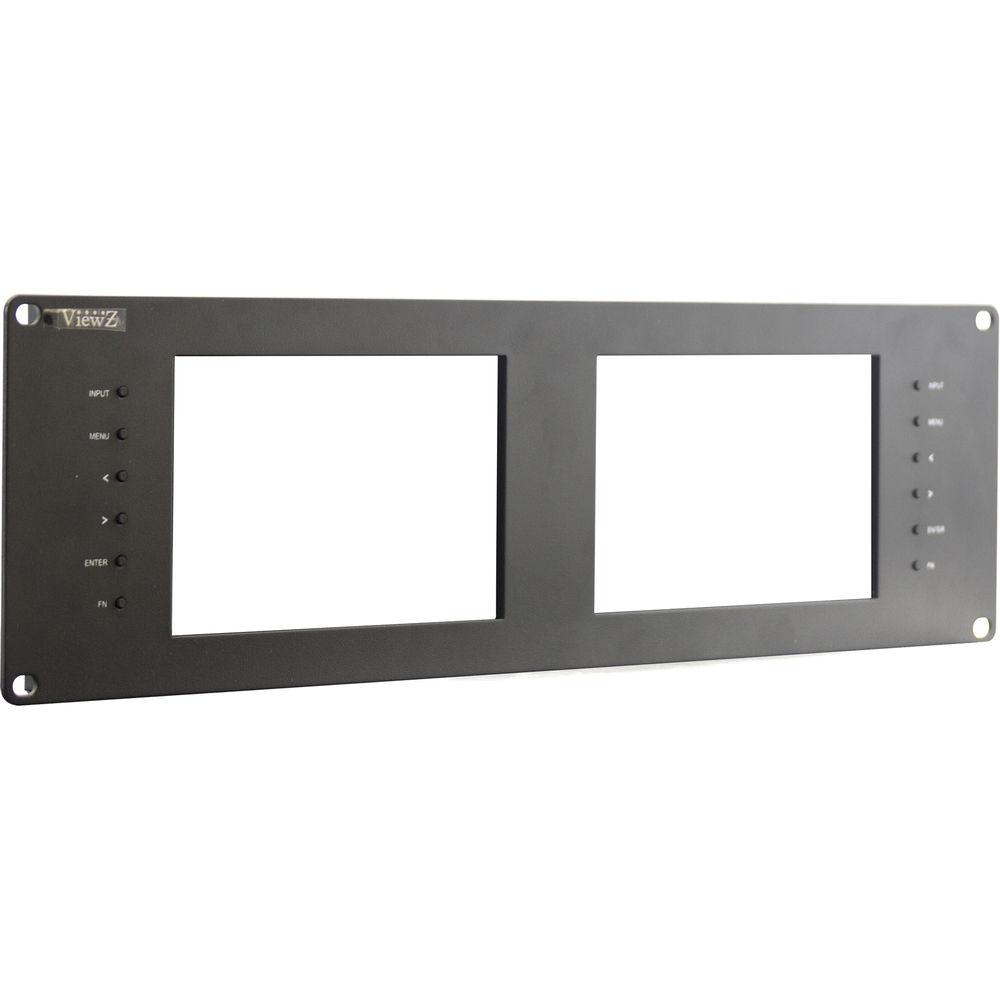

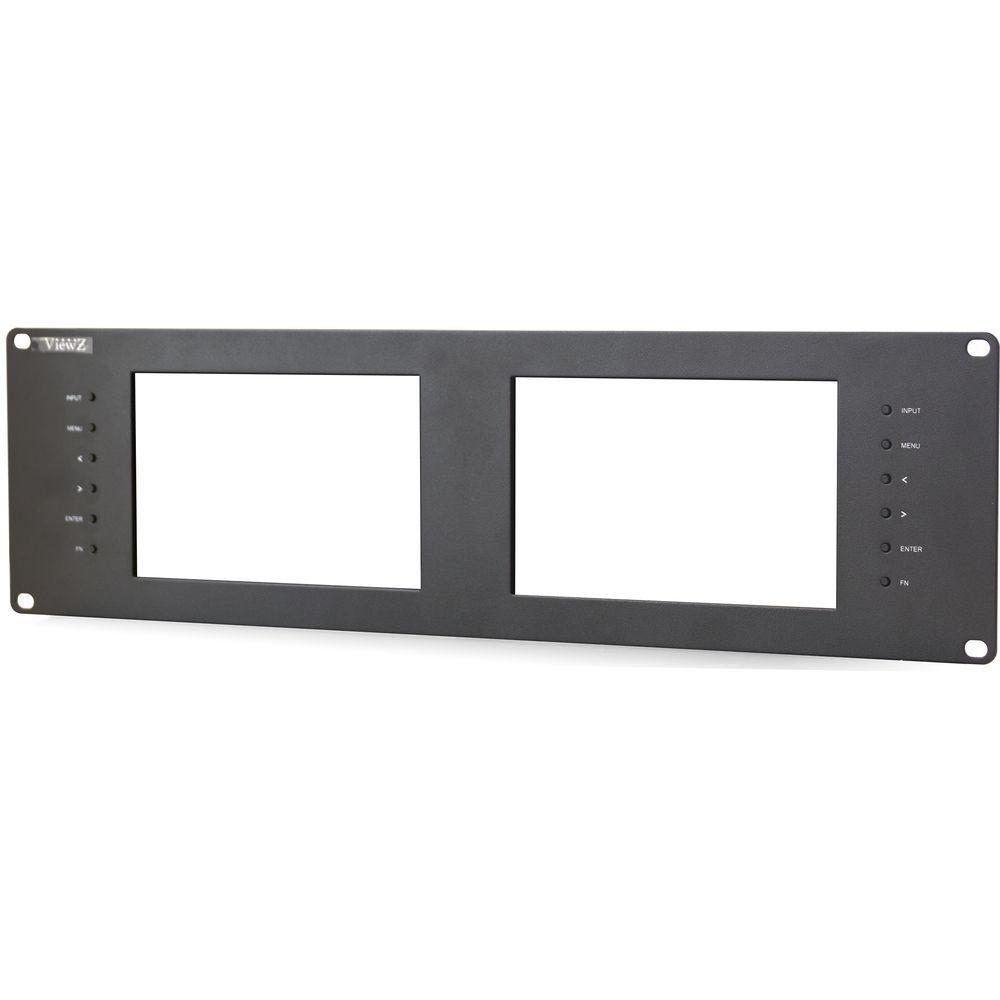

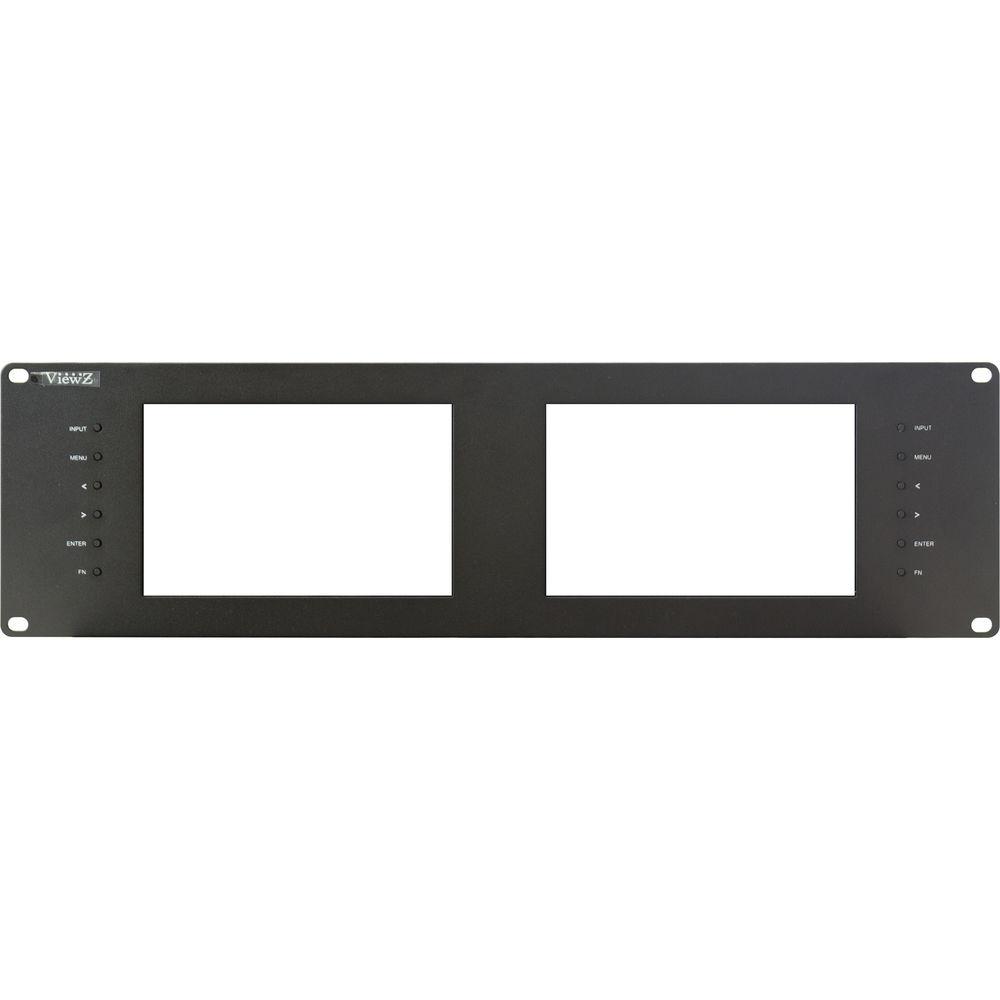

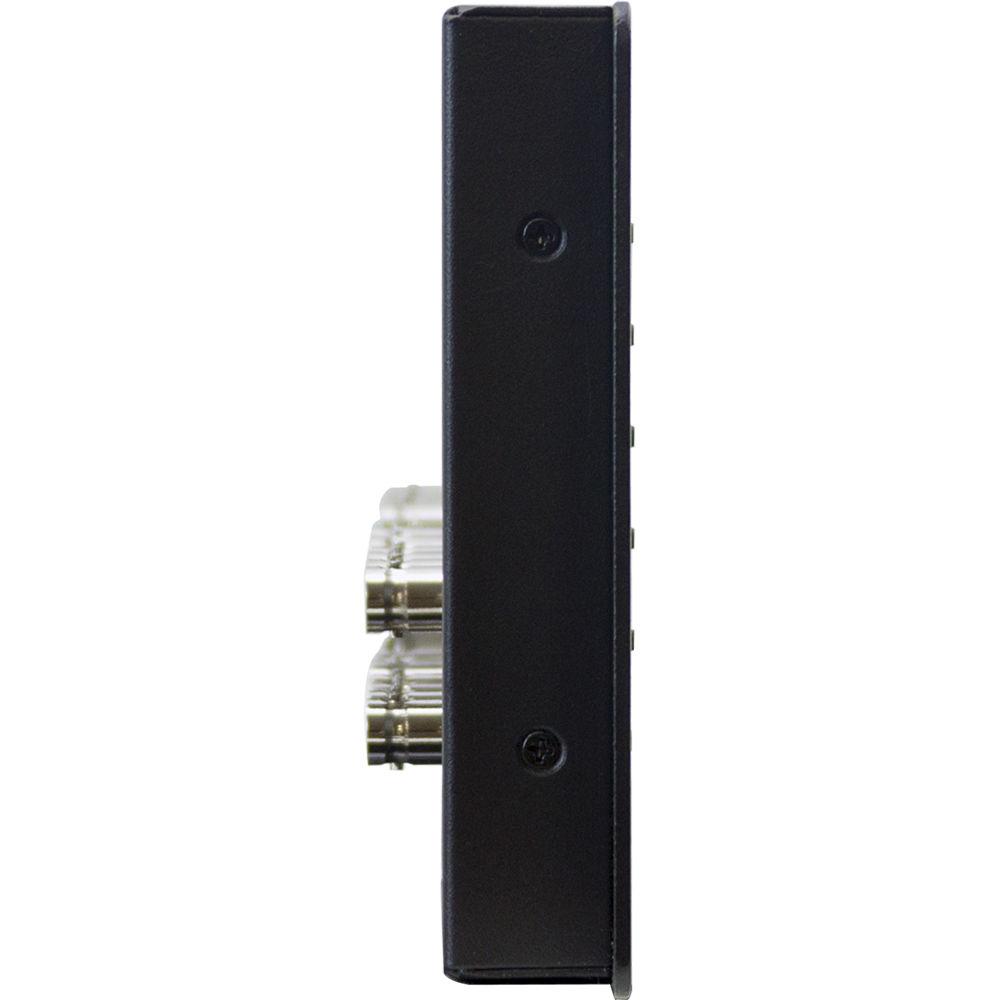

Product description The 3 RU VZ-070RM-E Dual 7" 3G-SDI Rackmount Monitor from ViewZ is a 2-in-1 monitor that supports up to 1080p60 HD video. The monitor incorporates two 7" IPS LCD panels with 1280 x 800 resolution, 350 cd/m² brightness, 800:1 contrast, and a wide 178° viewing angle. The VZ-070RM-E features 12- to 8-bit dithering for improved color depth, gamma 2.2-base calibration, RJ45 remote control, and 2-channel audio metering.Display features include image flip and zoom, false color, Red/Green/Blue/Mono-only modes, H/V delay, PiP, red and green tally modes, Zero/Under/Over/Pixel-to-Pixel scan modes, and safety markers. Color temperature modes include 6500K, 7500K, 9300K, and a user-configurable mode. The 3 RU rack-mountable ViewZ VZ-070RM-E monitor is suitable for both studio and field production. -
- 2-in-1 7" monitor supports up to 1080p60 HD video

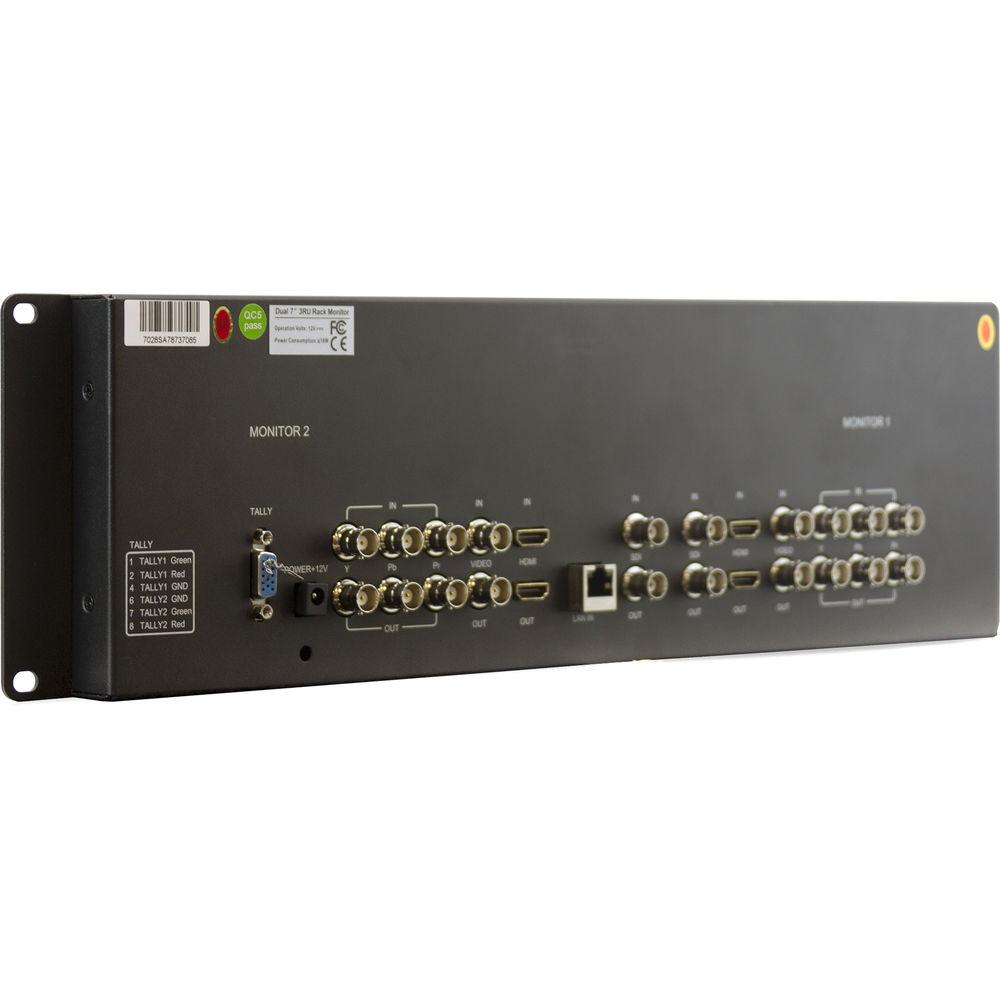

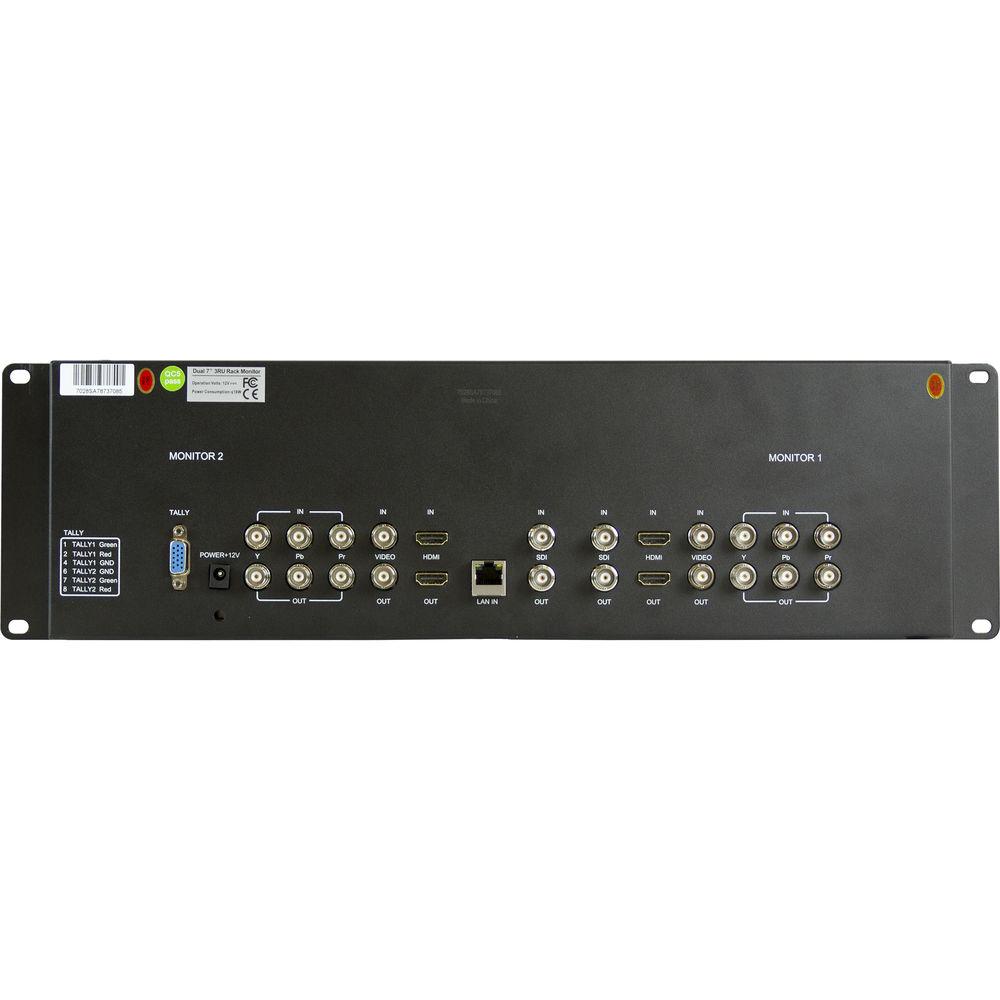

- Two 3G-SDI inputs/outputs, HDMI, component, and composite inputs/outputs
- 350 cd/m² brightness, 800:1 contrast, and a wide 178° x 178° viewing angle
- Image flip and zoom, false color, and Red/Green/Blue/Mono-only modes
- H/V delay, PiP, and red/green tally modes
- Zero/Under/Over/Pixel-to-Pixel scan modes
- 3 RU rackmount
In the Box ViewZ VZ-070RM-E Dual 7" 3G-SDI Rackmount Monitor (3 RU) Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-070RM-E Dual 7" 3G-SDI Rackmount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-070RM-E Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm x 2 | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Touchscreen | No | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 800:1 | | Dot Pitch | 0.039 x 0.117 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Real-Time LUT Monitoring | No | | Image Controls | False Color, H/V Delay, Image Flip, Picture-in-Picture, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers | | | | Video | 1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
2 x HDMI Type A (HDMI 1.4) Input
2 x HDMI Type A (HDMI 1.4) Output
2 x 3BNC (Component) Input
2 x 3BNC (Component) Output
2 x BNC (Composite) Input
2 x BNC (Composite) Output | | HDCP Support | No | | Embedded Audio | SDI: 2-Channel
HDMI: 2-Channel | | Audio | None | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x Tally (DE-15/DB-15)
1 x LAN (RJ45) | | Card Slot | None | | | | Video Format | SDI (8-Bit)
1080p: 24/25/30/50/
1080PsF: 23.98
1080i: 50/60
720p: 50/60
PAL: 50
NTSC: 59.94 | | | | DC Input Power | 12 VDC | | Battery Type | None | | Operating Current | 1.5 A | | Power Consumption | 18 W | | | | Rack Form Factor | 3 RU | | Mounting | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Dimensions (W x H x D) | 19 x 5.26 x 1" / 482.5 x 133.5 x 25.3 mm, Including Bracket | | Weight | 6.35 lb / 2.88 kg |
