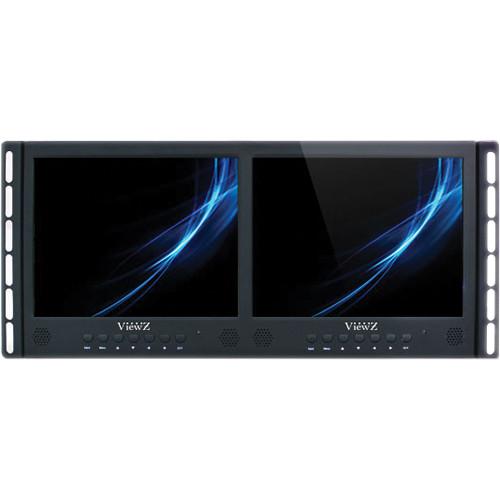

Product description The VZ-097RCR-D Dual 9.7" Rack-Mountable LED CCTV Monitors from ViewZ feature two 9.7” IPS LED monitors side-by-side in a single, rack-mountable enclosure. The tilting design allows for easy system integration. Each 9.7" monitor has a 1024 x 768 resolution, which translates into an aspect ratio of 4:3. The maximum video resolution supported is 520 TVL. The monitors have 160° (horizontal and vertical) viewing angles and the built-in 2D comb filter and de-interlace features help improve image quality.
With BNC, RCA, and VGA inputs behind each monitor, you get a selection of video inputs. In addition, each monitor offers a trigger input, a PC audio input jack, and built-in 1W stereo speakers. The monitors are individually powered by the included 12 VDC power adapters. - Dual 9.7" IPS LED backlit CCTV monitors
- 1024 x 768 resolution, 4:3 aspect ratio
- BNC, RCA, VGA, and trigger inputs
- 2D comb filter, de-interlace
UPC: 853177002199 In the Box ViewZ VZ-097RCR-D Dual 9.7" Rack-Mountable LED CCTV Monitors 2 x Power Adapters 2 x VGA Cables 2 x Trigger Cables Limited 3-Year Warranty Brochure PDF 4.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-097RCR-D Dual 9.7" Rack-Mountable LED CCTV Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-097RCR-D Specs | | | Screen Size | 9.7" (24.6 cm) | | LCD Type | IPS (in-plane switching) | | Maximum Resolution | 1024 x 768 @ 60 Hz | | Video Resolution | 520 TVL maximum | | Pixel Pitch (HxV) | 0.192 x 0.192 mm | | Brightness | 300 cd/m² (typical) | | Contrast Ratio | 600:1 | | Aspect Ratio | 4:3 | | Viewing Angle (H/V) | 160°/160° | | Display Colors | 0.26 million | | Response Time | < 35 ms | | Video System | NTSC, PAL | | Filter Type | 2D comb filter, de-interlace | | Frequency (H) | 31 to 48 kHz | | Frequency (V) | 56 to 60 Hz | | | | Video Input | 1 x BNC, 1 x RCA (per monitor) | | Video Output | 1 x BNC, 1 x RCA (per monitor) | | VGA Input | 1 per monitor | | Trigger Input | 1 per monitor | | | | Built-in Speaker | 2 x 1 W per monitor | | Input | 1 x PC audio, per monitor | | | | Form Factor | 5U rack-mounting | | Type | Tiltable | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power | 100-240 VAC, 50 to 60 Hz, 12 VDC @ 1.36 A | | Power Consumption | 16.4 W | | MTBF (Approx.) | 50,000 hours | | Overall Dimensions (WxHxD) | 18.9 x 8.28 x 1.6" (48.1 x 21. x 4.1 cm) | | Weight | 6.6 lb (3 kg) | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 22.9 x 12.1 x 6.9" |
