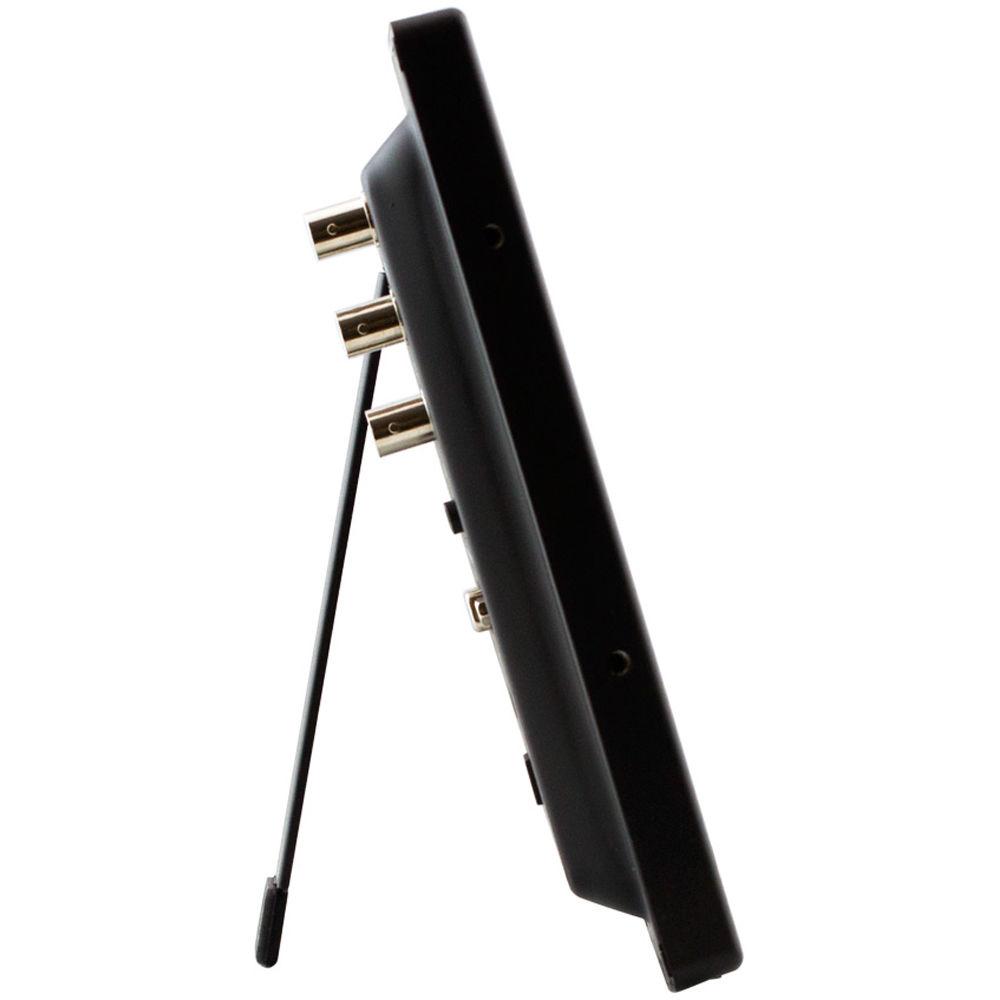

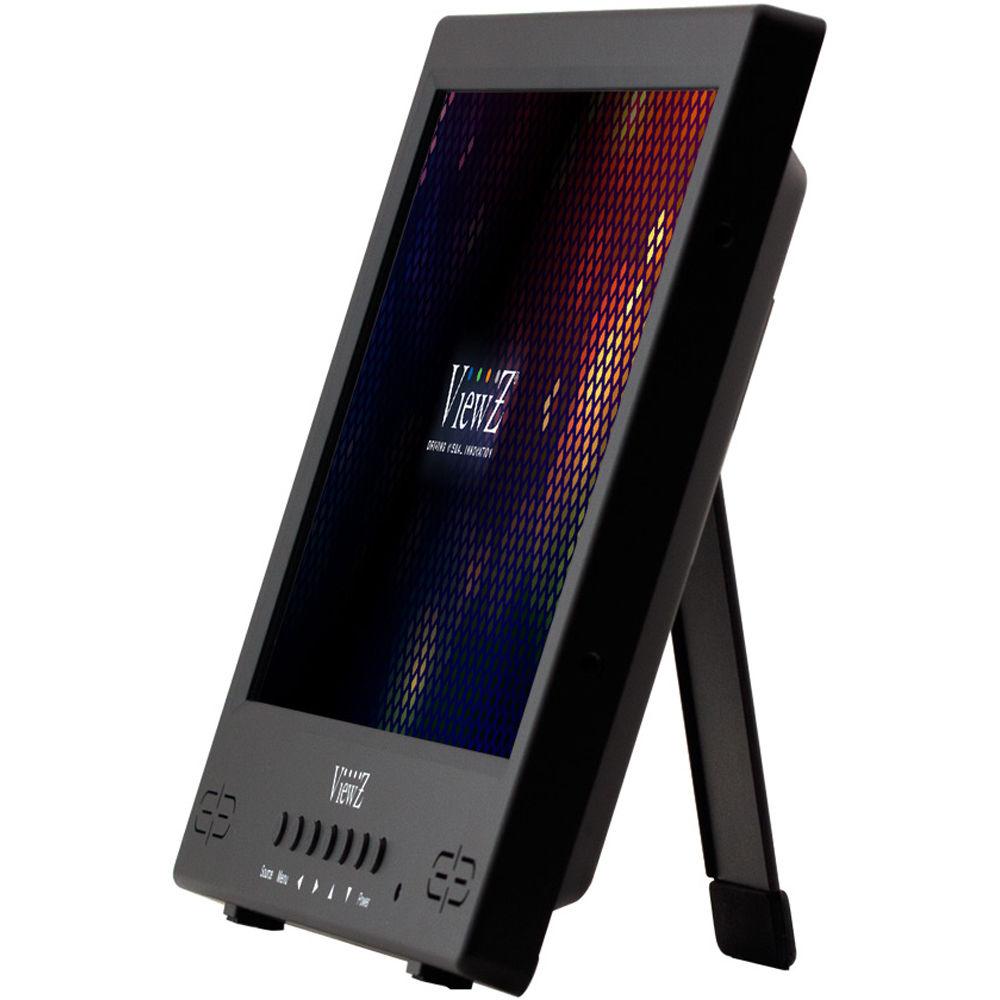

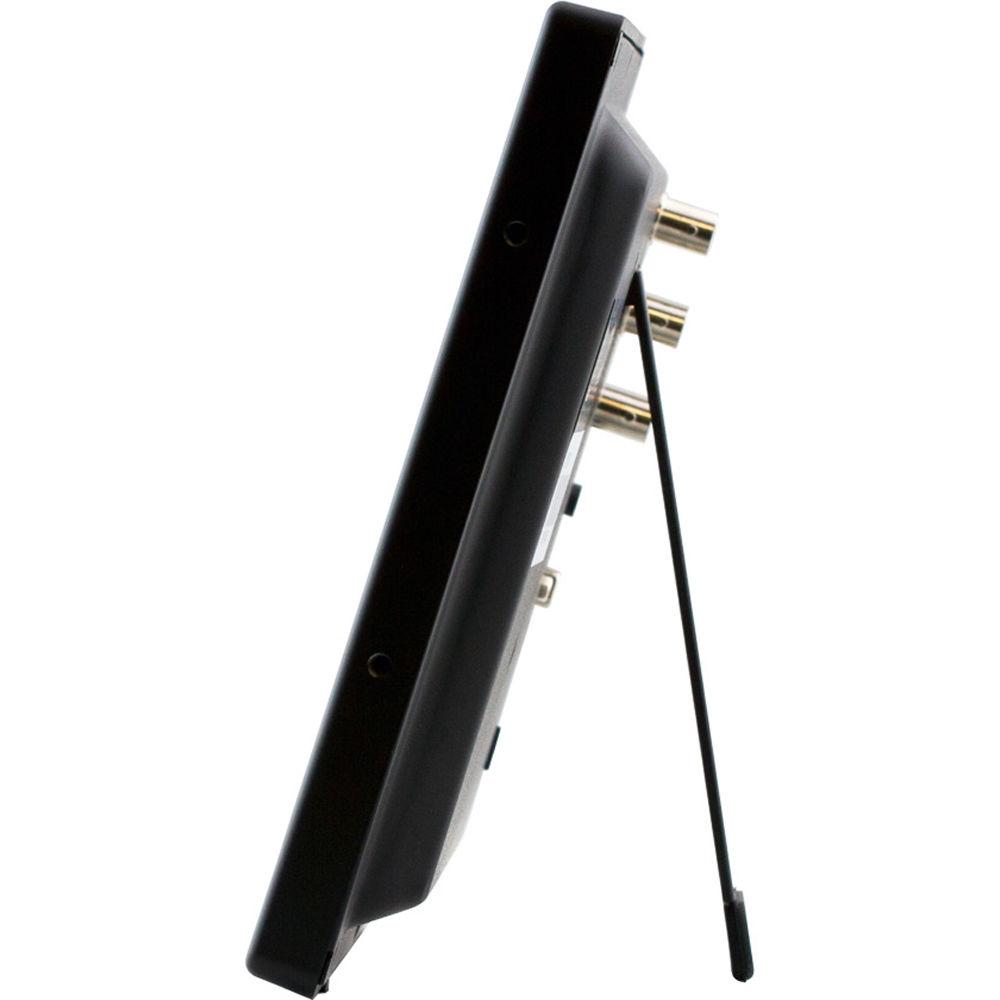

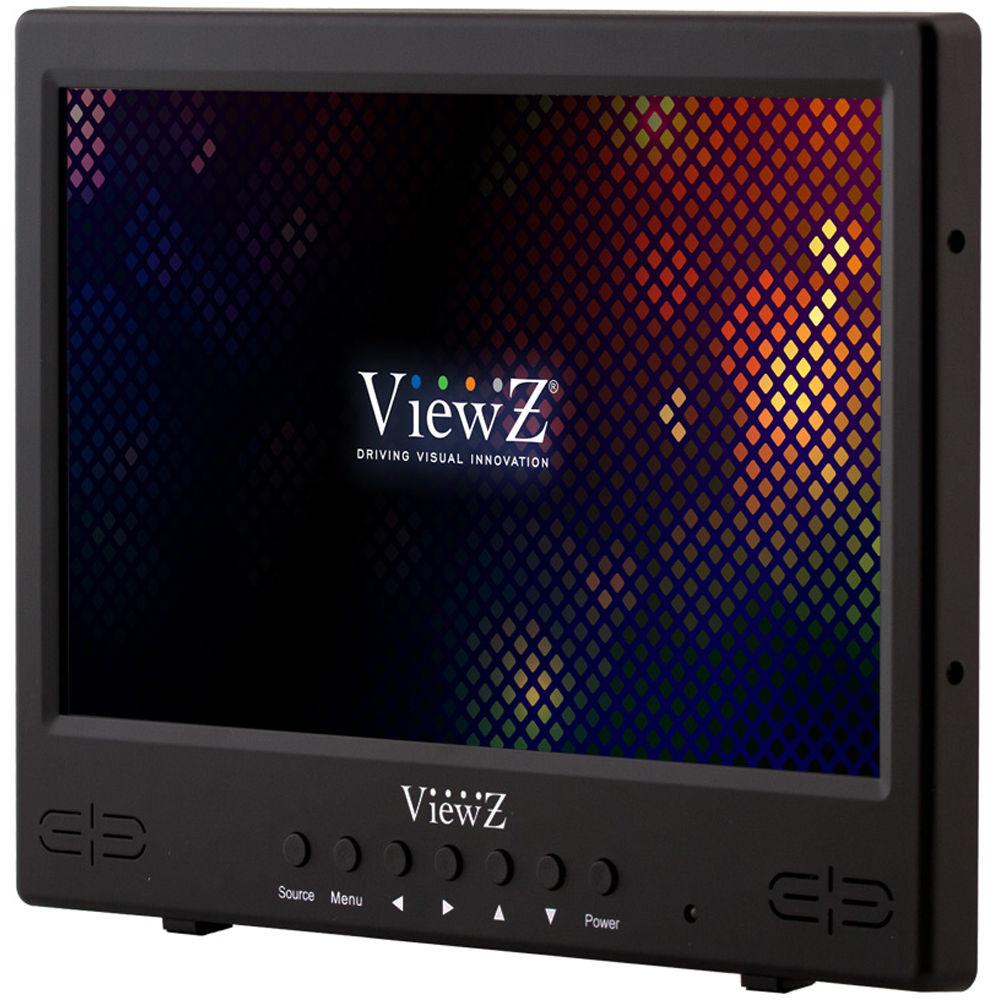

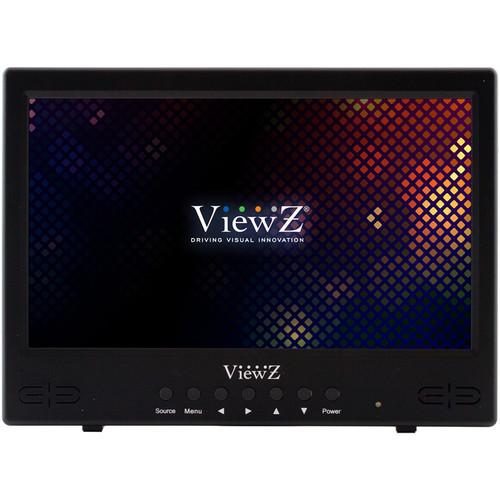

User Manual for ViewZ VZ-101RTC 10.1" LED CCTV Monitor Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-101RTC 10.1" LED CCTV Monitor
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
 |
User manual for the ViewZ VZ-101RTC 10.1" LED CCTV Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|
Product description The VZ-101RTC 10.1" LED CCTV Monitor from ViewZ has a native resolution of 1024 x 600 at 60 Hz. It offers horizontal and vertical viewing angles of 170°, and an 800:1 contrast ratio. 16:9 and 4:3 aspect ratios are supported. Audio playback is possible thanks to a pair of built-in speakers. Additionally, this monitor is equipped with HDMI, VGA, audio, trigger, and two composite inputs, as well as a composite output. It is NTSC and PAL compatible. - 300 cd/m² brightness rating
- 2D comb filter and noise reduction
- 16.7 million display colors
- <25 ms monitor response time
- Supports 16:9 and 4:3 aspect ratios
UPC: 815562020775 In the Box ViewZ VZ-101RTC 10.1" LED CCTV Monitor Monitor Stand 110V Power Cable Power Supply HDMI Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-101RTC 10.1" LED CCTV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

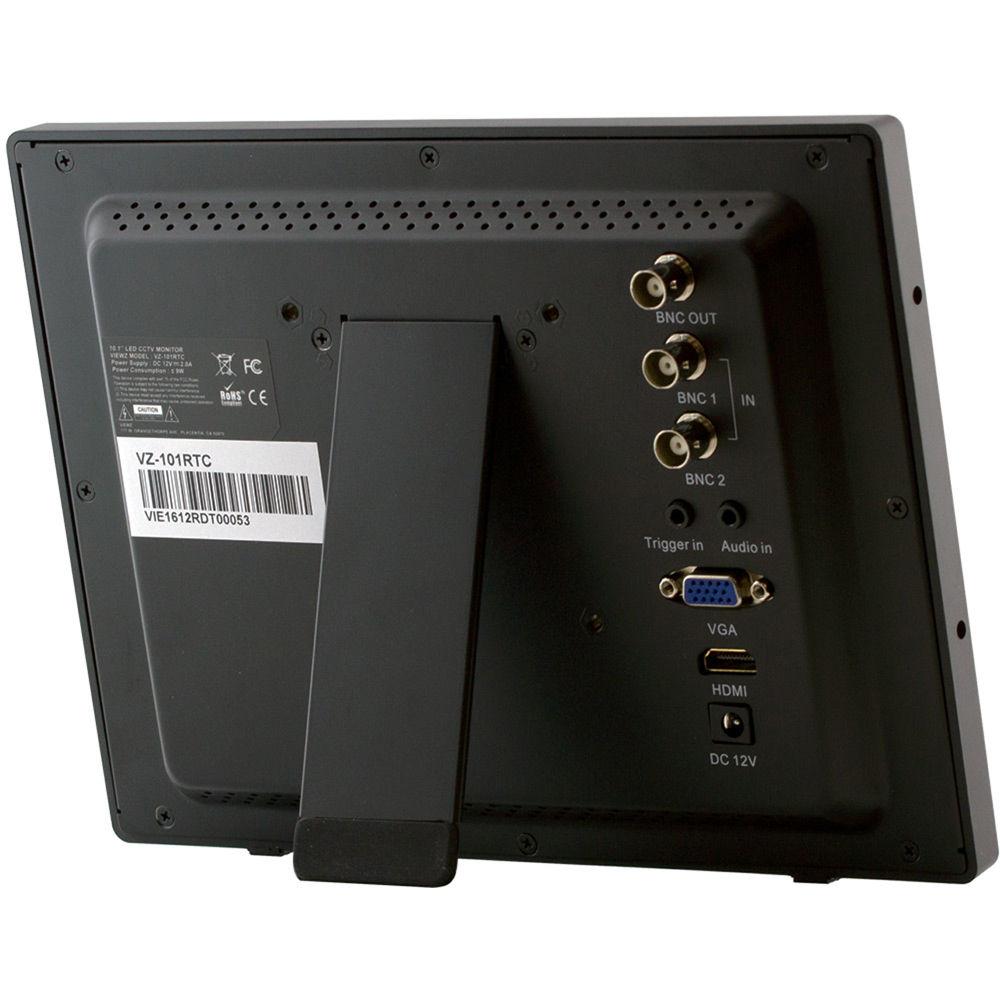

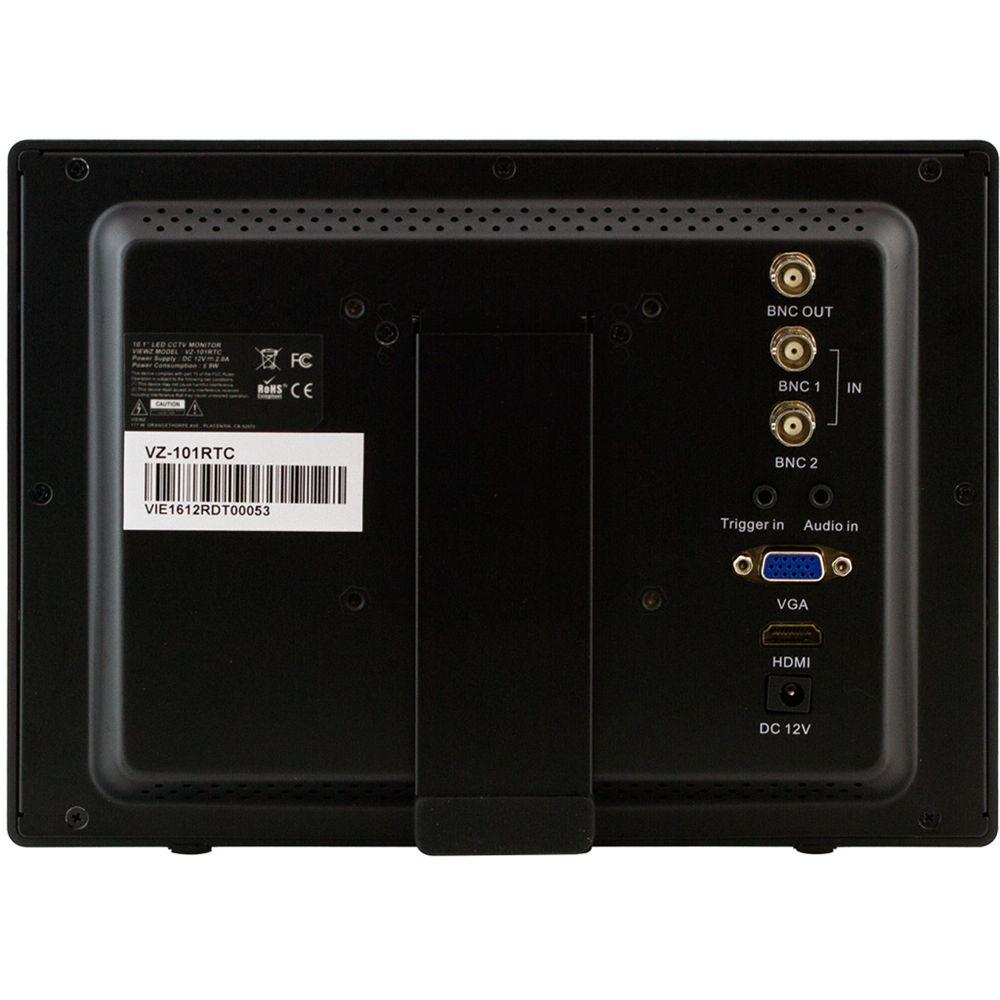

Technical parametersViewZ VZ-101RTC Specs | Screen Size | 10.1" / 25.7 cm | | Maximum Resolution | 1024 x 600 at 60 Hz | | Brightness | 300 cd/m² (typical) | | Contrast Ratio | 800:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 170°/170° | | Display Color | 16.7 million | | Response Time | <25 ms | | Video System | NTSC/PAL | | I/O | AV (Composite) In / BNC Out: 2/1
HDMI In: 1
RGB In (15-Pin D-Sub): 1
Trigger In: 1
Audio In: 1 | | Built-In Speakers | 2 x 1 W | | Filter Type | 2D comb filter / noise reduction | | Languages | English, Spanish, French, German, Italian, Portuguese, Polish, Russian | | VESA | 75 x 75 mm, M4 x L8 screws | | Compatible Mounts | Wall: VZ-WM05, VZ-WM11, VZ-AM01
Rack: VZ-RMK08 | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 20 to 70% RH | | Power | 12 VDC, 2 A (100 to 240 VAC), 60/50 Hz | | Power Consumption | 8 W | | Regulations | CE, FCC(A) | | Dimensions (W x H x D) | 9.92 x 7.28 x 1.05" / 252 x 185 x 26.80 mm | | Weight | 2.86 lb / 1.3 kg | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 12.2 x 9.1 x 4.0" |
