Product description

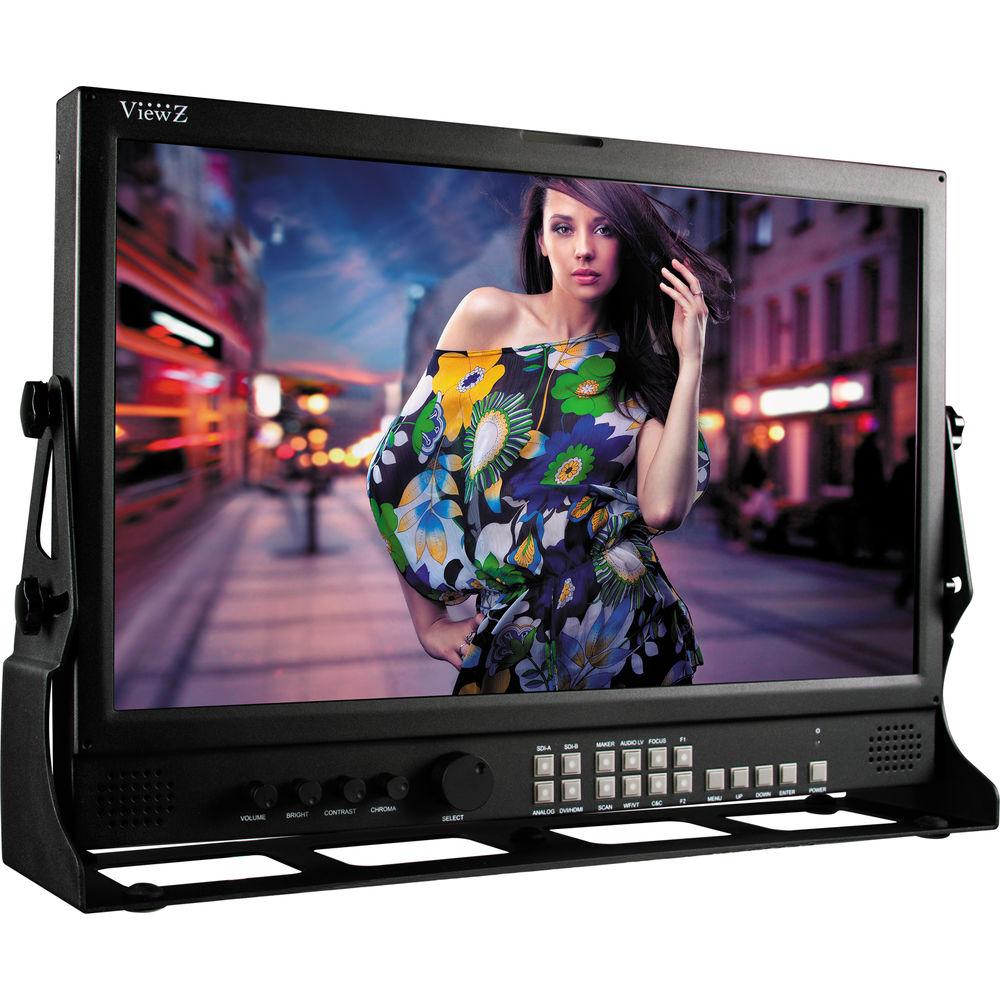

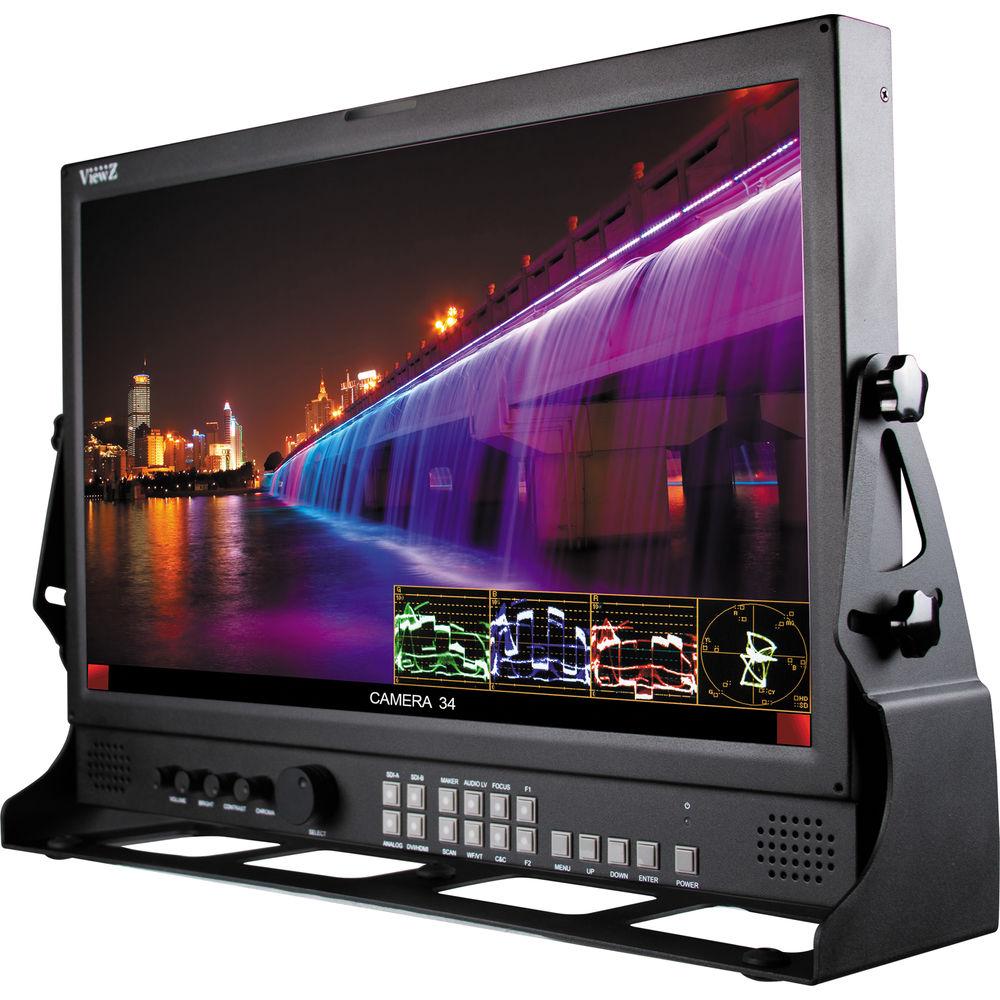

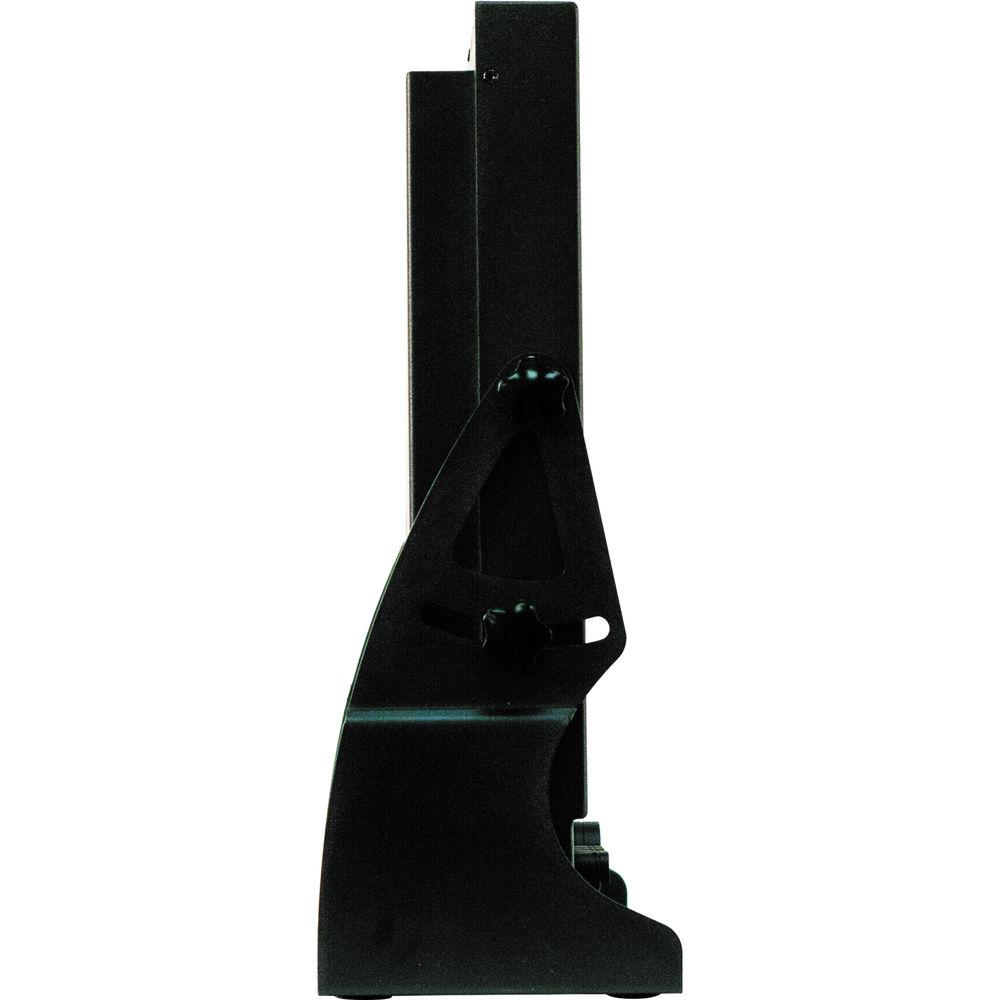

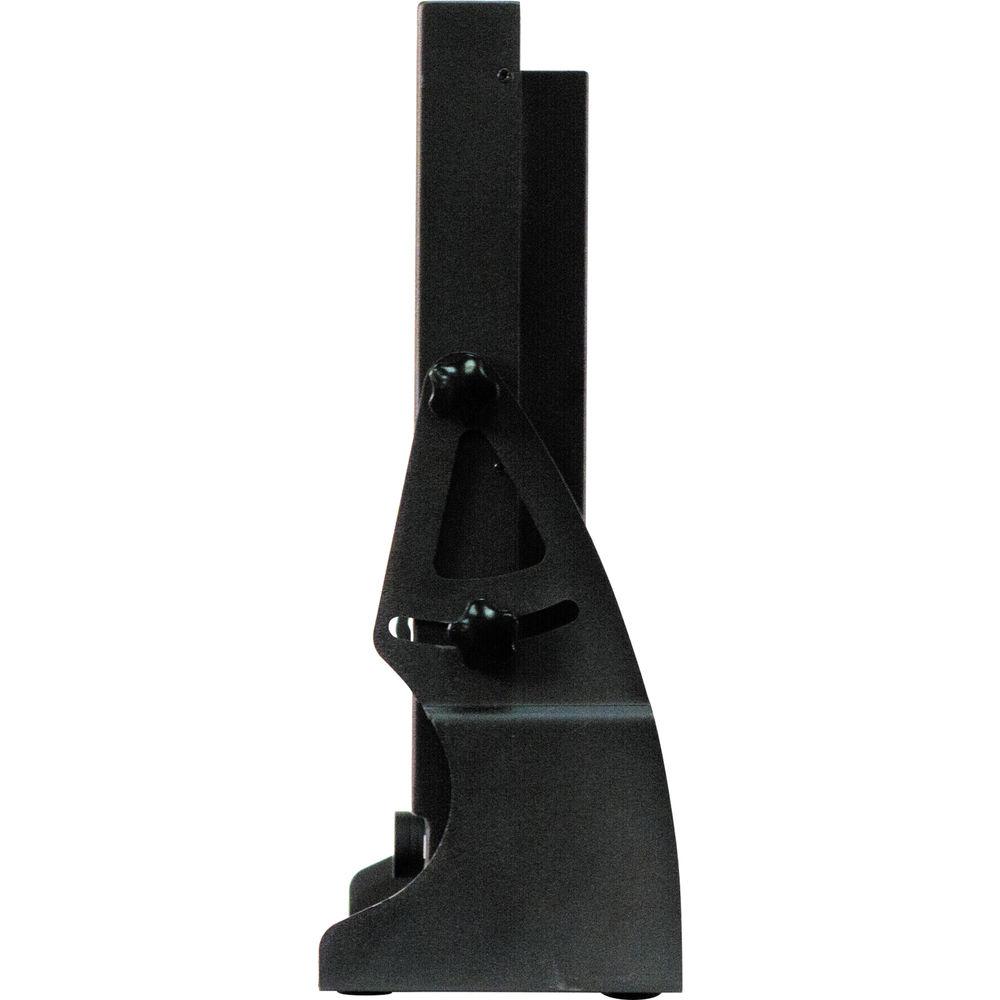

The VZ-185PM-P 18.5" 3G-SDI & 8-Bit Video Production Monitor from ViewZ allows you to monitor SDI, HDMI, DVI, and analog video signals on a 1366 x 768 resolution display. Two SDI connectors are provided, capable of handling SD, HD, and 3G SDI signals with support for YCbCR or RGB 4:4:4 10/12-bit video up to 1080/60p. It also supports 2K (2048 x 1080) YCbCr 4:2:2 10-bit signals at 23.98/24p and 23.98/24PsF. Additional video inputs include composite, component, and S-video on BNC connectors, as well as one HDMI and one DVI input.

An active loop through 3G/HD/SD-SDI output is available for sending video signals to additional monitors. A signal converter integrated into the monitor allows for SDI to HDMI conversions, with full support for 1080p60 signals on the HDMI output with test and measurement overlays. Professional overlays include waveform, vector scope, and selectable Y/R/G/B histogram. Other professional monitoring features including DSLR scaling, false color, 1:1 pixel mapping, and aspect ratio format markers. The convert also has an Under Monitor Display function which displays ancillary data at the foot of the screen.

Settings can be controlled using the buttons and jog dial on the front of the monitor, or remotely via RJ-45. A RS-422 input/output allows for daisy chaining and control from other ViewZ monitors. The monitor provides a 12 to 24 VDC 4-pin XLR input and a 110 to 240 VAC 50/60Hz plug input as standard power options.
    • 8-bit IPS LCD with LED backlight panel
    • 1366 x 768 resolution
    • SMPTE 425M Level A/B compliant HD display, with support for frame rates of 50/60 in 1080p, 1080i and 720p
    • 12-bit to 8-bit internal processing
    • SDI active loop through
    • HDMI display output
    • Integrated SDI to HDMI converter, with support for up to 1080p60
    • 2K input support; downscaled to fit screen
    • Y Clip Guide min/max select (HD/SD-SDI)
    • Waveform
    • Vector Scope (one each for the R, G, B and Y channel)
    • False Color (SDI)
    • 1:1 Pixel Mapping
    • DSLR scaling (HDMI)
    • Peaking / Focus Assist
    • Aspect format markers: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1, 1.85:1, 4:3(On AIR) and 16:9 area
    • Time code reader displays embedded LTC or VITC formats
    • De-embedded audio level meter
    • 1.0 to 3.0 Gamma encoding select
    • Under Monitor Display (UMD) function displays Ancillary data at the foot of the screen
    • H/V Delay: View the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen
    • Red/Green mode tally
    • Screen color mode: Blue, Red, Green & Mono
    • Menu jog dial control
    • Programmable function buttons
    • Key lock
    • RJ-45 remote control
    • RS-422 daisy chain input/output
    • 4-pin XLR for 12 to 24 VDC power
    • 100 to 240 VAC power plug input
In the Box ViewZ VZ-185PM-P 18.5" 3G-SDI & 8-Bit Video Production Monitor
  • Limited 2-Year Warranty on Parts
  • Limited 90-Day Warranty on Labor
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ViewZ VZ-185PM-P 18.5" 3G-SDI & 8-Bit Video Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ViewZ VZ-185PM-P Specs

    Type 18.5" (47 cm) IPS LCD
    Aspect Ratio 16:9
    Resolution 1366 x 768
    Pixel Pitch 0.1 mm x 0.3 mm
    Brightness 250 cd/m2 (typical)
    Contrast Ratio 1000:1
    Viewing Angle (H/V) 178° / 178°
    Color Depth 8-bit (16.7 million colors)
    Gamma 1.0 to 3.0
    2.2 base calibration
    Color Temperature 3200K, 5500K, 6500K, 9300K, 3 custom user profiles

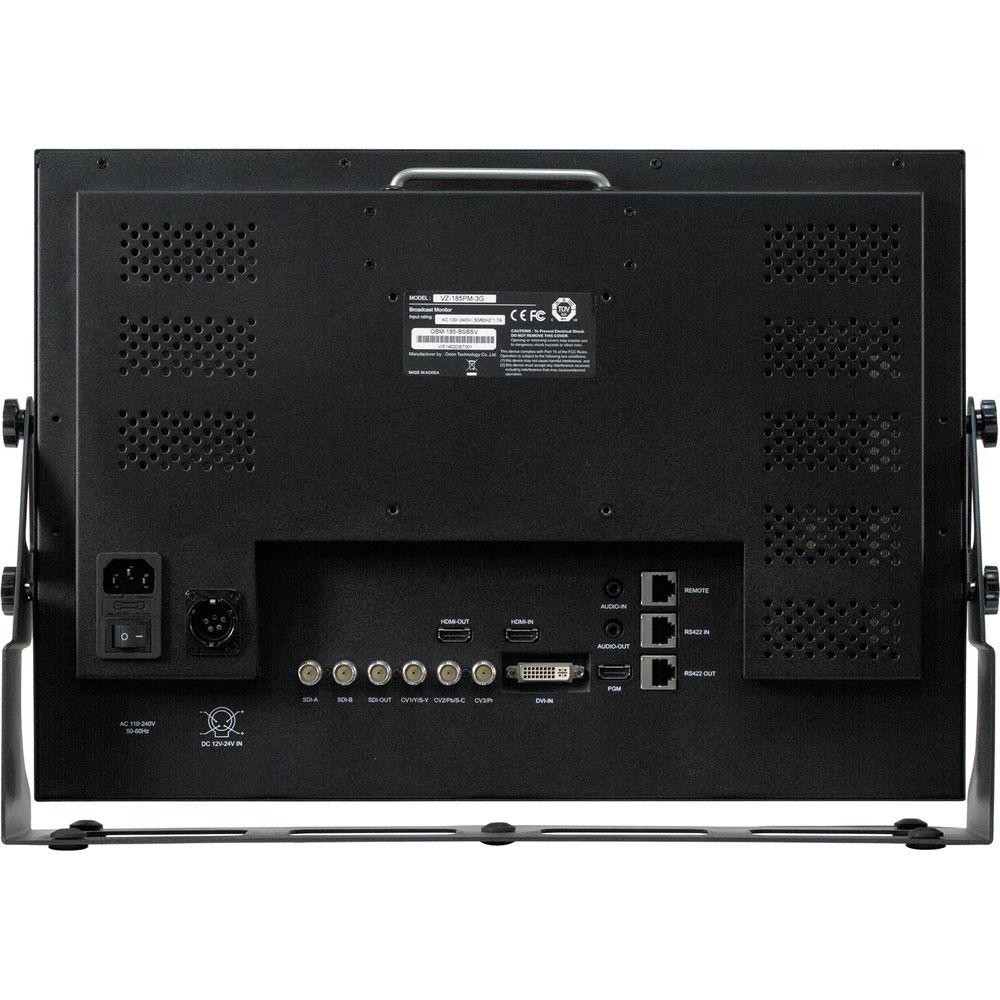

    Inputs 2 x 3G-SDI (BNC connectors)
    1 x HDMI
    1 x Component / Composite / S-Video (3 BNC connectors)
    1 x DVI
    1 x RS-422
    1 x RJ-45, remote control
    1 x Audio in, analog stereo
    1 x PGM port, program update (HDMI connector)
    Outputs 1 x 3G-SDI active loop through (BNC connector)
    1 x HDMI
    1 x Composite (RCA connector)
    1 x RS-422
    1 x Audio, analog stereo
    Built-in Speaker 2 x 2 W
    SDI SMPTE 425M-A/B
    1920x1080p 60/59.94/50/30/29.97/25/24/23.98
    1920x1080psf 23.98
    1920x1080i 60/59.94/50

    SMPTE 274M
    1920x1080p 30/29.97/25/24/23.98
    1920x1080psf 23.98 1920x1080i 60/59.94/50

    SMPTE 296M
    1280x720p 60/59.94/50

    SMPTE 260M
    1280x1035i 60/59.94

    ITU-R BT.656
    720x576i 50

    2K Format
    2048x1080p 24/23.98
    2048x1080psf 24/23.98
    Analog Composite / S-Video
    NTSC 525/59.94i
    PAL 625/50i

    Component
    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50
    HDMI 1080p
    1080i
    576p
    576i
    480p
    480i
    DVI WUXGA
    WXGA
    SXGA
    XGA
    SGA
    VGA
    Power Input 1 x XLR 4-pin, 12 to 24 VDC
    1 x 100 to 240 VAC plug input
    Power Consumption Approx. 60 W
    Operating Temperature 32 to 104° (0 to 40°C)
    VESA Mount Standard 100 x 100 mm
    Dimensions (W x H x D) 17.44 x 21.16 x 2.25" (44.3 x 20.9 x 5.7 cm)
    Weight 14.33 lb (6.5 kg)
    Package Weight 16.65 lb
    Box Dimensions (LxWxH) 22.047 x 16.221 x 7.402"
