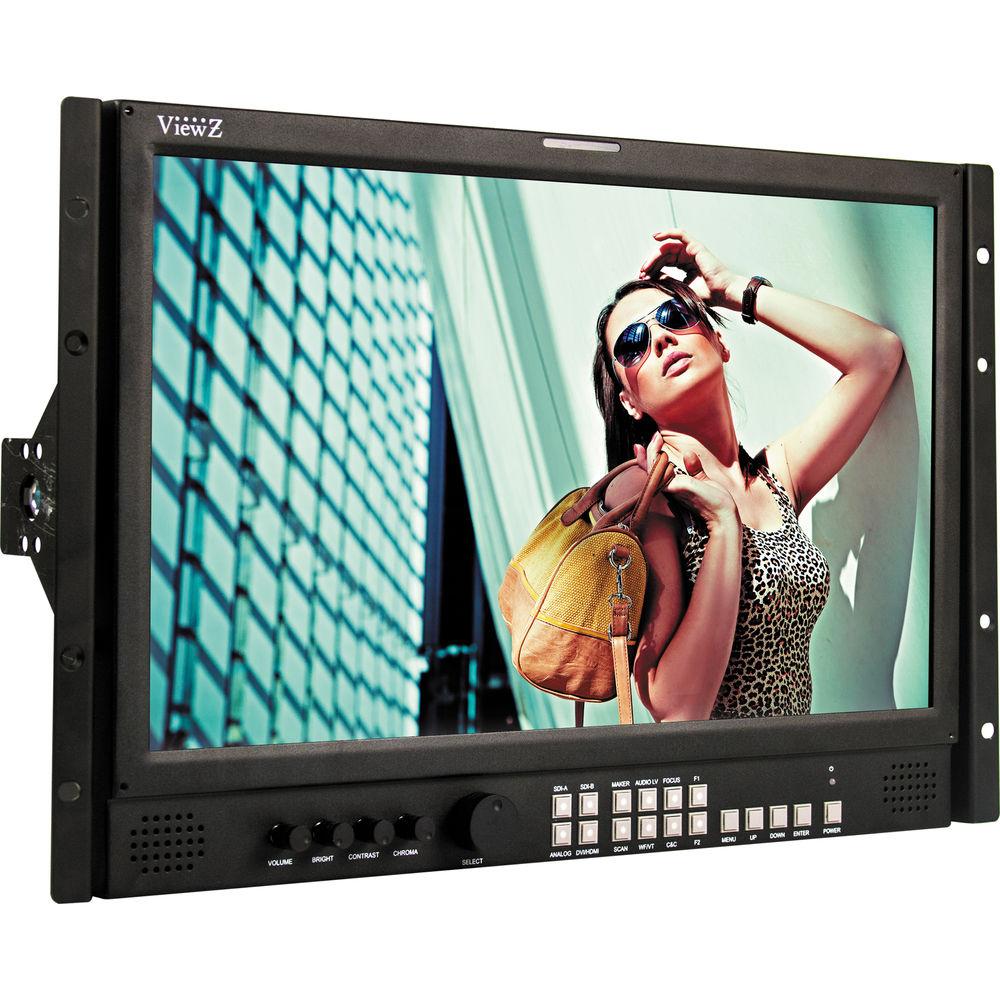

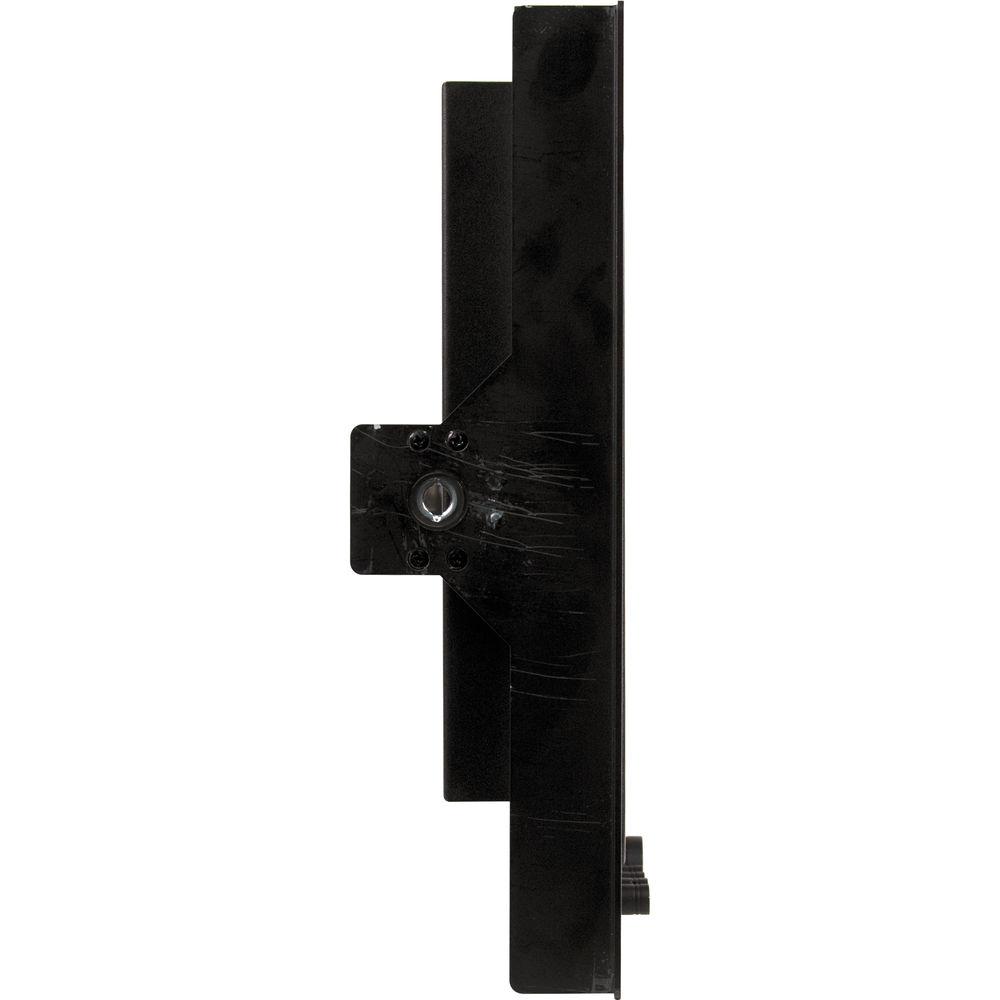

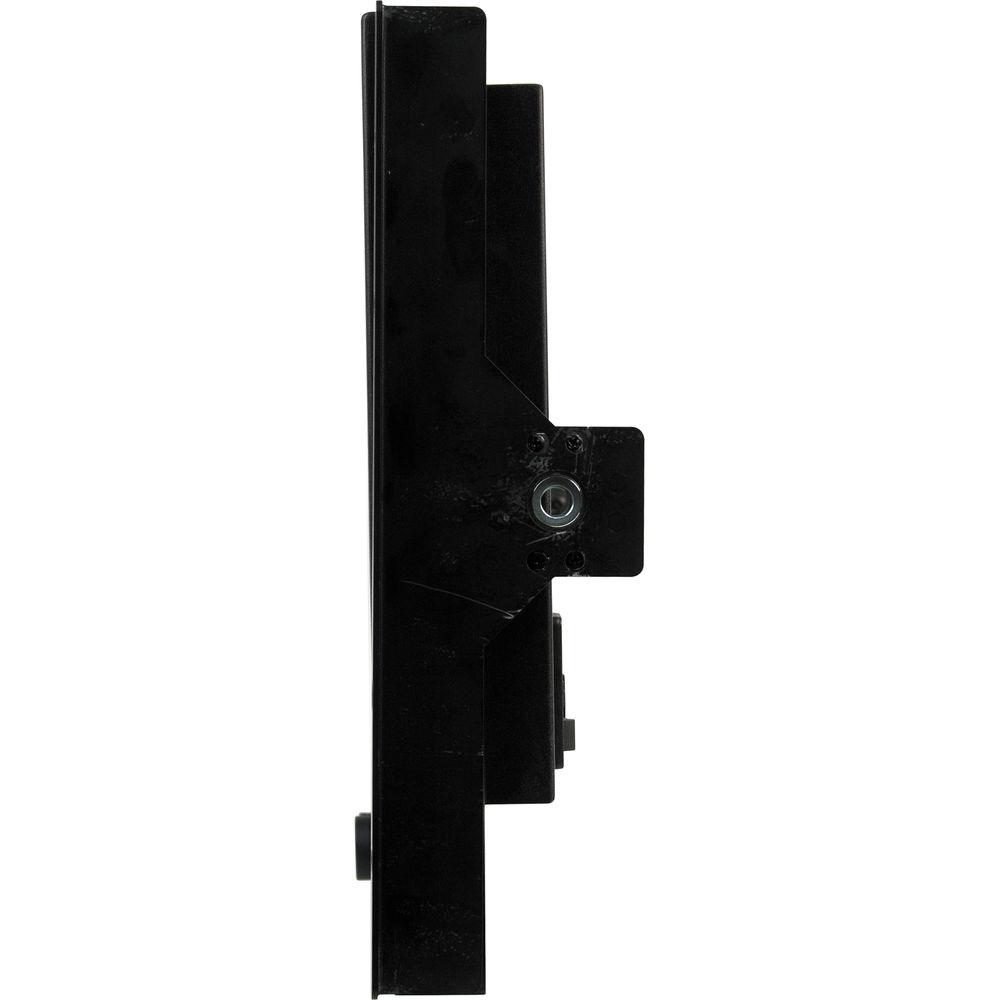

Product description The VZ-185RM-P 7U 18.5" 3G-SDI & 8-Bit Panel Video Production Rackmount Monitor from ViewZ allows you to monitor video sources on location or in the studio. It features an 8-bit, 1366x768 resolution display housed in a 7RU rackmountable frame, with an integrated SDI to HDMI and HDMI to SDI converter. Two 3G/HD/SD-SDI inputs supports up to 1080p60 with 4:4:4 color sampling, and 2K (2048 x 1080) resolutions at 23.94p or 24p. Other video inputs include composite, component, VGA, and HDMI.

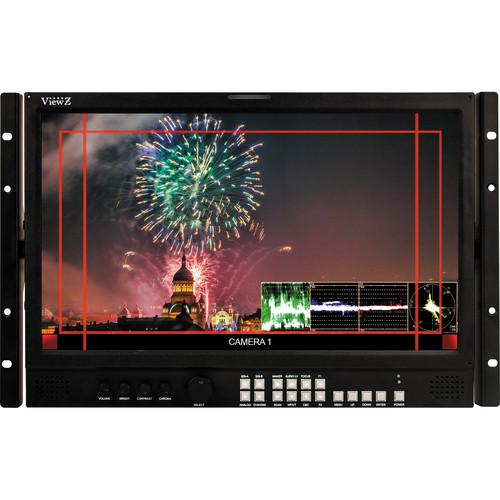

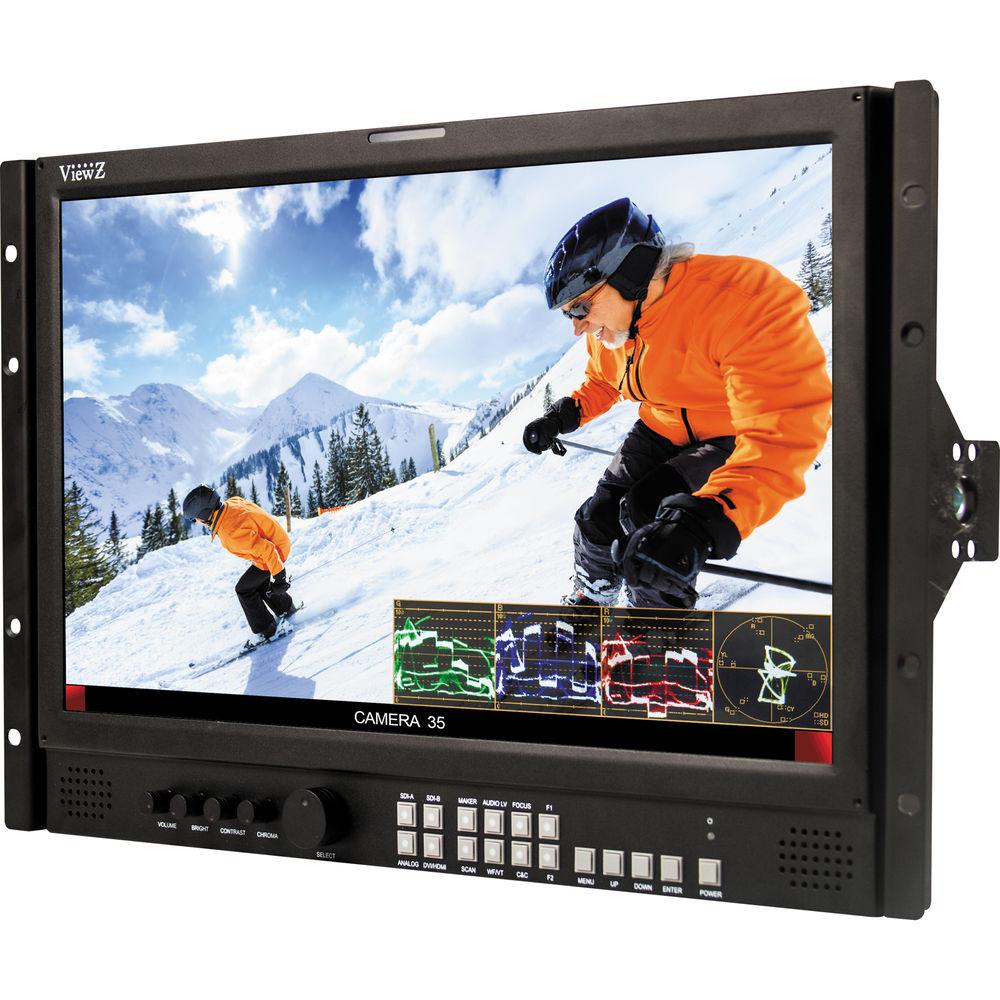

An active loop through 3G/HD/SD-SDI output is available for sending video signals to additional monitors. A signal converter integrated into the monitor allows for SDI to HDMI and HDMI to SDI conversions, with full support for 1080p60 signals on the HDMI output with test and measurement overlays. Professional overlays include waveform, vector scope, and selectable Y/R/G/B histogram. Other professional monitoring features including DSLR scaling, false color, 1:1 pixel mapping, and aspect ratio format markers. The convert also has an Under Monitor Display function which displays ancillary data at the foot of the screen.
Settings can be controlled using the buttons and jog dial on the front of the monitor, or remotely via RS-485 on RJ-45 connectors. The monitor provides a 12 to 24 VDC 4-pin XLR input and a 110 to 240 VAC 50/60 Hz plug input as standard power options. -
- 8-bit IPS LCD with LED backlight
- 1366 x 768 resolution
- 3G-SDI SMPTE 425M Level A/B (YCbCr, RGB 4:4:4) support up to 1080p60
- 2K input support; downscaled to fit screen
- 12-bit to 8-bit internal processing
- Integrated SDI to HDMI and HDMI to SDI converter
- SDI active loop through output
- HDMI display output
- Y Clip Guide min/max select (HD/SD-SDI)
- Waveform
- Vector Scope (one each for the R, G, B and Y channel)
- False Color (SDI)
- 1:1 Pixel Mapping
- DSLR scaling (HDMI)
- Peaking / Focus Assist
- Aspect format markers: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1, 1.85:1, 4:3(On AIR) and 16:9 area
- Time code reader displays embedded LTC or VITC formats
- De-embedded audio level meter
- 1.0 to 3.0 Gamma encoding select; 2.8 default
- Under Monitor Display (UMD) function displays Ancillary data at the foot of the screen
- H/V Delay: View the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen
- Freeze display
- Red/Green mode tally
- Screen color mode: Blue, Red, Green & Mono
- Menu jog dial control
- Programmable function buttons
- Key lock
- RJ-45 remote control
- 4-pin XLR for 12 to 24 VDC power
- 100 to 240 VAC power plug input
- 7RU Rackmountable
UPC: 853177002335 In the Box ViewZ VZ-185RM-P 7RU 18.5" 3G-SDI & 8-Bit Panel Video Production Rackmount Monitor Power Cord Limited 2-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-185RM-P 7RU 18.5" 3G-SDI & 8-Bit Panel Video Production Rackmount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

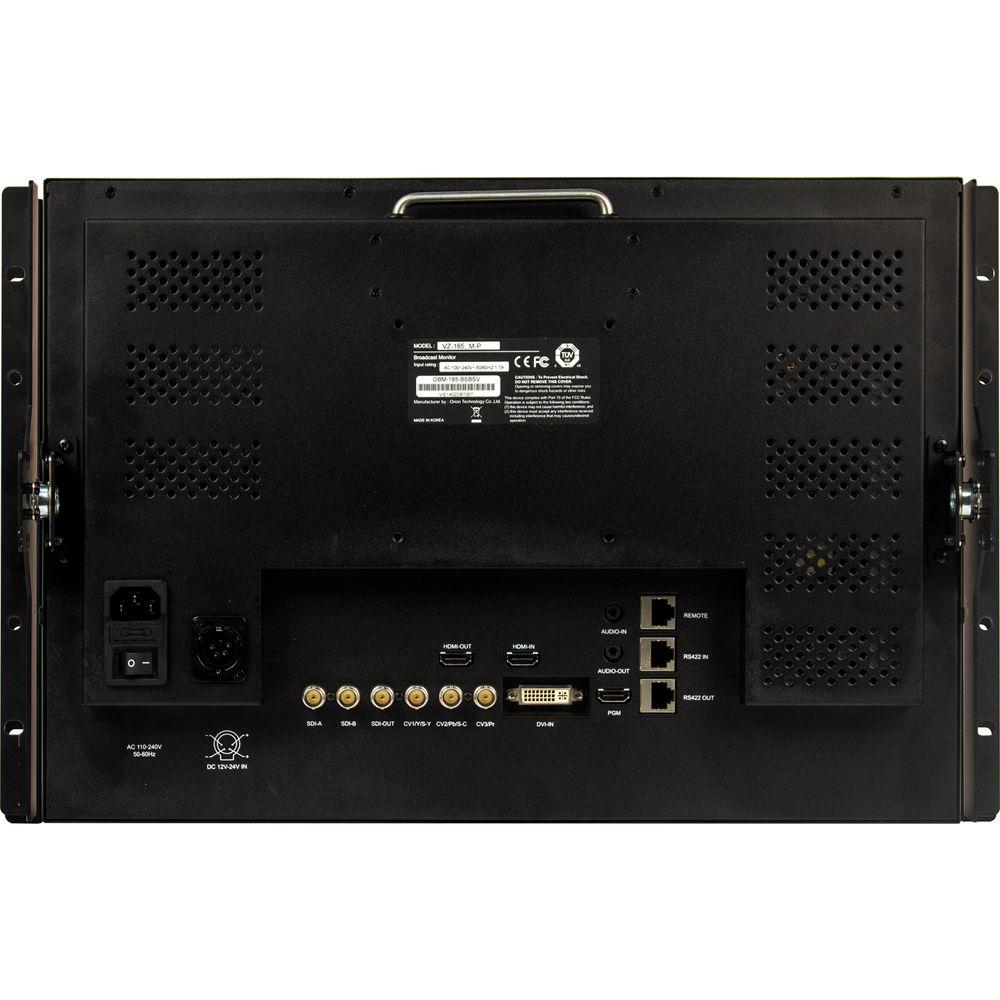

Technical parametersViewZ VZ-185RM-P Specs | | | Type | 18.5" (47 cm) IPS LCD | | Aspect Ratio | 16:9 | | Resolution | 1366 x 768 | | Pixel Pitch | 0.1 mm x 0.3 mm | | Brightness | 250 cd/m2 (typical) | | Contrast Ratio | 1000:1 | | Viewing Angle (H/V) | 178° / 178° | | Color Depth | 8-bit (16.7 million colors) | | Gamma | 1.0 to 3.0
2.8 base calibration | | | | Inputs | 2 x 3G-SDI (BNC connectors)
1 x HDMI
1 x Component / Composite / S-Video (3 BNC connectors)
1 x VGA (15-pin RGB), DVI-I support
1 x RS-422
1 x RJ-45, remote control
1 x Audio in, analog stereo
1 x PGM port, program update (HDMI connector) | | Outputs | 1 x 3G-SDI active loop through (BNC connector)
1 x HDMI
1 x Composite (RCA connector)
1 x RS-422
1 x Audio, analog stereo | | Built-in Speaker | 2 x 2 W | | | | SDI | SMPTE 425M-A/B
YCbCr 4:2:2 10-bit:
1080p 50/59.94/60
YCbCr, RGB 4:4:4 10-bit, 12-bit:
1080p 23.98/24/25/29.97/30
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60
YCbCr, RGB 4:4:4 10-bit:
720p 23.98/24/25/29.97/30/50/59.94/60
SMPTE 274M
YCbCr 4:2:2 10-bit:
1080p 23.98/24/50/29.97/30
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60
SMPTE 260M
YCbCr 4:2:2 10-bit:
1035i 59.94/60
SMPTE 296M
YCbCr 4:2:2 10-bit:
720p 23.98/24/25/29.97/30/50/59.94/60
SMPTE 125M
YCbCr 4:2:2 10-bit:
525i 59.94 (NTSC)
ITU-R BT.601
YCbCr 4:2:2 10-bit:
625i 50 (PAL)
2K Format
YCbCr 4:2:2 10-bit:
2048 x 1080p 23.98/24
2048 x 1080PsF 23.98/24 | | Analog | Composite / S-Video
NTSC 525/59.94i
PAL 625/50i
Component
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50 | | HDMI | 1080p
1080i
576p
576i
480p
480i | | DVI | WUXGA
WXGA
SXGA
XGA
SGA
VGA | | | | Power Input | 1 x XLR 4-pin, 12 to 24 VDC
1 x 100 to 240 VAC plug input | | Power Consumption | Approx. 60 W | | Operating Temperature | 32 to 104° (0 to 40°C) | | Rack Height | 7U | | Dimensions (W x H x D) | 19.0 x 12.0 x 3.3" (48.3 x 30.8 x 8.5 cm) | | Weight | 14.33 lb (6.5 kg) | | | | Package Weight | 18.7 lb | | Box Dimensions (LxWxH) | 22.6 x 17.3 x 8.3" |
