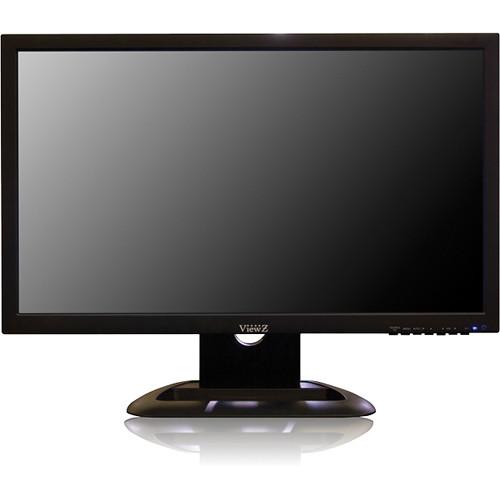

User Manual for ViewZ VZ-215D2IP 21.5" Premium Full HD LED-Backlit Monitor with Ethernet Output Port Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-215D2IP 21.5" Premium Full HD
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
|
User manual for the ViewZ VZ-215D2IP 21.5" Premium Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|
Product description The black VZ-215D2IP 21.5” Premium Full HD LED-Backlit Monitor with Ethernet Output Port from ViewZ is a flat-panel widescreen LED with an RJ-45 Ethernet output and an HDMI input port. It has a contrast ratio of 1,000:1 and an HD display of 1920 x 1080. - 21.5" Flat-panel widescreen commercial-grade output LED
- One Ethernet 10/100 port and one HDMI port
- Full HD 1920 x 1080 / 16:9
- Auto Power/Source Recovery
- VESA 100 x 100 wall-mount compatible (mounts not included)
In the Box ViewZ VZ-215D2IP 21.5" Premium Full HD LED-Backlit Monitor with Ethernet Output Port (Black) Limited 3-Year Warranty on Parts & Labor Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-215D2IP 21.5" Premium Full HD LED-Backlit Monitor with Ethernet Output Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ViewZ VZ-215D2IP 21.5" Premium Full HD LED-Backlit Monitor with Ethernet Output Port can be downloaded in PDF format at the link stated below.
Technical parametersViewZ VZ-215D2IP Specs | | | Screen Size | 21.5" (54.6 cm) | | Maximum Resolution | 1920 x 1080 @ 60 Hz | | Backlight Type | LED Backlit | | Pixel Pitch | 0.248 x 0.248 mm | | Brightness | 250 cd/m² (Typical) | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 170° / 160° | | Display Color | 16.7 million | | Response Time | <5 ms | | Frequency | H: 31 to 80 kHz
V: 56 to 75 Hz | | | | Ethernet Port | 1 | | HDMI | Port: 1 | | | | Power | 12 VDC / 100 VAC to 240 V (50/60 Hz) | | Power Consumption | 26 W | | Multi-Language | English, French, German, Italian, Spanish, Portuguese, and Dutch | | Operating Temperature | 32 to 104°F (0 to 40°C) | | VESA Mount | 100 mm x 100 mm / M4 x 10 mm | | Mount Compatibility | VZ-WM05, VZ-WM10, VZ-WM30, and VZ-WM31 Wall Mounts
VZ-RMK 08 Rack Mount | | Outline Dimension | 20.2 x 14.6 x 7.2" (51.4 x 36.9 x 18.2 cm) | | Weight | 9.4 lb (4.3 kg) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 22.0 x 22.0 x 6.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
