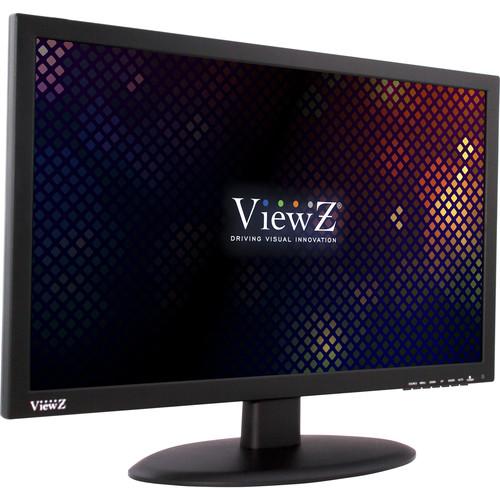

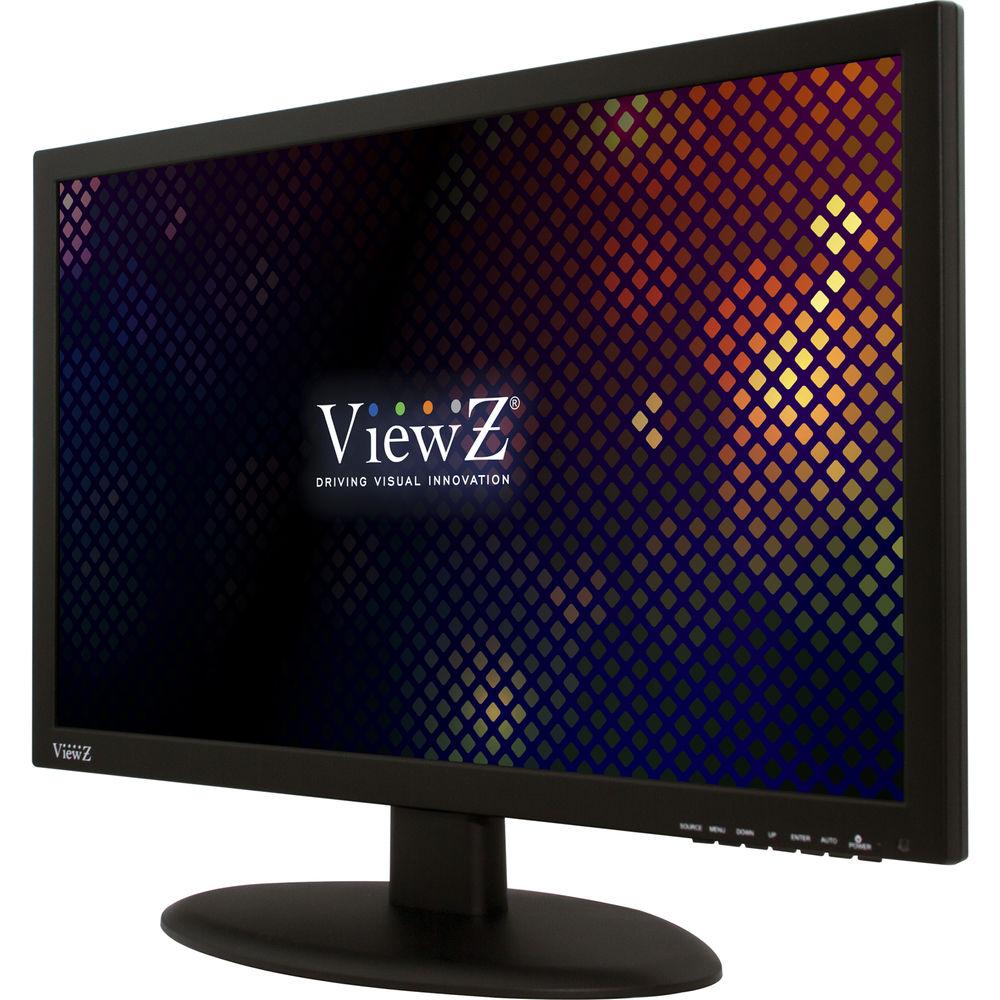

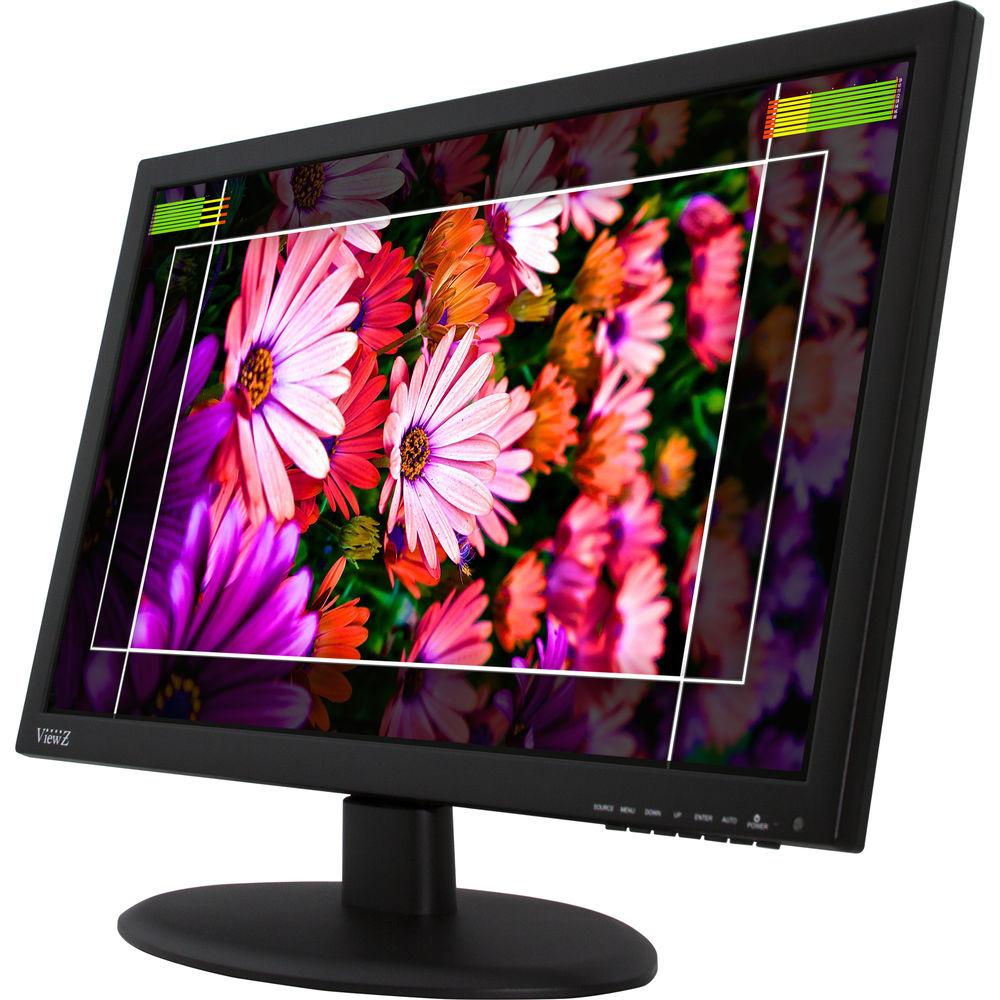

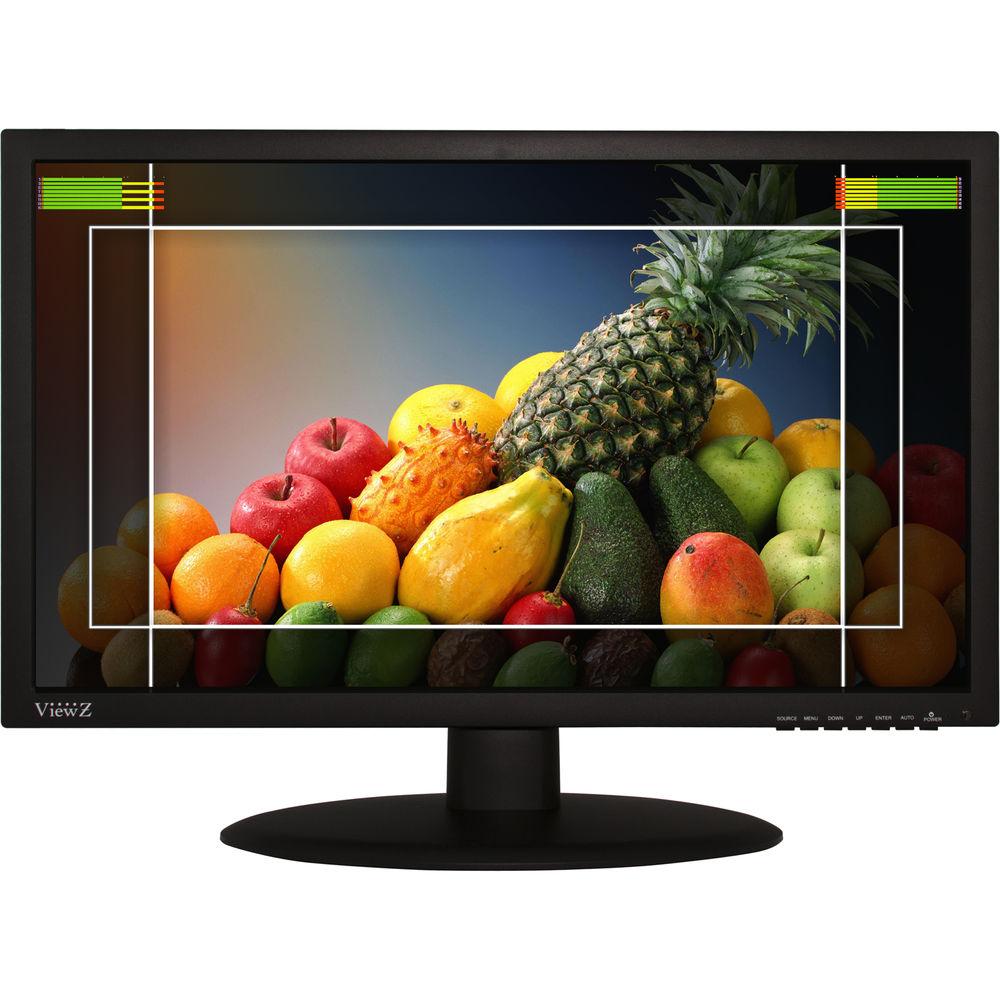

Product description The VZ-215LED-N 21.5" Full HD Widescreen Commercial-Grade HD-SDI LED Monitor from ViewZ features a grade "A" panel for optimum color reproduction and low defect ratio for 24/7 continuous operation. The monitor displays crisp images at up to Full HD resolution at a brightness of 250 cd/m2. It offers multiple video inputs, including DVI, VGA, and HDMI. It also offers PC stereo input and built-in 2W stereo speakers for clear sound output. With an MTBF of approximately 33,000 hours, this LED-backlit CCTV monitor is built to deliver consistent performance. - Supported formats include 3G-SDI, FHD, SMPTE 425M-A, SMPTE 274M, SMPTE 296M, SMPTE 125M, ITU-R BT.601, 2K, component, HDMI, DVI, and VGA
- Factory color calibration - gamut, gamma, and color temperature
- Supports full SMPTE 425M-AB input signal with active loop-through output
- 1:1 pixel mode displays the original image resolution without scaling to match a certain resolution or an aspect ratio
- De-embedded audio selected output. Auto sensing to display three range meter of up to 16 channels
- Plug in the RJ-45 connector to the back of the monitor and communicate with ViewZ broadcast monitors
- Y clip guide min/max select (SD/HD SDI)
- Programmable function key
- Screen Color Mode: Blue & Mono
UPC: 815562021116 In the Box ViewZ VZ-215LED-N 21.5" Full HD Widescreen Commercial-Grade LED-Backlit HD-SDI Monitor Power Adapter Limited 2-Year Warranty on Parts Limited 3-Year Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-215LED-N 21.5" Full HD Widescreen Commercial-Grade LED-Backlit HD-SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

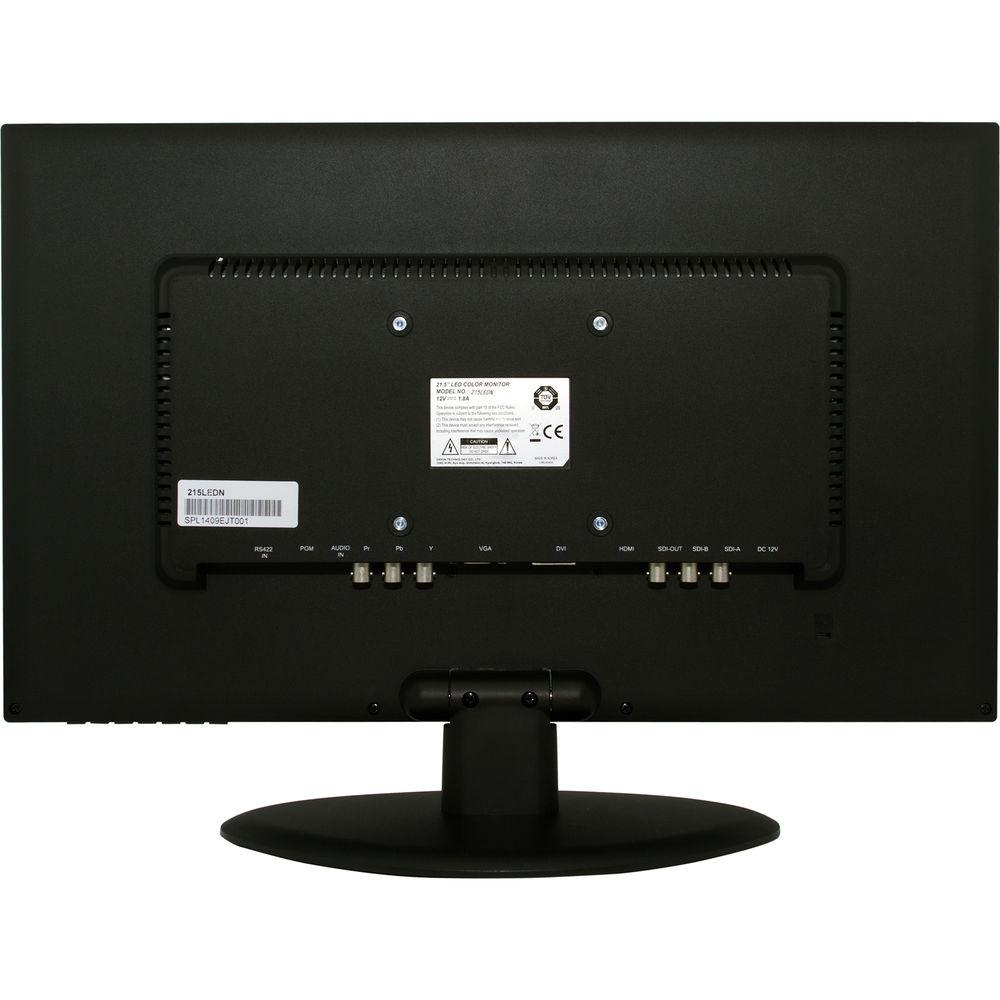

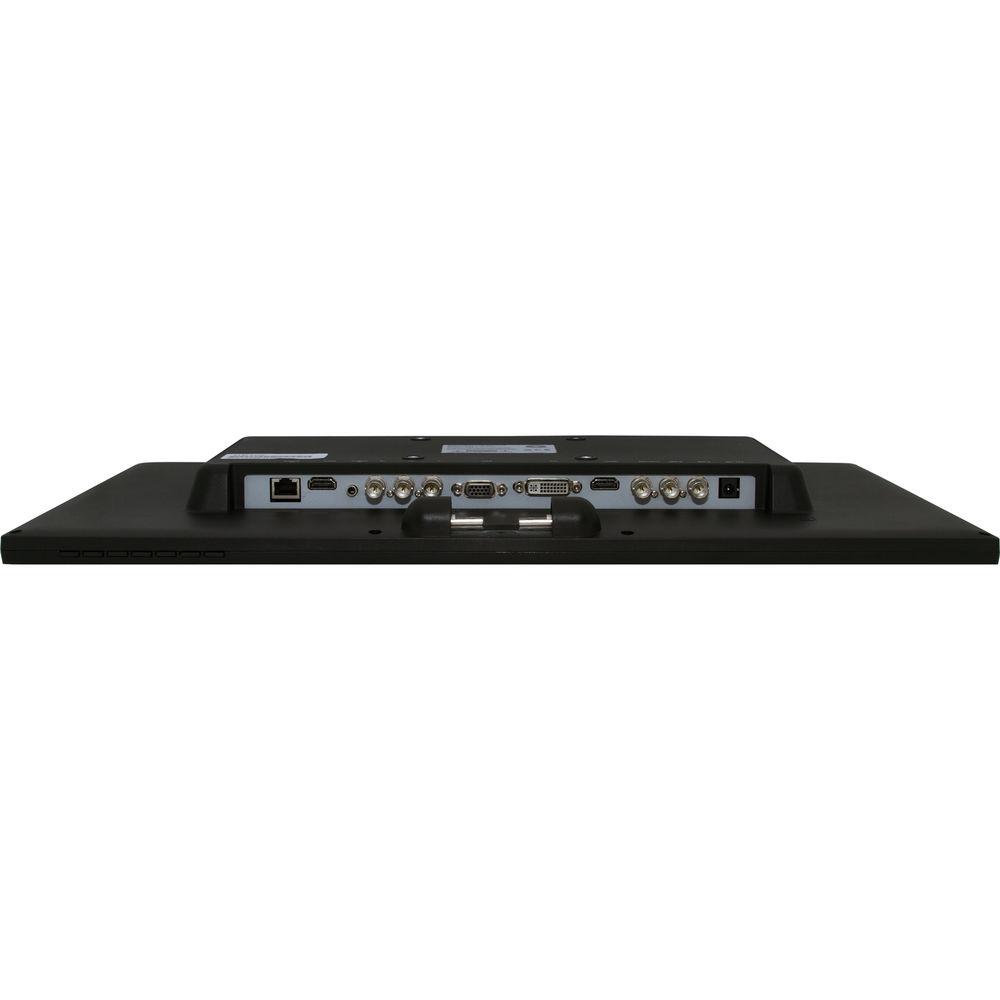

Technical parametersViewZ VZ-215LED-N Specs | | | Screen Size | 21.5" (54.6 cm) | | Maximum Resolution | 1920 x 1080 | | Brightness | 250 cd/m² (typical) | | Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178° / 178° | | Color Depth | 16.7 million | | Response Time | 5 ms | | Color Temperature | 3200K, 6500K, 9300K, and user settings | | Option | Line Marker: 16:9, 4:3, 4:3 (on air), 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3 | | Area | Safety: Off, 80%, 85%, 88%, 90%, 93% and 100% | | RGB | Gain: -128 to 128
Bias: -50 to 50 | | | | SDI Input & Output | 2 / 1 | | HDMI In | 1 | | DVI In | 1 | | Component Input | 3 x BNC jack - 3 x CVBS, S-Video, Component | | VGA In | 1 x 15-pin D-Sub | | Audio In | 1 x PC stereo | | RJ-45 | 1 x remote control | | Program (PGM) output | 1 x Program Update / HDMI Connector | | Input Signals | SDI - SMPTE 425M-A: 1080p ( 60/59.94/50 )
SDI - SMPTE 274M: 1080P (30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080Psf (30/29.97/25/24/23.98)
SDI - SMPTE 296M: 720P(60/59.94/50/30/29.97/25/24/23.98)
SDI - SMPTE 125M: 525i (NTSC 59.94)
SDI - ITU-R BT.601: 625i (PAL 50)
SDI - 2K Format: 2048 x 1080P (24/23.98/24sF/23.98sF)
Analog - Component: 1080P (60/59.94/50/ 30/29.97/25/24/23.98)
1080i (60/59.94/50)
720P(60/59.94/50)
HDMI: 480i/480P/576i/576P/1080i/1080P
DVI: VGA, SVGA, XGA, SXGA, WXGA, WUXGA
VGA: VGA, SVGA, XGA, SXGA, WXGA, WUXGA | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power Requirements | 12 VDC (100 to 240 VAC, 50/60 Hz) | | Power Consumption | Approximately 30 W | | MTBF (Approx.) | 33,000 hours | | Dimensions (W x H x D) | 20.3 x 14.6 x 1.8" (51.6 x 37.1 x 4.6 cm) | | Weight | 8.4 lb (3.8 kg) | | | | Package Weight | 10.55 lb | | Box Dimensions (LxWxH) | 22.2 x 16.3 x 4.9" |
