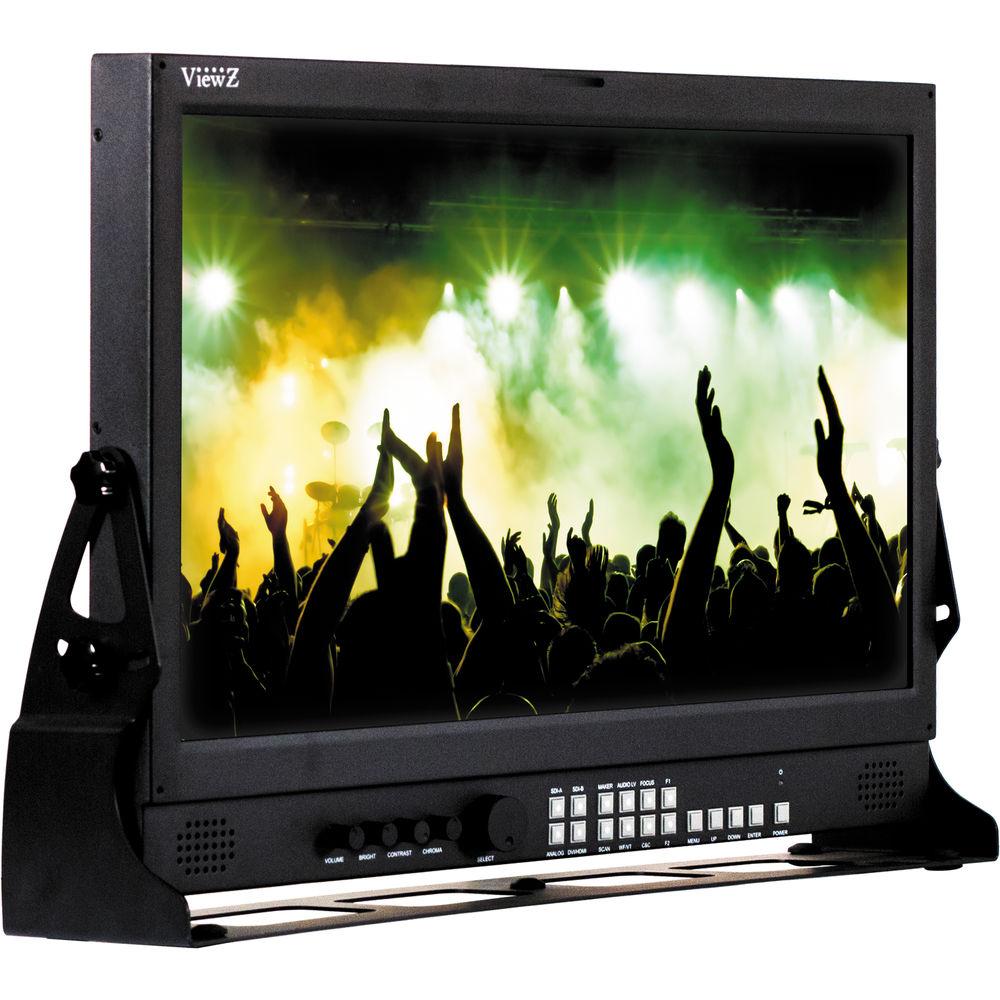

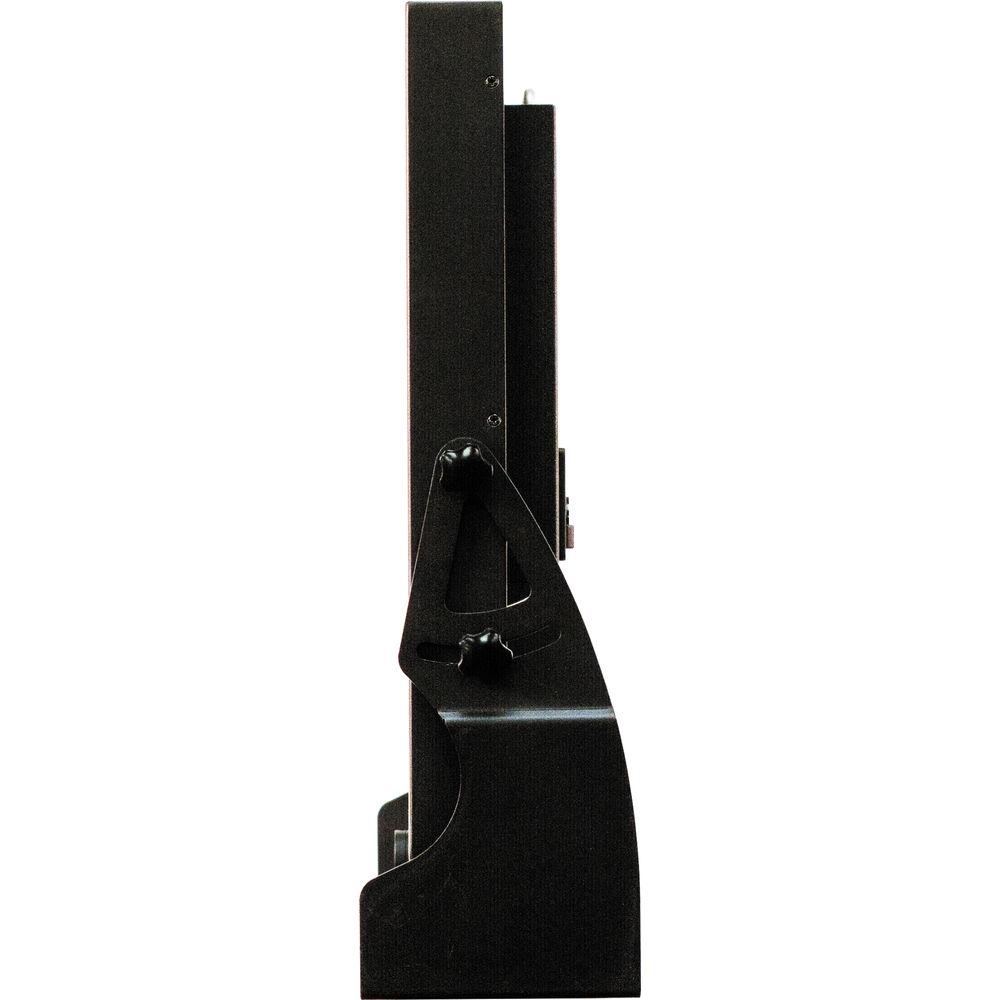

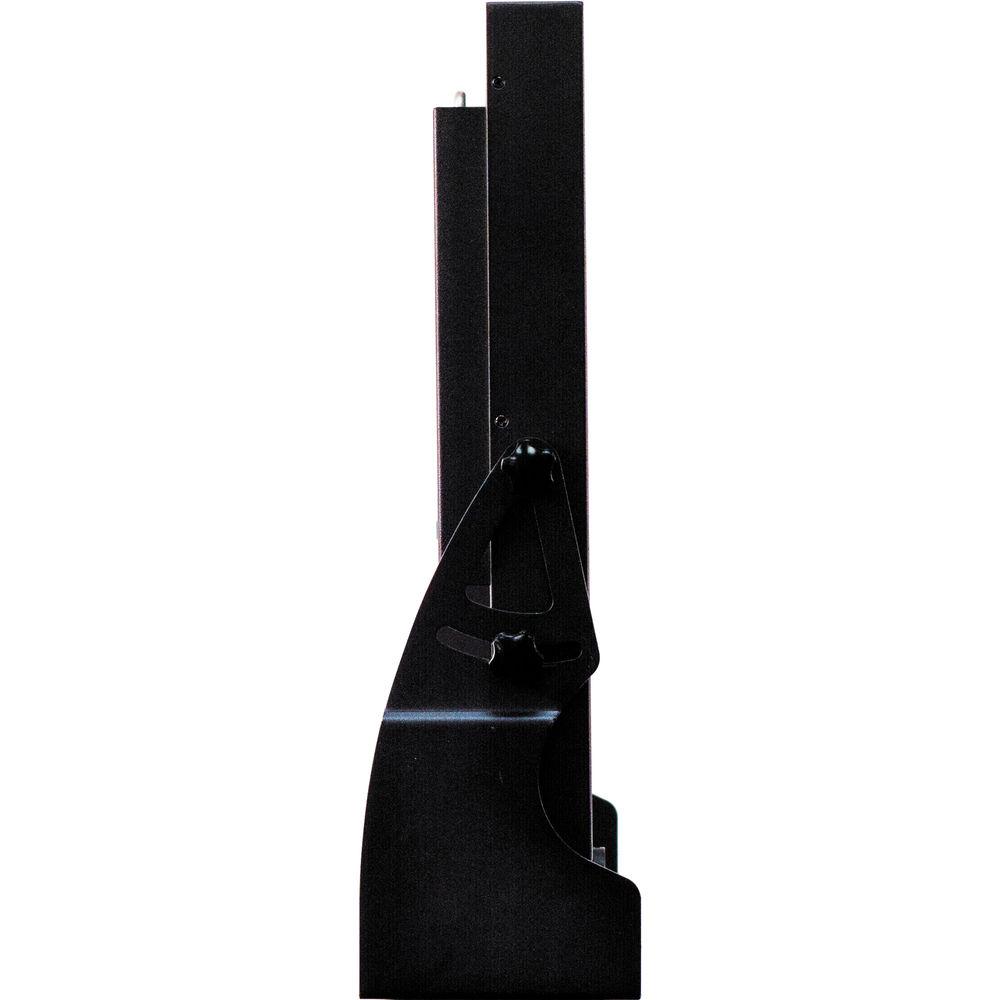

Product description The VZ-215PM-P 21.5" 3G-SDI & 8-Bit Video Production Monitor from ViewZ allows you to monitor SDI, HDMI, DVI, and analog video signals on a 1920 x 1080 resolution display. Two SDI connectors are provided, capable of handling SD, HD, and 3G SDI signals with support for YCbCR or RGB 4:4:4 10/12-bit video up to 1080/60p. It also supports 2K (2048 x 1080) YCbCr 4:2:2 10-bit signals at 23.98/24p and 23.98/24PsF. Additional video inputs include composite, component, and S-video on BNC connectors, as well as one HDMI and one DVI input.

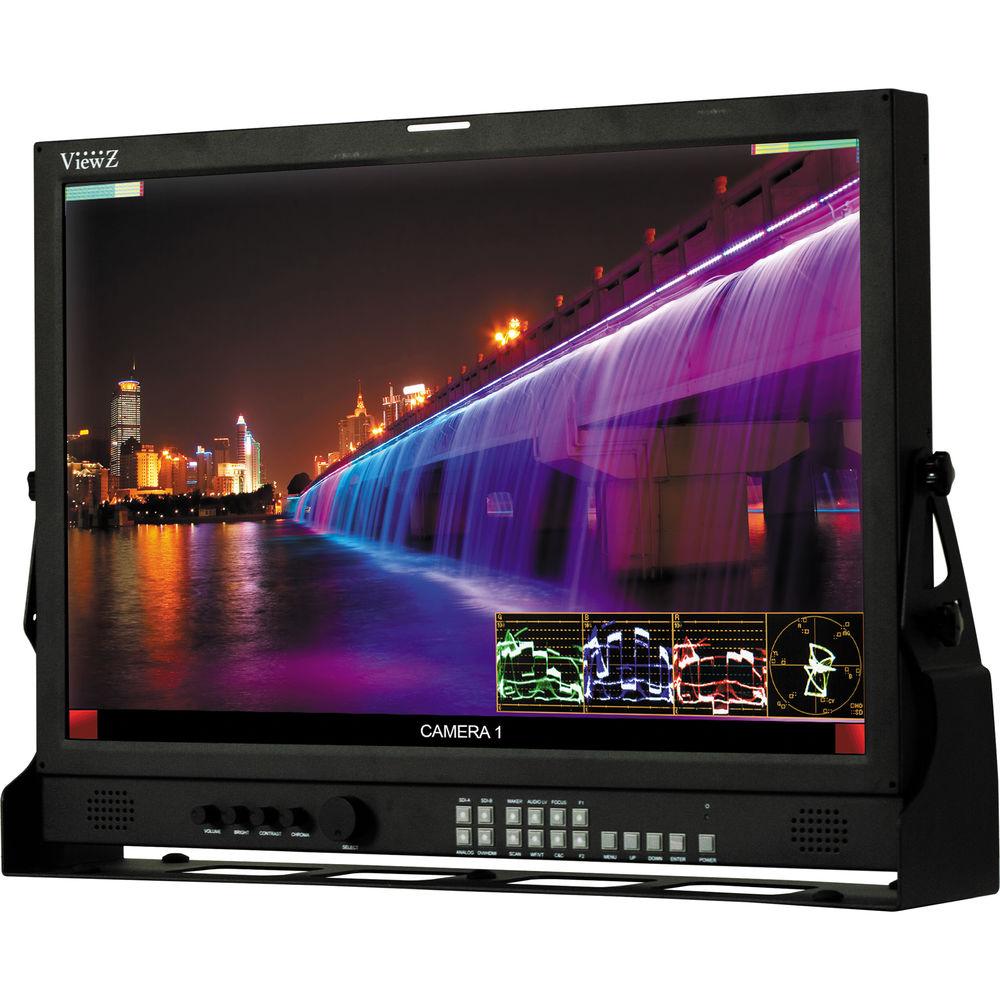

An active loop through 3G/HD/SD-SDI output is available for sending video signals to additional monitors. A signal converter integrated into the monitor allows for SDI to HDMI conversions, with full support for 1080p60 signals on the HDMI output with test and measurement overlays. Professional overlays include waveform, vector scope, and selectable Y/R/G/B histogram. Other professional monitoring features including DSLR scaling, false color, 1:1 pixel mapping, and aspect ratio format markers. The convert also has an Under Monitor Display function which displays ancillary data at the foot of the screen.
Settings can be controlled using the buttons and jog dial on the front of the monitor, or remotely via RJ-45. A RS-422 input/output allows for daisy chaining and control from other ViewZ monitors. The monitor provides a 12 to 24 VDC 4-pin XLR input and a 110 to 240 VAC 50/60Hz plug input as standard power options. -
- 8-bit IPS LCD with LED backlight panel
- 1920 x 1080 resolution
- SMPTE 425M Level A/B compliant HD display, with support for frame rates of 50/60 in 1080p, 1080i and 720p
- 12-bit to 8-bit internal processing
- SDI active loop through
- HDMI display output
- Integrated SDI to HDMI converter, with support for up to 1080p60
- 2K input support; downscaled to fit screen
- Y Clip Guide min/max select (HD/SD-SDI)
- Waveform
- Vector Scope (one each for the R, G, B and Y channel)
- False Color (SDI)
- 1:1 Pixel Mapping
- DSLR scaling (HDMI)
- Peaking / Focus Assist

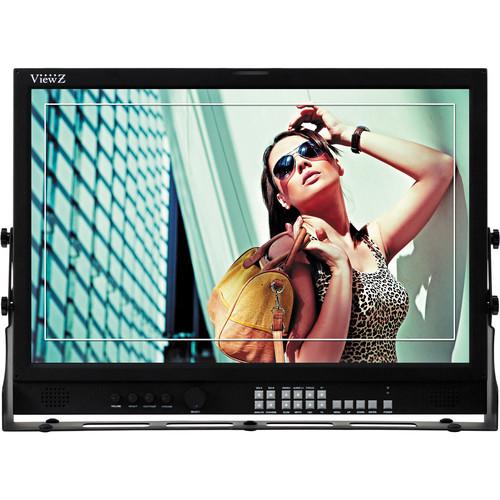

- Aspect format markers: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1, 1.85:1, 4:3(On AIR) and 16:9 area
- Time code reader displays embedded LTC or VITC formats
- De-embedded audio level meter
- 1.0 to 3.0 Gamma encoding select
- Under Monitor Display (UMD) function displays Ancillary data at the foot of the screen
- H/V Delay: View the blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen
- Red/Green mode tally
- Screen color mode: Blue, Red, Green & Mono
- Menu jog dial control
- Programmable function buttons
- Key lock
- RJ-45 remote control
- RS-422 daisy chain input/output
- 4-pin XLR for 12 to 24 VDC power
- 100 to 240 VAC power plug input
UPC: 853177002472 In the Box ViewZ VZ-215PM-P 21.5" 3G-SDI & 8-Bit Video Production Monitor Limited 2-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-215PM-P 21.5" 3G-SDI & 8-Bit Video Production Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-215PM-P Specs | | | Type | 21.5" (54.6 cm) IPS LCD | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Pixel Pitch | 0.2475 mm x 0.2475 mm | | Brightness | 250 cd/m2 (typical) | | Contrast Ratio | 1000:1 | | Viewing Angle (H/V) | 178° / 178° | | Color Depth | 8-bit (16.7 million colors) | | Gamma | 1.0 to 3.0

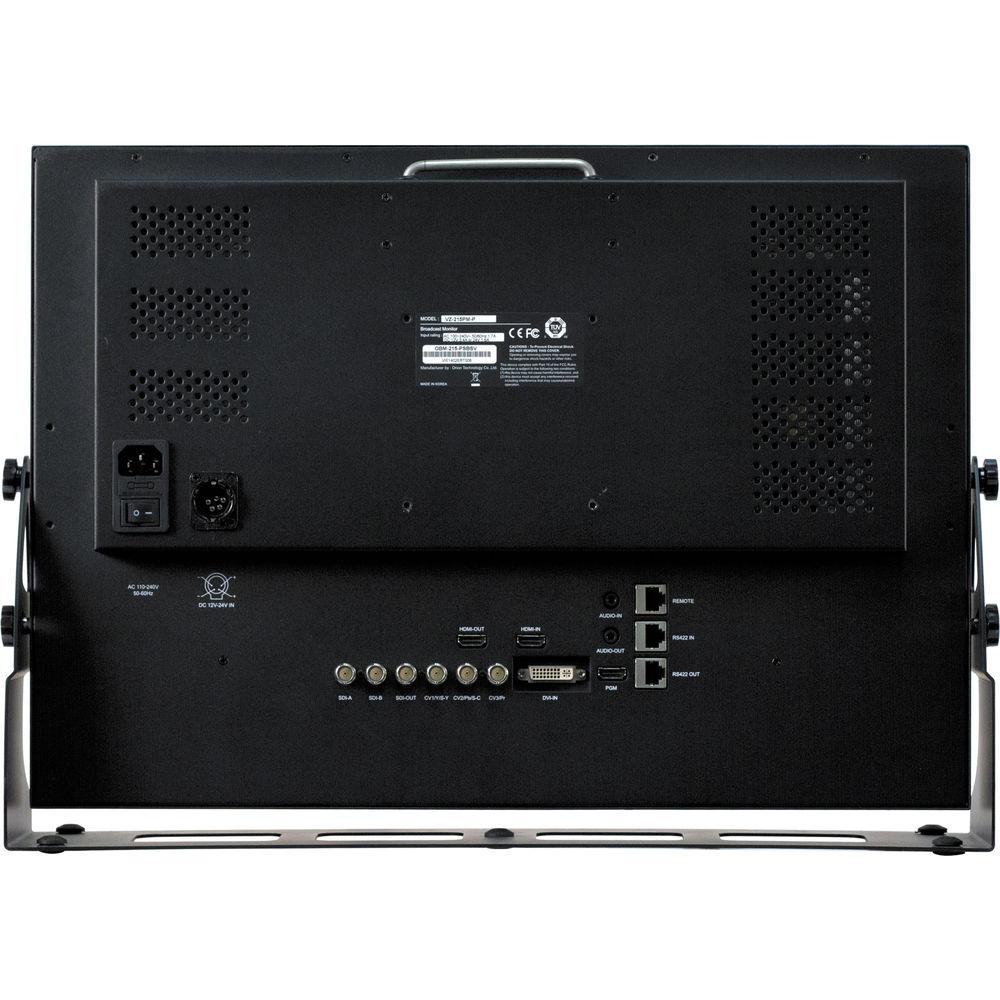

2.2 base calibration | | Color Temperature | 3200K, 5500K, 6500K, 9300K, 3 custom user profiles | | | | Inputs | 2 x 3G-SDI (BNC connectors)
1 x HDMI
1 x Component / Composite / S-Video (3 BNC connectors)
1 x DVI
1 x RS-422
1 x RJ-45, remote control
1 x Audio in, analog stereo
1 x PGM port, program update (HDMI connector) | | Outputs | 1 x 3G-SDI active loop through (BNC connector)
1 x HDMI
1 x Composite (RCA connector)
1 x RS-422
1 x Audio, analog stereo | | Built-in Speaker | 2 x 2 W | | | | SDI | SMPTE 425M-A/B
1920x1080p 60/59.94/50/30/29.97/25/24/23.98
1920x1080psf 23.98
1920x1080i 60/59.94/50
SMPTE 274M
1920x1080p 30/29.97/25/24/23.98
1920x1080psf 23.98 1920x1080i 60/59.94/50
SMPTE 296M
1280x720p 60/59.94/50
SMPTE 260M
1280x1035i 60/59.94
ITU-R BT.656
720x576i 50
2K Format
2048x1080p 24/23.98
2048x1080psf 24/23.98 | | Analog | Composite / S-Video
NTSC 525/59.94i
PAL 625/50i
Component
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50 | | HDMI | 1080p
1080i
576p
576i
480p
480i | | DVI | WUXGA
WXGA
SXGA
XGA
SGA
VGA | | | | Power Input | 1 x XLR 4-pin, 12 to 24 VDC
1 x 100 to 240 VAC plug input | | Power Consumption | Approx. 70 W | | Operating Temperature | 32 to 104° (0 to 40°C) | | VESA Mount Standard | 100 x 100 mm | | Dimensions (W x H x D) | 20.81 x 14.92 x 2.44" (52.87 x 36.00 x 6.21 cm) | | Weight | 17.19 lb (7.8 kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 24.5 x 19.0 x 8.4" |
