User Manual for ViewZ VZ-32iPM 32" 1080p Network-Enabled LED Monitor with Android OS Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-32iPM 32" 1080p Network-Enabled LED
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
 |
User manual for the ViewZ VZ-32iPM 32" 1080p Network-Enabled LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|

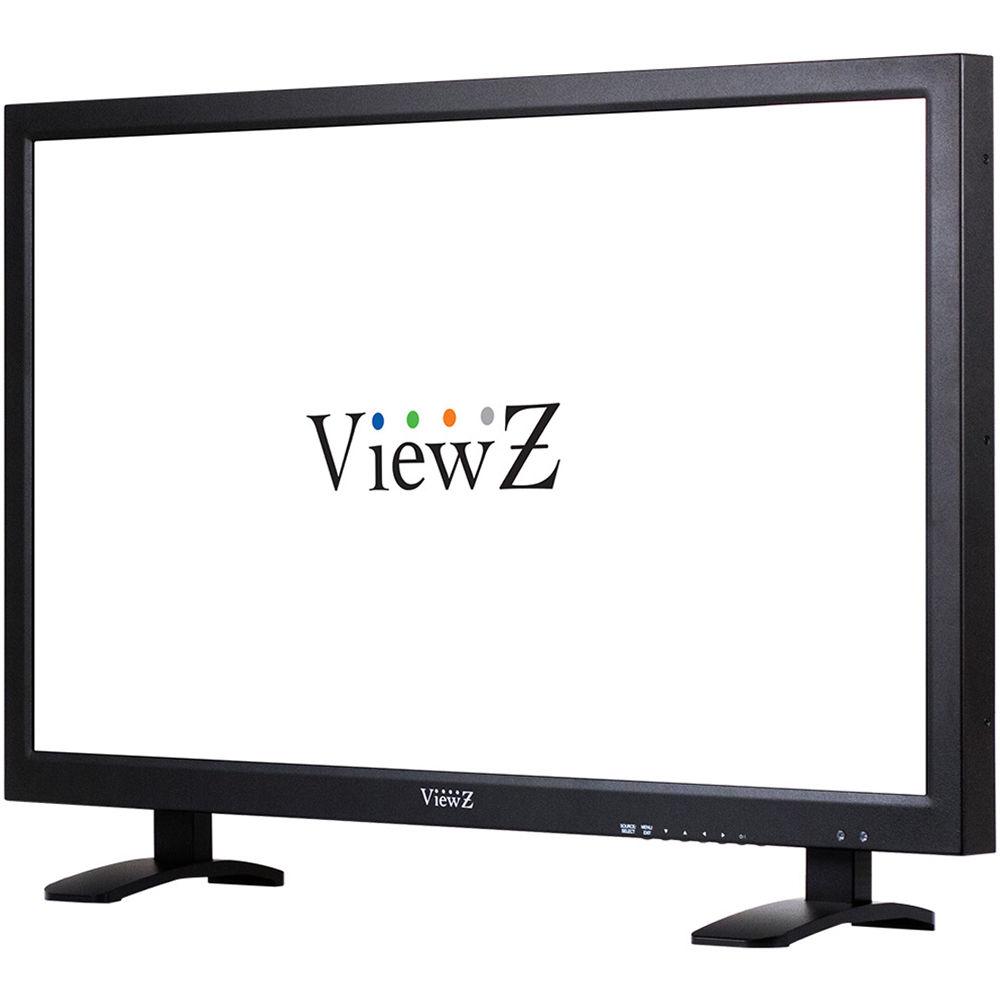

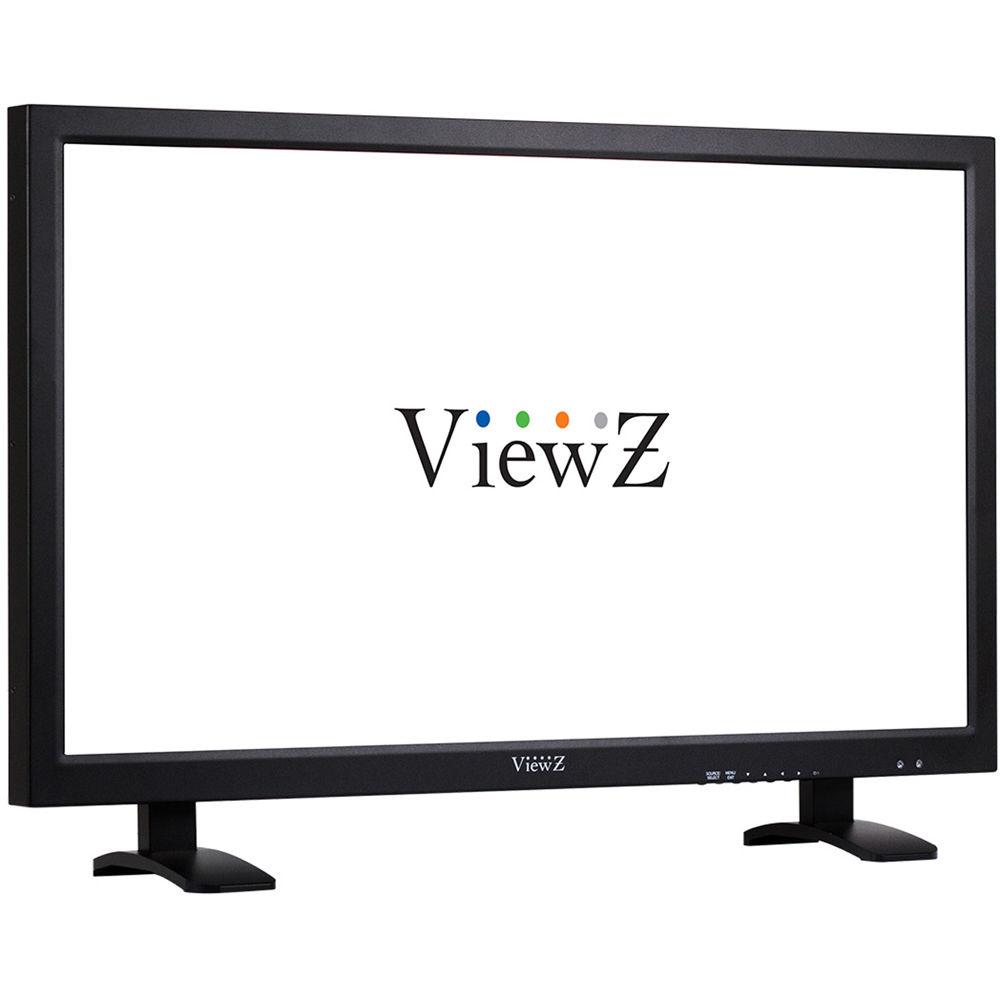

Product description Designed to run Android apps, the VZ-32iPM 32" LED Monitor from ViewZ can be used as an alternative to a remote viewing PC. It comes with Android OS installed and a 10/100 Mb/s Ethernet connection. Its 32" LED backlit screen displays video at resolutions up to 1920 x 1080. It supports sequential and multi-channel viewing modes via the ViewZ App. - 32" LED-backlit monitor with 1920 x 1080 resolution
- 10/100 Mb/s Ethernet connection
- Alternative to remote viewing PC
- Designed to run Android apps
- ViewZ App supports over 8000 IP camera models

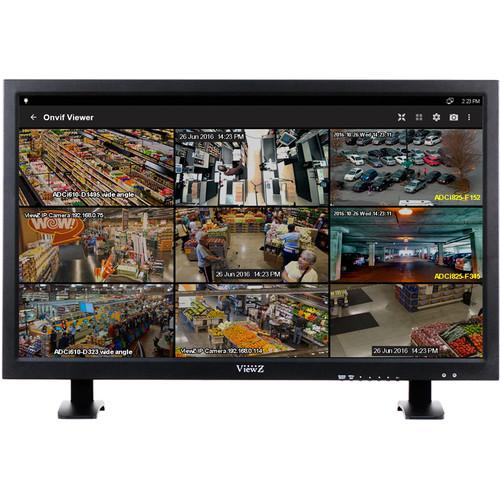

- Sequential and 9-camera viewing modes available via ViewZ App
In the Box ViewZ VZ-32iPM 32" 1080p Network-Enabled LED Monitor with Android OS IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-32iPM 32" 1080p Network-Enabled LED Monitor with Android OS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-32IPM Specs | | | Screen Size | 32" (81.3 cm) | | Maximum Resolution | 1920 x 1080 at 60 Hz | | Pixel Pitch | 0.36375 x 0.36375 mm | | Brightness | 400 cd/m2 (typical) | | Contrast Ratio | 3000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178°/178° | | Display Color | 16.7 million | | Response Time | <6.5 ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 31 to 80 kHz
Vertical: 56 to 75 Hz | | | | Ethernet | 1 x 10/100Base-T | | USB | 2 x USB 2.0 1 x micro-USB | | Program (PGM) output | 1 | | Storage | 1 x microSD card slot | | | | Operating System | Android 5.1.1 | | CPU | RK3368 64-bit Octa core Cortex A53 | | RAM | 2 GB DDR3 | | Storage | 8 GB (NAND flash) | | External Storage | microSD card with up to 32 GB storage (card not included)
USB 2.0 drive up to 2 TB (not included) | | Video File Format | MKV, WMV/VC-1 SP/MP/AP, MPG, MPEG, DAT, AVI, MOV, MP4, RM, H.264/H.265, RV 8/9/10 for resolutions up to 1080p | | Supported Video Codecs | H.264, MPEG4, RMVB, XviD, DivX, H.263, H.264, VP8, WMV, HTML, Flash | | Image File Formats | JPG, JPEG, MJPEG, PNG | | | | Modes | Sequential viewing mode
Multi-channel viewing modes (1 / 2 / 3 / 4 / 6 / 9) | | | | VESA Compatibility | 200 x 200 mm / 4 x (M6 x L8) screws | | | | Remote Control | Supported, IR remote control included | | Power Supply | 100 to 240 VAC (50 / 60 Hz) | | Power Consumption | 55 W | | MTBF | Approximately 50,000 hours | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Languages Supported | English, German, French, Italian, Spanish, Portuguese, Netherlander, Russian | | Dimensions | 29.7 x 19.1 x 7.1" (753.4 x 485.7 x 180 mm) | | Weight | 28.7 lb (13 kg) |
