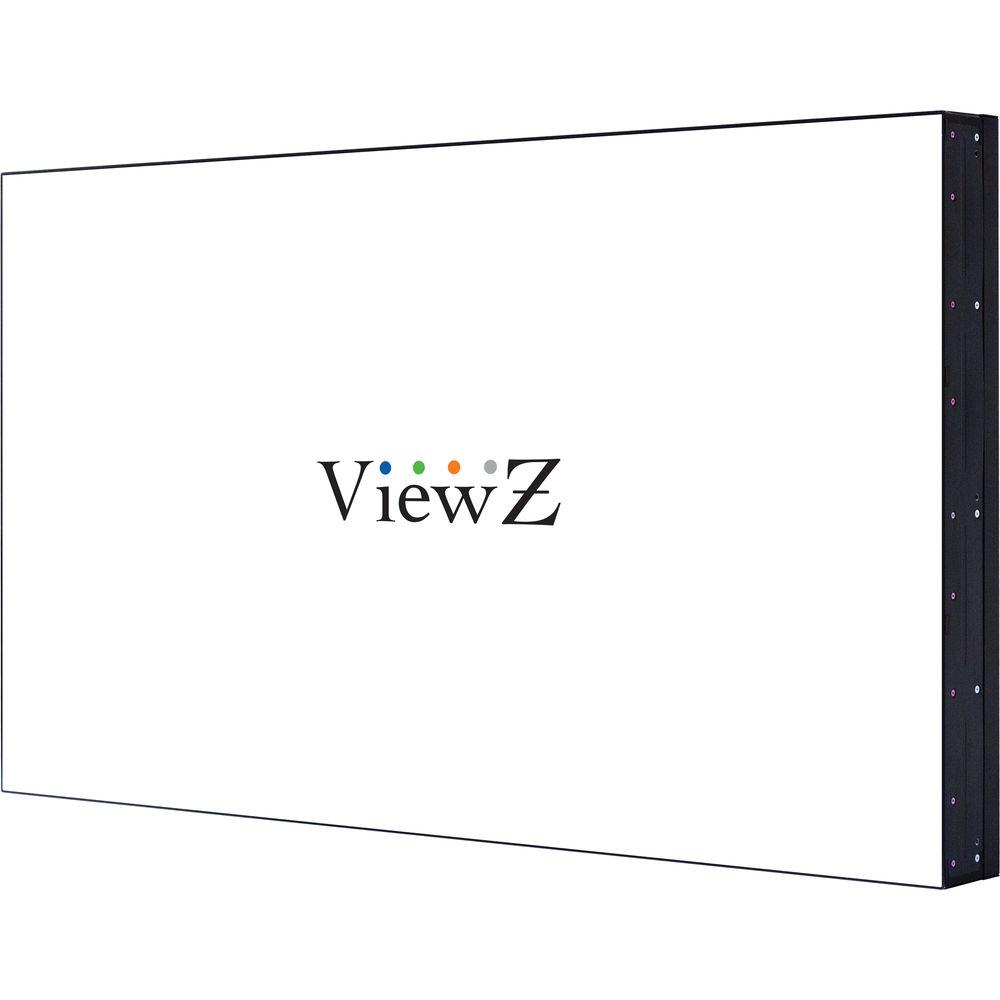

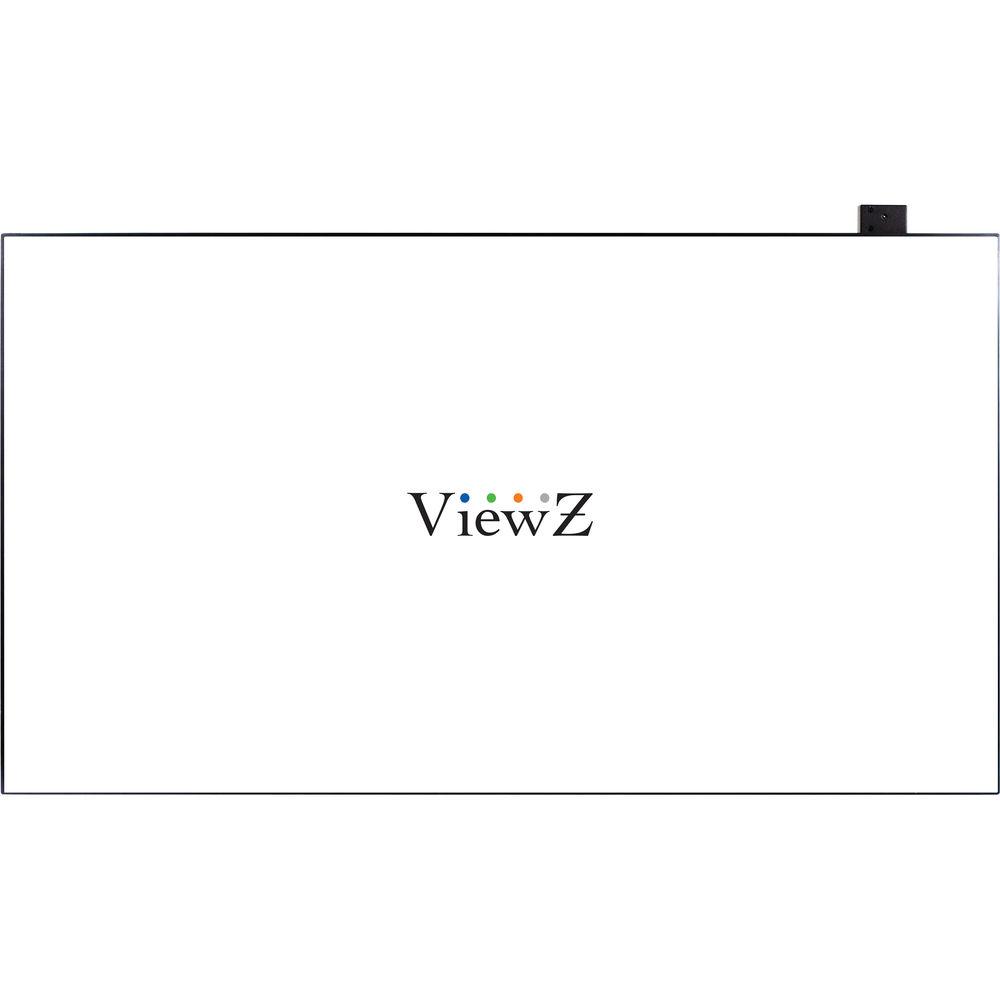

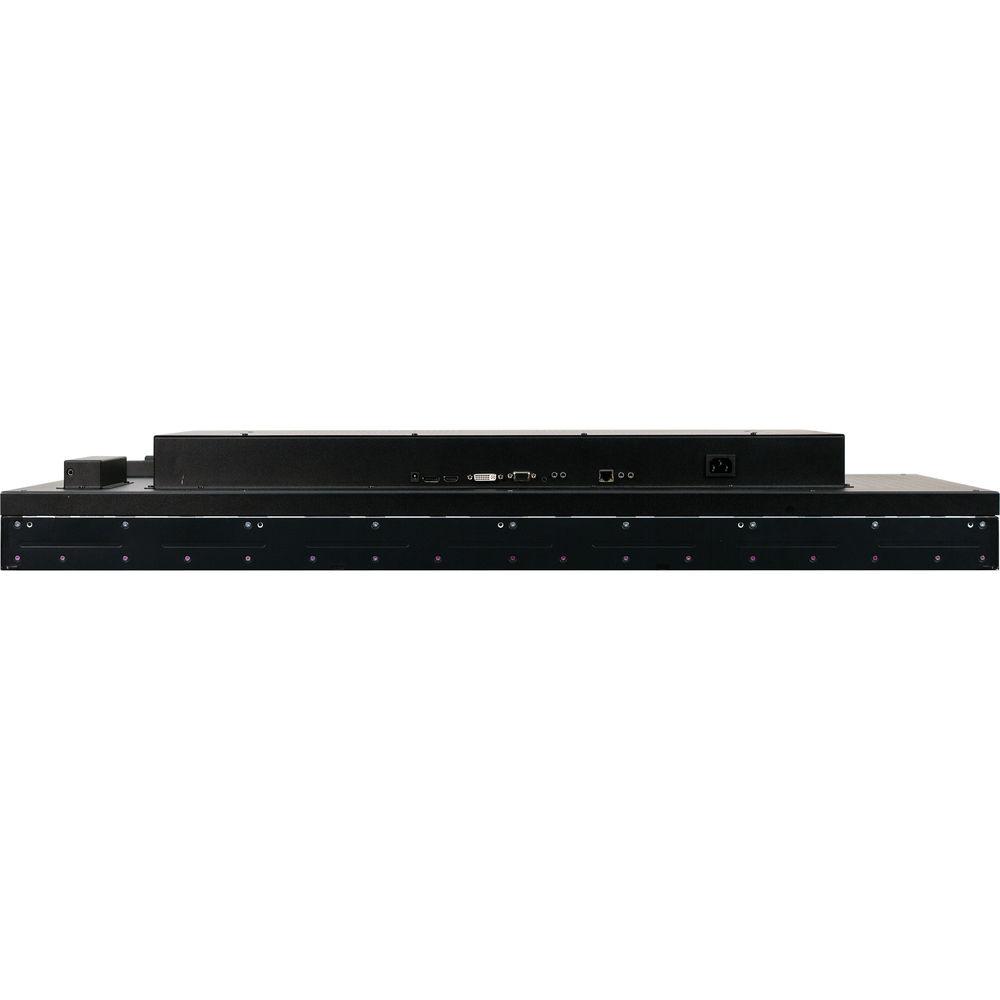

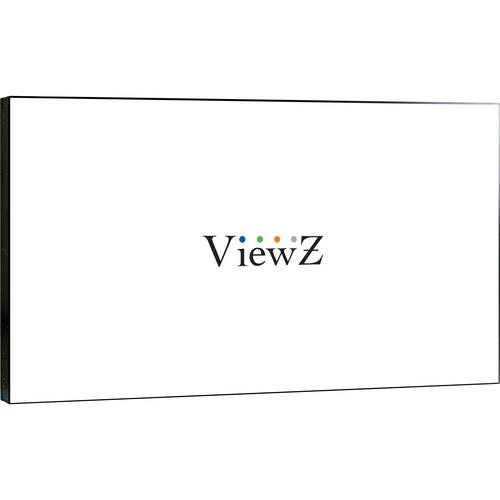

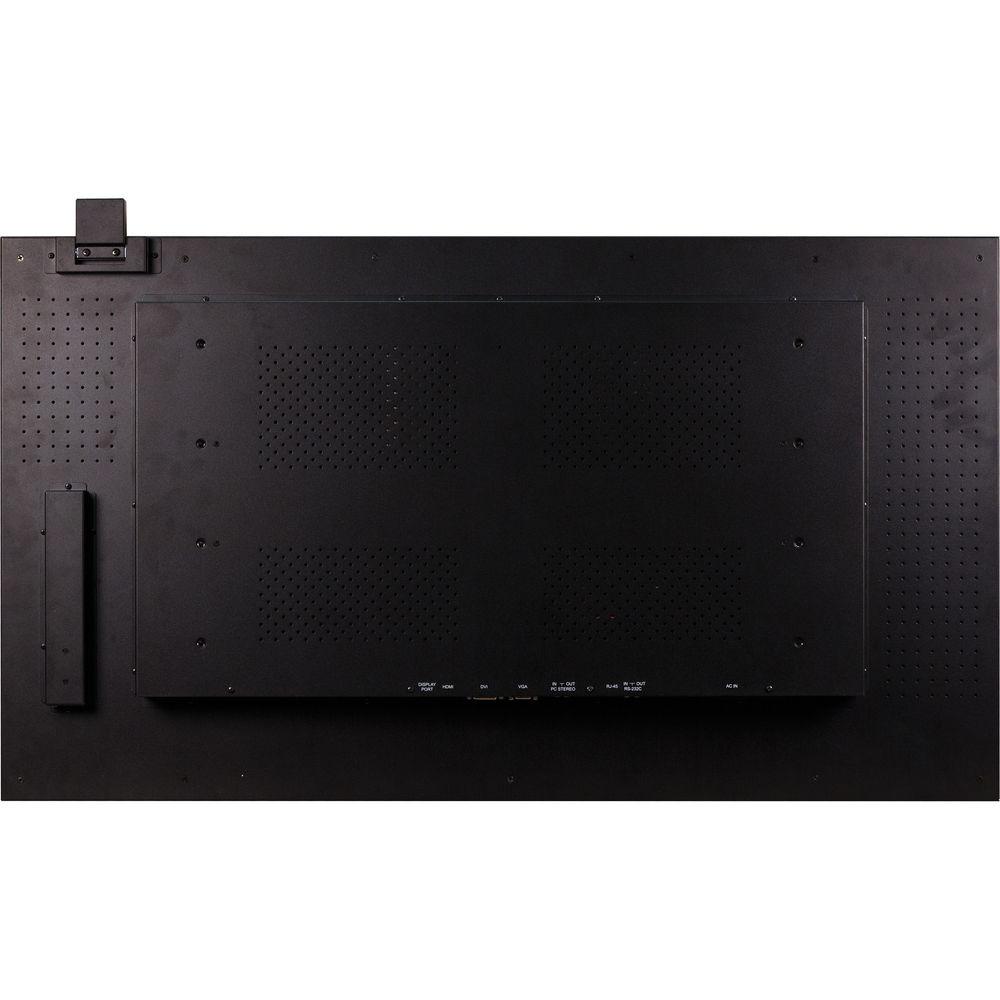

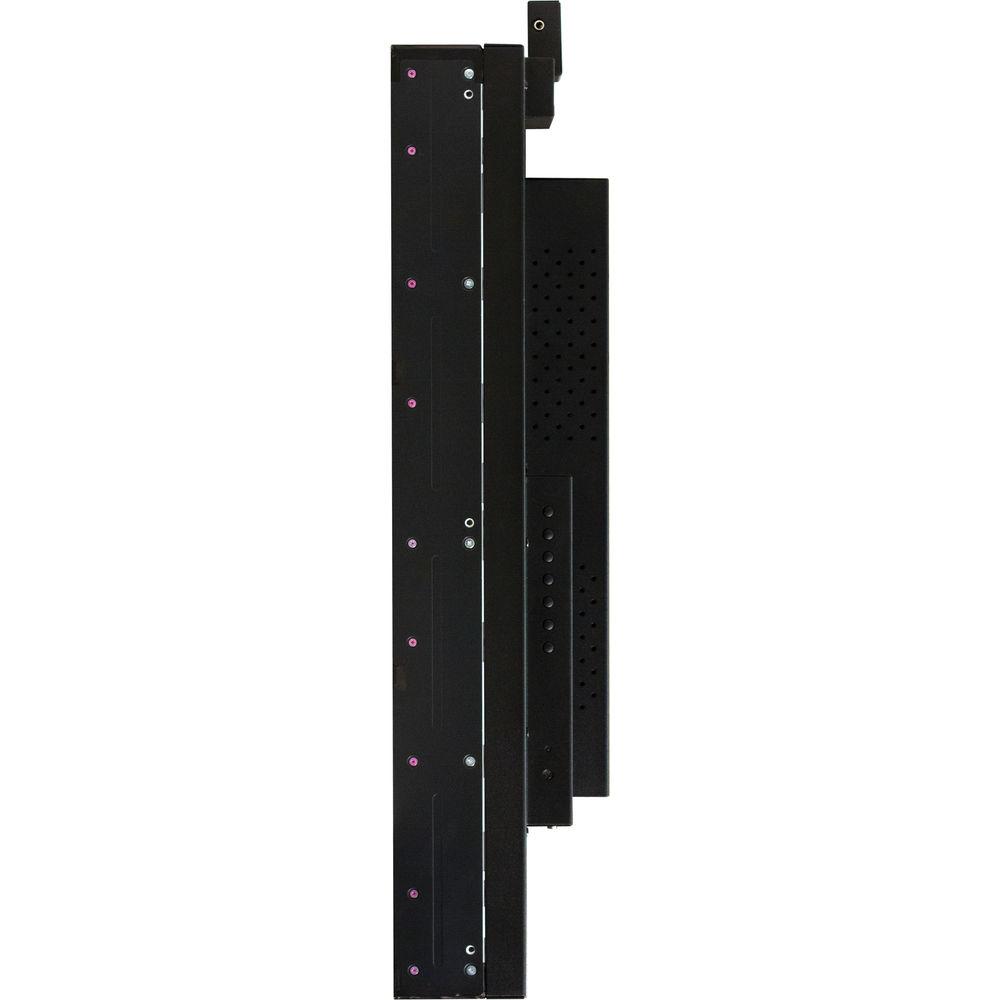

Product description The VZ-55UNL 55” LED-Backlit Video Wall Monitor from ViewZ displays images in 500 cd/m² brightness, making it suitable for indoor environments that receive a high amount of external daylight. Equipped with D-Sub, DVI-D, HDMI, and DisplayPort inputs, the display delivers Full HD video in a slim LED-backlit design. Image protection technology automatically moves the image location on the screen without visible detection to protect the screen from screen burn-in. The monitor also features and RS-232C, RJ45, and PC stereo audio ports.This VESA mount compatible monitor features a slim 3mm bezel that allows a 5.9mm bezel-to-bezel width, making it suitable for use in video wall applications. The monitor is built using a commercial-grade "A" panel that ensures optimum color reproduction and low defect ratio, making it durable enough for continuous use. - Image protection technology prevents screen burn-in
- 55" commercial-grade "A" panel for optimum color reproduction and low defect ratio
- LED-backlit technology for reduced energy consumption
- Digital Sub, DVI-D, HDMI, and DisplayPort inputs
- RS-232C, RJ45, and PC stereo audio ports
- 5.9mm bezel-to-bezel width
- Suitable for indoor environments that receive a high amount of external daylight such as airports, shopping centers, and storefront window displays
- OSD functionality via RJ45 & RJ-232C protocol
- Built-in 3D comb and de-interlace image processor for clear and crisp images
- Auto power and source recovery features will automatically restore power as well as the source after a power failure
- VESA mount compatible interface
In the Box ViewZ VZ-55UNL 55" LED-Backlit Video Wall Monitor Remote Control Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-55UNL 55" LED-Backlit Video Wall Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-55UNL Specs | Screen Size | 55.0" (139.7 cm) | | Maximum Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.63025 x 0.63025 mm | | Brightness | 500 cd/m2 (Typical) | | Contrast Ratio | 3500:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178° | | Display Color | 16.7 million | | Response Time | < 8 ms | | Video System | NTSC / PAL | | Frequency (H) | 31 to 80 kHz | | Frequency (V) | 56 to 75 Hz | | Interface | VGA in (15-Pin D-Sub), DVI-D in, HDMI, RJ45, and PC stereo (in/out) | | Built-In Speakers | 2 x 2 W | | Filter Type | 3D Comb filter / DeInterlace | | Bezel Width | Top & Left Side: 0.12" (3.00 mm)
Bottom & Right Side: 0.11" (2.90 mm)
Active to Active Area: 0.23" (5.90 mm) | | Multi-lingual Language | English, Spanish, French, German, Italian, Portuguese, Dutch | | VESA Mount | 600 x 100 x 100 mm, M8 x 12 screws | | Electrical Ratings | 100 to 240 VAC (50/60 Hz) | | Power Consumption | Typical: 152 W
Maximum: 166 W | | MTBF | 50,000 hours approximately | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 47.8 x 27.0 x 5.5" (121.6 x 68.6 x 14.0 cm) | | Weight | 91.5 lb (41.5 kg) | | | | Package Weight | 115.0 lb | | Box Dimensions (LxWxH) | 56.0 x 38.0 x 17.0" |
