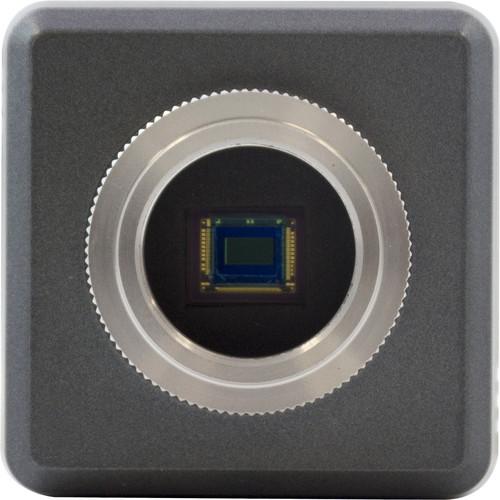

Product description Featuring Full HD 1080p, PAL, and NTSC video, this VZ-BCHS-1 Compact 3G/HD-SDI/HDMI Full HD Box Camera from ViewZ offers numerous features for use in applications such as surveillance, security, scientific, education, or sports. The 1/3" 2.1MP CMOS sensor supports up to 1080p60 video over 3G-SDI or HDMI outputs.

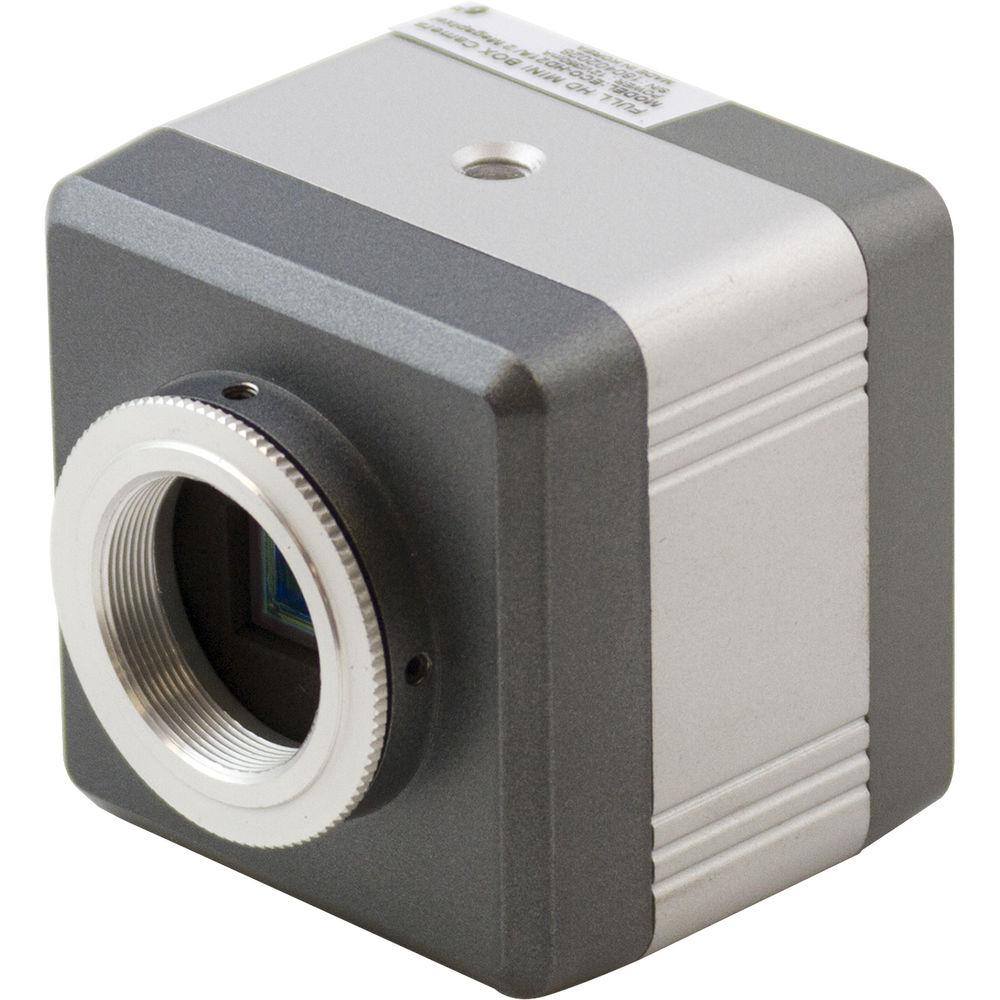

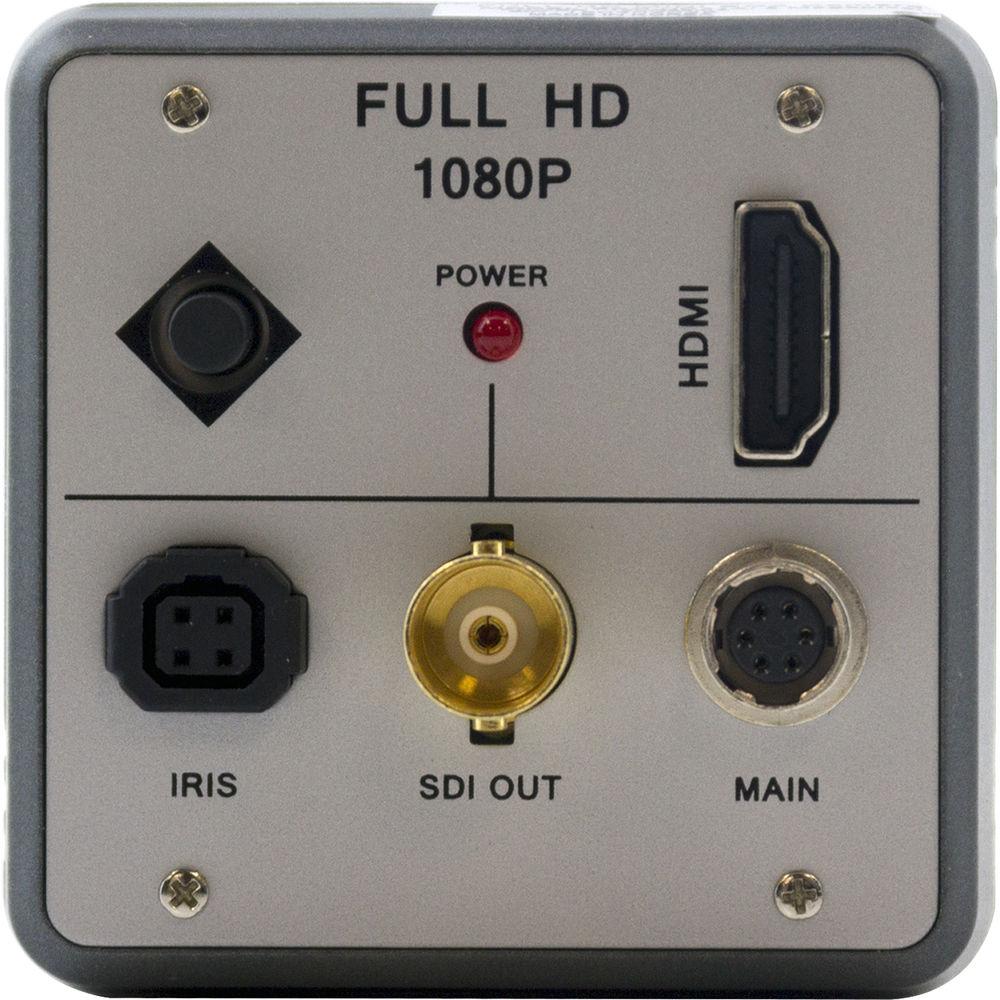

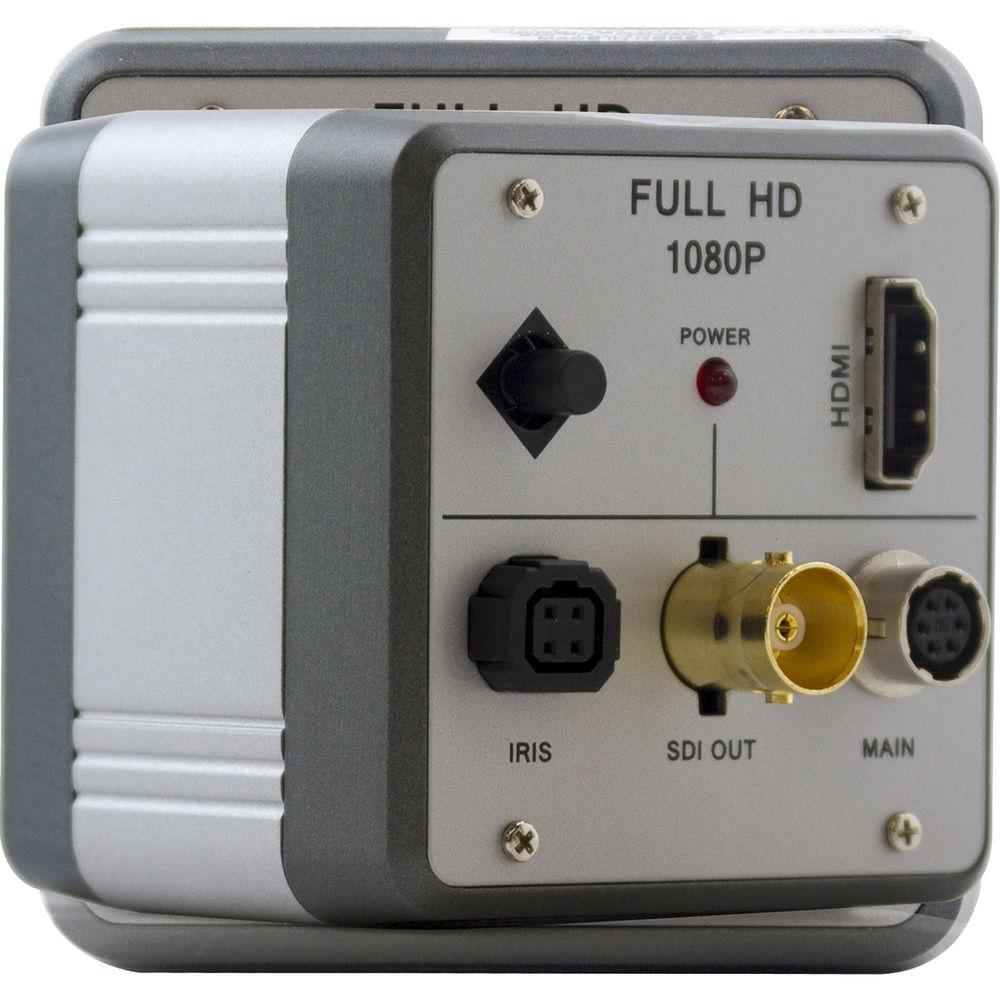

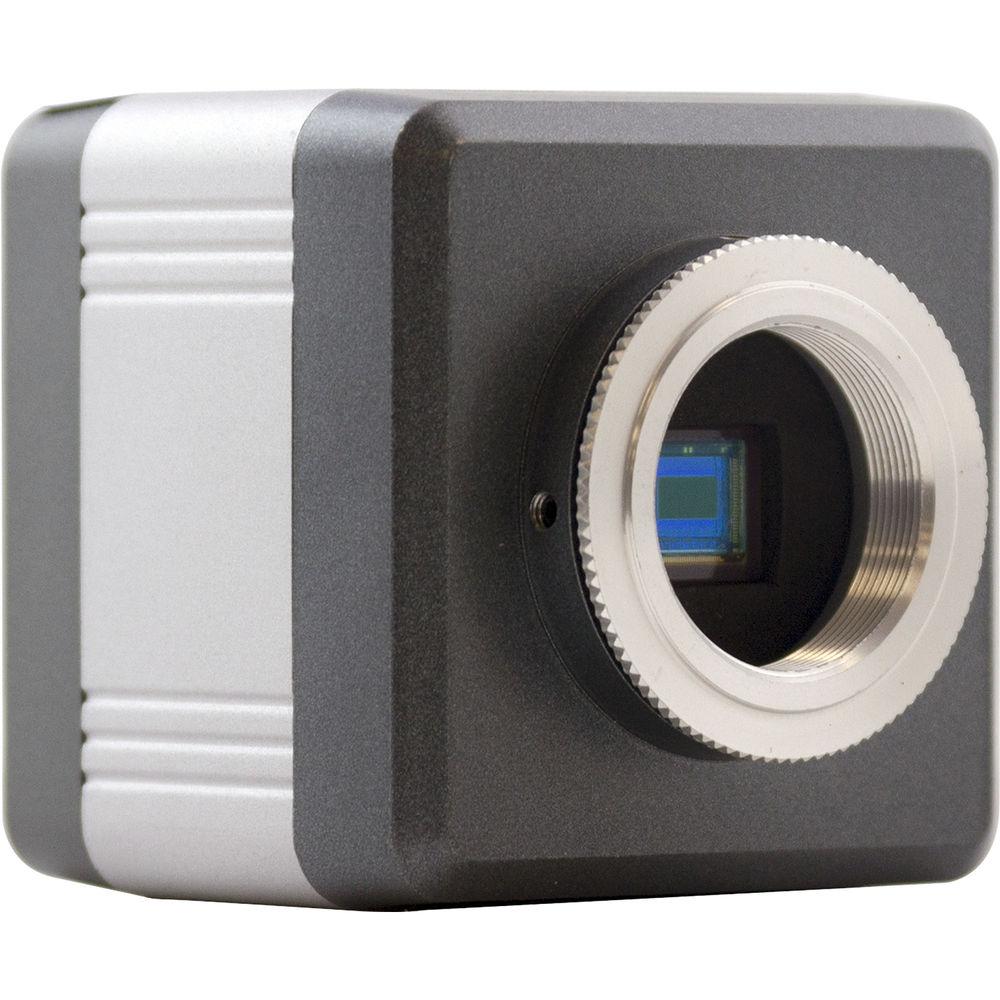

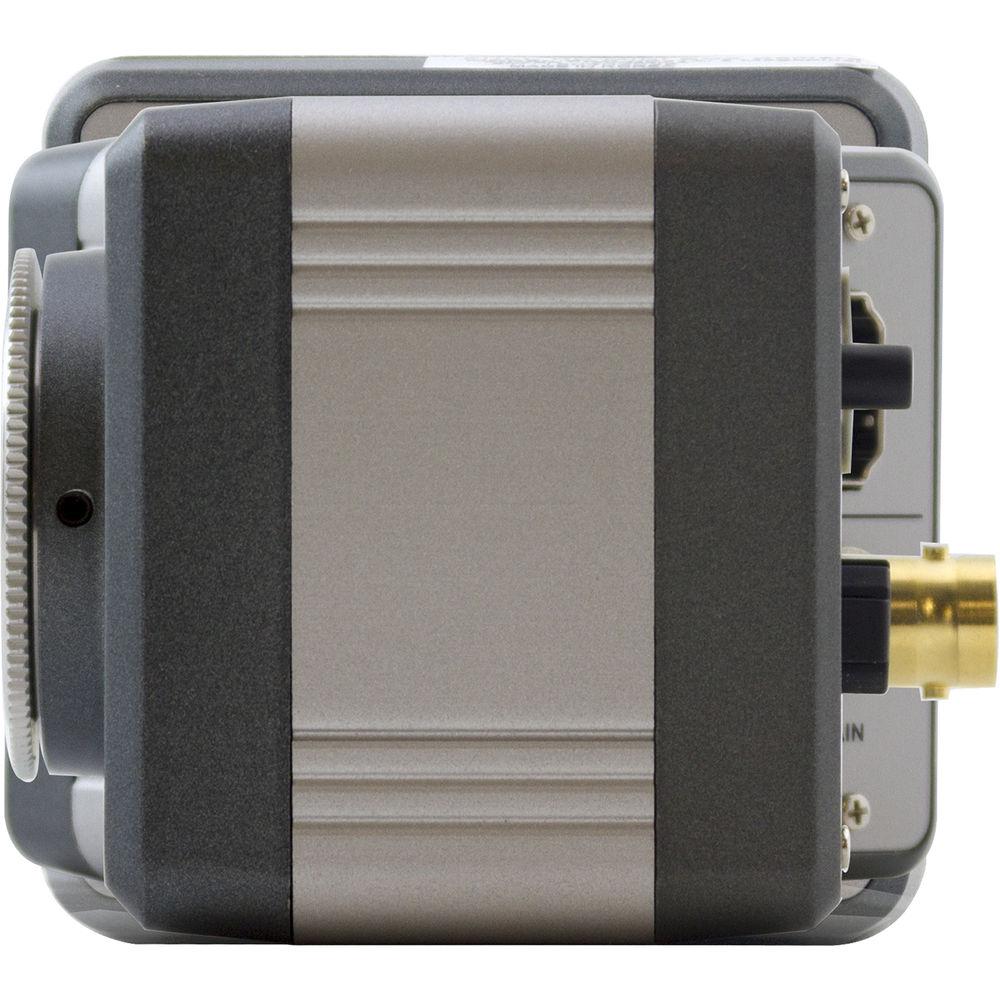

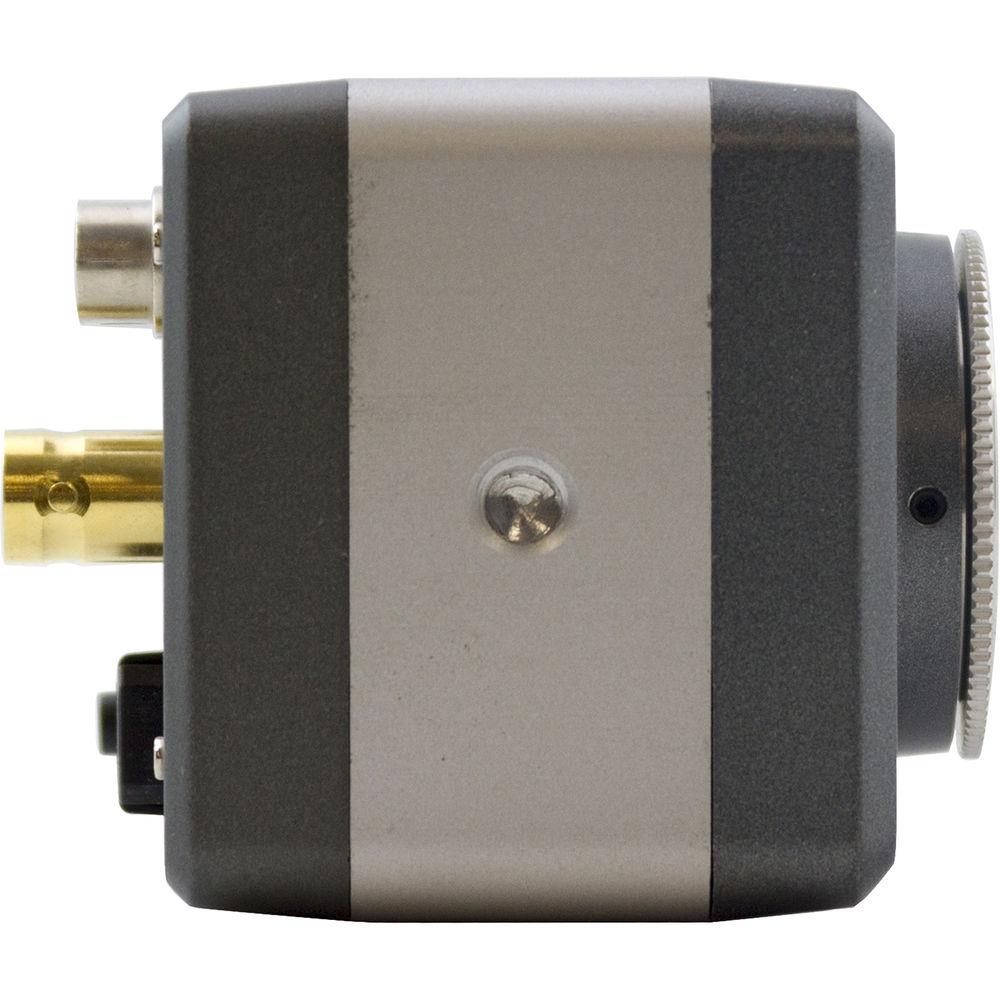

This tiny camera measures only 2.3" square and 4" long, it weighs less than a half pound, and it's made of durable aluminum. It features one 3G/HD-SDI output, one HDMI output, one power/CVBS output for CCTV operation, and it can generate a color bar signal. It accepts a C/CS mount lens and requires only 0.1 lux minimum to record clear video with its wide dynamic range.
The camera supports numerous image-enhancing features such as backlight compensation, auto white balance, digital noise reduction, automatic gain control, color temperature controls, privacy masking, digital zoom, mirror image, gamma, image flip, and defog. - 2.1MP CMOS progressive scan sensor
- 1080p Full HD video over 3G/HD-SDI, HDMI; support for NTSC and PAL
- Suitable for surveillance, security, scientific, education, or sports applications
- Image features include:
- Auto white balance
- Shutter speed
- Backlight compensation
- Digital noise reduction
- Wide dynamic range
- Privacy masking
- Motion detection
- Digital zoom
- Automatic gain control
- Gamma
- Mirror image
- Image flip
- Defog
- Adjustable color temperature
In the Box ViewZ VZ-BCHS-1 Compact 3G/HD-SDI/HDMI Full HD Box Camera Power/CVBS Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-BCHS-1 Compact 3G HD-SDI HDMI Full HD Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-BCHS-1 Specs | Sensor | 1/3" 2.1 MP Progressive Scan CMOS | | Lux | 0.1 | | Lens Mount | C/CS Mount | | Electronic Shutter Speed | Auto, Manual
1/30 sec to 1/30,000 sec | | Signal to Noise Ratio | > 50 dB (AGC Off) | | Automatic Gain Control | 0 to 10 | | Auto White Balance | Auto, Pushing
Manual: 3000K, 5000K, 8000K, R-Gain, B-Gain | | Minimum Illumination | 0.1 lux (f/1.2, 50 IRE, AGC Max.)
DSS X4: 0.01 lux | | Backlight Compensation | On / Off | | Digital Noise Reduction (DNR) | Off / Low / Middle / High | | Wide Dynamic Range | Off / Low / Middle / High | | Image Controls | Privacy Masking, Motion Detection, Noise Reduction, Digital Zoom, Color Bars, Gamma, Mirror, Flip, Defog | | Supported Resolutions | 1920 x 1080p: 25/30/50/60
1920 x 1080i: 50/60
1280 x 720p: 50/60
NTSC
PAL | | Connectors | 1 x BNC 3G/HD-SDI
1 x HDMI
1 x 12 VDC Power/CVBS
1 x Auto Iris | | Material of Construction | Aluminum | | Power Input | 12 VDC, 400 mA | | Power Consumption | 4.8 W | | Operating Temperature | 14 to 131°F / -10°C to 55°C | | Relative Humidity | 0 to 90% Non-Condensing | | Dimensions | 2.3 x 2.3 x 4" / 5.9 x 5.9 x 10.2 cm | | Weight | 7 oz / 200 g |
