User Manual for ViewZ VZ-CM18 Telescopic Ceiling Mount with 6 to 18' Extension for 23 to 32" Flat Panel Monitors Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-CM18 Telescopic Ceiling Mount with
- Product category: Monitor Ceiling Mounts ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Monitor Ceiling Mounts
 |
User manual for the ViewZ VZ-CM18 Telescopic Ceiling Mount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|

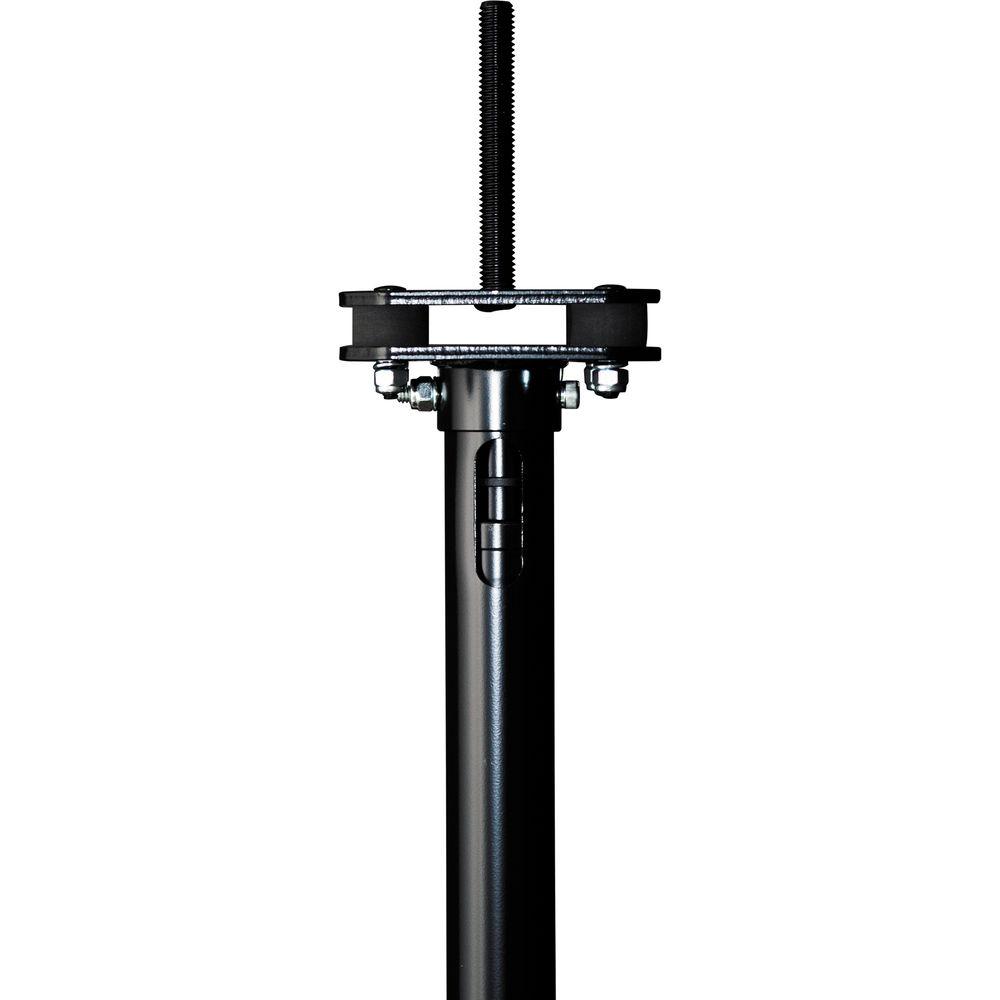

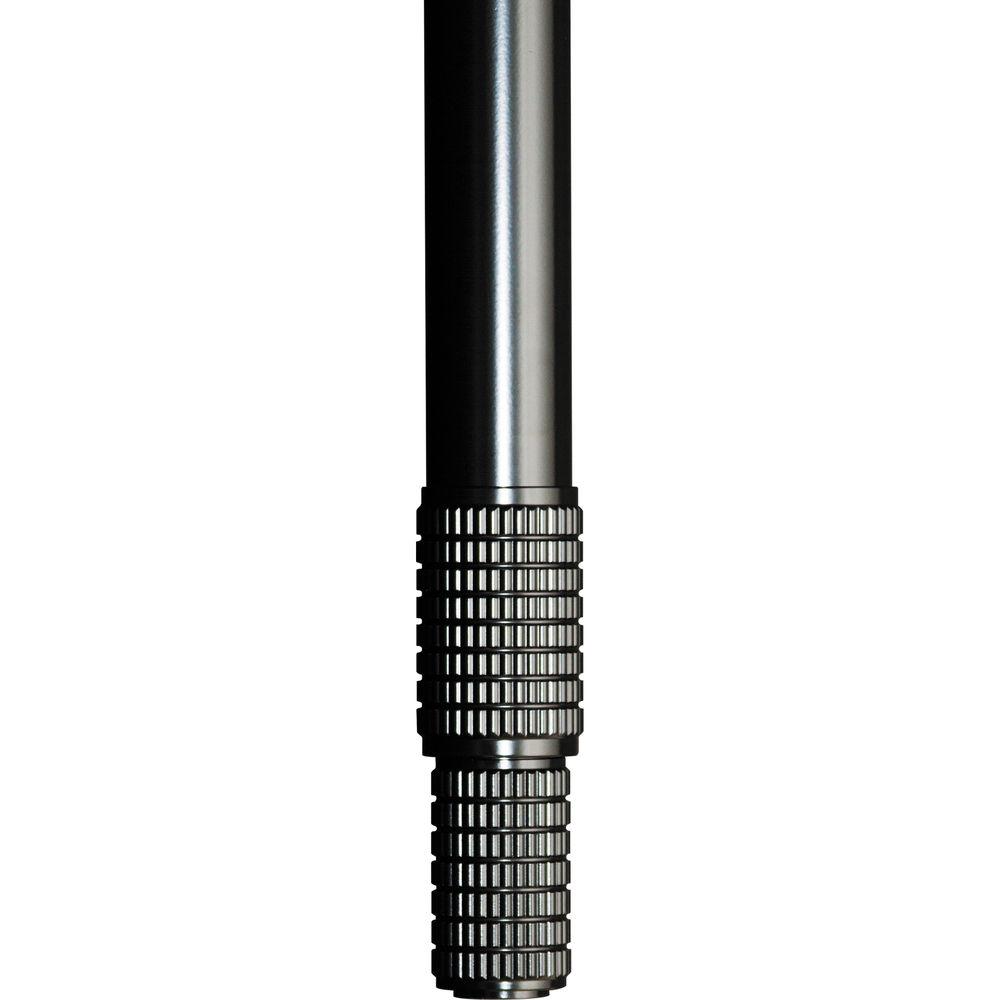

Product description The black VZ-CM18 Telescopic Ceiling Mount from ViewZ is used with the VZ-PVM-Z2, Z3, Z4 HD Public View Monitors; VZ-PVM I2, I3, I4 iP Public View Monitors; and VZ-24, 27, 32RTHL Premium LED HD Monitors. This mount features 15° tilt and 360° pan adjustment along with telescopic adjustment from 6 to 18'. It allows for quick and precise rotation for achieving optimum viewing angle adjustment. Built-in cable management hides unsightly cable clutter and prevents cable pinching when used in low-voltage applications. - For mounting 23 to 32" flat panel displays
- Allows quick and precise rotation for achieving optimum viewing angle adjustment

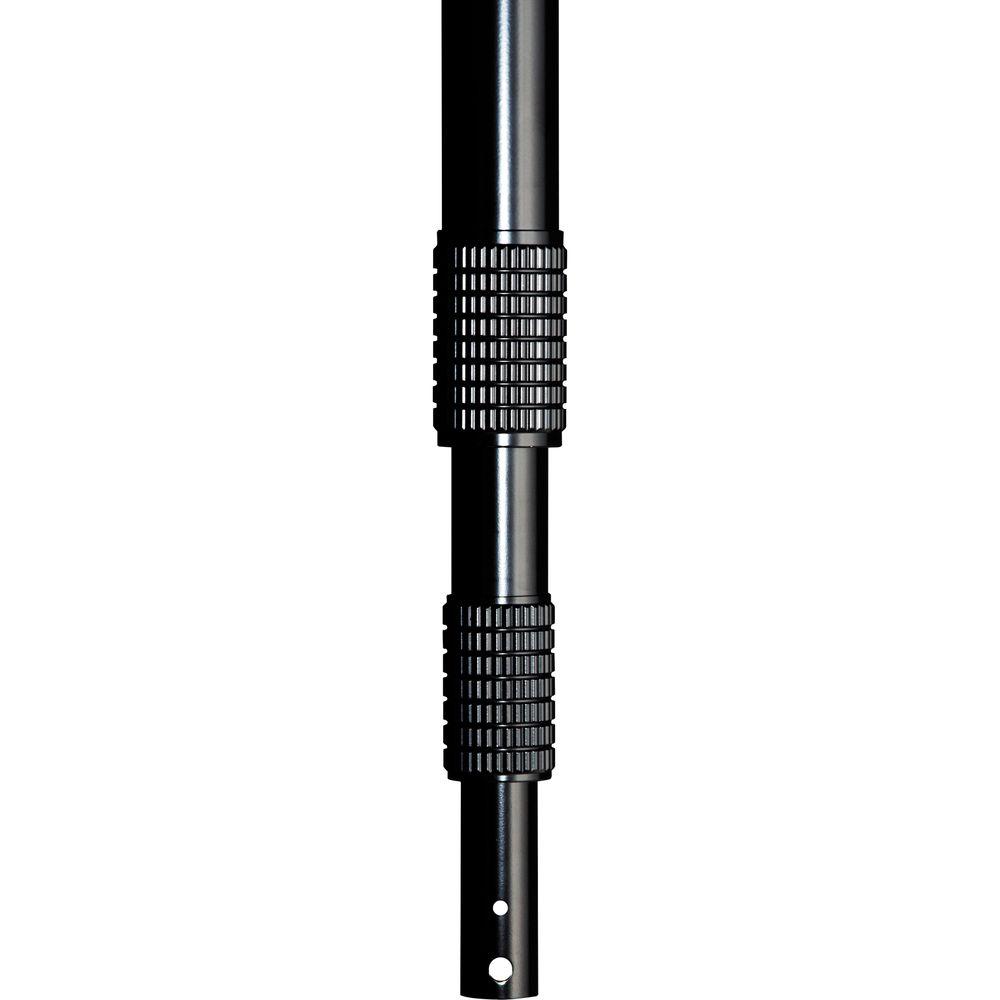

- Telescopic adjustment ranging from 6 to 18' for optimum placement and viewing

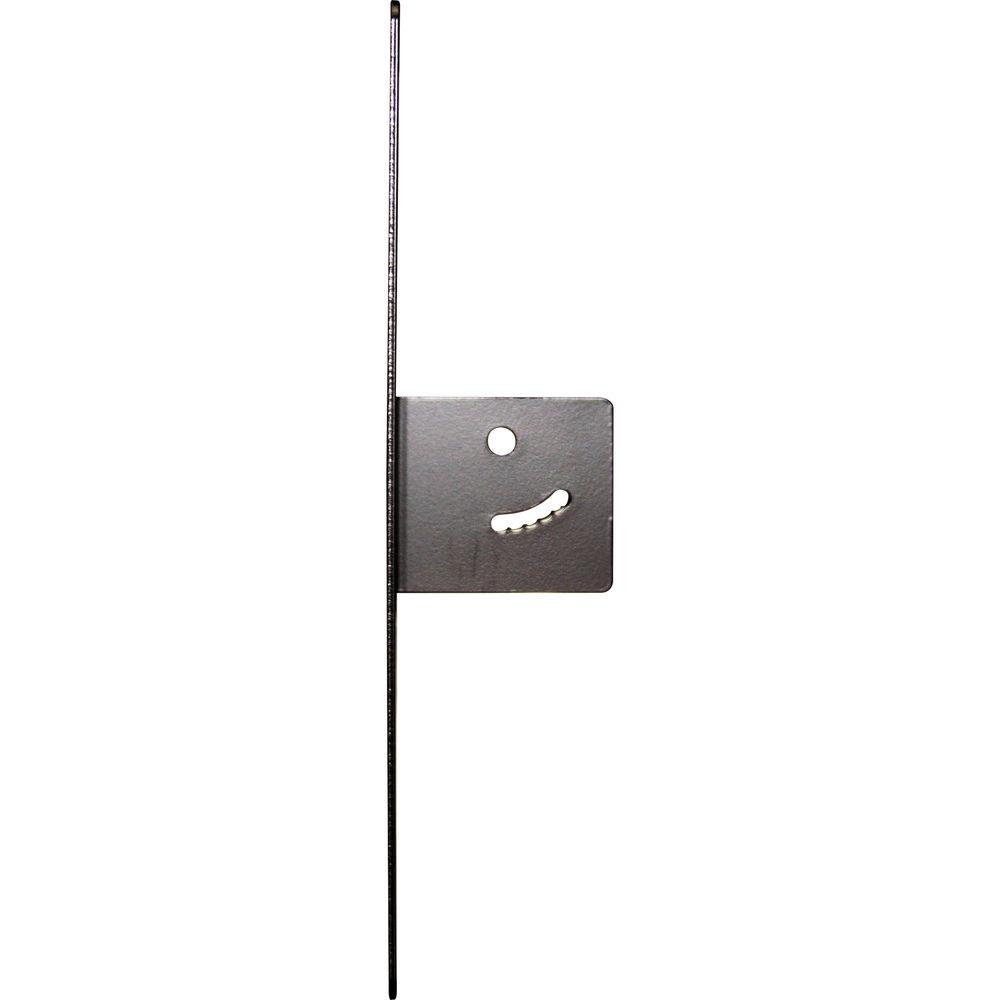

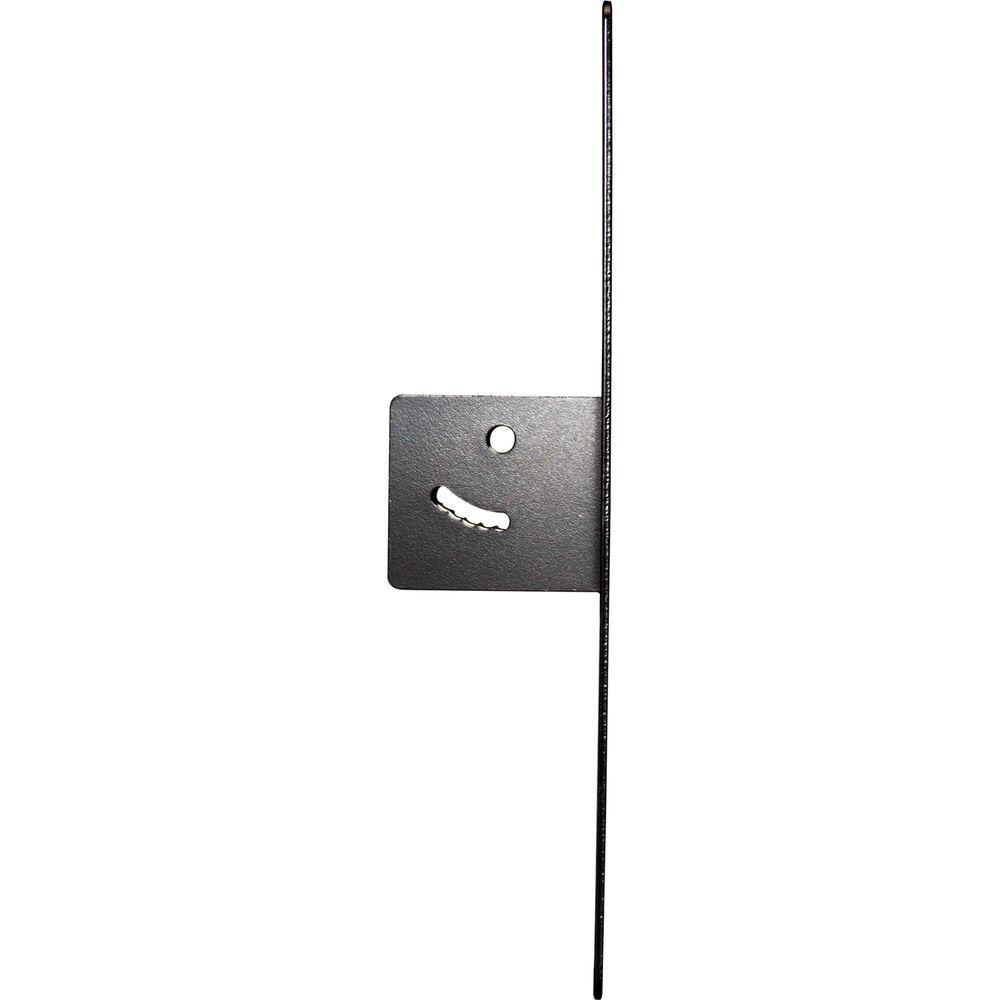

- 15° tilt and 360° pan adjustment
- Compatible with VESA 75 x 75, 100 x 100, and 200 x 200mm mounting patterns
- Built-in cable management hides unsightly cable clutter and prevents cable pinching when used in low-voltage applications
UPC: 856478005616 In the Box ViewZ VZ-CM18 Telescopic Ceiling Mount with 6 to 18' Extension for 23 to 32" Flat Panel Monitors (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-CM18 Telescopic Ceiling Mount with 6 to 18' Extension for 23 to 32" Flat Panel Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

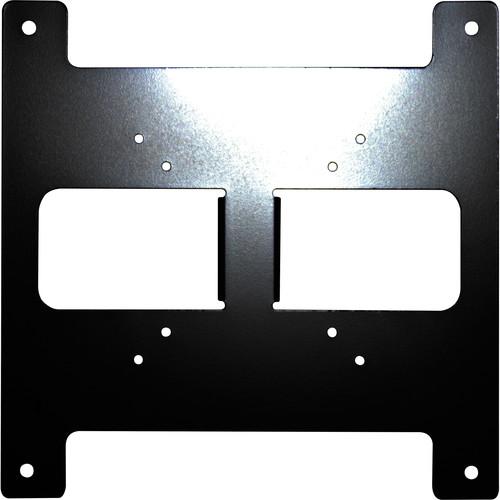

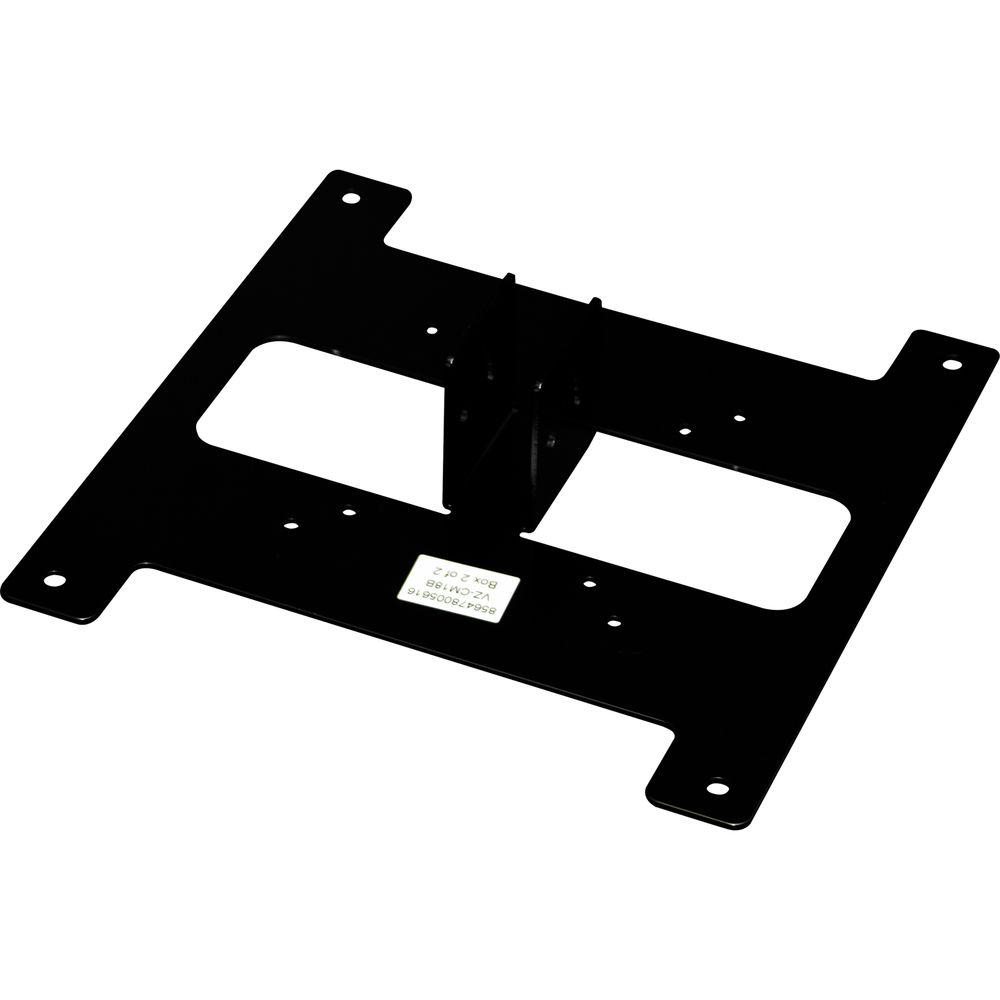

Technical parametersViewZ VZ-CM18B Specs | Compatible With | VZ-PVM-Z2, Z3, Z4 HD Public View Monitors, VZ-PVM I2, I3, I4 iP Public View Monitor, and VZ-24, 27, 32RTHL Premium LED HD Monitors | | Mounting Pattern | 75 x 75 mm (min) to 200 x 200 mm (max) | | Display Range | 23.0 to 32.0" (58.4 x 81.3 cm) | | Weight Capacity | 36.8 lb (16.7 kg) | | Height Adjustment Range | 6.0 to 18.0' (1.8 to 5.4 m) | | Pan Rotation | 360° | | Tilt Range | +15° | | Dimensions | Plate (W x H x D): 8.85 x 8.85 x 0.07" (22.50 x 22.50 x 0.20 cm)

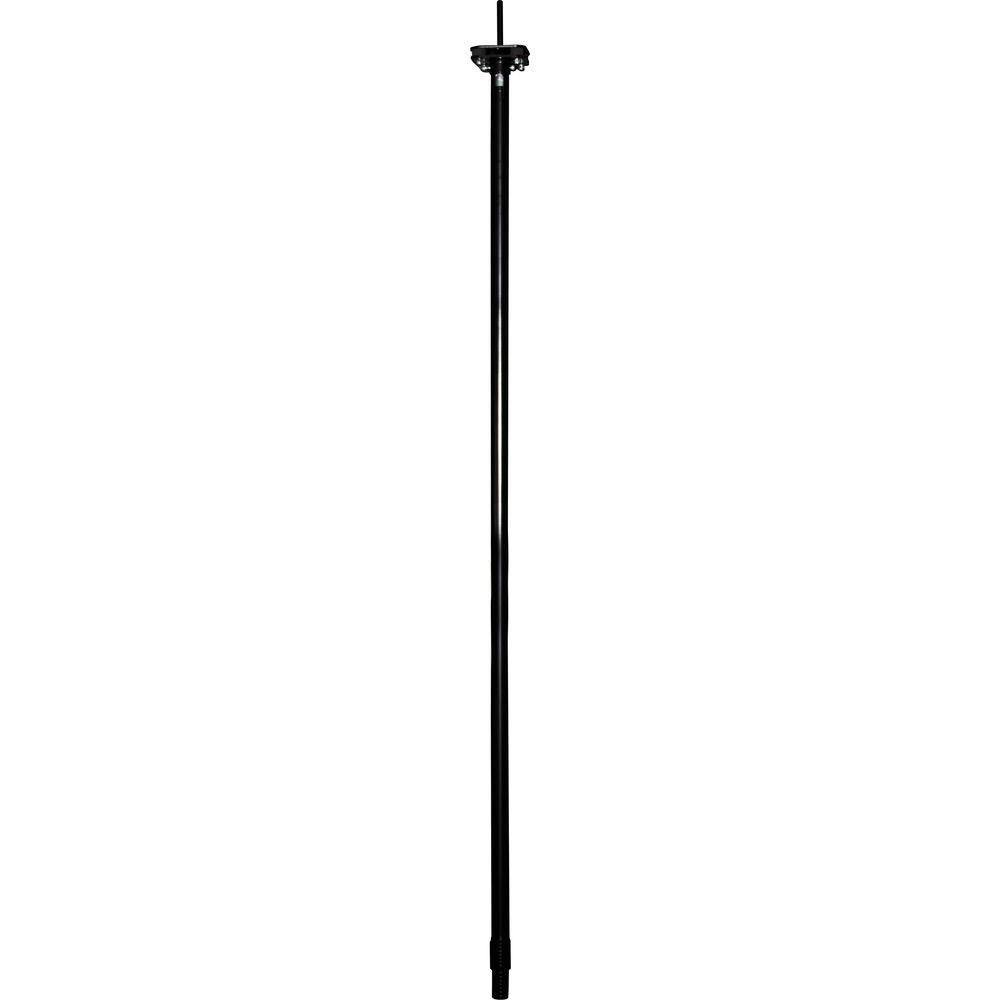

Pole (Diameter x Length, Minimum): 0.97 x 82.45" (2.50 x 209.40 cm)
Pole (Diameter x Length, Maximum): 0.97 x 210" (2.50 x 534.50 cm) | | Weight | 11.7 lb (5.3 kg) | | | | Box Dimensions (LxWxH) | 81.0 x 5.0 x 5.0" |
