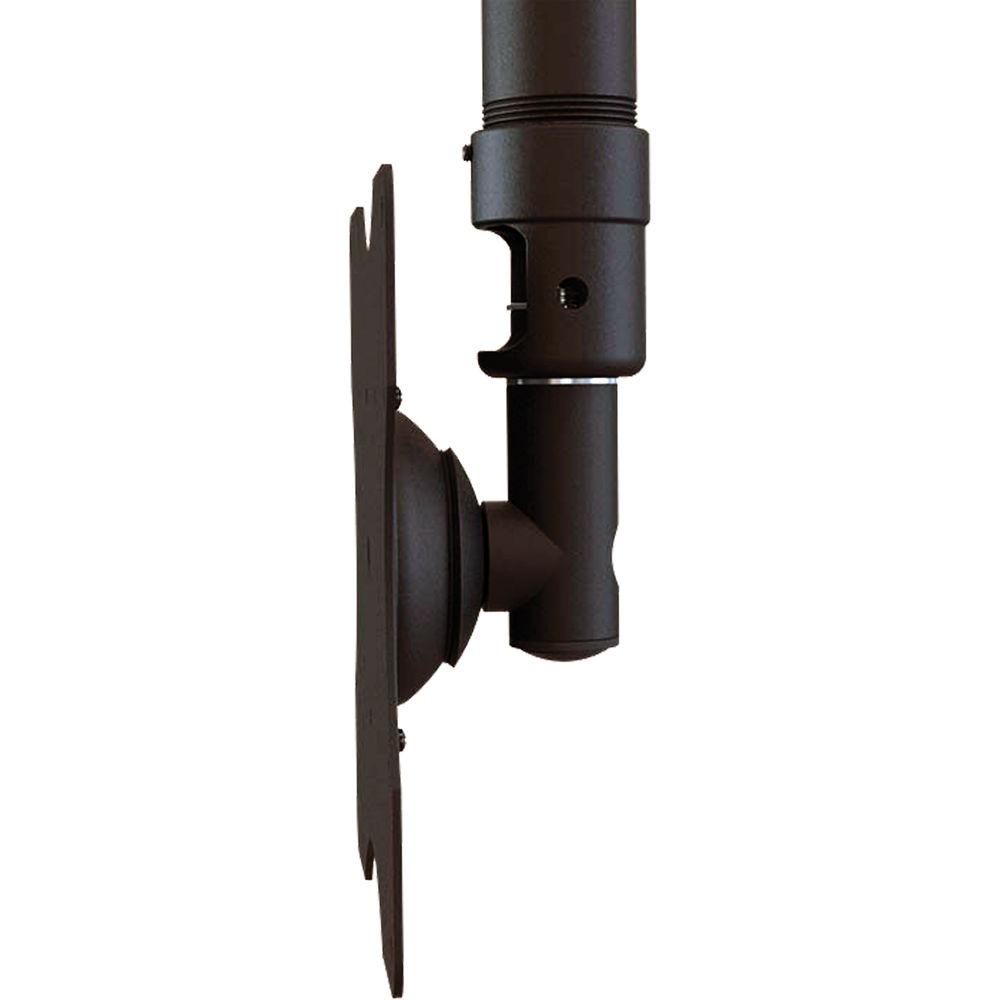

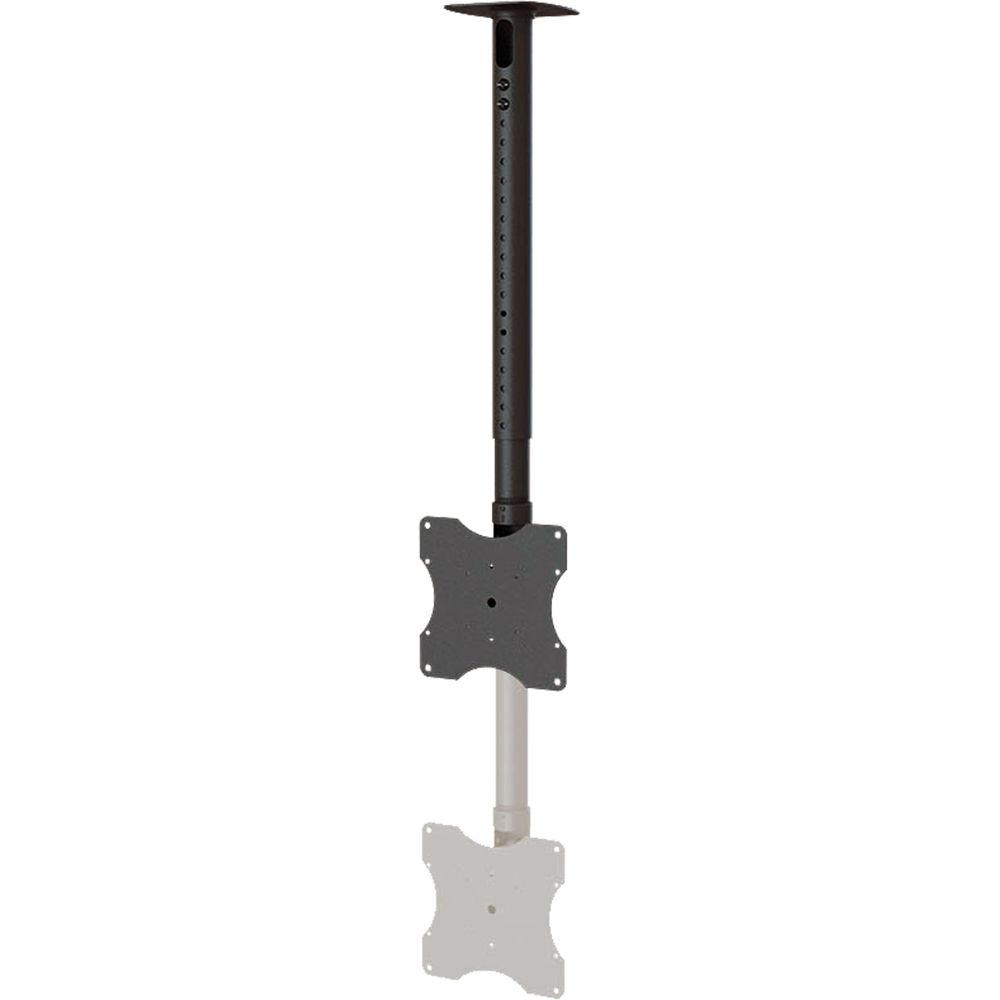

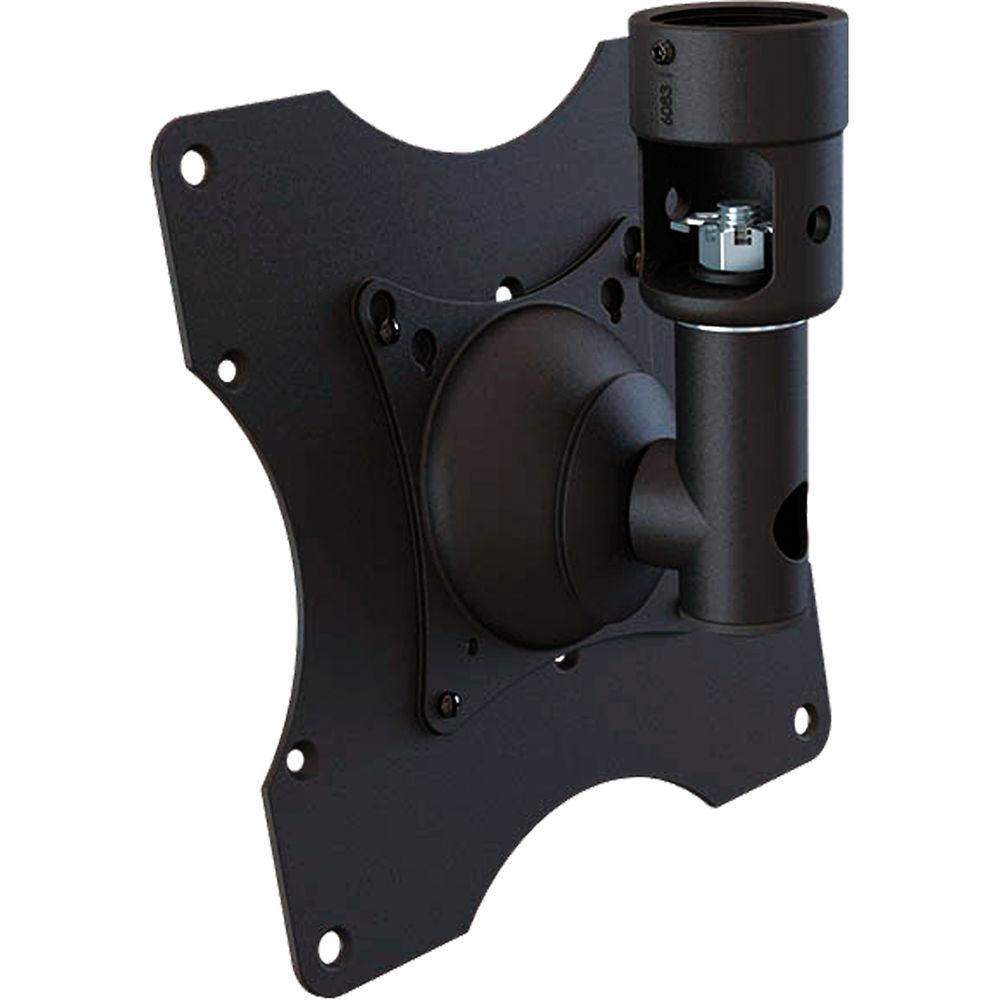

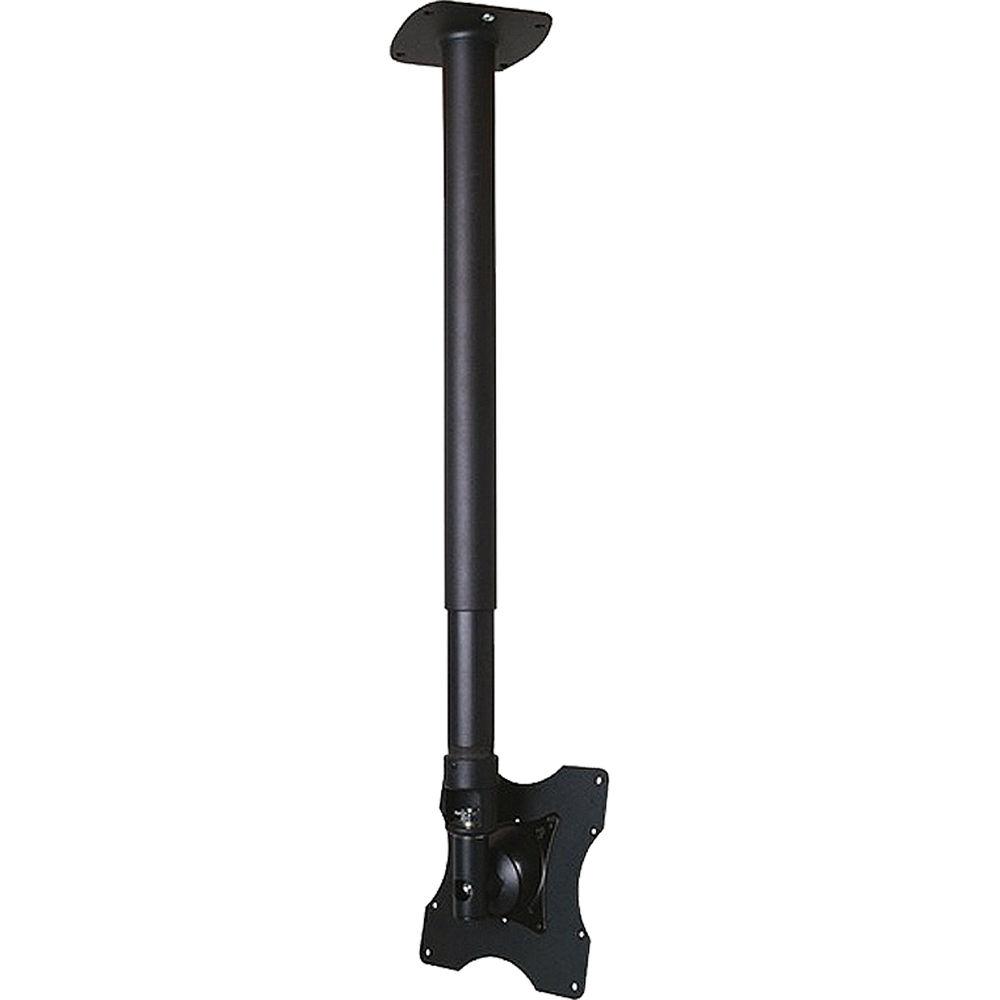

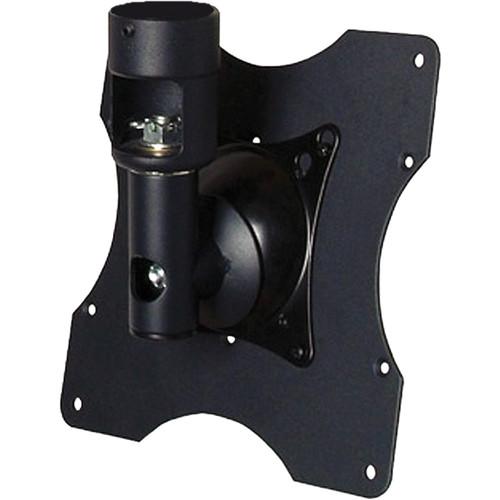

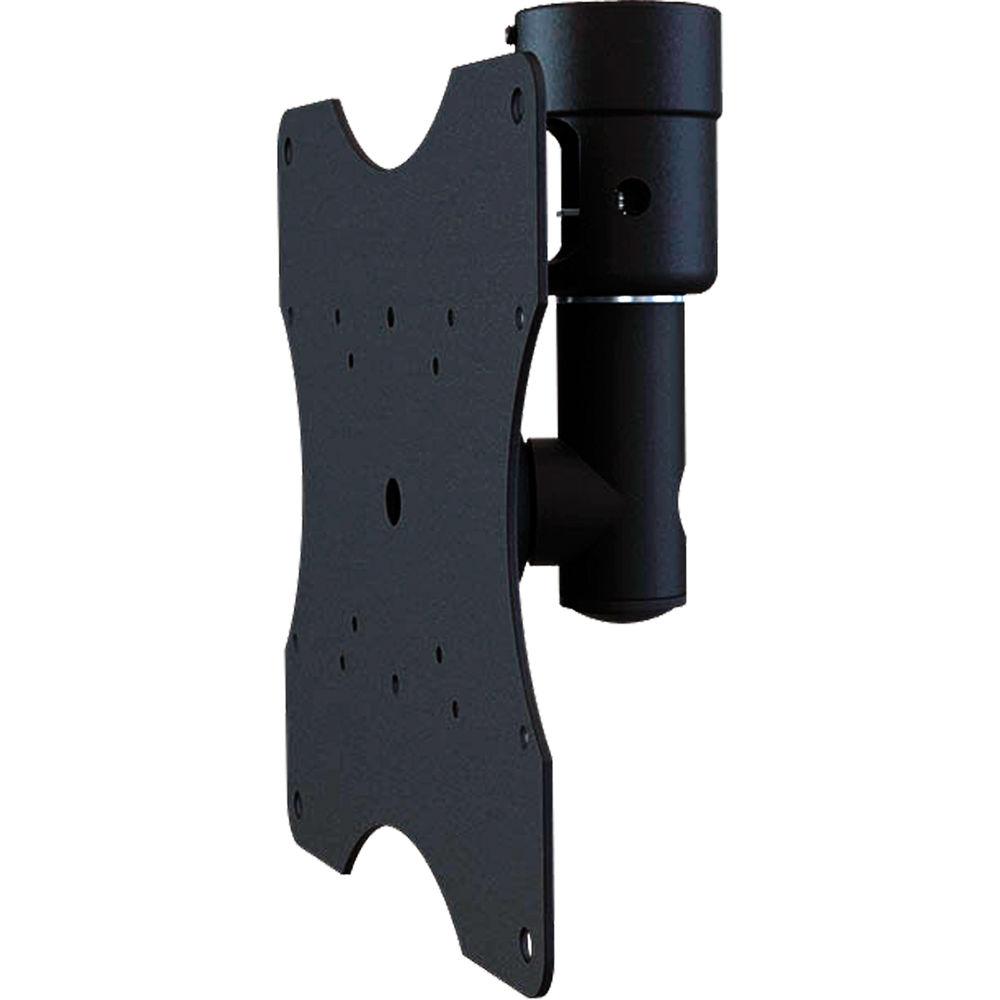

User Manual for ViewZ VZ-CMK02 Adjustable Ceiling Mount for 8 to 32" Monitors Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-CMK02 Adjustable Ceiling Mount for
- Product category: Monitor Ceiling Mounts ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Monitor Ceiling Mounts
 |
User manual for the ViewZ VZ-CMK02 Adjustable Ceiling Mount for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|
Product description The VZ-CMK02 Adjustable Ceiling Mount from ViewZ enables you to strategically place an attached LCD flat-panel from 8 to 32” up to 50 lb. This mount allows you to adjust the height from 33 to 50" and offers +/- 15° tilt and 360° rotation for perfect placement and viewing. Built-in cable management hides unsightly cable clutter and prevents cable pinching. - Compatible with VESA 75 x 75mm, 100 x 100mm, 200 x 100mm, and 200 x 200mm mounting patterns
- 360° rotation and 15° of tilt allows strategic placement of display

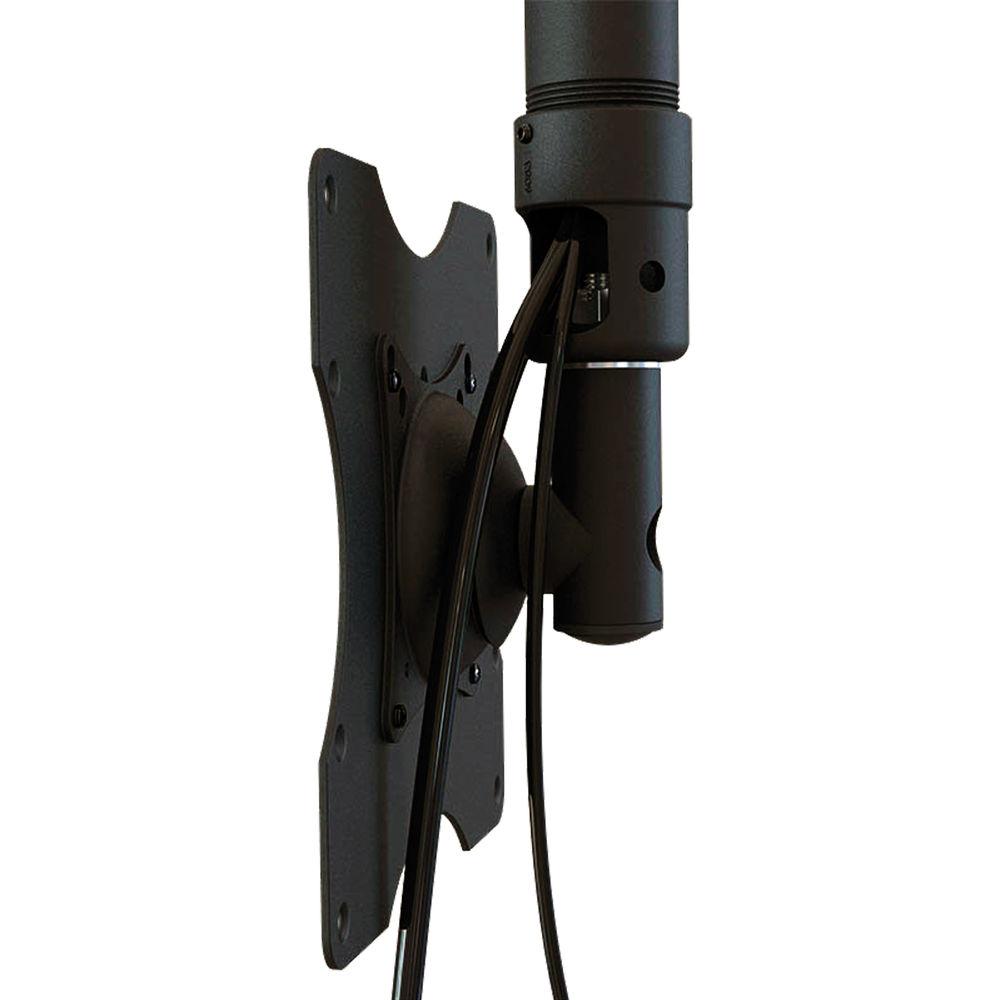

- Built-in cable management
In the Box ViewZ VZ-CMK02 Adjustable Ceiling Mount for 8 to 32" Monitors VZ-CMK-P3 NPT Extension Pipe VZ-CMK01A Mount Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-CMK02 Adjustable Ceiling Mount for 8 to 32" Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-CMK02 Specs | Display Range | 8 to 32" (20.3 to 81.3 cm) Flat Panel Display | | Maximum Load Capacity | 50.0 lb (22.7 kg) | | Height Adjustment | 33 to 50" (84 to 127 cm) | | Tilt | +/- 15° | | Rotation | 360° | | VESA Mount Standard | 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, and 200 x 200 mm | | Compatible With | VZ-097LED-E, VZ-185LED-P, VZ-215LED-P, VZ-215iPM, VZ-23LED-E, VZ-17RTA, VZ-15RTV, VZ-19RTV, VZ-15RTC, VZ-19RTC, VZ-27RTHL, VZ-10PVMZ, VZ-27PVMZ, VZ-23iPVMZ, VZ-32iPVMZ, VZ-23RTT, VZ-185LED-E, VZ-215LED-E, VZ-215LED-S, VZ-215D2iP, VZ-23LED-P, VZ-19RTA, VZ-17RTV, VZ-097RTC, VZ-17RTC, VZ-24RTHL, VZ-32RTHL, VZ-23PVMZ, VZ-32PVMZ, VZ-27iPVMZ, VZ-19RTT LCD Monitors | | Dimensions | VZ-CMK-P3: Height Adjustment 26.9 to 43.9" (68.1 to 111.5 cm)
VZ-CMK01A; Height: 7.5" (19.0 cm), Base Width: 4.5" (11.4 cm)
VZ-AP200 Adapter Plate: 8.8 x 7.9" (22.5 x 22.5 cm) | | Weight (Approximate) | 21.0 lb (9.5 kg) |
