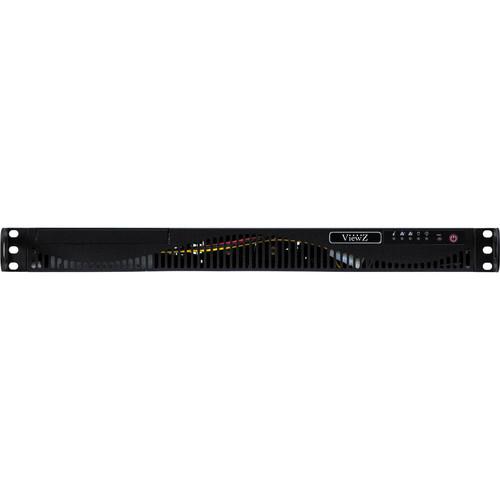

Product description The ViewZ VZ-DSM-8 8-Channel Digital Signage Manager is 8-channel server-based Full HD video wall processor ideal for 4 x 2 video walls and digital menu boards. Video content is brought in via a USB input and stored on two internal 500GB 3.5" HDDs. Two VHDCI outputs are provided, each supporting four channels at up to 1080p resolution, with a maximum output resolution of Ultra HD (3840x2160) possible across all the channels. To connect to displays, VHDCI to HDMI and VHDCI to DVI breakout cables (sold separately) are required.

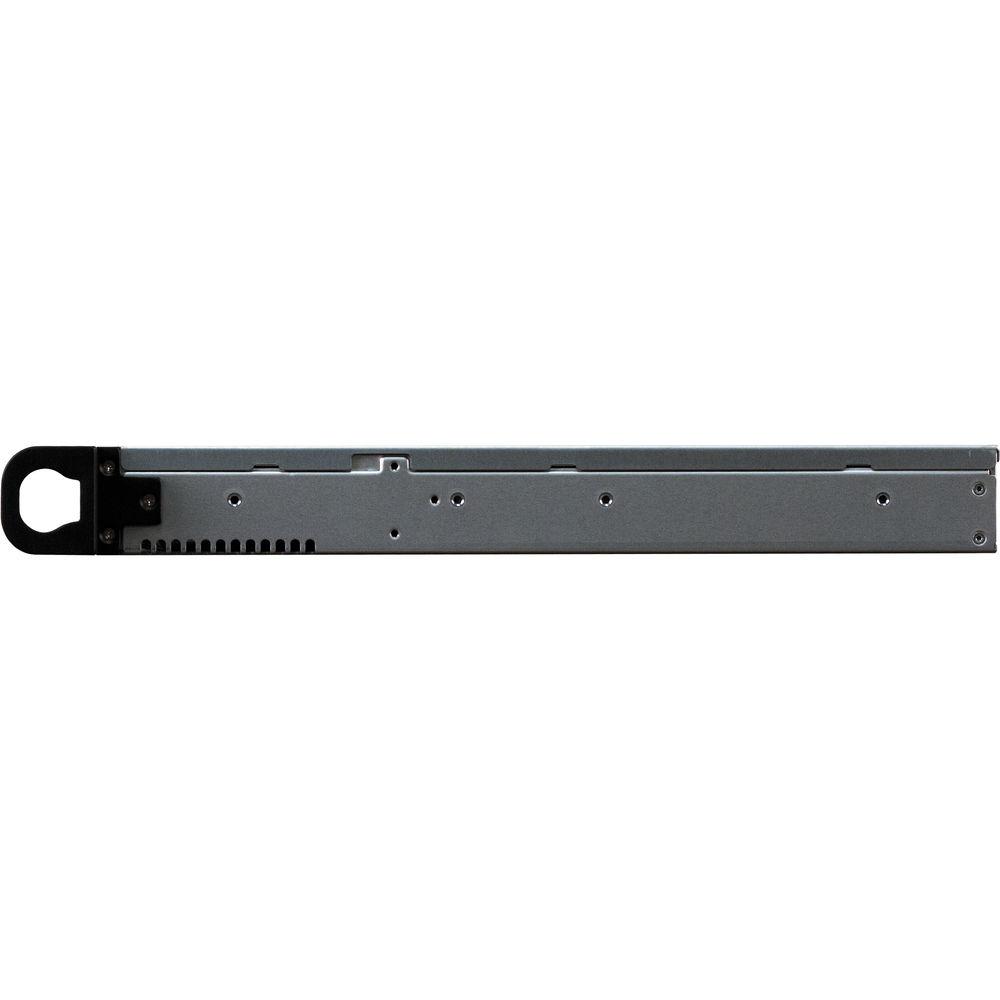

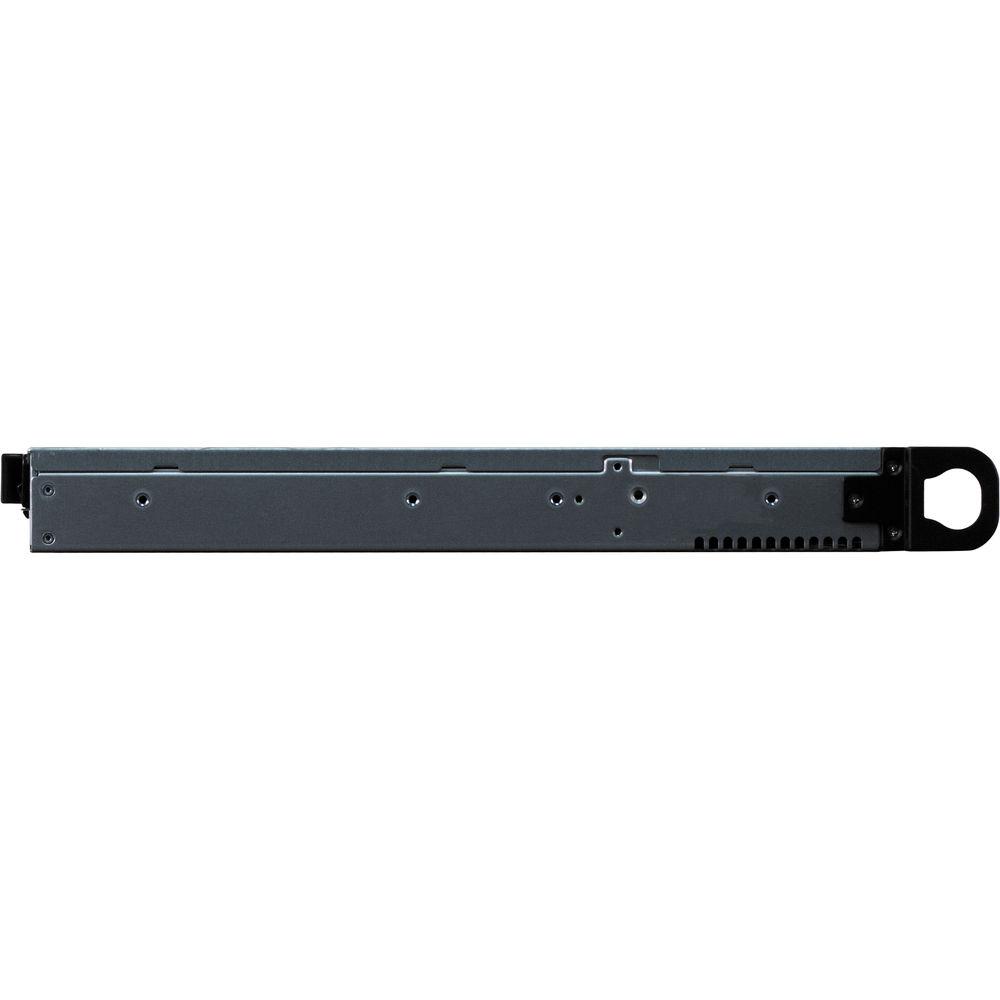

Featuring an Intel Xeon CPU and housing in a 1U rack-mountable chassis, the VZ-DSM-8 is designed for mission-critical 24/7 installations. Content management software is included, as are USB and PS/2 ports for connecting a keyboard and mouse and a VGA port for connecting a display monitor. There are also two RJ-45 ports for network control, an IPMI LAN port, and a serial RS-232 port.
Please Note: Optional VHDCI to HDMI or VHDCI to DVI cables are required to use device. -
- 8 output server-based Full HD Video Wall Processor
- Multi-display media server, ideal for 4 x 2 video wall and digital menu board
- 2 x 500GB 3.5" HDDs
- Simultaneous 1080p video playback support
- Delivers up to 4K Ultra HD content across four or more screens
- Compatible with an extensive variety of content including Flash, PPT, HTML 5, and the most popular video formats
- Content management software
- Designed to operate 24/7/365 for mission-critical installations
- 1RU rackmountable
- Optional VHDCI to HDMI and VHDCI to DVI cables required
- Max bit rate - 200Mbps (8 channel)
In the Box ViewZ VZ-DSM-8 8-Channel Digital Signage Manager Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-DSM-8 8-Channel Digital Signage Manager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-DSM-8 Specs | Operating System | Windows 7 Professional | | Processor | Intel Xeon E5 series | | Storage | 2 x 500 GB 3.5" HDD | | System Memory | 8 GB DDR3 ECC | | Graphics | VIA uH4 4-DISPLAY (PCIe card) | | Video Channels | 8 x HDMI/DVI (with optional VHDCI breakout cables) | | Resolution | Up to 1920x1080 per channel | | Interface (Inputs/Outputs) | 2 x VHDCI
2 x USB
2 x PS/2
1 x SRS-232 serial port
2 x RJ-45, 10/100/1000 Base-T
1 x IPMI LAN port | | Power Supply | 350 W | | Power Input | 100 to 240 VAC | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Humidity | 8 to 90%, non-condensing | | Dimensions | 17.2 x 14.5 x 1.7" (43.7 x 36.8 x 4.3 cm) | | Weight | 14 lb (6.35 kg) |
