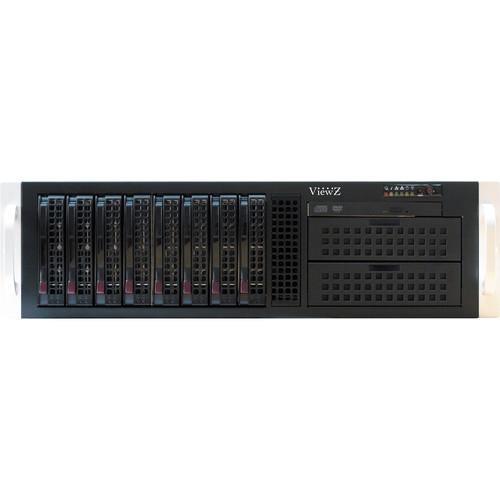

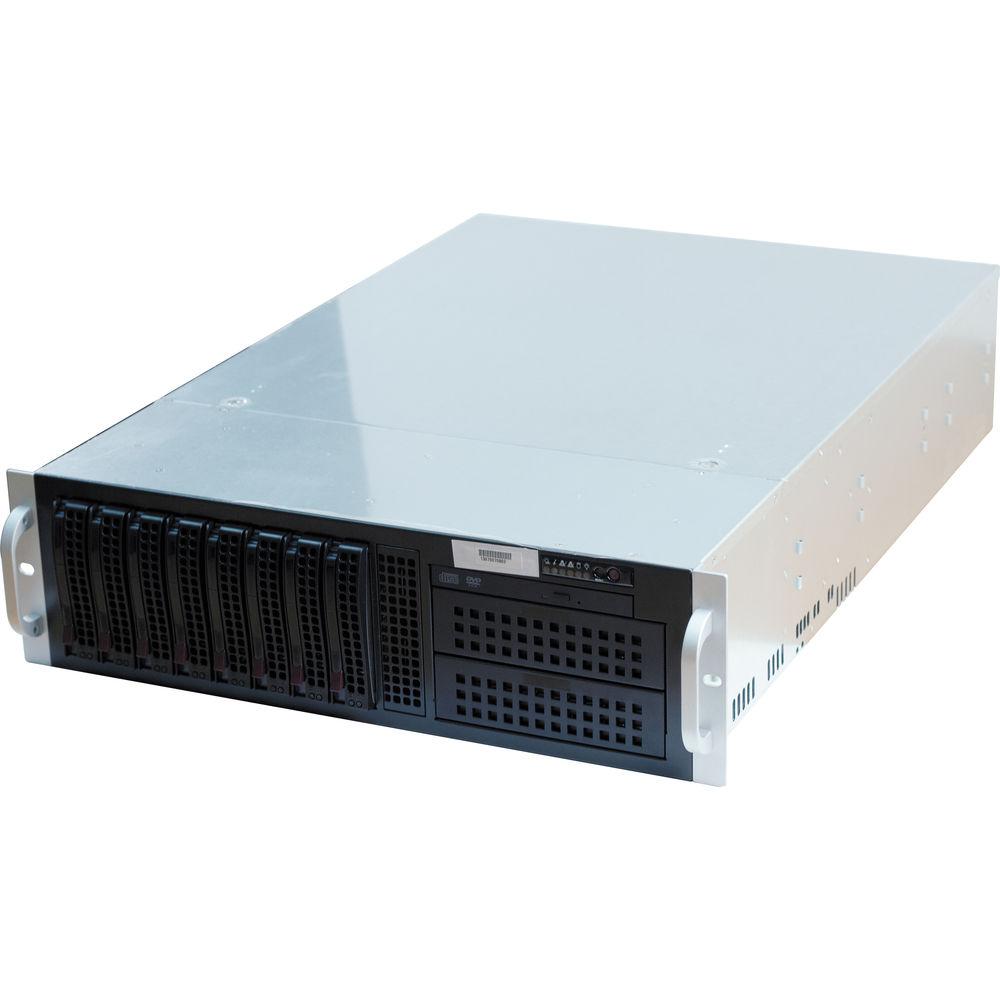

User Manual for ViewZ VZ-PRO-4 4-Channel Full HD Video Wall Controller Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-PRO-4 4-Channel Full HD Video
- Product category: Multiviewer Processors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Multiviewer Processors
 |
User manual for the ViewZ VZ-PRO-4 4-Channel Full HD Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|
Product description The 1TB VZ-PRO-4 4-Channel Full HD Video Wall Controller from ViewZ offers 4 video inputs plus 4 video outputs, and allows you to display your combination of inputs or archived media in variations across the connected displays. This industrial-grade video wall controller supports 4K Ultra HD media and 1080p video playback across multiple displays simultaneously. It is designed for 24/7 operation and comes with redundant power supply and RAID support for flexibility. - Up to 4 Full HD video inputs and outputs
- Supports 1080p video playback across multiple displays simultaneously
- Content management software (included)
- HDCP compatibility add-on available separately 1
Please Note: HDCP compatibility is required for playing content from HDCP-encrypted devices such as Blu-ray and DVD players close - Industrial grade high-performance system based on Intel Xeon CPU and Windows 7 Professional OS
- Redundant power supply and RAID support for reliability
- Maximum bit rate of 100 Mbps (4-channel)
- Designed for 24/7 operation
In the Box ViewZ VZ-PRO-4 4-Channel Full HD Video Wall Controller (1TB) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-PRO-4 4-Channel Full HD Video Wall Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

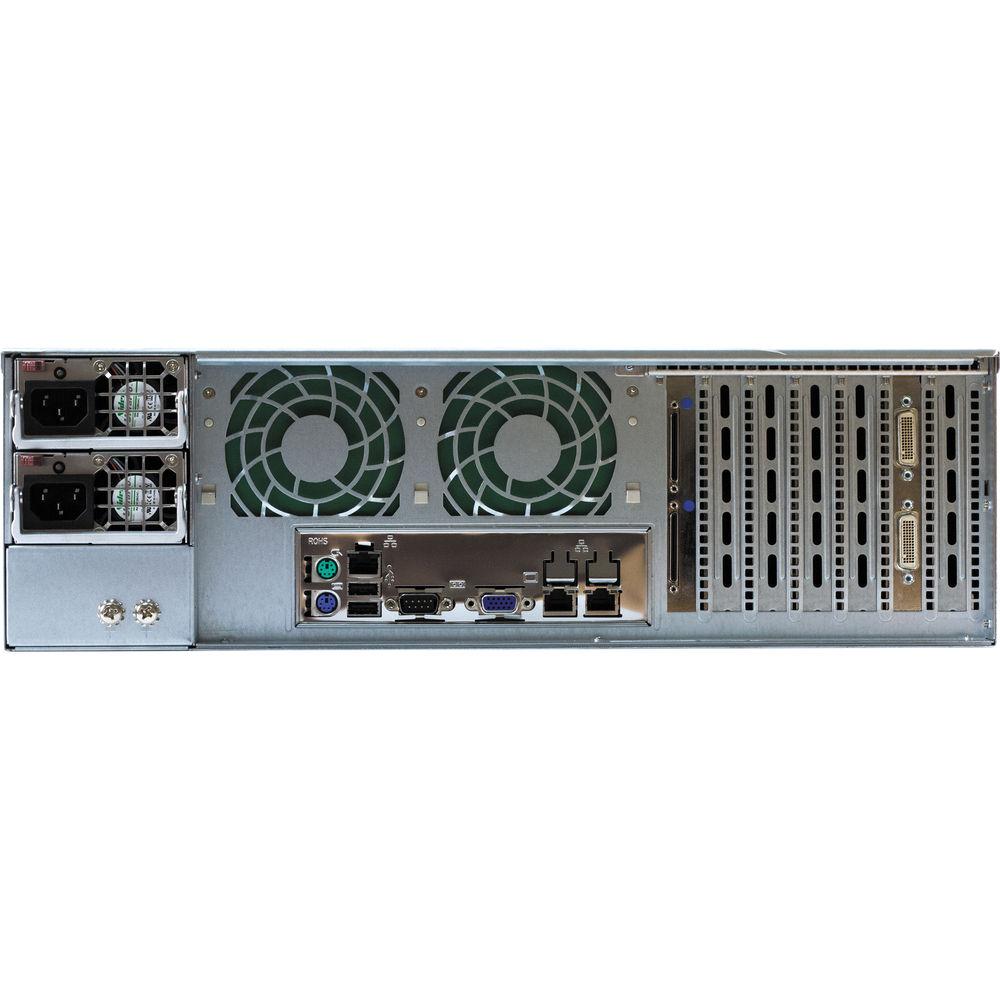

Technical parametersViewZ VZ-PRO Specs | | | Processor | Intel Xeon E5 series | | Storage | 2 x 3.5" 500 GB HDD | | RAM | 8 GB DDR ECC (16 GB option available) | | Graphics | 1 x VIA uH8 8-display PCI-E graphics card | | Bit Rate | Maximum: 100 Mbps (4 channel) | | | | Resolution per Display | Up to 1920 x 1080 | | | | DVI | 4, via VHDCI input | | HDMI | 4, via VHDCI output (DVI option available separately) | | USB | 2 | | Port | PS/2: 2 | | Serial Port | 1 | | Network | 2 x 10/100/1000 Base-T (RJ45) | | | | Power Supply | 2 x 920 W PSU | | Power Input | 100 to 240 VAC | | Operating Temperature | 41 to 95°F (5 to 35°C) | | Operating Humidity | 10 to 90% (non-condensing) | | Operating System | Windows 7 Professional | | Rack Mount | 3 RU | | Dimensions | 17.2 x 25.5 x 5.2" (43.7 x 64.8 x 13.2 cm) | | Weight | 54.4 lb (24.7 kg) |
