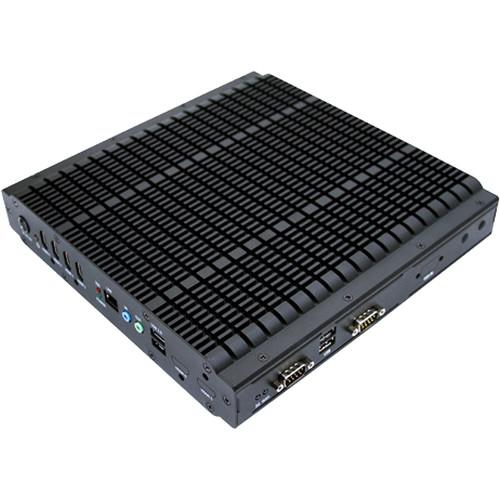

Product description The VZ-PRO-MINI 1x4 Full HD Video Wall Controller from ViewZ is a rugged and fanless embedded system with 4-display HDMI support, and powered by quad-core 1.0+ GHz CPU and an S3 5400E graphics onboard processor. The 1-channel Full HD video wall processor displays video from a single source across four HDMI compatible displays. The VZ-PRO-MINI offers a 2.5” SATA SSD bay, mSATA slot, and optional 3G/3.5G and WLAN connectivity. The controller is suitable for use in various digital signage, video wall, gaming, industrial, and embedded applications. - One Full HD video input and up to four Full HD video outputs
- Industrial-grade high-performance systems based on 1.0 GHz quad-core E-Series CPU Windows 7 Professional
- Simultaneous 1080p video playback support
- Content management software
- Designed for all-day, all-year operation in mission-critical installations
- Maximum bit rate of 100 Mb/s (4-channel)
- Fanless and rugged chassis
In the Box ViewZ VZ-PRO-MINI 1x4 Full HD Video Wall Controller Power Cord (6') 12V/8.5A 102W Power Adapter 4-Hole DC-In Jack Power Cable 2 x HDMI Cable Strap Holder 4 x SATA SSD Screw 4 x Mounting Screw 2 x Screw for Mini Card (Module) Installation 0.392cc Thermal Grease in Tube Syringe Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-PRO-MINI 1x4 Full HD Video Wall Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-PRO-MINI Specs | Processor | Quad-core U4650E 1.0+ GHz processor
800 MHz front-side bus
4 MB L2 cache memory
NanoBGA2 package | | Chipset | VX11H media system processor
33 x 33 mm FCBGA | | System Memory | One SODIMM slot for DDR3 1066/1333 MHz SDRAM
Support up to 8 GB memory size | | Storage | SATA or mSATA 256 GB | | RAM | 8 GB DDR3 | | Graphics | Integrated Chrome 645/640 DX11 3D/2D graphics with MPEG-2, WMV9, VC-1, and H.264 video decoding acceleration
Optimized UMA supports up to 256 MB to 1 GB frame buffer using system memory
Discrete S3 5400E graphics processor
Supports four onboard HDMI ports for 4-display video wall, dual-view, or other combination | | Display Resolution | Up to 1920 x 1080 Full HD | | Interface | In/Out
1 x HDMI input
4 x HDMI outputs
1 x RJ-45 LAN port
1 x 3.5 mm stereo line in audio
1 x 3.5 mm stereo line out audio
1 x DC jack power
2 x USB 3.0
2 x USB 2.0
1 x Digital I/O connector
1 x COM connector
1 x 3G antenna hole
1 x Wi-Fi antenna holeButton
1 x Power on/off buttonIndicators (LED)
1 x SSD/HDD
1 x Power
1 x 3G
1 x Wi-Fi | | LAN | Onboard RTL8111G Gigabit Ethernet controller
Supports Wake-On LAN and Pre-Boot Execution Environment (PXE)
Wireless LAN (Optional): WLAN USB card interface of Wi-Fi module
3G/3.5G (Optional): Mini PCIe card interface of 3G/3.5G module | | Audio | VT2021 high-definition audio codec | | Storage Interface | Serial ATA: Built-in SSD hard drive bay for 2.5" SATA SSD
mSATA: Built-in mini PCIe card slot for mSATA module; supports Gen2 | | Expansion Slot | Mini PCIe Card Interface: One mini PCIe slot (PCIe + USB 2.0) for 3G/3.5G module
SIM Card Interface: One SIM card slot | | Watchdog Timer | System reset
Programmable: 1 to 255 sec | | BIOS | AMI BIOS, 32 Mbit EFI SPI flash memory | | Shock | During operation (with 2.5" SATA SSD): 50G, IEC 60068-2-27, half-size, 11 ms duration | | Vibration | Loading During Operation (2.5" SATA SSD): 5 Grms, IEC 60068-2-64, random, 5 to 500 Hz, 1 hour/axis | | EMC | CE, FCC Class A, CCC | | Software Compatibility | Windows 7 Professional
Windows Embedded Standard 7 with Magic View | | VESA Compatibility | 100 x 100 mm | | Chassis | Aluminum chassis housing with metal I/O plates | | Operating Temperature | 32 to 113°F / 0 to 45°C, with 2.5" SATA SSD
32 to 122°F / 0 to 50°C, with mSATA module | | Storage Temperature | 50 to 140°F / 10 to 60°C @ 90%, non-condensing | | Operating Humidity | 0 to 90% RH, non-condensing | | Dimensions (L x W x H) | 10.0 x 9.8 x 1.8" / 25.5 x 25.0 x 4.6 cm | | Weight | 8.1 lb / 3.7 kg |
