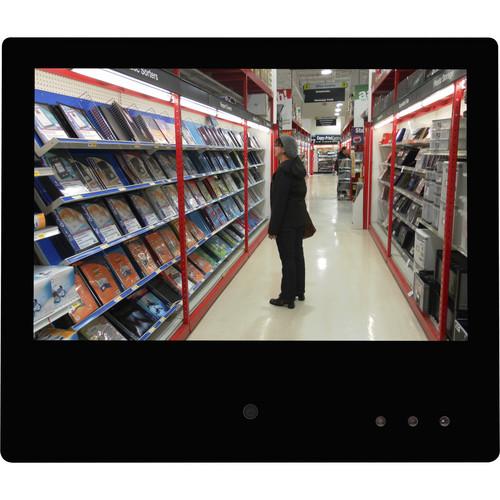

User Manual for ViewZ VZ-PVM-I1B4 10.1" IP HD Public View LED-Backlit Monitor with Built-In Camera Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-PVM-I1B4 10.1" IP HD Public
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
|
User manual for the ViewZ VZ-PVM-I1B4 10.1" IP HD Public contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|
Product description The black VZ-PVM-I1B4 10.1” IP HD Public View LED-Backlit Monitor from ViewZ displays images with resolutions up to 1024 x 768. The monitor displays images at a maximum brightness of 300cd/m2 and a contrast ratio of 1300:1. The monitor has a built-in camera with a Panasonic 2.1MP C-MOS Sensor equipped with a megapixel pinhole lens. It supports H.264, CBR, VBR video compression. - 10.1" IP public view monitor
- Commercial grade "A" LED monitor
- Built in 2.1MP camera / pinhole lens
- Auto power / source recovery / RJ-45
- Blinking indicator LED (blue, red, purple) / blinking message "recording"
- ONVIF compliant (fully compatible with VMS) - Profile S
In the Box ViewZ VZ-PVM-I1B4 10.1" IP HD Public View LED-Backlit Monitor with Built-In Camera (Black) Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-PVM-I1B4 10.1" IP HD Public View LED-Backlit Monitor with Built-In Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-PVM-I1B4 Specs | | | Screen Size | 10.1" (26 cm) | | Maximum Resolution | 1280 x 800 @ 60 Hz | | Pixel Pitch | 0.1695 x 0.1695 mm | | Brightness | 300 cd/m² (Typical) | | Contrast Ratio | 1300:1 | | Aspect Ratio | 16:9 | | Viewing Angle | 170° / 170° | | Display Color | 262 K (RGB 6-bit) | | Response Time | < 25 ms | | Frequency | 31 to 48 kHz / 56 to 60 Hz | | | | RJ-45 | 1 | | USB/SD Copy | 1 / 1 | | | | Camera | 1, built-in | | Processing | LED/Text | | Time/Date | Yes | | Languages | English, Spanish, French, German, Italian, Portuguese, Dutch | | | | Camera Type | 2.1 MP IP Camera | | Image Sensor | Panasonic 2.1 MP C-MOS sensor | | Lens | Megapixel pinhole lens | | Effective Pixels (H x V) | 1920 x 1080p @ 30 fps | | Video Compression | H.264, CBR, VBR support | | Video Output | 1 channel RJ-45 output | | Motion Detection | Support | | Ethernet Port | 10 / 100 Base-T | | Connection Protocol | TCP / IP | | Protocol Support | IHTTP, TCP/UDP/IP, ARP, ICMP, RTP/RTSP, Multicast, Telnet, ftp, PPPoE, SMTP(e-mail), DHCP, NTP, uPNP, etc, ONVIF, PSIA | | Functions | 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, DWDR, AGC, AWB, IR SMART | | IP | Dedicated dynamic IP service | | | | External Storage | SD/SDHC card, USB 2.0 host | | Video Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 | | Video Resolution | 1080p @ 60 Hz | | Audio Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM | | Image Format | JPEG, TIF, PNG, BMP | | Video Playback | Auto, Repeat, Zoom, Resume, Time | | | | Transmitter | IR Remote Control | | Power | Electrical Ratings: PoE
Consumption: 30 W | | MTBF | 50,000 hours | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Regulation | cUL, FCC(A) | | VESA Mount | 75 x 75 mm, M4 x 10 screws | | Dimensions (W x H x D) | 9.9 x 8.4 x 1.4" (26 x 21 x 35 mm) | | Weight | 4.35 lb (1.97 kg) |
