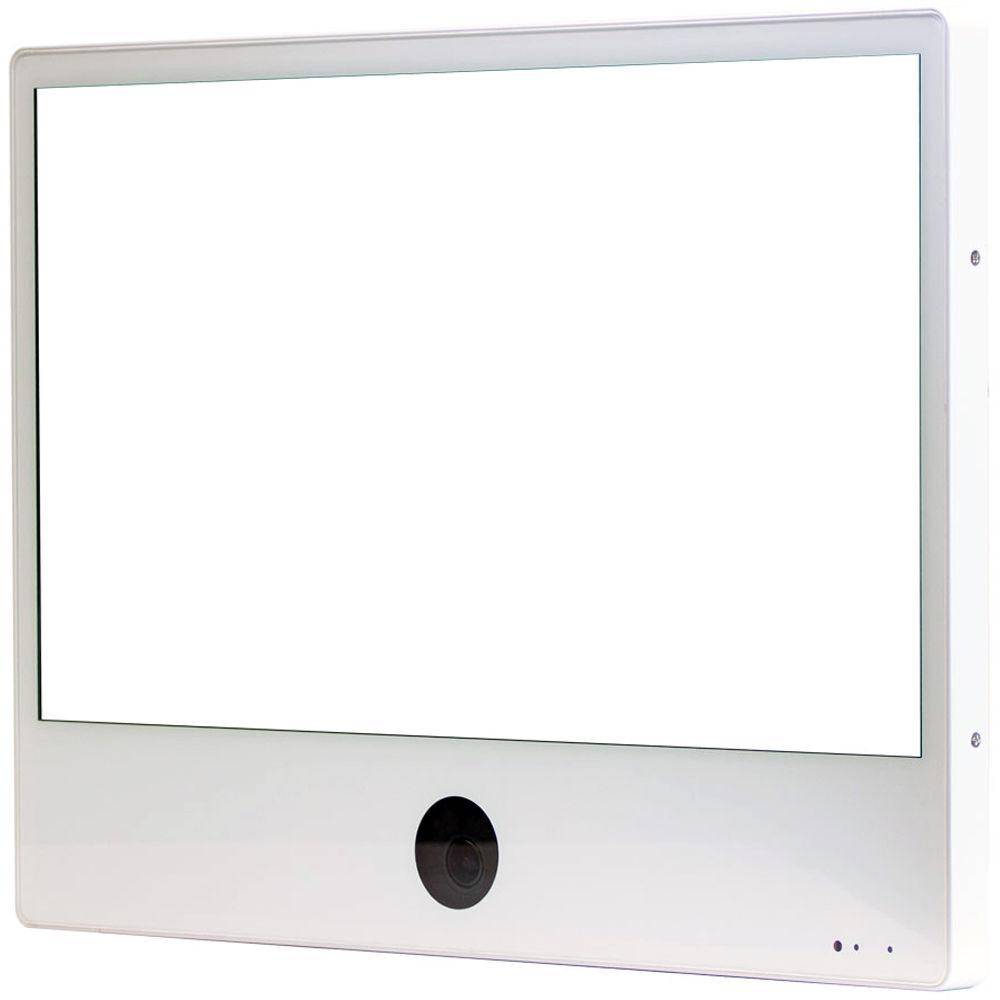

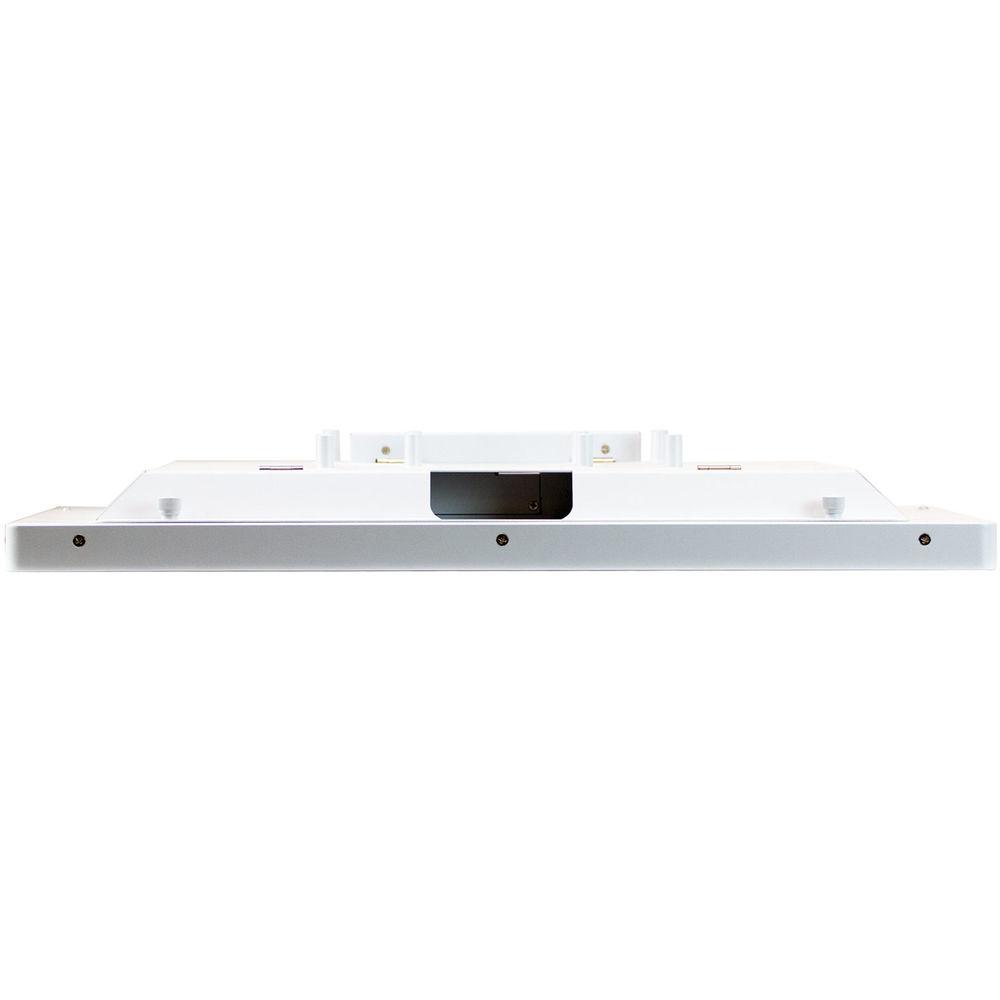

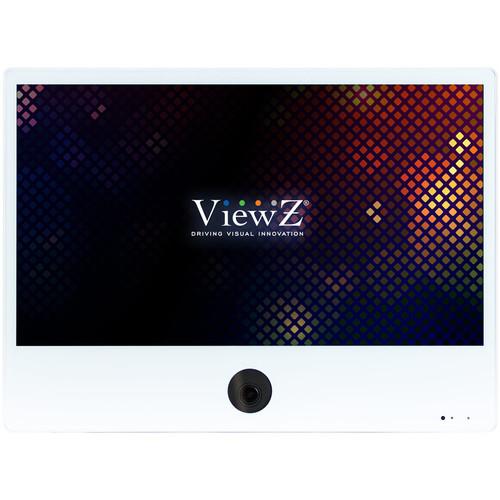

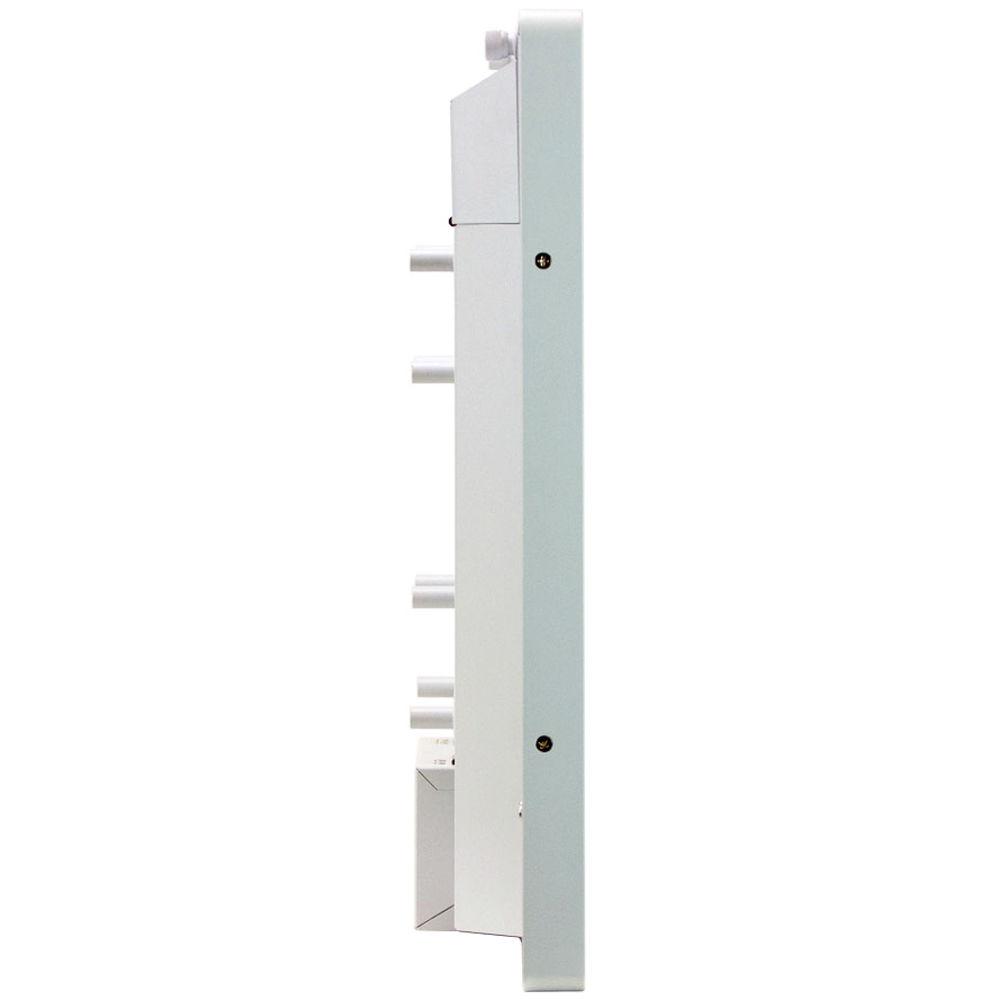

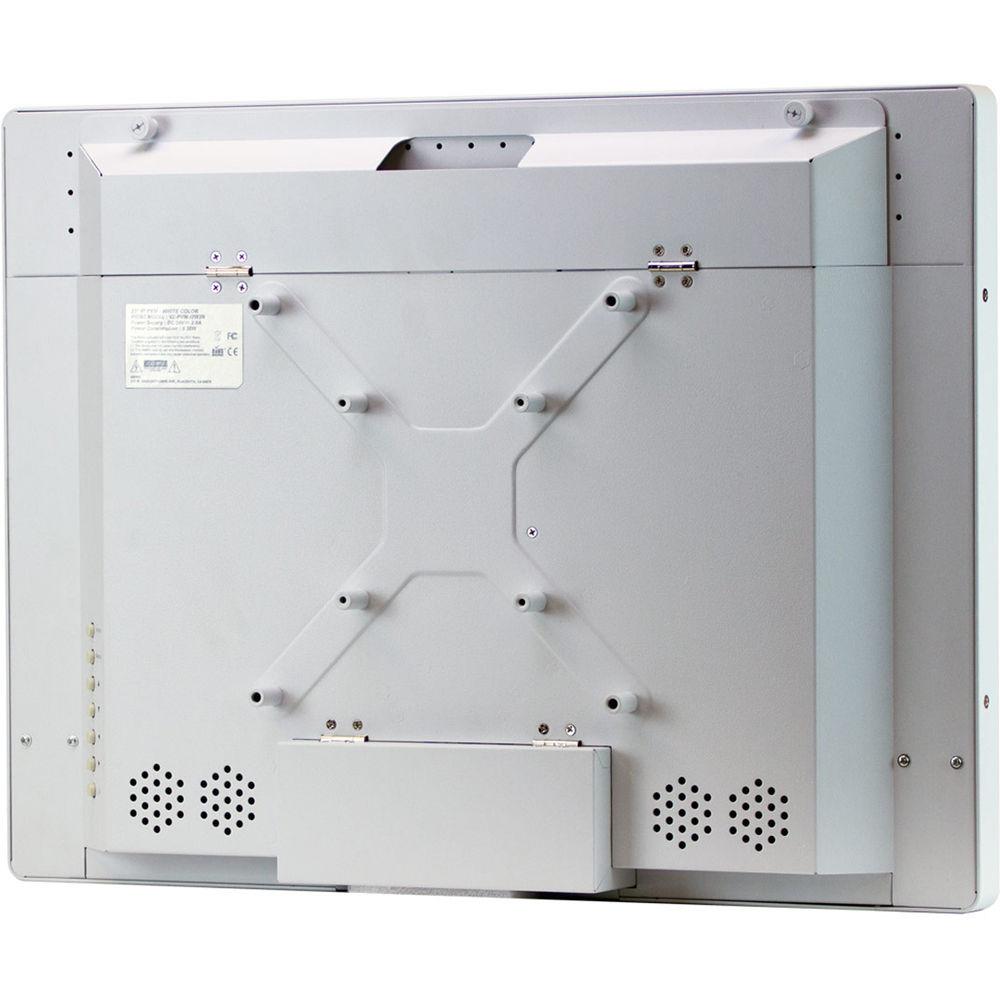

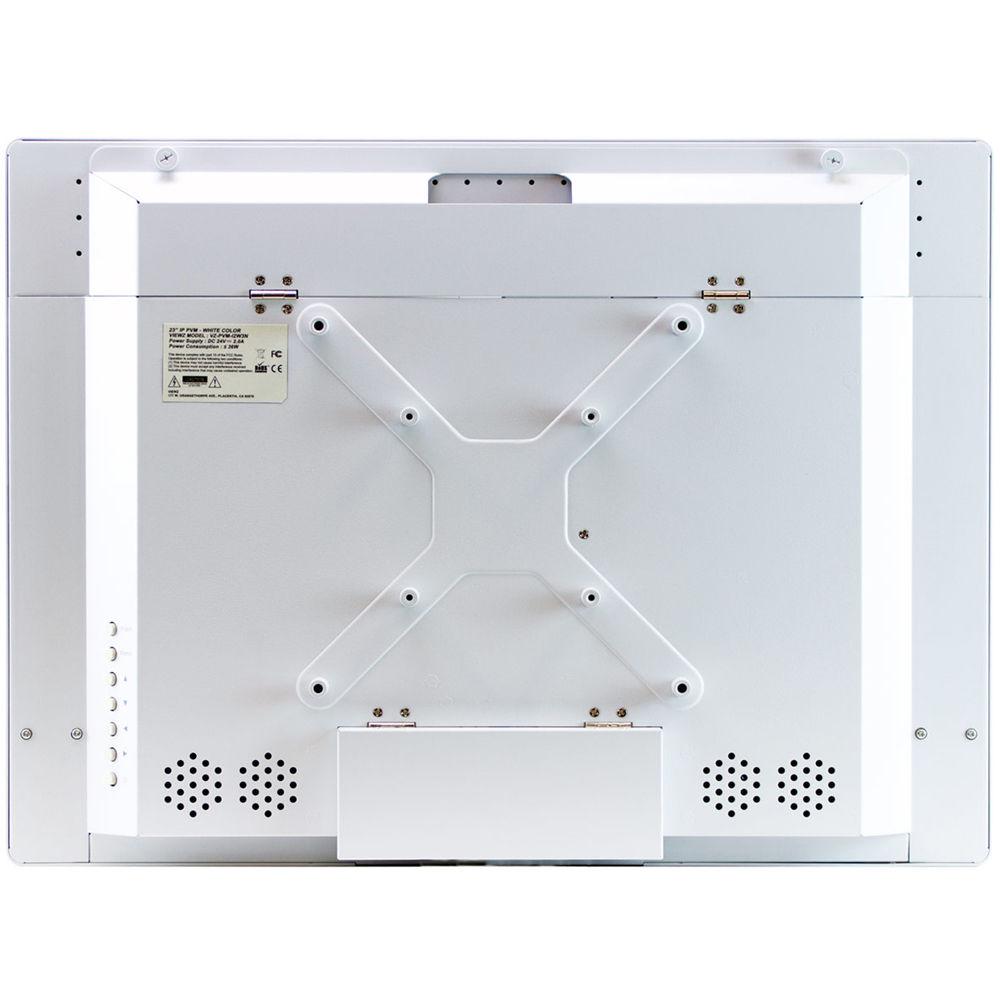

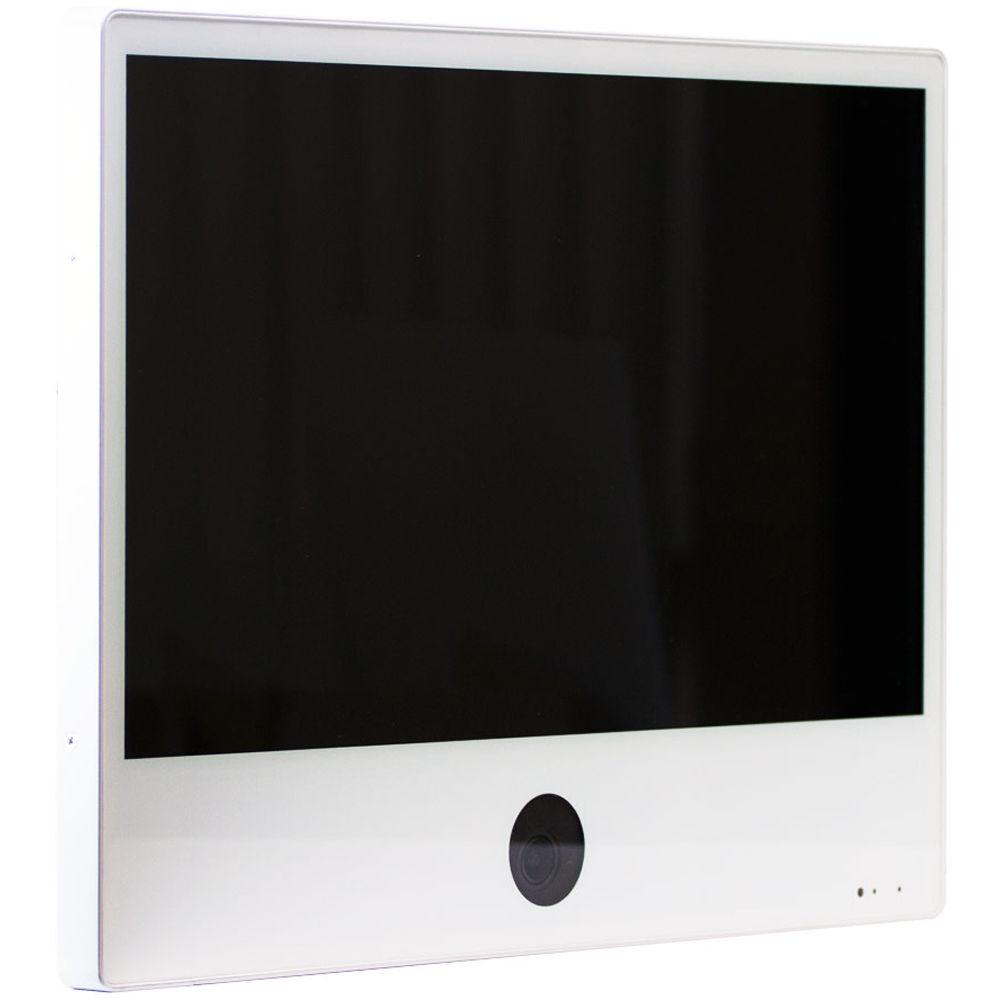

User Manual for ViewZ VZ-PVM-I2W3N 23.6" 1080p IP Public View Monitor with Ethernet Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-PVM-I2W3N 23.6" 1080p IP Public
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
 |
User manual for the ViewZ VZ-PVM-I2W3N 23.6" 1080p IP Public contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|
Product description The white 23.6" 1080p IP Public View Monitor from ViewZ displays video at up to 1920 x 1080 with a maximum brightness of 250 cd/m2. It features a commercial-grade panel and a built-in 2MP camera with a 2.8-12mm varifocal lens. It is equipped with a multi-function source switching feature that utilizes the motion sensor to switch the display source between inputs (camera, HDMI, and VGA). In addition, the built-in 3D comb filter and deinterlace image processor help enhance image quality. - 23.6" LED backlit monitor with 1920 x 1080 resolution
- Anti-glare protective glass
- Auto power / Source recovery
- Supports dual voltage solution (110 VAC and 24 VDC)
UPC: 815562020652 In the Box ViewZ VZ-PVM-I2W3N 23.6" 1080p IP Public View Monitor with Ethernet (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-PVM-I2W3N 23.6" 1080p IP Public View Monitor with Ethernet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-PVM-I2W3N Specs | | | Screen Size | 23.6" (59.9 cm) | | Maximum Resolution | 1920 x 1080 at 60 Hz | | Pixel Pitch | 0.2715 x 0.2715 mm | | Brightness | 250 cd/m2 (typical) | | Contrast Ratio | 3000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178°/178° | | Display Color | 16.7 million | | Response Time | 8.5 ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 30 to 67.5 kHz
Vertical: 50 to 75 Hz | | | | Composite | 1 x AV (Composite) input | | Camera Output | 1 x CVBS | | HDMI Input | 1 | | VGA Input | 1 x 15-pin D-Sub | | Audio Input/Output | 1/1 | | Ethernet | 1 x 10/100Base-T | | 12 VDC | 1 x camera use output | | | | Function | Multi Display: PIP / PBP | | Filter Type | 3D comb filter / de-interlace | | Video Resolution | Maximum 600 TVL | | Languages | English, French, Spanish, Russian, Portuguese | | | | Built-In Speakers | 2 x 5 W | | | | VESA Compatibility | 100 x 100 mm / M4 x L10 Screws
200 x 200 mm / M6 x L8 Screws | | | | Type | 2 MP IP camera | | Sensor | SONY IMX322 | | Chipset | Amba S233 | | Lens | 2.8-12mm varifocal lens, DC auto iris | | Effective Pixels (H x V) | 1920 x 1080, 30 fps | | Video Compression | H.264, MJPEG, CBR, VBR support | | Video Output | 1-channel CVBS (NTSC/PAL) / 1-channel RJ45 output | | Ethernet Port | 10/100Base-T | | Web App Support | IE 6 to 11, Firefox | | Network Protocol | TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP | | Protocol | ONVIF 2.4 (supported) | | Function | 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, WDR, AGC, AWB | | | | Power Consumption | ≤36 W | | Electrical Ratings | 110 to 240 VAC (50/60 Hz)
24 VDC / 2 | | Operating Temperature | 32 to 104°F (0 to 40°C) | | MTBF | Approximately 50,000 hours | | Regulations | cUL, FCC(A), CE | | Compatible Mounts | Wall: VZ-WM50, VZ-AM02
Ceiling: VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM06, VZ-CM18 | | Dimensions | 21.7 x 16.1 x 2.2" (55.1 x 40.9 x 5.6 cm) | | Weight | 22 lb (10 kg) |
