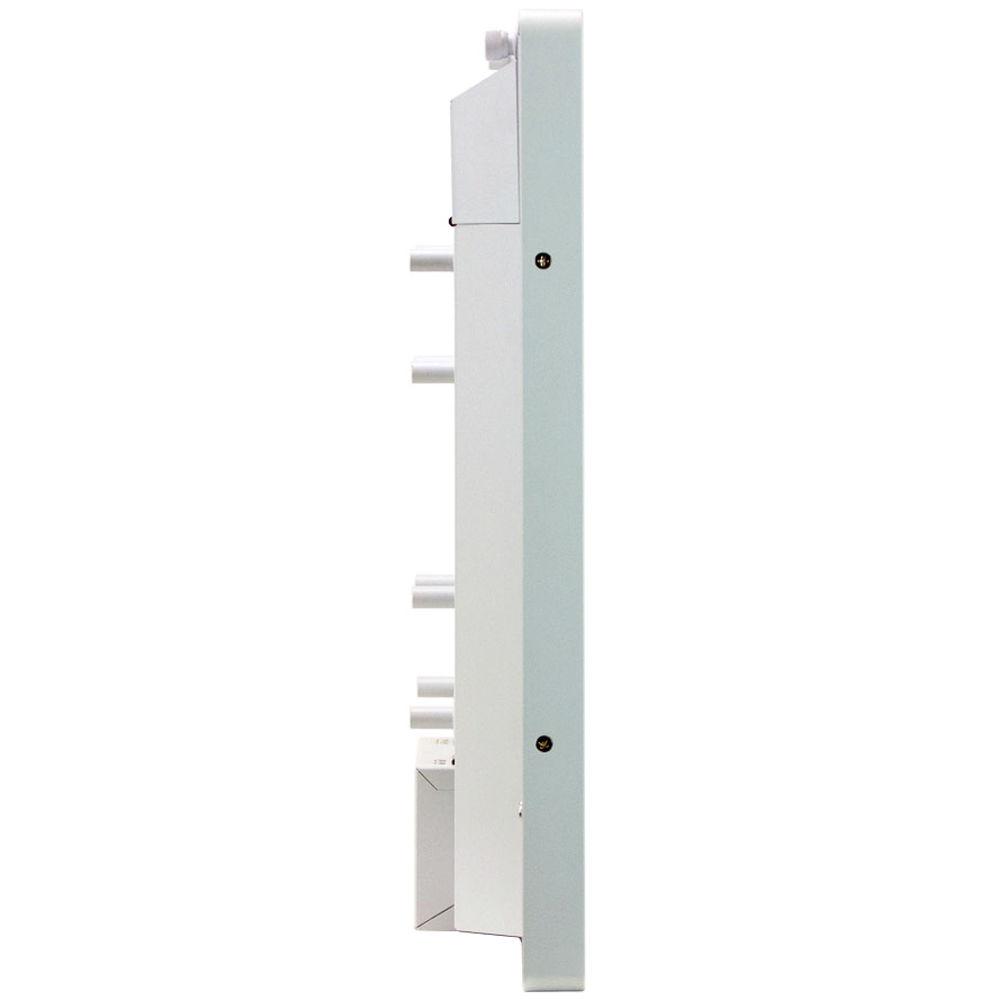

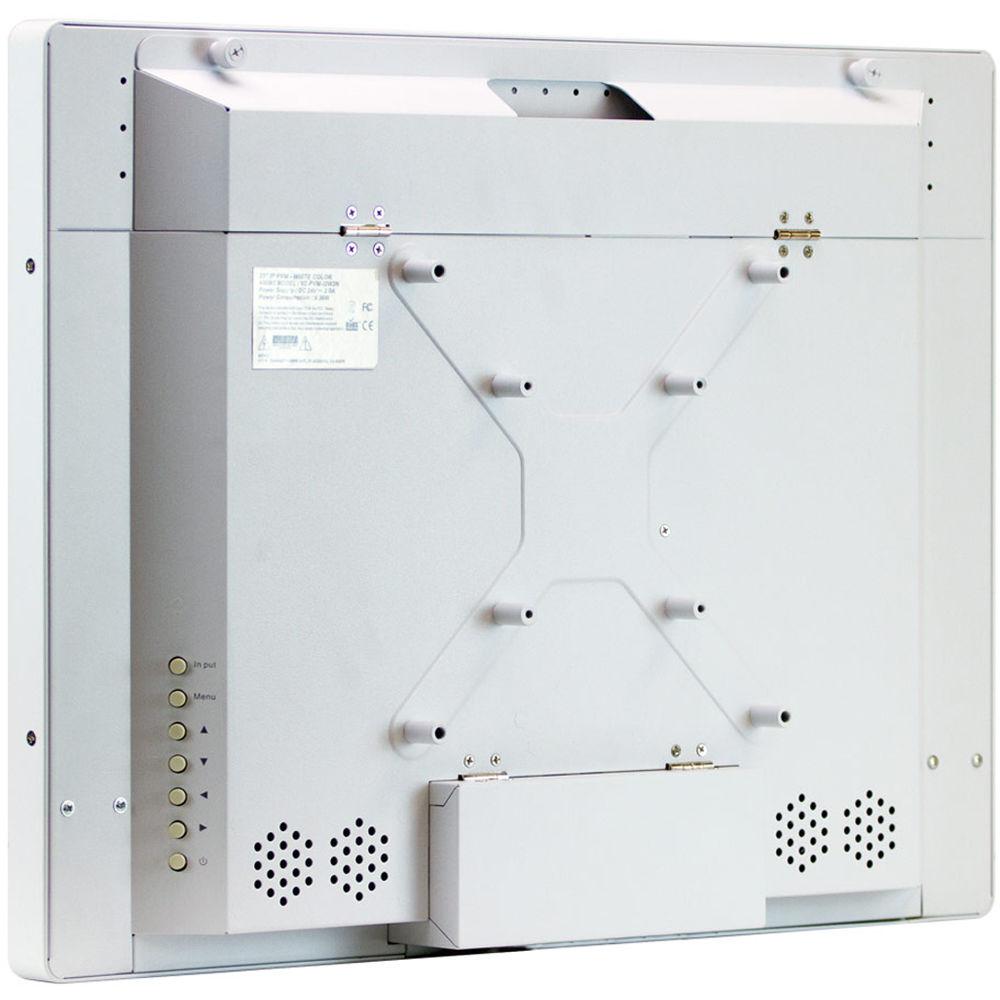

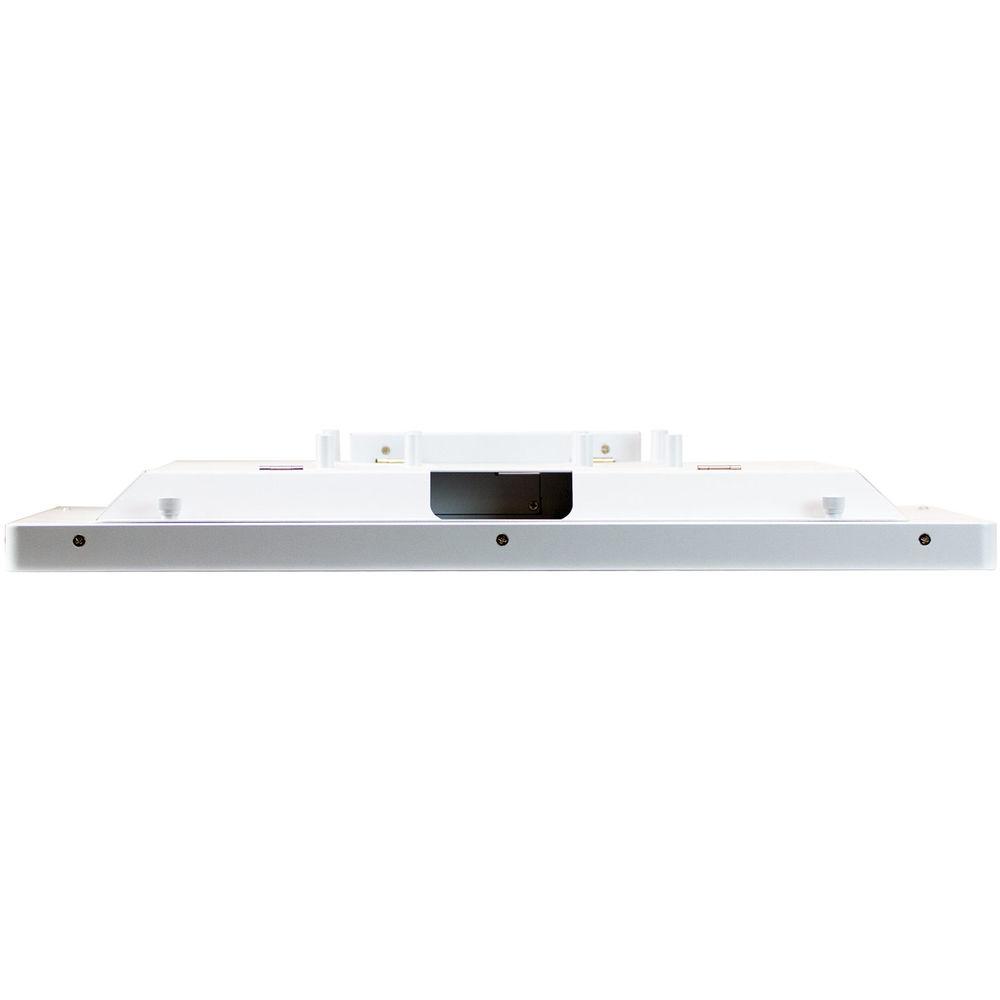

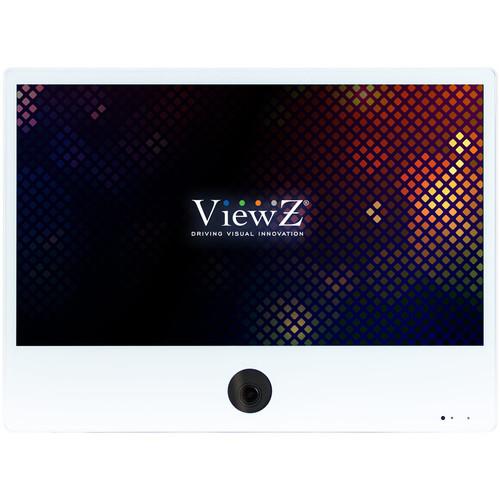

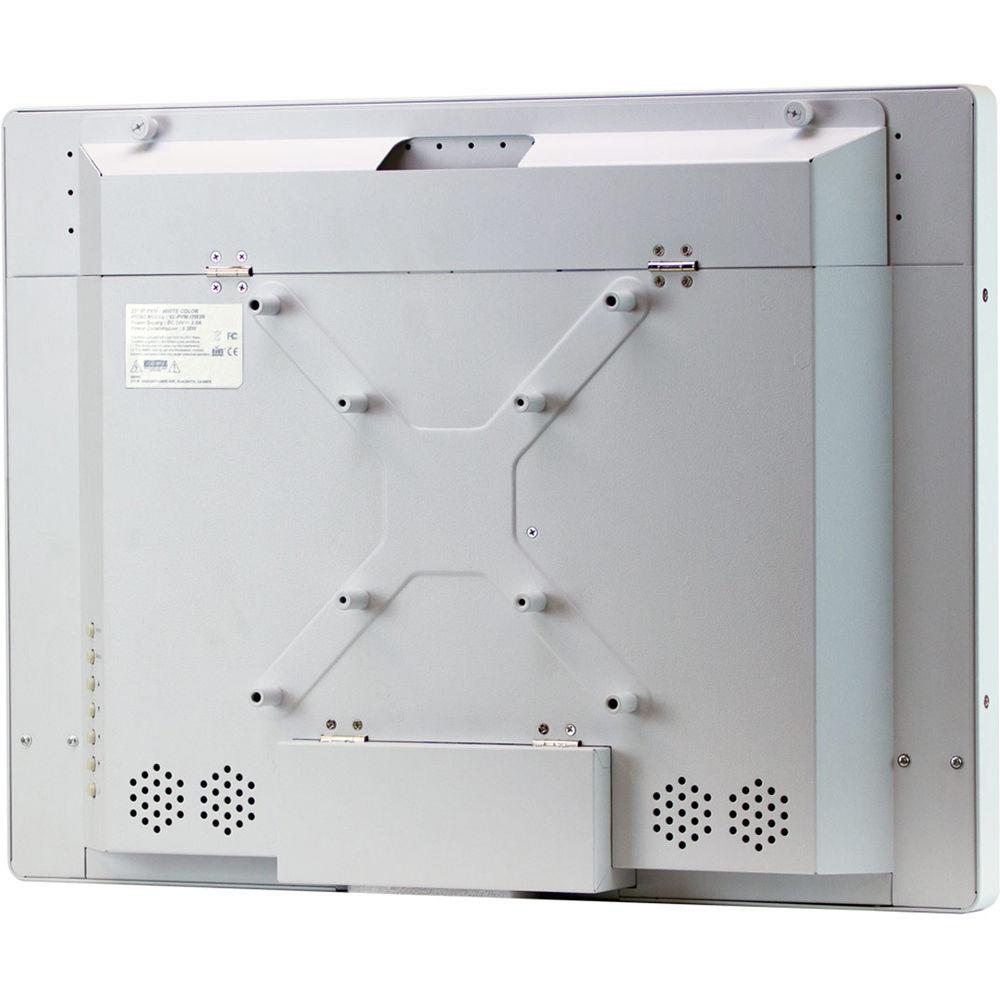

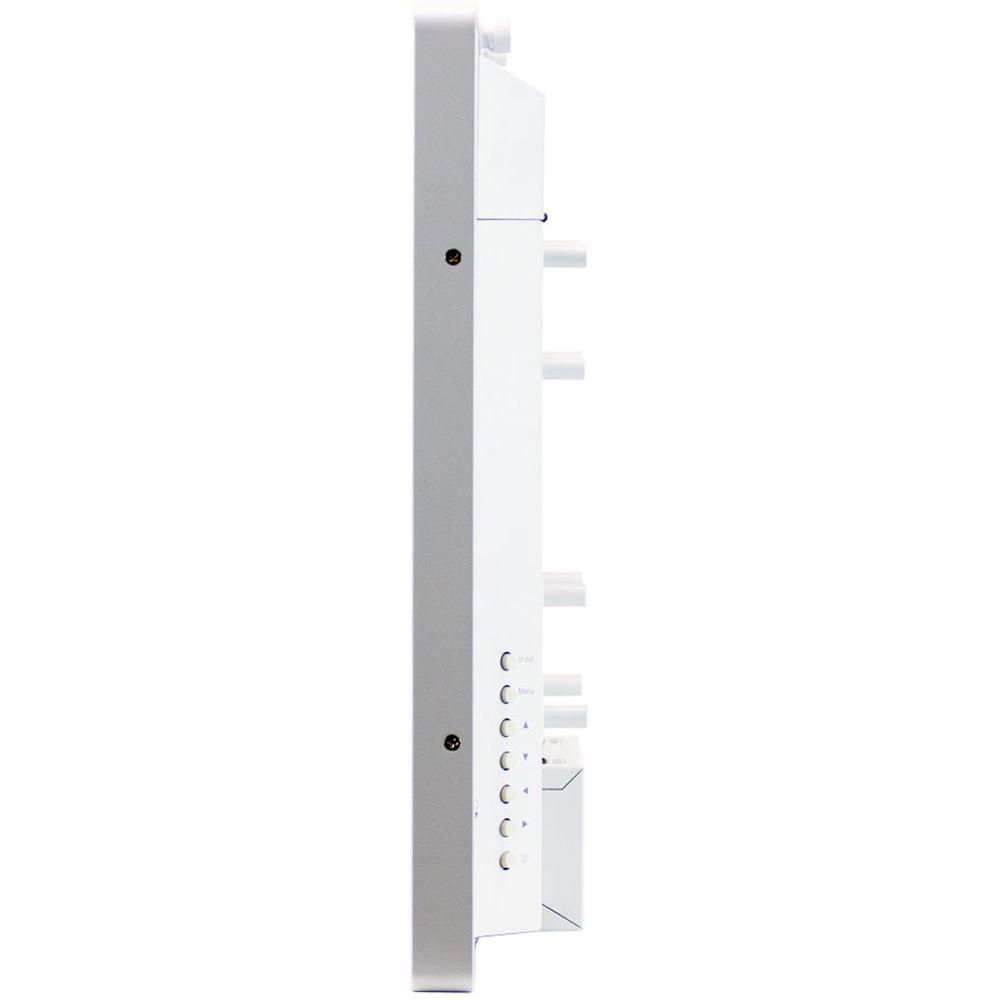

Product description The white 32" 1080p IP Public View Monitor from ViewZ displays video at up to 1920 x 1080 with a maximum brightness of 300 cd/m2. It features a commercial-grade panel and a built-in 2MP camera with a 2.8-12mm varifocal lens. It is equipped with a multi-function source switching feature that utilizes the motion sensor to switch the display source between inputs (camera, HDMI, and VGA). In addition, the built-in 3D comb filter and deinterlace image processor help enhance image quality. - 32" LED backlit monitor with 1920 x 1080 resolution
- Anti-glare protective glass
- Auto power / Source recovery
- Supports dual voltage solution (110 VAC and 24 VDC)
In the Box ViewZ VZ-PVM-I4W3N 32" 1080p IP Public View Monitor with Ethernet (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-PVM-I4W3N 32" 1080p IP Public View Monitor with Ethernet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

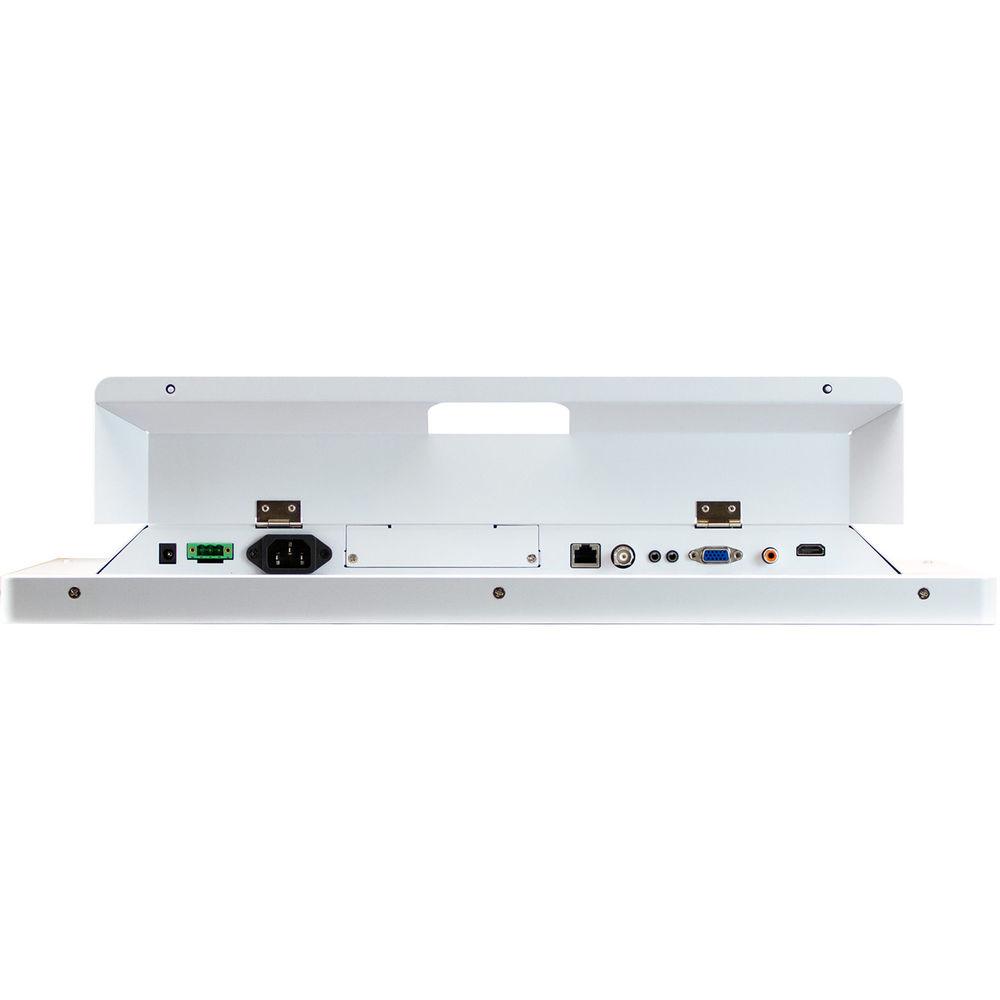

Technical parametersViewZ VZ-PVM-I4W3N Specs | | | Screen Size | 32" (81.3 cm) | | Maximum Resolution | 1920 x 1080 at 60 Hz | | Pixel Pitch | 0.36375 x 0.36375 mm | | Brightness | 300 cd/m2 (typical) | | Contrast Ratio | 1200:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178°/178° | | Display Color | 16.7 million | | Response Time | 8 ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 30 to 84 kHz

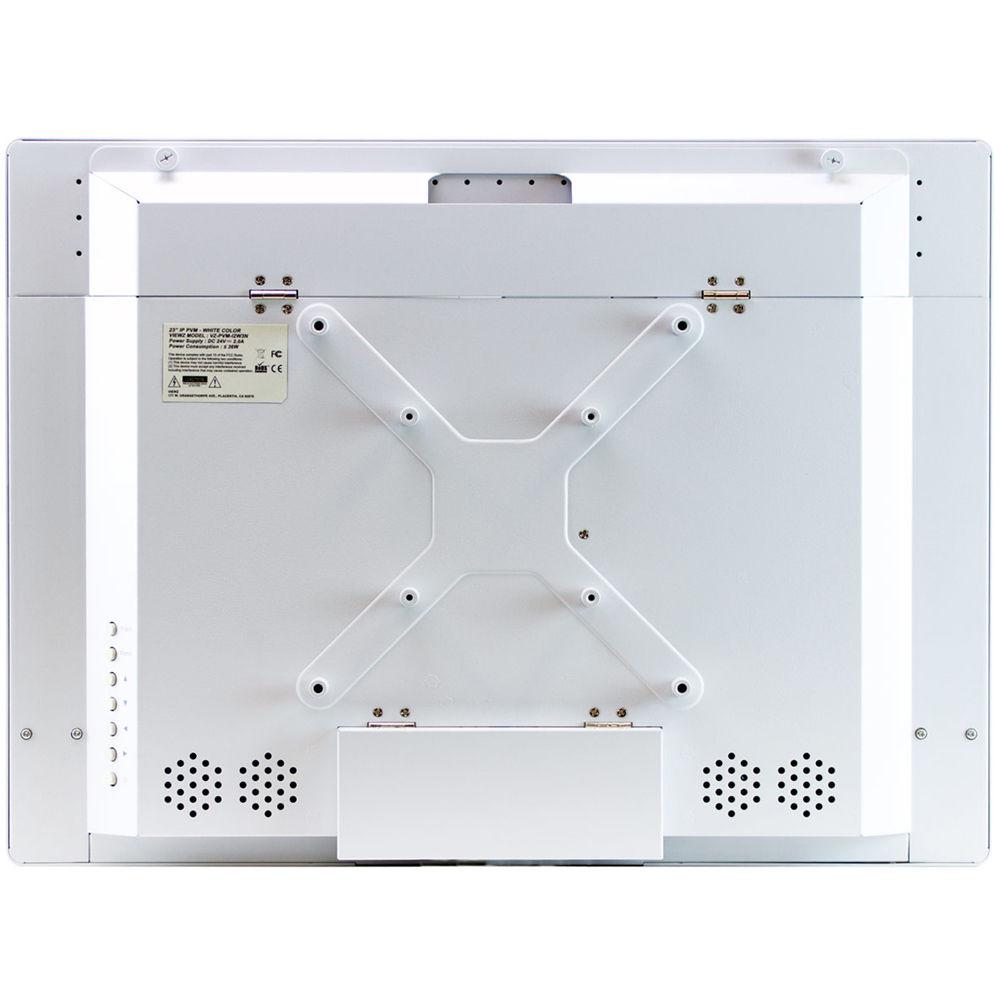

Vertical: 50 to 75 Hz | | | | Composite | 1 x AV (Composite) input | | Camera Output | 1 x CVBS | | HDMI Input | 1 | | VGA Input | 1 x 15-pin D-Sub | | Audio Input/Output | 1/1 | | Ethernet | 1 x 10/100Base-T | | 12 VDC | 1 x camera use output | | | | Function | Multi Display: PIP / PBP | | Filter Type | 3D comb filter / de-interlace | | Video Resolution | Maximum 600 TVL | | Languages | English, French, Spanish, Russian, Portuguese | | | | Built-In Speakers | 2 x 5 W | | | | VESA Compatibility | 200 x 200 mm / M6 x L8 Screws | | | | Type | 2 MP IP camera | | Sensor | SONY IMX322 | | Chipset | Amba S233 | | Lens | 2.8-12mm varifocal lens, DC auto iris | | Effective Pixels (H x V) | 1920 x 1080, 30 fps | | Video Compression | H.264, MJPEG, CBR, VBR support | | Video Output | 1-channel CVBS (NTSC/PAL) / 1-channel RJ45 output | | Ethernet Port | 10/100Base-T | | Web App Support | IE 6 to 11, Firefox | | Network Protocol | TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP | | Protocol | ONVIF 2.4 (supported) | | Function | 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, WDR, AGC, AWB | | | | Power Consumption | ≤50 W | | Electrical Ratings | 110 to 240 VAC (50/60 Hz)
24 VDC / 4 | | Operating Temperature | 32 to 104°F (0 to 40°C) | | MTBF | Approximately 50,000 hours | | Regulations | cUL, FCC(A), CE | | Compatible Mounts | Wall: VZ-WM50, VZ-AM02
Ceiling: VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM06, VZ-CM18 | | Dimensions | 28.6 x 20 x 2.2" (72.6 x 51 x 5.6 cm) | | Weight | 33.1 lb (15 kg) |
