User Manual for ViewZ VZ-PVM-Z1W2 9.7" Public View LED-Backlit CCTV Monitor with Embedded Camera Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-PVM-Z1W2 9.7" Public View LED-Backlit
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
 |
User manual for the ViewZ VZ-PVM-Z1W2 9.7" Public View LED-Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|

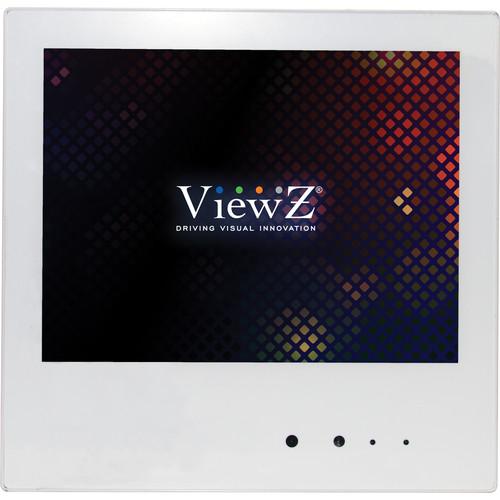

Product description The VZ-PVM-Z1W2 9.7" Public View LED-Backlit CCTV Monitor with Embedded Camera from ViewZ features a 9.7” display that displays images with resolutions up to 1024 x 768. The monitor displays images at a maximum brightness of 300 cd/m2 and a contrast ratio of 600:1. The monitor features a built-in camera that has a 1/3” SONY Super HAD II CCD with a 3.7mm fixed lens. The camera can capture clear images in a minimum illumination of 0.001 lux. - 9.7" LED backlit public view monitor with a 4:3 aspect ratio
- Features an embedded camera with 1/3" SONY Super HAD II CCD and 3.7mm fixed lens
- Displays 540 TVL video resolution

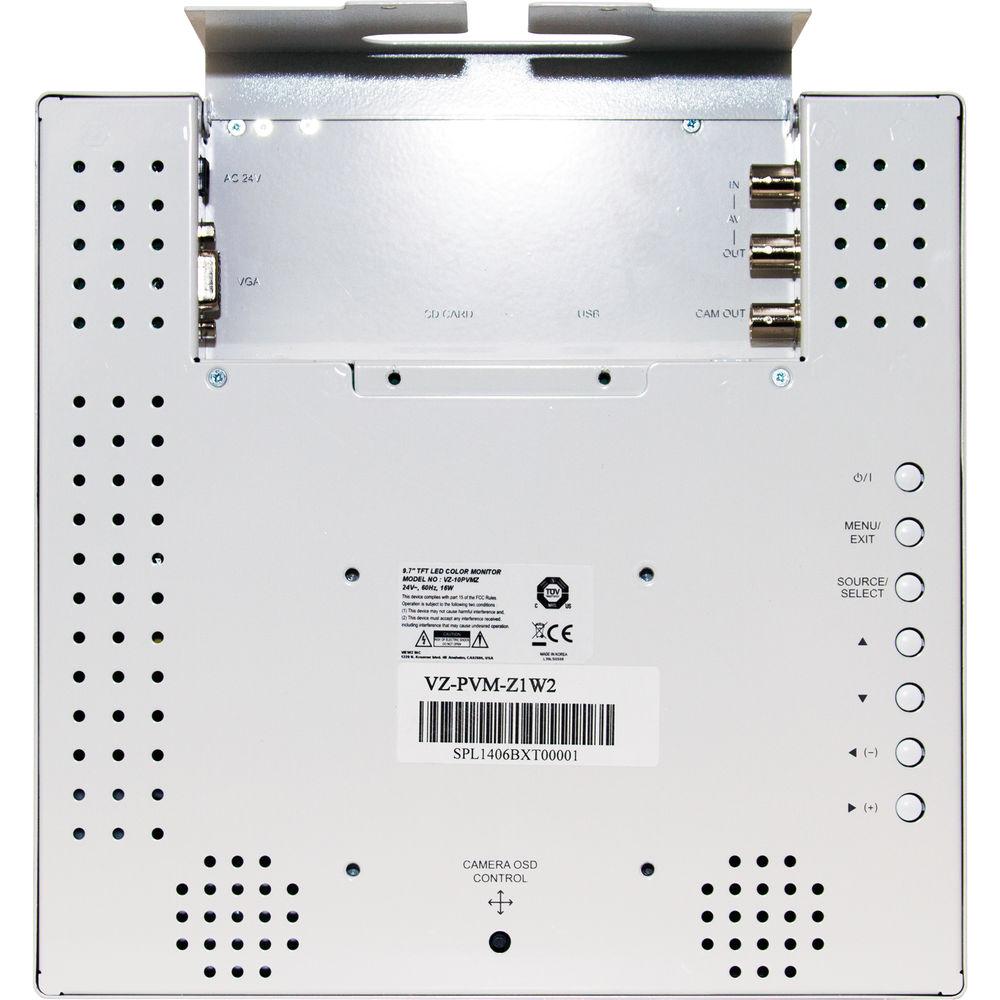

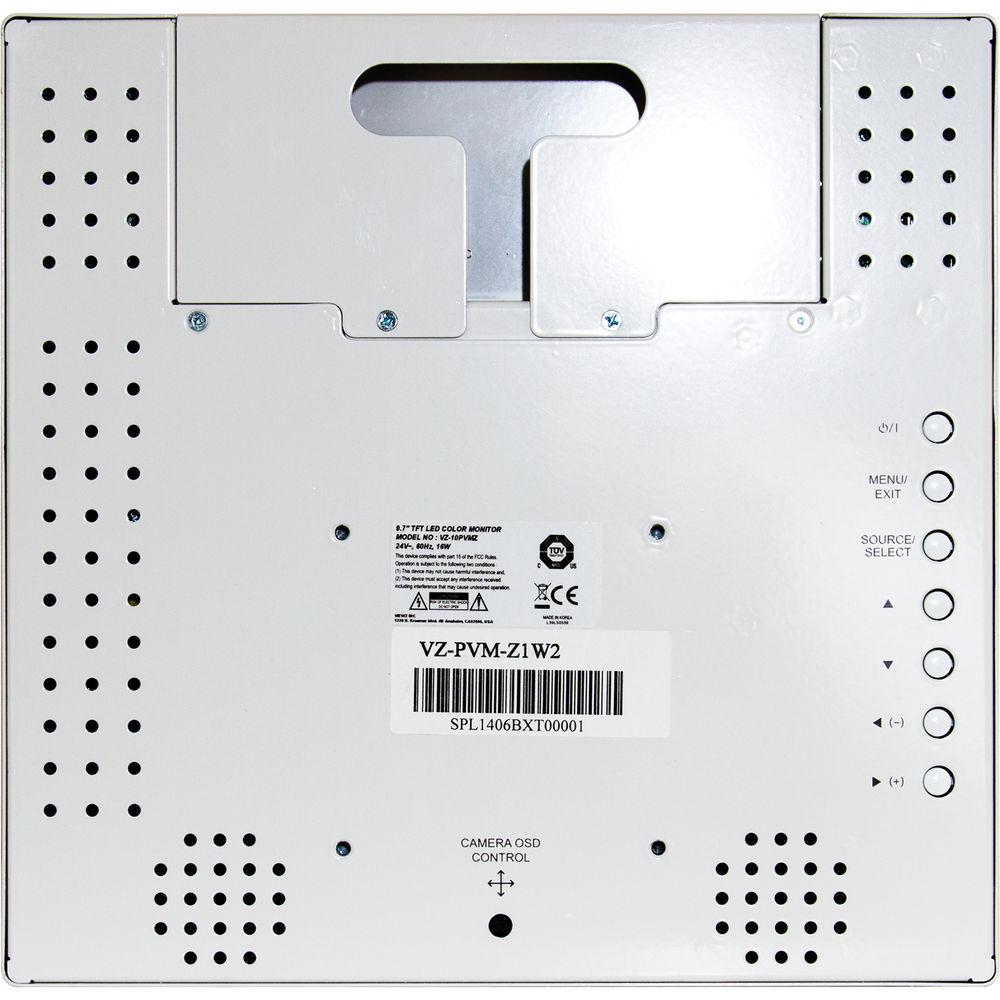

- Camera and LCD On Screen Display (OSD) switch on the back panel
- Features blinking message recording
- White LED blinking indicator
UPC: 853177002397 In the Box ViewZ VZ-PVM-Z1W2 9.7" Public View LED-Backlit CCTV Monitor with Embedded Camera IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-PVM-Z1W2 9.7" Public View LED-Backlit CCTV Monitor with Embedded Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

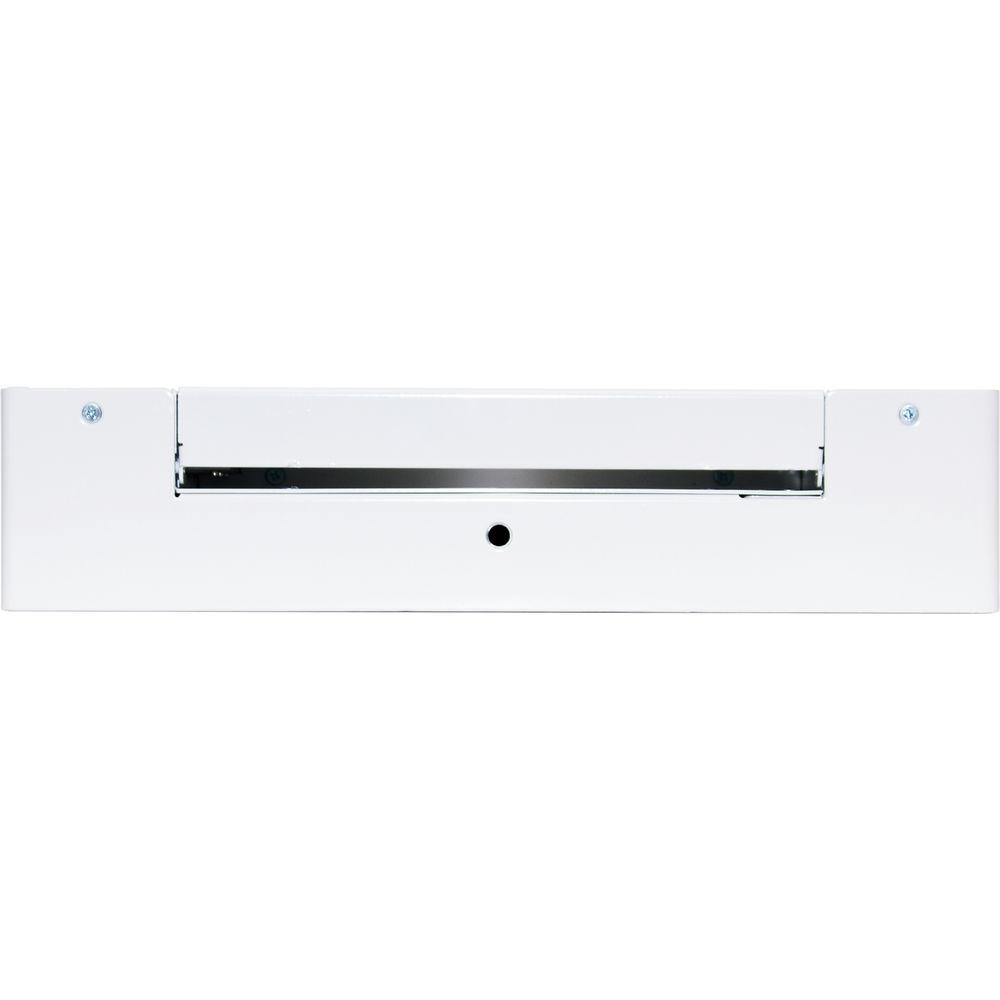

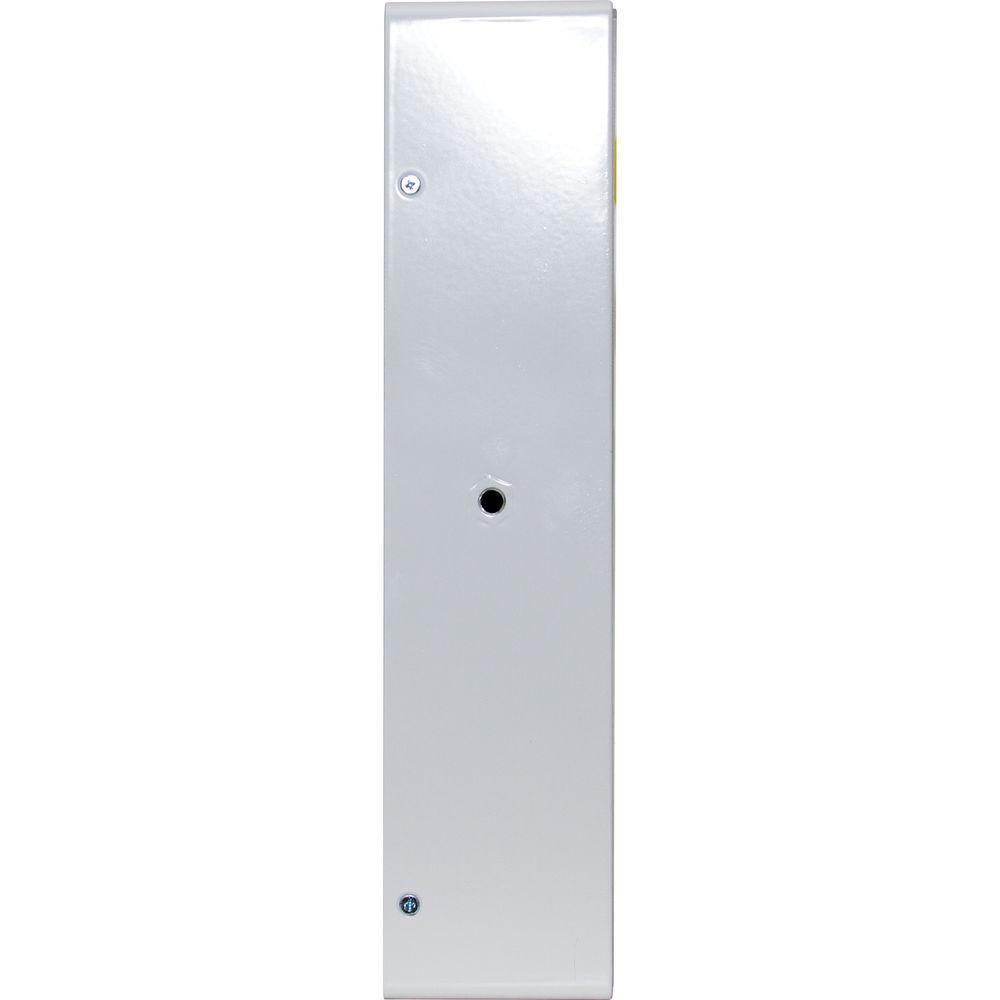

Technical parametersViewZ VZ-PVM-Z1W2 Specs | | | Screen Size | 9.7" (24.6 cm) | | Maximum Resolution | 1024 x 768 @ 60 Hz | | Pixel Pitch | 0.192 x 0.192 mm | | Brightness | 300 cd/m2 (typical) | | Contrast Ratio | 600:1 | | Aspect Ratio | 4:3 | | Viewing Angle (H/V) | 178° | | Display Color | 0.26 million | | Response Time | < 35 ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 31 to 48 kHz
Vertical: 56 to 60 Hz | | | | Composite | AV: 1 x input, 1 x output | | Camera Out | 1 (768 x 498 resolution) | | RGB Input | 1 x 15-pin D-Sub | | | | Filter Type | 2D comb-filter / de-interlace | | Video Resolution | Maximum 520 TVL | | Camera Mounting Hole | 3 (top, left, right) | | Multi-lingual Language | English, Spanish, French, German, Italian, Portuguese, Dutch | | Other Features | Blinking message recording, timed switching capability between two cameras | | | | VESA Compatibility | 75 x 75 mm, M4x10 Screws | | | | Sensor Type | 1/3" SONY Super HAD II CCD | | Lens | 3.7 mm Fixed Lens | | Effective Pixels | NTSC: 768 x 498
PAL: 752 x 582 | | Minimum Illumination | 0.001 lux (F1.2) | | Video Control | OSD Key Control, AGC, D-WDR, DNR, IR Smart, White Balance, Day & Night | | | | Support | Photo, Music, Video | | Supported File Formats | MPEG1, MPEG4, JPEG, BMP, GIF, PNG, MP3 | | Memory | Internal: 512 MB NAND Flash
External: USB 1.1, USB 2.0, SD (4in1): SD/MMC/MS/XD | | Resolution | 720 x 576 | | | | Electrical Ratings | 24 VAC | | Power Consumption | 17 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | MTBF | Approximately 50,000 hours, Card Reader 10,000 hours | | Compatible Mounts | Wall: VZ-WM05, VZ-WM11, VZ-AM01
Ceiling: VZ-CMK01, VZ-CMK-02
Rack: VZ-RMK08 | | Dimensions (W x H x D) | 9.4 x 9.2 x 2.1" (53.9 x 41.1 x 8.3 cm) | | Weight | 4.6 lb (2.1 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 14.0 x 7.0" |
