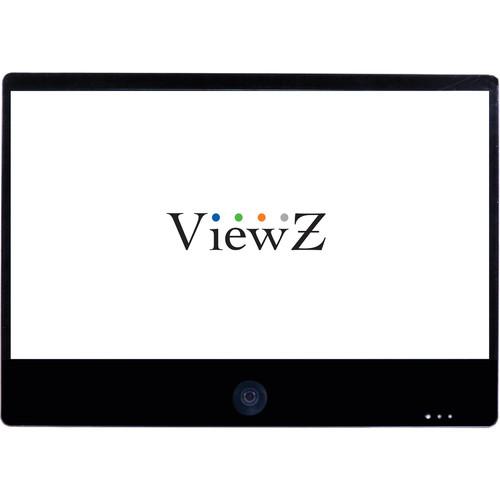

User Manual for ViewZ VZ-PVM-Z3B3 27" Full HD Widescreen LED Backlit Monitor with Built-In 1.3MP Camera Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-PVM-Z3B3 27" Full HD Widescreen
- Product category: Surveillance Monitors ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Surveillance Monitors
 |
User manual for the ViewZ VZ-PVM-Z3B3 27" Full HD Widescreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|
Product description The black VZ-PVM-Z3B3 27" Full HD Widescreen LED Backlit Monitor from ViewZ features a 27" commercial grade 'A' panel with quality color reproduction and a low defect ratio for 24/7 operation. The monitor delivers resolutions up to 1920 x 1080 at a maximum brightness of 300 cd/m2.The monitor features a built-in 1.3MP camera that has a 1/3" Panasonic progressive scan CMOS sensor and a 2.8 to 12mm lens. The camera can capture clear images in a minimum illumination of 0.5 lux. This Full HD monitor is equipped with a multi-function source switching feature that utilizes the motion sensor to switch the display source between the monitor's inputs (camera, BNC, HDMI, DVI, and VGA). Source switching can also be set using time intervals. In addition, the built-in 3D comb and deinterlace image processor help enhance the image quality and reduce unwanted artifacts such as dot crawl. Monitor - 27" LED backlit monitor with Full HD resolution and 16:9 aspect ratio
- Commercial grade 'A' panel for quality color reproduction and a low defect ratio for 24/7 operation
- 600 TVL analog video resolution
- Multi-function source switching feature utilizes a motion sensor to switch the display source between BNC, HDMI, DVI, VGA, and the camera
- Source switching can also be set using time intervals
- Flexible alert text and multi-color blinking LED in front of the monitor

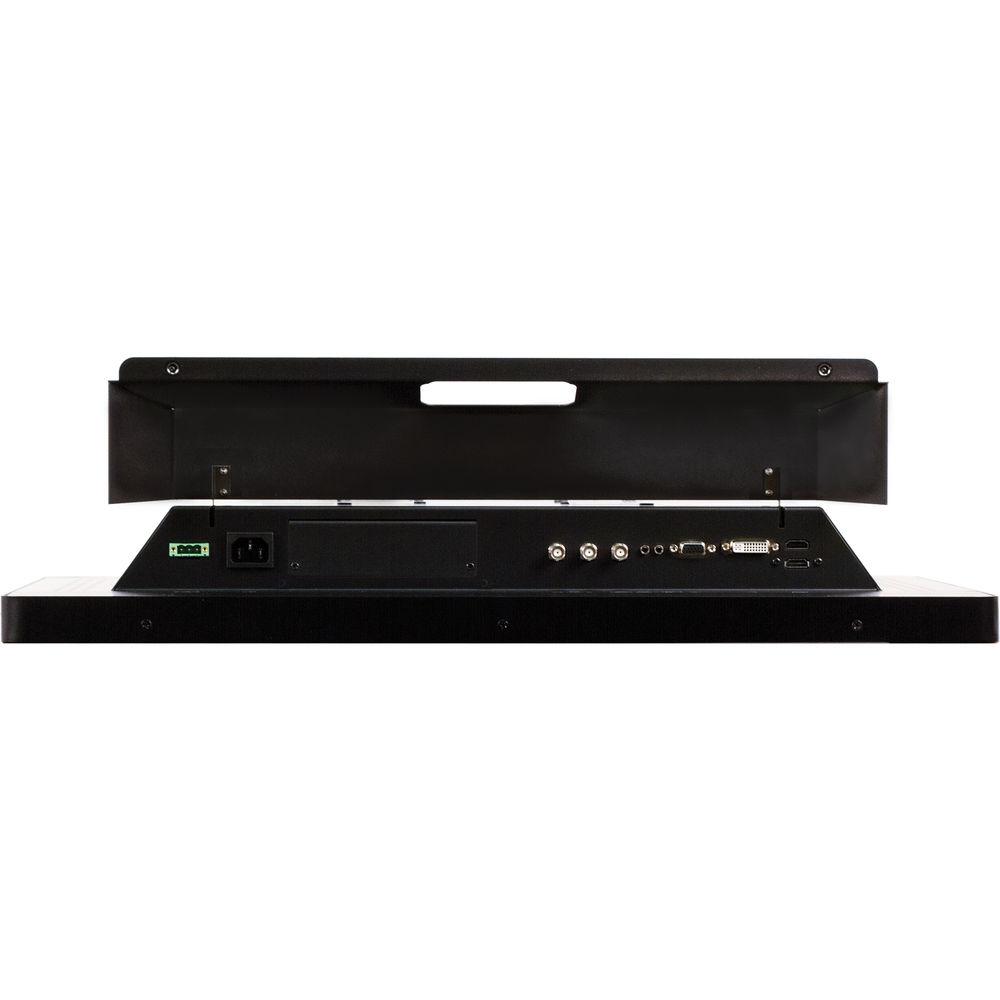

- BNC (NTSC / PAL), VGA, 2 HDMI, and DVI video inputs
- Media devices can be connected to the display
- Auto power and source recovery features automatically restore power as well as the video source after power failure
- 3D comb and deinterlace processor
- Picture-in-picture, picture-by-picture, and video-on-video modes
- One analog source and one digital source are displayed simultaneously on the screen in side-by-side or picture-in-picture mode
- 200 x 200 mm VESA mount pattern
- The included IR remote control allows adjusting colors and selecting inputs & features from a distance
- 110 VAC and 24 VDC dual voltage operation
Built-In Camera - 1280 x 720 HD D-WDR camera
- 1.3MP 1/3" Panasonic progressive scan CMOS sensor
- 2.8 to 12mm lens and DC auto iris
- Captures sharp images in low-light conditions at a minimum illumination of 0.5 lux
UPC: 853177002311 In the Box ViewZ VZ-PVM-Z3B3 27" Full HD Widescreen LED Backlit Monitor with Built-In 1.3MP Camera (Black) IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-PVM-Z3B3 27" Full HD Widescreen LED Backlit Monitor with Built-In 1.3MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-PVM-Z3B3 Specs | | | Screen Size | 27" (68.58 cm) | | Maximum Resolution | 1920 x 1080 @ 60 Hz | | Pixel Pitch | 0.3112 x 0.3112 mm | | Brightness | 300 cd/m² (typical) | | Contrast Ratio | 3000:1 | | Aspect Ratio | 16:9 | | Viewing Angle (H/V) | 178°/178° | | Display Color | 16.7 million | | Response Time | <12 ms | | Video System | NTSC / PAL | | Frequency | Horizontal: 31 to 80 kHz
Vertical: 56 to 75 Hz | | | | Composite | AV: 1 x in, 1 x out | | Camera Out | 1 | | DVI Input | 1 | | HDMI In | 2 | | RGB Input | 1 x 15-pin D-Sub | | Composite | AV Sound: 1 x in, 1 x out (RCA type) | | PC Stereo In | 1 | | Speaker Out | 1 | | | | Function | Multi Display: PIP / PBP / VOV | | Filter Type | 3D comb-filter / de-interlace | | Video Resolution | Maximum 600 TVL | | Camera Mounting Hole | 3 (top, left, right) | | Multi-lingual Language | English, French, Deutsch, Italian, Spanish, Portuguese, Netherland | | Other Features | Blinking message recording, timed switching capability between two cameras | | | | VESA Compatibility | 200 x 200 mm | | | | Sensor Type | 1/3" Panasonic 1.3 MP CMOS sensor | | Lens | 2.8 to 12 mm varifocal lens, DC auto iris | | Active Pixels | 1280(H) x 720p(V) | | Video Out | 1-channel CVBS (NTSC/PAL) | | Motion Detection | Supported | | Video Control | OSD key control , AGC, ACCE, 2D / 3D DNR, DSS, white balance, electronic shutter, day & night, motion detection, privacy, digital zoom, DPC, HLC / BLC, defog D/ N, DWDR, IR Smart | | Minimum Illumination | 0.5 lux @ 50 IRE, f/1.2 | | | | Power Consumption | Dual Voltage:
115 VAC (50/60 Hz): 0.5 A (55 W)
24 VDC: 2.2 A (55 W) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | MTBF | Approximately 50,000 hours | | Regulations | UL listed, FCC, RoHS | | Compatible Mounts | Wall: VZ-AM02, VZ-WM50
Ceiling: VZ-CMK01, VZ-CMK02 ,VZ-CMK03 | | Dimensions (W x H x D) | 25.01 x 18.7 x 3.39" (636.8 x 475 x 86 mm) | | Weight | 24.91 lb (11.3 kg) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 28.0 x 23.0 x 9.0" |
