User Manual for ViewZ VZ-XM46 Spring-Loaded Scissor Video Wall Mount Click to enlarge the picture
Contents of the user manual for the ViewZ VZ-XM46 Spring-Loaded Scissor Video Wall
- Product category: Monitor Wall Mounts ViewZ
- Brand: ViewZ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ViewZ Monitor Wall Mounts
 |
User manual for the ViewZ VZ-XM46 Spring-Loaded Scissor Video Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ViewZ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ViewZ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ViewZ product will considerably shorten its lifespan!
|

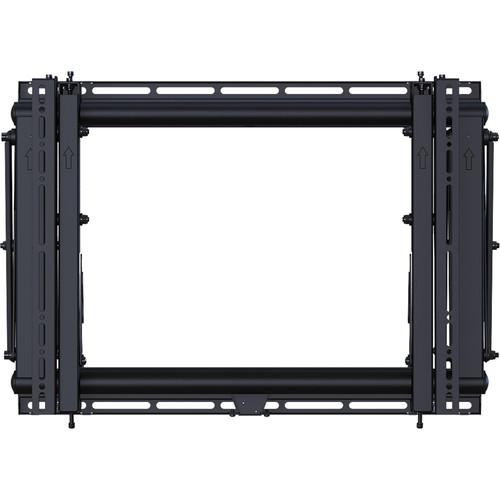

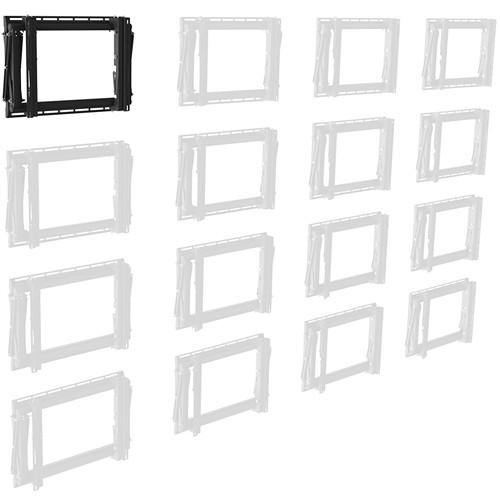

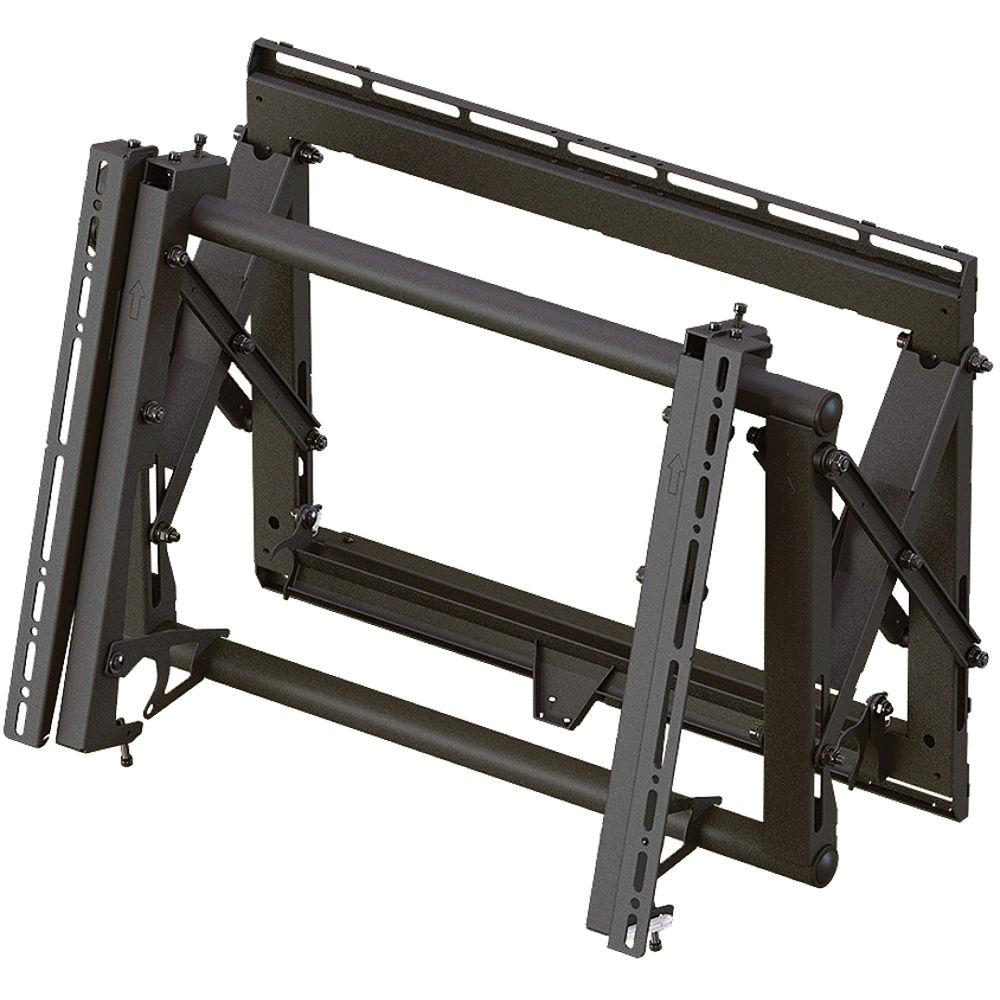

Product description The ViewZ VZ-XM46 Spring-Loaded Scissor Video Wall Mount is a customizable video wall extending flat-panel mount for displays weighing up to 160 lb with a mounting pattern of 200 x 200mm to 600 x 400mm. It features multi-monitor stacking, spring-loaded release, open design, custom spacers, top adjustable mounting brackets, and straight scissor-style extension. It also incorporates a kick-stand and allows you to make post-installation adjustments. - Designed for use with ViewZ VZ-46UNL and VZ-46NL displays
- Top-adjustable fine-tune mounting brackets ensure alignment and levelness of displays

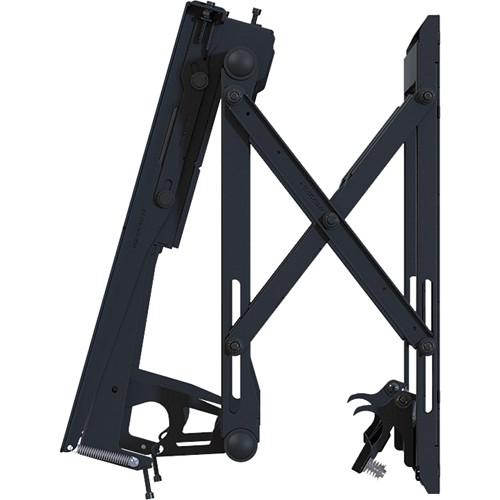

- Scissor design and compact mounting arms allow for extension in one smooth motion
- Advanced latch design and smaller base frame size provide quick and easy installation
- Spring-loaded release and X, Y and Z axis fine tune adjustment system allows for easy and accurate installation
- Laser cut, precision designed spacer helps to ensure seamless alignment without need for time consuming adjustments
- Click-it locking feature confirms display is secure with an audible noise

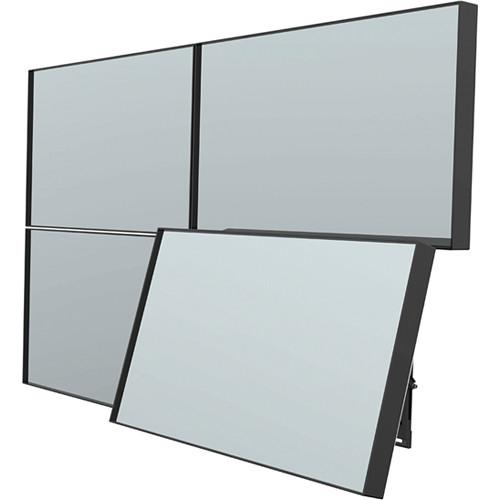

- Prop up the flat-panel with the kickstand for easy maintenance
- Simply push the mounting rails in to lock or unlock the mount from the closed position

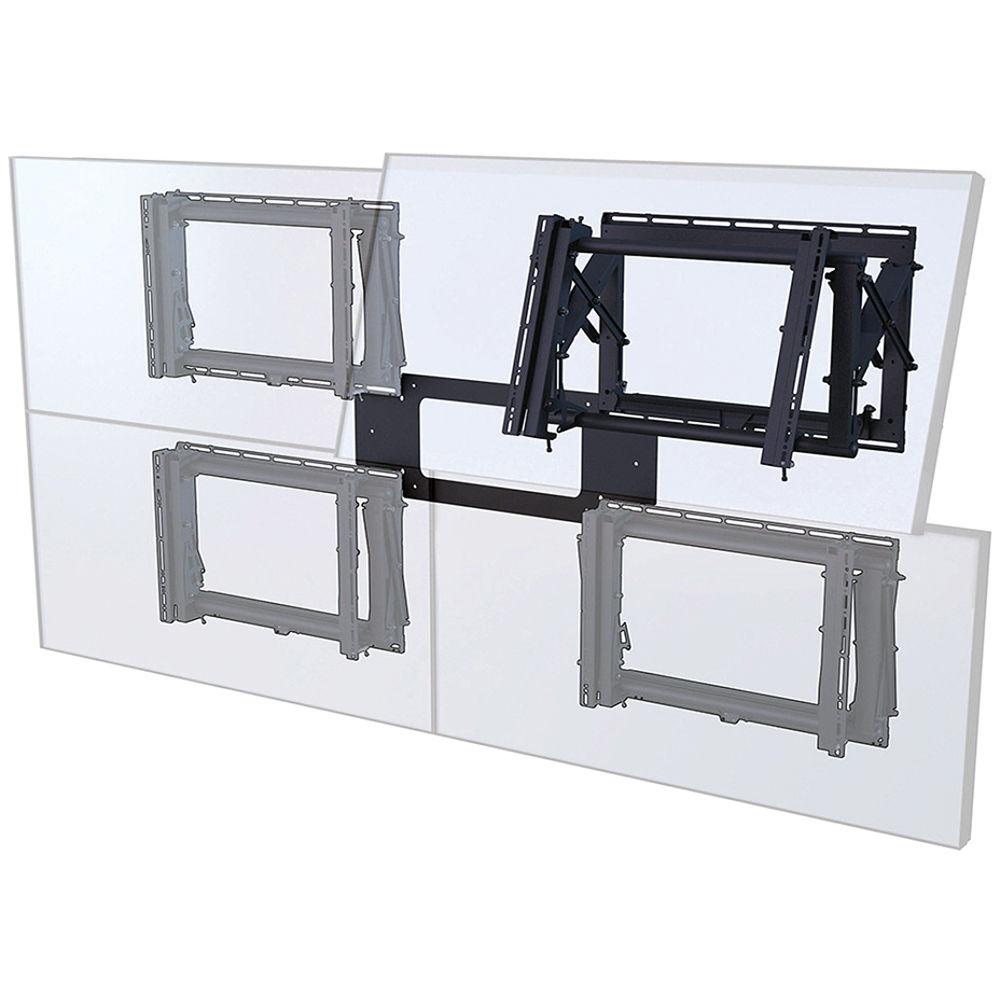

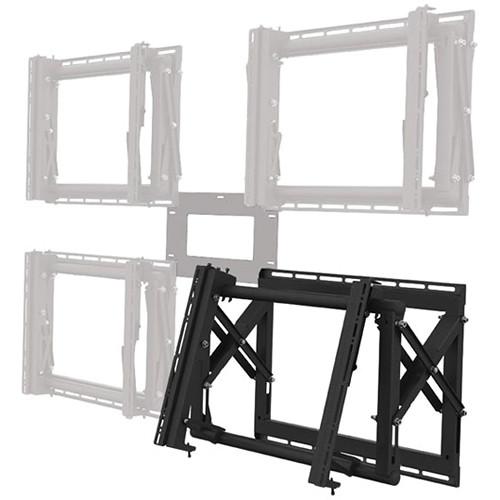

- Includes a metal mounting spacer for quicker installation of seamless monitor-to-monitor installations
In the Box ViewZ VZ-XM46 Spring-Loaded Scissor Video Wall Mount Metal Mounting Spacer Table of Contents
|
Upload User Manual
Have you got an user manual for the ViewZ VZ-XM46 Spring-Loaded Scissor Video Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViewZ VZ-XM46 Specs | | | Supported Screen Sizes | 37 to 63" / 94.0 to 160.0 cm | | Supported Weight Capacity | 160 lb / 72.6 kg | | Mounting-Hole Pattern | 200 x 200 to 600 x 400 mm | | Number of Displays Supported | 1 | | | | Distance from Mounting Surface | 5.2 to 13.2" / 13.2 to 33.5 cm | | Dimensions | 28.5 x 19.5 x 5.2" / 72.4 x 49.5 x 13.2 cm | | Weight | 44.2 lb / 20.0 kg | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 35.0 x 24.0 x 5.0" |
