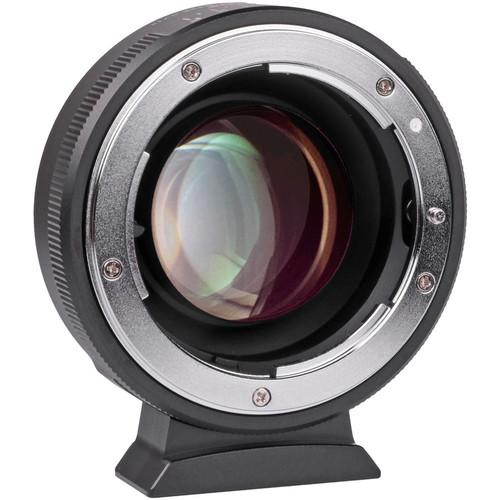

User Manual for Viltrox NF-M43X Lens Mount Adapter for Nikon F-Mount, D or G-Type Lens to Micro Four Thirds Camera Click to enlarge the picture
Contents of the user manual for the Viltrox NF-M43X Lens Mount Adapter for
- Product category: Lens Mount Adapters Viltrox
- Brand: Viltrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Viltrox Lens Mount Adapters
|
User manual for the Viltrox NF-M43X Lens Mount Adapter for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Viltrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Viltrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Viltrox product will considerably shorten its lifespan!
|
Product description This Lens Mount Adapter from Viltrox allows a Nikon F-Mount, D or G-Type lens to be mounted onto a Micro Four Thirds camera. While doing so, the adapter's optics help to maximize the connected lens's apparent angle of view while providing a one-stop increase for the camera over the lens's aperture range.
If a lens intended for larger camera sensors is connected to a Micro Four Thirds camera, it would project an image larger than the camera's sensor was built to accept. Able to capture only the center portion of the projected image, the effective angle of view of the lens would be narrowed, creating an in-camera "crop factor." This adapter condenses the light from an attached lens and projects it onto a Micro Four Thirds camera's sensor. This allows the camera sensor to utilize more of the light gathered by a connected lens, which effectively reduces the crop factor while making available to the sensor an additional one stop of light for each of the lens's f/stop settings.
This adapter supports manual focusing and eight stops of aperture control. It is constructed with five lens elements in four groups that are designed to provide optical clarity as well as color fidelity, and the underside of its removeable tripod foot is tapped with a 1/4"-20 accessory thread, enabling direct attachment to a tripod or quick release plate that feature 1/4"-20 mounts. -
- Maximizes apparent angle of view of combined camera and lens
- Provides a one-stop increase for the camera over the lens's aperture range
- Five lens elements in four groups for optical clarity as well as color fidelity
- Allows manual focus and eight stops of aperture control
- Removeable tripod foot with 1/4"-20 accessory thread for direct attachment to tripods or quick release plates that feature 1/4"-20 mounts
In the Box Viltrox NF-M43X Lens Mount Adapter for Nikon F-Mount, D or G-Type Lens to Micro Four Thirds Camera Front Body Cap Rear Body Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Viltrox NF-M43X Lens Mount Adapter for Nikon F-Mount, D or G-Type Lens to Micro Four Thirds Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersViltrox NF-M43X Specs | | | Camera Mount | Micro Four Thirds | | Lens Mount | Nikon F | | Magnification | 0.71x | | Optical Design | 5 Elements in 4 Groups | | | | Tripod Mounting Thread | 1/4"-20 Female | | Dimensions |
