Vine TJ-610 Wi-Fi Touchscreen Thermostat

Search your instruction manual in PDF to download

User Manual for Vine TJ-610 Wi-Fi Touchscreen Thermostat

Click to enlarge the picture
Vine TJ-610 Wi-Fi Touchscreen Thermostat Contents of the user manual for the Vine TJ-610 Wi-Fi Touchscreen Thermostat
  • Product category: Thermostats Vine
  • Brand: Vine
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Vine Thermostats

Vine TJ-610 Wi-Fi Touchscreen Thermostat Vine TJ-610 Wi-Fi Touchscreen Thermostat Vine TJ-610 Wi-Fi Touchscreen Thermostat
User manual for the Vine TJ-610 Wi-Fi Touchscreen Thermostat contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Vine product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Vine user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Vine product will considerably shorten its lifespan!



Product description

  • Vine TJ 610 Smart WiFi Thermostat Introduction

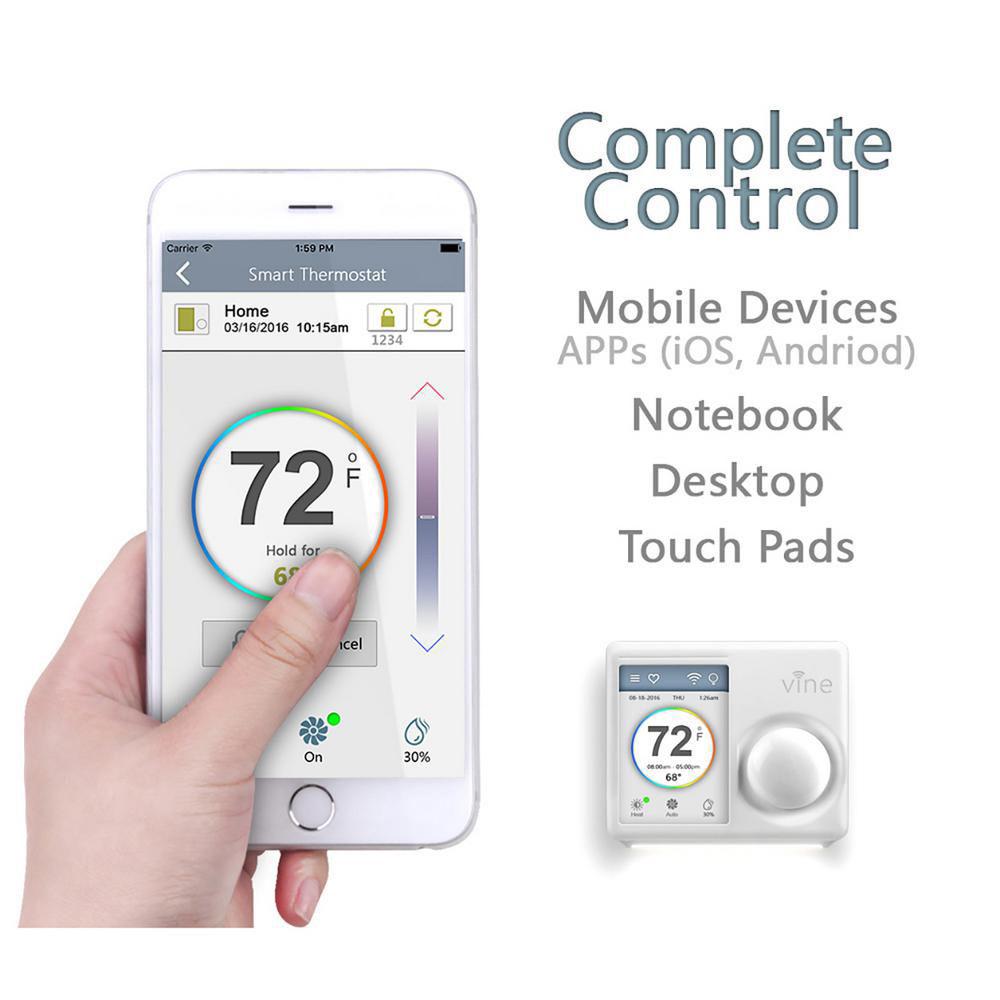

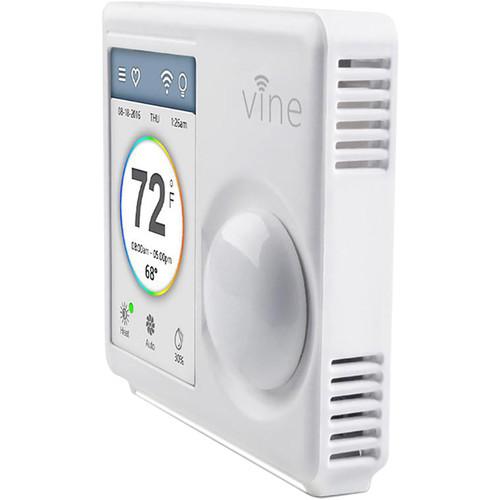

The TJ-610 Wi-Fi Touchscreen Thermostat from Vine provides energy-saving temperature control for your home. This Wi-Fi thermostat is equipped with a 3.5" TFT LCD color touchscreen with a 320 x 480 resolution, and a dial for easy adjustments. Compatible with most HVAC systems, this thermostat has a working range up to 328'. The free app for iOS and Android devices enables remote viewing and control on the go. You'll be able to create programs and schedules to your ideal temperature. Alexa is supported via downloadable skills, and Google Home compatibility is forthcoming via a firmware update. A C-wire is required for operation of the thermostat.

Professional installation is recommended for dual fuel systems (heat pump with furnace), and separate humidifiers & dehumidifiers.
  • Easy-to-use dial control for adjustments
  • Comes with two default presets for your convenience
  • 7-day/8-period temperature and comfort settings
  • EZ Comfort offers four adjustable presets
  • Definable temperature range
  • Fan operation
  • Auto-on circulation for different fan modes
  • Auto-on enables the thermostat to automatically turn on based on your settings while the system is off
  • Activation and system codes for access to common features and advanced features such as help resources, initialization setup, heating setup, sensor calibration system info, system default, system lock/unlock, system update, and Wi-Fi options among others
  • Webpage programming
  • Weather forecasting and reports
  • Data encryption
  • Receive alerts for inclement weather and excessive temperatures
  • Auto date/time setting and international date format
  • Functions as a hub to other IoT
  • Programmable LED nightlight with 4 levels of brightness
  • Adjustable screen brightness
  • Wi-Fi auto reconnect
  • Temperature and humidity sensor
  • Functions as a standalone thermostat without Wi-Fi
  • Batteries not required for operation thanks to being hardwired
  • Optional cloud storage available separately
  • Settings can be backed up to the cloud
  • Physical and cloud thermostat lock
  • In the event of a power outage, settings and shortcuts are stored in the app and optional cloud storage portal

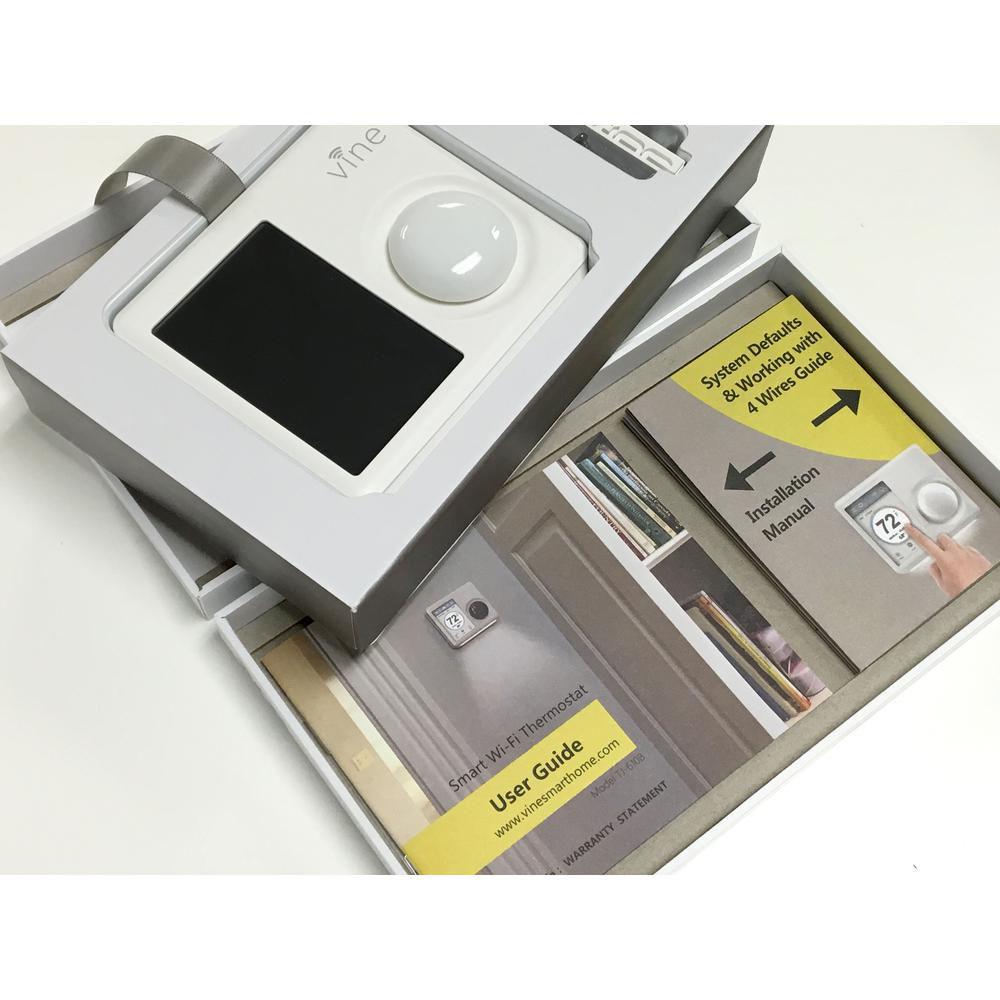

UPC: 856105006009 In the Box Vine TJ-610 Wi-Fi Touchscreen Thermostat
  • 2 x Screws and Anchors
  • Flathead Screwdriver
  • Wire Labels
  • Jumper Wire
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Vine TJ-610 Wi-Fi Touchscreen Thermostat in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Vine TJ-610B-W Specs

    Screen Size 3.5" / 8.9 cm TFT LCD color touchscreen
    Screen Resolution 320 x 480
    Touch Panel Type Resistive
    Sensor Temperature, humidity
    LED Programmable white LED night light with 4 levels of brightness
    Compatibility Gas, oil, and electric furnaces, heat pump A/C with emergency heating, 2 heat, 2 cool, and single stage heating/cooling
    Wire Terminals R, C, W, Y, O/B
    C-wire required to power thermostat
    Wi-Fi Connectivity Band: 2.4 GHz
    Chipset: Qualcomm QCA4004X
    Wi-Fi Range Up to 328' / 100 m in an open area
    Mobile App For iOS and Android devices
    Power Source 24 VAC, 20-30 VAC, 100 mA
    Operating Temperature 40 to 96°F / 4.4 to 35.5°C
    Temperature Accuracy ±2°F
    Dimensions (H x W x D) 3.8 x 4.4 x 1" / 96.5 x 112 x 25.4 mm
    Weight 6 oz / 170 g
    Package Weight 0.97 lb
    Box Dimensions (LxWxH) 8.5 x 5.5 x 1.7"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5 of 5

    This product has already been rated by 45 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Vine TJ-610 Wi-Fi Touchscreen Thermostat

    Subject: Cooling
    Date: 07.09.2022 16:43:45Name: Scott Deitz
    I added an air conditioner to our heating system and I can’t find the settings in my vine TJ-610e for (air conditioner)

    Is this thermostat capable of controlling a central air unit?
    Post reply

    Subject: Can’t connect to server
    Date: 17.08.2022 01:29:32Name: Richard Ware
    My device can no longer connect to working internet.
    Post reply

    Subject: How to remote power fail device
    Date: 22.06.2022 02:25:09Name: Richard Ware
    Thunder storms leave thermostat in unknown quiescent state - need to power fail remotely- how can this be done?
    Post reply

    Subject: Device Offline
    Date: 10.05.2022 18:50:59Name: Terri Gierer
    Looking at the thermostat it does appear it has made the connection with our WiFi but we are unable to control it through the app on our phones or desktop. Have tried rebooting phones and the thermostat itself - again appears to connect to the Wifi but get the Device Offline message in the app. What else can we try? Thanks.
    Post reply

    Subject: Screen blank as a result of power outage
    Date: 16.10.2021 17:02:02Name: Yemi
    Screen went blank after power outage. Can’t control device. Urgent.!!!
    Post reply

    Subject: power out
    Date: 03.08.2021 16:31:46Name: Marcelo J Sigliani
    when the power went out the screen went blank and I can't control the ac
    Post reply

    Subject: No Power
    Date: 16.06.2021 16:00:26Name: Steve
    Lower floor thermostat is operating fine, second floor has no power, no light and no response. Blank screen. Just bought the house and it WAS working prior to my moving in.
    Post reply

    Subject: Thermostat not working
    Date: 06.04.2021 03:27:16Name: Jose L Barco
    Connected all wires correctly, thermostat did no turn on.
    Post reply
