Product description - Vine TJ 919 Smart WiFi Thermostat Introduction

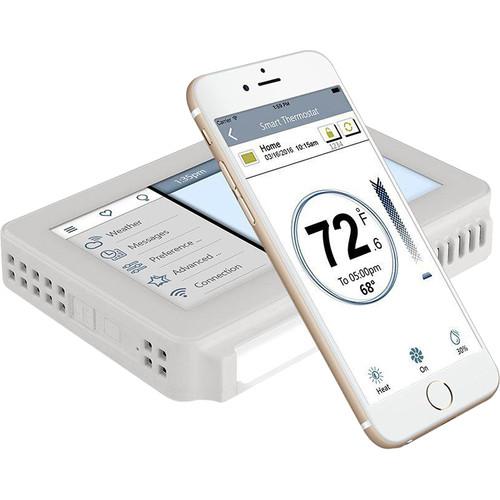

The TJ-919 Wi-Fi Touchscreen Thermostat from Vine provides energy-saving temperature control for your home. This Wi-Fi thermostat is equipped with a 4.5" LCD color touchscreen with a 480 x 854 resolution. Compatible with most HVAC systems, this thermostat has a working range up to 328'. The free app for iOS and Android devices enables remote viewing and control on the go. You'll be able to create programs and schedules to your ideal temperature. Alexa is supported via downloadable skills. Google Home compatibility is forthcoming via a firmware update. A C-wire is required for operation of the thermostat.
Note: Professional installation is recommended for heat pump systems with multiple stages. - Saves you up to 23% annually in heating and cooling costs
- Comes with two default presets for your convenience
- 3200-3500K programmable LED nightlight
- Three levels of screen brightness
- EZ Comfort offers four adjustable presets
- Away setting for when you're on vacation or away for an extended time
- Weather forecasting and reports
- 7-day/8-period temperature and comfort settings
- Works as a standalone thermostat without Wi-Fi
- Receive alerts for inclement weather and excessive temperatures
- Auto-on enables the thermostat to automatically turn on based on your settings while the system is off
- Auto-on circulation for different fan modes
- Action codes for direct access to common features such as factory reset, parameter modifiers, Wi-Fi reset, Wi-Fi option, initial setup, sensor calibration, IP address, and system update among others
- Batteries not required for operation thanks to being hardwired
- Optional cloud storage available separately
- In the event of a power outage, settings and shortcuts are stored in the app and optional cloud storage portal
- Compatible with Internet Explorer, Firefox, Safari, Chrome, and Edge

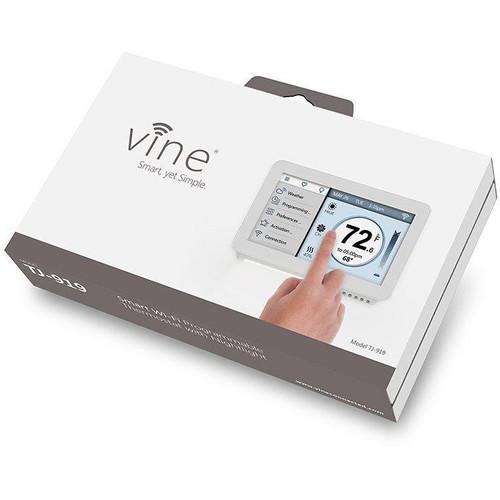

UPC: 856105006030 In the Box Vine TJ-919 Wi-Fi Touchscreen Thermostat 2 x Screws and Anchors Flathead Screwdriver Wire Labels Jumper Wire Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vine TJ-919 Wi-Fi Touchscreen Thermostat in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVine TJ-919 Specs | Screen Size | 4.5" / 11.4 cm color LCD touchscreen | | Screen Resolution | 480 x 854 | | Touch Panel Type | Capacitive | | LED | Nightlight:
Programmable warm white LED, 3200-3500K | | Compatibility | Gas, oil, and electric furnaces, heat pump A/C with emergency heating, 2 heat, 2 cool, and double stage heating/cooling | | Wire Terminals | R, C, W, Y, O/B
C-wire required to power thermostat | | Wi-Fi Connectivity | Chipset: Qualcomm QCA4004X
Standards: IEEE 802.11 b/g/n at 2.4 GHz | | Working Range | Up to 328' / 100 m in an open area | | System Lock | Push-button system lock located on side of unit | | Mobile App | For iOS and Android devices | | Supported Browsers | Internet Explorer, Firefox, Safari, Chrome, Edge | | Menu Languages | English, Spanish, and French | | Case Material | Flame-resistant polycarbonate and ABS | | Power Current | 24 VAC, 2.5 A
5 VDC, 2.5 A | | Power Source | 24 VAC, 20-30 VAC | | Temperature Range | 40 to 99°F / 4.4 to 37°C | | Temperature Accuracy | ±2°F (2 years) | | Operating Temperature | 32 to 110°F / 0 to 43°C | | Operating Humidity | Less than 90%, non-condensing | | Storage Temperature | -40 to 150°F / -40 to 65.5°C | | Dimensions (H x W x D) | 3.3 x 5 x 1" / 85 x 123 x 26 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 8.55 x 5.5 x 1.65" |
