User Manual for Vinpower Digital USBShark USB Duplicator Click to enlarge the picture
Contents of the user manual for the Vinpower Digital USBShark USB Duplicator
- Product category: Optical Media Duplicators & Printers Vinpower Digital
- Brand: Vinpower Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vinpower Digital Optical Media Duplicators & Printers
|
User manual for the Vinpower Digital USBShark USB Duplicator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vinpower Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vinpower Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vinpower Digital product will considerably shorten its lifespan!
|

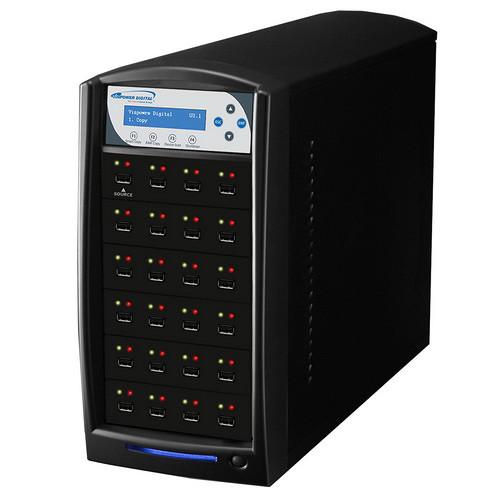

Product description Transfer data to 23 USB drives at the same time without a computer using the USBShark USB Duplicator from Vinpower Digital. The USBShark is compatible with virtually all USB storage drives and uses asynchronous duplication to master data onto multiple targets independently without reducing speed or quality. The duplicator features a smart copy feature for quickly copying all accessible content stored on the source USB drive and supports capacities of up to 2TB. With bit-by-bit duplication, it is compatible with HFS+, HFSX, FAT, exFAT, NTFS, and ext2/3/4 file formats. Moreover, it can securely erase data on a USB drive to help prevent sensitive data from being recovered.
Aside from USB drives, Vinpower Digital offers separately available memory cards to duplicate data stored on SD, microSD, or CF cards. - No computer required to operate the duplicator
- Copy any-sized master data onto multiple targets independently without sacrificing duplication speed or quality for fast and reliable duplication
- Smart copy feature quickly copies all accessible content contained on the USB device
- Supports all data formats with bit-by-bit duplication
- Supports most USB 3.0, 2.0, and 1.0 drives
- Duplicator can be upgraded by future firmware updates
- SD, microSD, and CF support with optional interface module add-on
- Securely erase the USB device to prevent data from being recovered
- The text on the LCD screen can be displayed in English, Spanish, French, Japanese, and other languages (Chinese can be added upon request)
- Account management (password protection) lets you authorize only specific users to operate the duplicator with their preferred settings (assign numerous passwords for multiple users)
- Displays the total number of drives successfully copied compared to desired output for each project
- User friendly interface with 'easy-to-read' LCD display
- 4 fast keys for faster operations
- Power on self-diagnostics
- Detailed information of the USB device with Device Info feature
- Scan the source USB device for physical reading error
- Continuous copying without waiting for cool down
UPC: 842378004217 In the Box Vinpower Digital USBShark USB Duplicator (23-Target) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinpower Digital USBShark USB Duplicator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinpower Digital USBSHARK-23T-BK Specs | Target | 23 x USB ports | | Source | 1 x USB port | | Buffer Memory | 128 MB for every 8 ports | | Management | Standard License: 32 users
Premium License: 64 users | | Asynchronous Duplication | Yes | | Supported Features | Smart copy, auto counter, firmware upgradeable | | File System Support | HFS+, HFSX, FAT, exFAT, NTFS, ext2/3/4 | | Compatibility | USB drives with up to 2 TB in capacity | | Languages Supported | English, Spanish, French, Japanese, and other languages (Chinese available upon request) | | Display | 20 x 2 blue LCD | | Indicator LEDs | Green/red LED on each port | | Maximum Read Speed | 33 MB/s (2 GB/minute) | | Maximum Write Speed | 31 MB/s (2 GB/minute) | | Throughput | 512 MB: 3220
1 GB: 1610
2 GB: 805
4 GB: 391
8 GB: 184 | | USB Compliance | USB 3.0, 2.0, and 1.1 | | AC Power | 90 to 240 VAC | | Operating Humidity | 20 to 80% | | Temperature | 41 to 104°F / 5 to 40°C | | Certification | FCC, CE, RoHS, UL | | Dimensions (W x D x H) | 7.5 x 21 x 15" / 19.1 x 53.3 x 38.1 cm | | Weight | 15.9 lb / 7.2 kg | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 26.0 x 21.0 x 14.0" |
