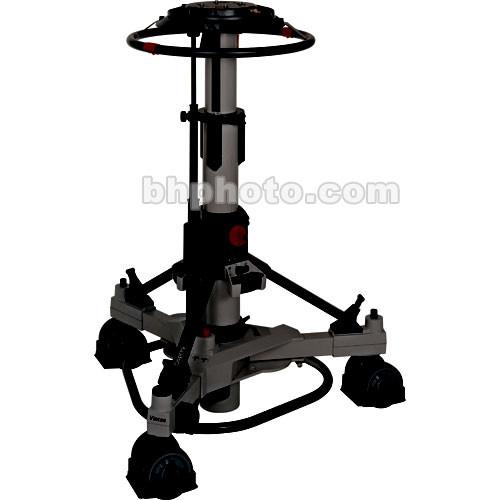

User Manual for Vinten 3574-3B Osprey Elite OB 2-Stage Steering Pedestal - Supports 165 lbs Click to enlarge the picture
Contents of the user manual for the Vinten 3574-3B Osprey Elite OB 2-Stage
- Product category: Pedestals Vinten
- Brand: Vinten
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vinten Pedestals
|
User manual for the Vinten 3574-3B Osprey Elite OB 2-Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vinten product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vinten user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vinten product will considerably shorten its lifespan!
|
Product description The award-winning Vinten Osprey Elite OB 2-Stage Steering Pedestal is a high performance, lightweight pedestal capable of handling a wide range of digital and portable cameras. The pedestal provides extensive on-shot movement capability with full crab and steer functionality. The Osprey Elite's special folding design makes it easy to transport. Designed with field shooting in mind, the Osprey Elite OB (outside broadcast) comes fitted with large 6.3" wheels.
Eliminating the need to concentrate on camera balance allows the camera operator to focus entirely on framing. Vinten's standard of high quality pedestals for both soundstages and on-location shoots, along with their design innovation ensure the perfect shot every time. - Lightweight Construction
- The pedestal's versatility is heightened by its extremely lightweight design, allowing it to support almost twice its weight.
- High Payload Capacity
- The Osprey Elite can hold up to 165 lbs, making it a premium performer for most cameras.
- Low-Pressure Counterbalance
- Vinten's Low-Pressure counterbalance system compensates perfectly for gravity.
- Easily Transportable
- The unit collapses into two lightweight folding parts for easy transport.
- Adjustable Elevation
- The Osprey Elite two-stage design provides adjustable height capabilities.
- On-Shot Capability
- A pedestal's on-shot stroke (vertical distance the pedestal can be lifted with one smooth motion) is very important both in the studio, and on location. Osprey Elite provides an amazing 30" of on-shot stroke, making sure you achieve the shot you need.
- Adjustable Dolly Track
- Narrow doorways are no problem with the Osprey Elite. Simply reduce the spread of the dolly track and you are ready to go!
- Steering Ring
- Crab and steer movement is achieved by using the a detachable Steering Ring. The Steering Ring is equipped with two moveable indicators, allowing the camera operator to produce quick reference points for various camera positions.
- Wheel Brakes
- Control the wheels simply by using the durable foot-operated braking buttons.
In the Box Vinten 3574-3B Osprey Elite OB 2-Stage Steering Pedestal (Black) - Supports 165 lbs 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten 3574-3B Osprey Elite OB 2-Stage Steering Pedestal - Supports 165 lbs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten Osprey Elite Specs | | | Load Capacity | 165 lbs (75kg) | | Trim Ring | 6.6 lbs (3kg) | | Bowl Diameter/Thread | Flat, 4-Bolt | | Steering Ring Diameter | 21" (53.5cm) | | Folded/Transport Length | 26" (66cm) | | Minimum Height | 27.3" (69.5cm) | | Maximum Height | 57.6" (146.5cm) | | Weight | 106.8 lbs (48.5kg) | | Warranty | 2 Year Warranty | | | | Stages | 2 | | On-Shot Stroke | 30" (77cm) | | | | Doorway Tracking Width | 38" (97cm) | | Transit Doorway Width | 34" (86cm) | | Narrow Doorway Width | 27.5" (70cm) | | Wheel Diameter | 6.3" (16cm) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
