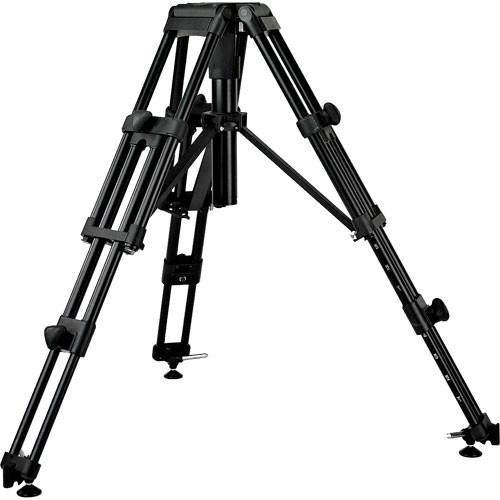

User Manual for Vinten 39023 HDT-2 Two Stage Heavy Duty Tripod Click to enlarge the picture
Contents of the user manual for the Vinten 39023 HDT-2 Two Stage Heavy
- Product category: Tripod Legs Vinten
- Brand: Vinten
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vinten Tripod Legs
|
User manual for the Vinten 39023 HDT-2 Two Stage Heavy contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vinten product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vinten user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vinten product will considerably shorten its lifespan!
|
Product description The Vinten HDT single and two-stage tripods are the new heavy-duty additions to the renowned Vinten range of camera support. Offering the most extensive height range available from heavy duty tripods on the market, the HDT has been totally re-designed to offer increased torsional rigidity and robustness ideal for large camera and lens combinations in any studio or OB application. The new pinned and glued telescopic leg design provides a wide range of height adjustment whilst offering superior strength and reliability. Set up has been made even simpler with the addition of engraved leg markings for rapid, even deployment and an integral level bubble allows for fine level adjustment. The new clamping system provides progressive feel to a positive stop which indicates when the leg is locked, ensuring simple and confident clamping. Whatever the terrain, the HDT's three-position swivel foot ensures a stable base. Choose from an increased length spike for soft surfaces, self-levelling pad for harder surfaces or a socket to fit all Vinten skids and floor spreaders. For more uneven surfaces, the newly designed mid-level spreader ensures the HDT is a convenient and stable option. The single piece, fixed length design offers exceptional strength and robustness, whilst simple to use and remove when necessary. With an integral carry handle providing comfortable and easy repositioning, this system is ideal for any terrain. - Industry Standard combined 4-bolt and Mitchell interface
- Leg markings for easy height positioning and leveling bubble
- Redesigned single piece mid level spreader for added strength
- Three-position swivel foot: Spike, Pad and Socket
- Integral carry handle for carrying comfort
In the Box Vinten 39023 HDT-2 Two Stage Heavy Duty Tripod Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten 39023 HDT-2 Two Stage Heavy Duty Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten HDT-2 Specs | | | Head Mount Type | 4-Bolt Flat Base
4-Bolt Mounting
Mitchell Flat Base
Sachtler QuickFix Flat Base | | Load Capacity | 265 lb / 120 kg | | Max Height without Center Column | 57.5" / 146 cm | | Minimum Working Height | 20.1" / 51.1 cm | | Folded Length | 28.5" / 72.5 cm | | Materials | Aluminum | | Weight | 33.7 lb / 15.3 kg | | | | Leg Lock Type | Rotating Locking Lever | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Feet Features | Retractable, Spiked | | | | Center Column Features | Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Geared | | | | Package Weight | 41.7 lb | | Box Dimensions (LxWxH) | 31.0 x 12.5 x 12.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
