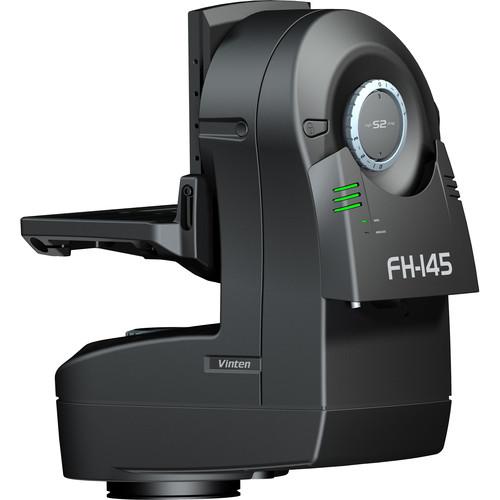

Vinten Fusion FHR-145 Robotic Head

Search your instruction manual in PDF to download

User Manual for Vinten Fusion FHR-145 Robotic Head

Click to enlarge the picture
Vinten Fusion FHR-145 Robotic Head Contents of the user manual for the Vinten Fusion FHR-145 Robotic Head
  • Product category: Motorized Pan/Tilt Heads Vinten
  • Brand: Vinten
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Vinten Motorized Pan/Tilt Heads

User manual for the Vinten Fusion FHR-145 Robotic Head contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Vinten product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Vinten user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Vinten product will considerably shorten its lifespan!



Product description

The Fusion FHR-145 Robotic Head from Vinten incorporates Intelligent Control Engineering (ICE) to help the head deliver unprecedented control and accuracy in a compact form. It has no external PSU or lens drives and is simple to set up, operate, and use. Designed to support typical camera and lens packages up to 145 lb, the FHR-145 provides broadcasters with a flexible yet simple solution.
  • Smooth camera motion control makes use of high-resolution absolute encoders and delivers accuracy of ±0.03°
  • Tilt lock for added security
  • Reconfigurable mounting cradle to suit a wide variety of camera, lens, and accessory payloads
In the Box Vinten Fusion FHR-145 Robotic Head
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Vinten Fusion FHR-145 Robotic Head in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Vinten FHR-145 Specs

    Pan Range 720° (no end stops)
    Tilt Range 100° (±50°)
    Payload 145 lb / 66 kg
    Rated Load Inertia 7.5 kgm2
    Speed 0.01 to 60°/sec
    Maximum Acceleration 60°/sec
    Resolution 22-bit
    Repeatability <0.03°, 2 minutes of arc
    Durability Indoor: 100,000 cycles (27 moves/day for 10 years)
    Encoder Pan: >2 mil counts / rev
    Tilt: >2 mil counts / rev
    Operating Temperature Indoor: 41 to 122°F / 5 to 50°C
    Operating Humidity 90% non-condensing
    Storage Temperature -40 to 140°F / -40 to 60°C
    Connector Neutrik True 1 power input fused
    Unfused power output using Neutrik True 1 outlet
    Lens D-type for digital, zoom and focus
    Voltage 100 to 240 VAC, 50/60 Hz auto-ranging
    Power Consumption 175 W
    Indicators For power, communications, and VR data
    Power Switch On/off switch (brightness can be adjusted)
    Interfaces Profile Control: Fusion VRC, FCS16, and LCS
    Own interface to setup and diagnose faults
    NLD All Fujinon and Canon full-servo lenses
    Mounting Quickfix, 4-bolt Mitchel
    Diagnostics Limits, feedback on shot status, GPIO, position, save data for transferring to another head, error reporting
    Dimensions 19.7 x 17.3 x 9.6" / 50.0 x 44.0 x 24.5 cm. including cradle
    Weight 51.6 lb / 23.4 kg
    Cradle: 6.4 lb / 2.9 kg
