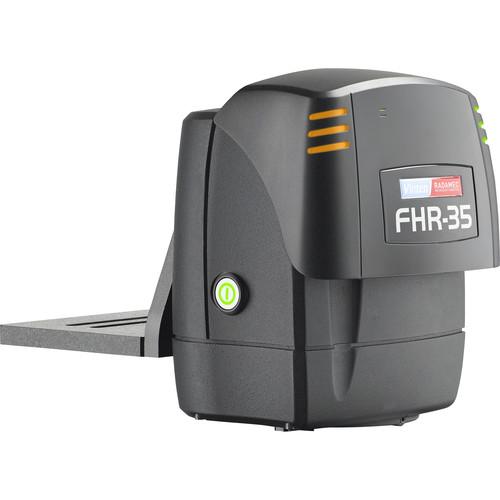

Product description The Fusion FHR-35 Remote Pan and Tilt Head from Vinten incorporates Intelligent Control Engineering (ICE) that allows the head to deliver better control and accuracy in a compact form. It provides precise position reporting back to the controller, together with zoom and focus data from a digital lens. There are no external interface boxes or power supplies.The flexible and versatile Fusion FHR-35 is suitable for use in remote locations where a pan and tilt head must be as unobtrusive as possible. With this head, remote locations such as legislative buildings, conference and educational centers, houses of worship, and financial institutions can utilize broadcast quality camera and lens packages up to 35 lb. - Control of broadcast quality camera and lenses
- Accurate, smooth movement at a wide range of speeds
- No external interface box or power supply required
- Reliable communications protocol, running over a standard Ethernet network
In the Box Vinten Fusion FHR-35 Remote Pan and Tilt Head USB Flash Drive Ethernet Cable Cable Management Bracket 6 x 10-32 U x .625" Screws & Washers 4 x M6 x 16 Screws & Washers 2 x 3/8" BSW x 3/4" Screws & Washers 5 x Cable Ties Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten Fusion FHR-35 Remote Pan and Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten FHR-35 Specs | Payload | 35 lb (16 kg) | | Pan Range | 720° with end stops 319° | | Pan/Tilt Speed | Minimum: 0.01°/sec
Maximum: 60°/sec | | Repeatability | < 60 arcseconds | | Mounting | 4 x M6 on 84 PCD
6 x 10 to 32 UNF on 1.875" (4.762 cm) PCD | | Mounting Interface | AM-VMA-105 VMA plate | | Power Supply Unit | 90 to 250 VAC 50/60 Hz, auto-ranging | | Peak Power | 100 W | | Lens Control Output | Digital, analog, or hybrid control | | Auxiliary | 12 V out, GPIO (wash wipe, camera on/off) | | Stops | Hard stops; range limits set via software interface | | Dimensions | 9.7 x 7.2 x 7.4" (24.8 x 18.3 x 18.8 cm) | | Weight | 15.1 lb (6.85 kg) |
