User Manual for Vinten HD-VRC Control System - Open Box Click to enlarge the picture
Contents of the user manual for the Vinten HD-VRC Control System - Open
- Product category: Motorized Pan/Tilt Head Accessories Vinten
- Brand: Vinten
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vinten Motorized Pan/Tilt Head Accessories
 |
User manual for the Vinten HD-VRC Control System - Open contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vinten product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vinten user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vinten product will considerably shorten its lifespan!
|

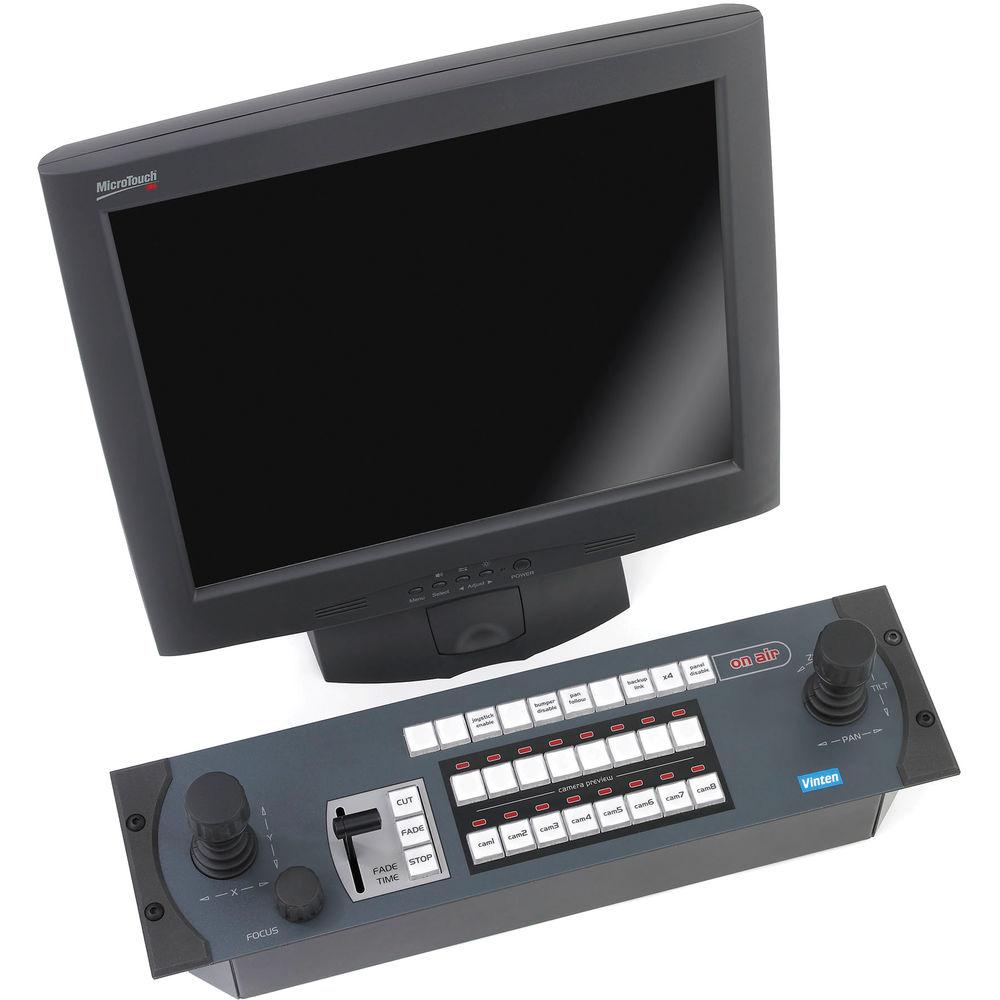

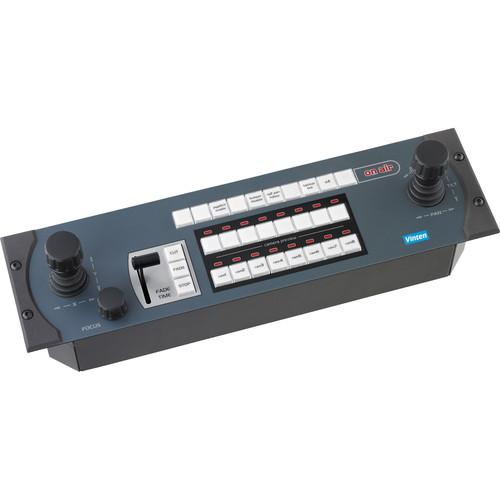

Product description The Vinten HD-VRC Control System is a client server hardware/software solution that provides multiuser, multi-facility control of Vinten Robotics pedestals, heads, and elevation units. The system includes a 2 RU rackmount control station with an HD/SD-SDI thumbnail capture card that runs Windows 7 and the Vinten VRC software. A keyboard and mouse are also included. A monitor is sold separately.

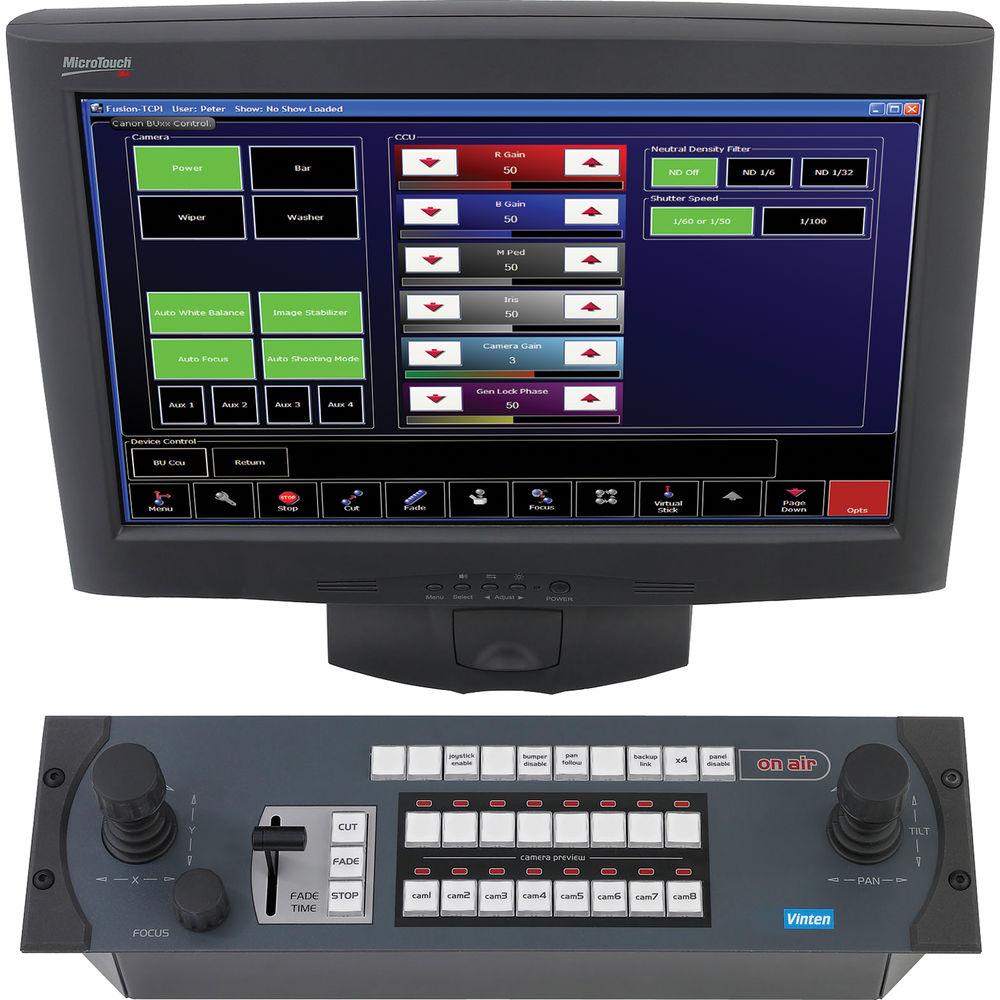

Using flexible Ethernet network architecture, the touchscreen user interface of the included VRC software allows the controller to be configured for multiple devices and multiple studios within the same network. Additionally, multiple controllers can be added to the network to enable control of any camera from any control room with the right permissions. Systems are connected via TCP/IP, RS-232, and RS-422 protocols. - Additional Features
-
- Shot storage of all axes in easy one-touch operation
- Creation of picture-based running orders
- Storage of programmable fade times
- Long-term disc storage of shots and pictures
- Video loop-through
- Automation interface and CCU control options are sold separately
In the Box Vinten HD-VRC Control System Keyboard Mouse Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten HD-VRC Control System - Open Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten V4063-0003 Specs | Controlled Devices Per Operator | Up to 32 Devices | | Controlled Devices Per Studio | More than 32 per EPI | | Controllers Per Network | 8 | | Total Shots Supported | 64,000 | | Signal Inputs | Composite at 1080i
SDI at 720p |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
