User Manual for Vinten Quattro SE Encoded Manual Pedestal Click to enlarge the picture
Contents of the user manual for the Vinten Quattro SE Encoded Manual Pedestal
- Product category: Pedestals Vinten
- Brand: Vinten
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vinten Pedestals
|
User manual for the Vinten Quattro SE Encoded Manual Pedestal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vinten product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vinten user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vinten product will considerably shorten its lifespan!
|

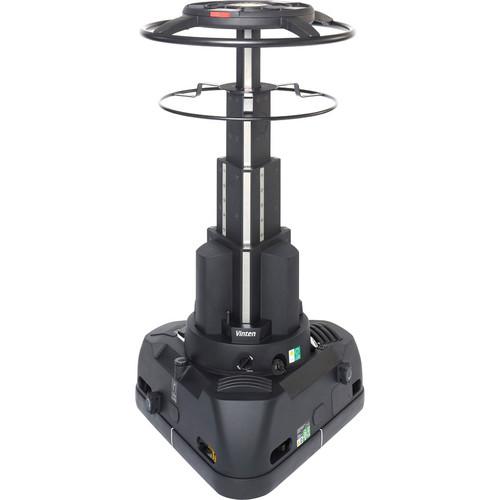

Product description The Vinten Quattro SE Encoded Manual Pedestal is a lightweight and compact manually operated pedestal with built-in encoders. It features a combination of simplified homing and setup procedures, precise digital electronic positioning, and on shot performance for use in virtual studios. The pedestal features an ergonomically assisted lifting column and small doorway width.To provide the tracking solution, high quality precision encoders have been integrated into the wheels and column. It also includes an electronic module and base processor which deliver the accurate position data for all axes. This combination with the head information provides precise real-time digital electronic positioning over the floor and in elevation. APDA is included to simplify the setup procedure and provide the configuration and operator’s user interface. This is delivered through various calibration routines, head setup, and optical axis offset input, whilst also providing the operator with enhanced functionality such as quick homing and virtual set trimming. The homing procedure further simplifies ease of operation with flexibility on the direction and angle of approach, and a fast targeting option.A cable management system is incorporated into the pedestal, to prevent the cable being caught or tangled during repositioning. To simplify virtual tracking solutions, the output from the pedestal is integrated with the Vision 250E, Vector 430i, Vector 750i, and Vector 950i head, and lens position is feedback into a single data channel to the rendering system of a virtual software image generator. - Optimum and simplified manual adjustment capability
- Precise, real-time digital electronic positioning of floor and height movement
- PDA user interface simplifies set up in the virtual studio and provides positional feedback and calibration data
In the Box Vinten Quattro SE Encoded Manual Pedestal Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten Quattro SE Encoded Manual Pedestal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten Quattro SE Specs | Maximum Load Capacity | 187 lb (85 kg) | | On-Shot Stroke | 39.4" (100.0 cm) | | Transit Doorway Width | With Small Steering Ring: 29.3" (74.5 cm)
With Large Steering Ring: 32.3" (82.0 cm) | | Clearance | Ground Clearance: 0.8" (2.0 cm) | | Cable Guards | Single Point Action | | Repeatability | X & Y +/- 70mm+/- 1° (triangle move) | | Degrees of Freedom | Pedestal Only: 4 (X, Y, Z, and Base Orientation)
Included in Serial Protocol Output: 4 (P, T, Z, and F) | | Resolution | X, Y, Z: ±<1mm
Orientation: ± 0.02° | | Height | Maximum Height: 58.9" (149.8 cm)
Minimum Height: 19.6" (49.8 cm) | | Dimensions (H x W) | 58.9 x 29.3" (149.8 x 74.5 cm) | | Weight | Without Trim Weights: 300.6 lb (136.3 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
