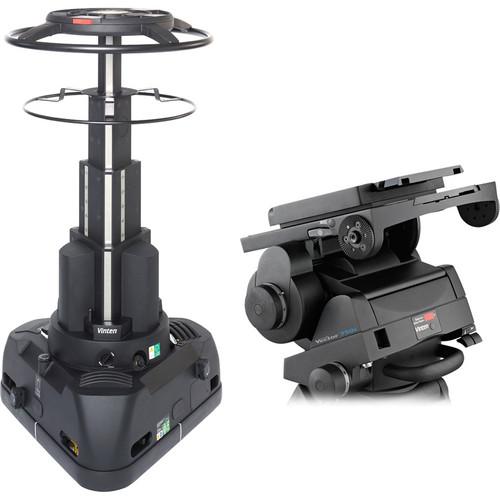

Product description The Quattro SE, VRI Box & Vector 750i Pan and Tilt Head System from Vinten is a pedestal system which includes a Quattro SE Encoded Manual Pedestal, a Virtual Reality Interface (VRI) Box, and a Vector 750i Pan and Tilt Head, as well as a Telescopic Pan Bar and Clamp, a VRI Mounting Kit, a Standard Wedge, and a Pan Bar Mounted PDA user interface.
The Quattro SE pedestal is a compact, manually operated pedestal with built-in encoders. It offers a combination of simplified homing and setup procedures, precise digital electronic positioning, and on-shot performance for use in virtual studios. The pedestal features an ergonomically assisted lifting column and a small doorway width.
To enable tracking, high-quality precision encoders have been integrated into the wheels and column of the Quattro SS. The pedestal also incorporates an electronic module and base processor which deliver accurate position data for all axes. This combination with the head information provides precise real-time digital electronic positioning over the floor and in elevation. A PDA is included to simplify the setup procedure and provide the configuration and the operator's user interface. This is delivered through various calibration routines, head setup, and optical axis offset input, whilst also providing the operator with enhanced functionality such as quick homing and virtual set trimming. The homing procedure has been further simplified to provide ease of operation, flexibility of direction & angle of approach, and a fast targeting option.
A cable management system is incorporated into the pedestal to prevent the cable being caught or tangled during repositioning. To simplify virtual tracking, the output from the pedestal is integrated with the Vector 750i head, and lens position is fed back into a single data channel to the rendering system of a virtual software image generator.
The Vector 750i Pan and Tilt Head is a pantographic head that supports a load capacity of up to 165.3 lb and allows semi-automatic setup, slide plate tracking, and kinematic compensation. The head ensures stable and accurate placement of virtual graphics into the live environment. The Vector 750i Pan and Tilt Head can be used with large camera combinations involving virtual reality, both in outside broadcast and in the studio.
The VRI Box processes the positional data from the head encoders. It offers direct interfacing to lenses with encoder outputs (or bolt on lens encoders), to enable single data streaming to a graphics rendering system. The VRI box comes with a head interface cable, GUI, and mounting brackets. Mounted on the Quattro SE it provides full six-axis tracking. The Quattro software enables re-configuring to give X, Y, and Z axis VR movement. - Quattro SE Pedestal
-
- Optimum and simplified manual adjustment capability
- Precise, real-time digital electronic positioning of floor and height movement
- PDA user interface simplifies set-up in the virtual studio and provides positional feedback and calibration data
- Virtual Reality Interface Box
-
- Used in virtual reality applications
- Processes the positional data from the head encoders
- Directly interfaces with lenses with encoder outputs (or bolt on lens encoders) to enable single data streaming to graphics rendering system
- Comes with head interface cable, GUI, and mounting brackets
- Can be re-configured from head-mounted to fixed-mounted
- Quattro SE software enables reconfiguring to give X, Y, Z, axis VR movement
- Vector 750i Pan and Tilt Head
-
- Allows semi automatic setup, slide plate tracking, and kinematic compensation
- Used with the VRI box, offers positioning of data from a pantographic head to allow placing the graphics into live environment
- Can be used with large camera combinations involving virtual reality
- For use in the studio and in outside broadcast
In the Box Vinten Quattro SE, VRI Box & Vector 750i Pan and Tilt Head System Quattro SE Encoded Manual Pedestal Vector 750i Pan and Tilt Head Virtual Reality Interface Box Mounting Brackets GUI Head Interface Cable 3219-82 Telescopic Pan Bar and Clamp VRI Mounting Kit V4015-0003 Pan Bar Mounted PDA 3053-3 Standard Wedge with Fixing Screws Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten Quattro SE, VRI Box & Vector 750i Pan and Tilt Head System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten Vector 750I Specs | | | Maximum Load Capacity | 187 lb (85 kg) | | On-Shot Stroke | 39.4" (100 cm) | | Transit Doorway Width | With Small Steering Ring: 29.3" (74.5 cm)
With Large Steering Ring: 32.3" (82.0 cm) | | Clearance | Ground Clearance: 0.8" (2.0 cm) | | Cable Guards | Single point action | | Repeatability | X & Y +/- 70 mm +/- 1° (triangle move) | | Degrees of Freedom | Pedestal Only: 4 (X, Y, Z, and base orientation)
Included in Serial Protocol Output: 4 (P, T, Z, and F) | | Resolution | X, Y, Z: ± < 1 mm
Orientation: ± 0.02° | | Maximum Height | 58.9" (149.8 cm) | | Minimum Height | 19.6" (49.8 cm) | | Weight | 300.6 lb (136.4 kg), without trim weights | | | | Interface | Direct interface for lenses | | Fixing Center | Standard Vinten accessory mount bars, 25, 50, 75 or 100 mm centers | | Connectors | 1 x Genlock, input
2 x Genlock, output
1 x Devicelink.i
1 x Lens encoders (quadrature)
1 x Quatrature heads input
1 x GUI input
1 x Jib input (quadrature input for elevation and azimuth on selected jibs)
2 x Ethernet
1 x USB | | Power | Power In: 110-250 VAC or 9-28 VDC, power consumption 80 W
Power Out: 12 VDC @ 1 A / 24 VDC @ 1 A | | | | Payload | 165.3 lb (75 kg) | | Tilt Range | ±52° @ 165.3 lb (75 kg) | | Pan Resolution | 1.8 million counts per 360° | | Tilt Resolution | 1.6 million counts per 360° | | Power Requirements | 5 VDC ±10% | | Platform Adjustment | +2.2 to -4.9" (+5.5 to -12.5 cm) | | Pan Bar | Single telescopic | | Camera Fixing | EFP Quickfit Automatic Adapter [3761-3] | | Levelling Bubble | Illuminated | | Drag Knobs | Backlit and calibrated | | Counterbalance | Fully variable with digital readout | | Base Fixing | 4-bolt flat with Quickfix groove | | Dimensions | 10.0 x 14.0 x 13.5" (25.5 x 35.5 x 34.2 cm) | | Weight | 39.5 lb (17.9 kg), including wedge adapter & pan bar |
