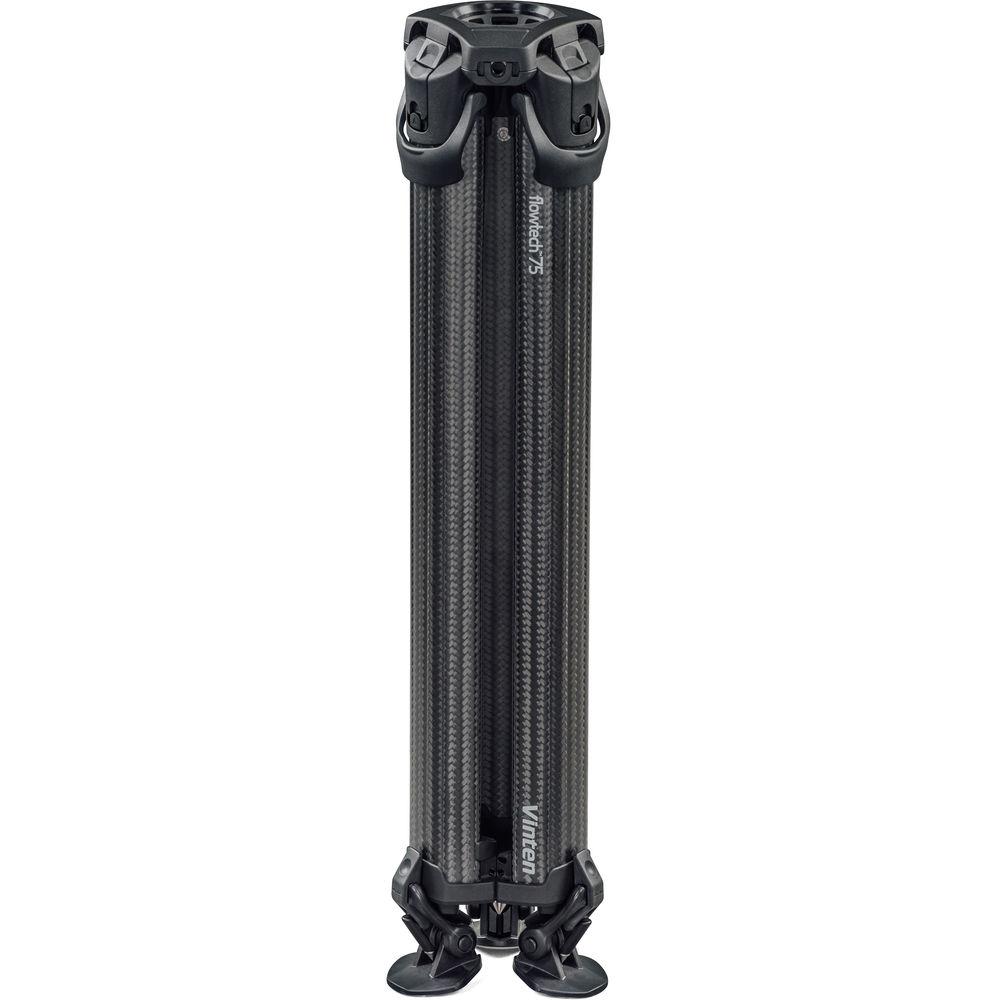

User Manual for Vinten System Vision blue with Flowtech 75 Carbon Fiber Tripod Click to enlarge the picture
Contents of the user manual for the Vinten System Vision blue with Flowtech
- Product category: Tripod Systems Vinten
- Brand: Vinten
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vinten Tripod Systems
 |
User manual for the Vinten System Vision blue with Flowtech contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vinten product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vinten user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vinten product will considerably shorten its lifespan!
|
Product description Announcing the Flowtech from Sachtler: A New Innovation in Video Tripod Legs Read More - Video Tripod for Filmmakers! - Sachtler Flowtech 75

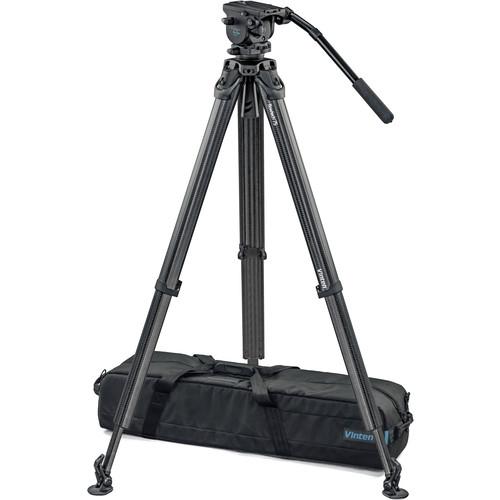

This Vinten System Vision blue with Flowtech 75 Carbon Fiber Tripod with Rubber Feet supports cameras and accessories weighing from 4.6 to 11 pounds, and is well suited for DSLRs, Mirrorless, and small to medium camcorders. The head features a sliding balance plate to balance your camera, variable counterbalance adjustment and variable tilt drag. The head also features a tilt range of -90 to +90°.

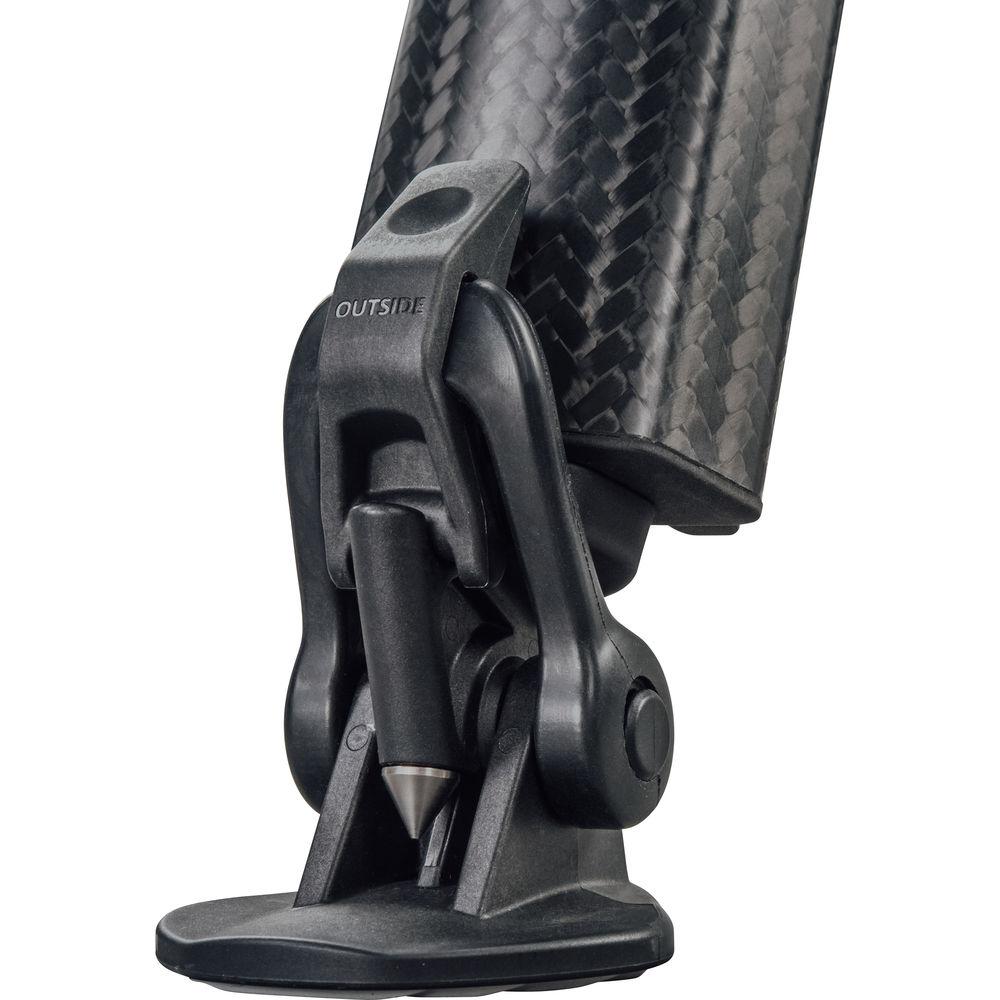

The included Flowtech legs are a lightweight set of tripod legs that can be used with or without a mid-level spreader. Although the legs come with removable rubber boots that can go over the spikes, this bundle does not include a mid-level spreader (available separately). The legs have three locking points, so you do not need a spreader, and they support up to 44 pounds, which means they can easily handle the weight of the fluid head as well as your camera and accessories. They extend from approximately two feet to five feet, and are extremely resistant to twisting when you pan. Additionally, each leg features a single locking lever near the top of the leg that allows you to open the leg sections to raise or lower the leg. There is room for an optional mid-level spreader, and the legs feature a magnetic locking system strong enough to hold them together during transport, but weak enough to easily release the legs when you want to set them up. The included padded carry bag is for storing or transporting the head and legs. Fluid Head - LF Drag technology using a unique lubricant fluid for fine adjustment of drag level to smooth movements as well as allow for a controlled whip pan at any setting.
- Operating temperature range of 5 to 86°F.
- Accepts optional blueBridge accessory to lower the range of payloads for the Vision blue system.

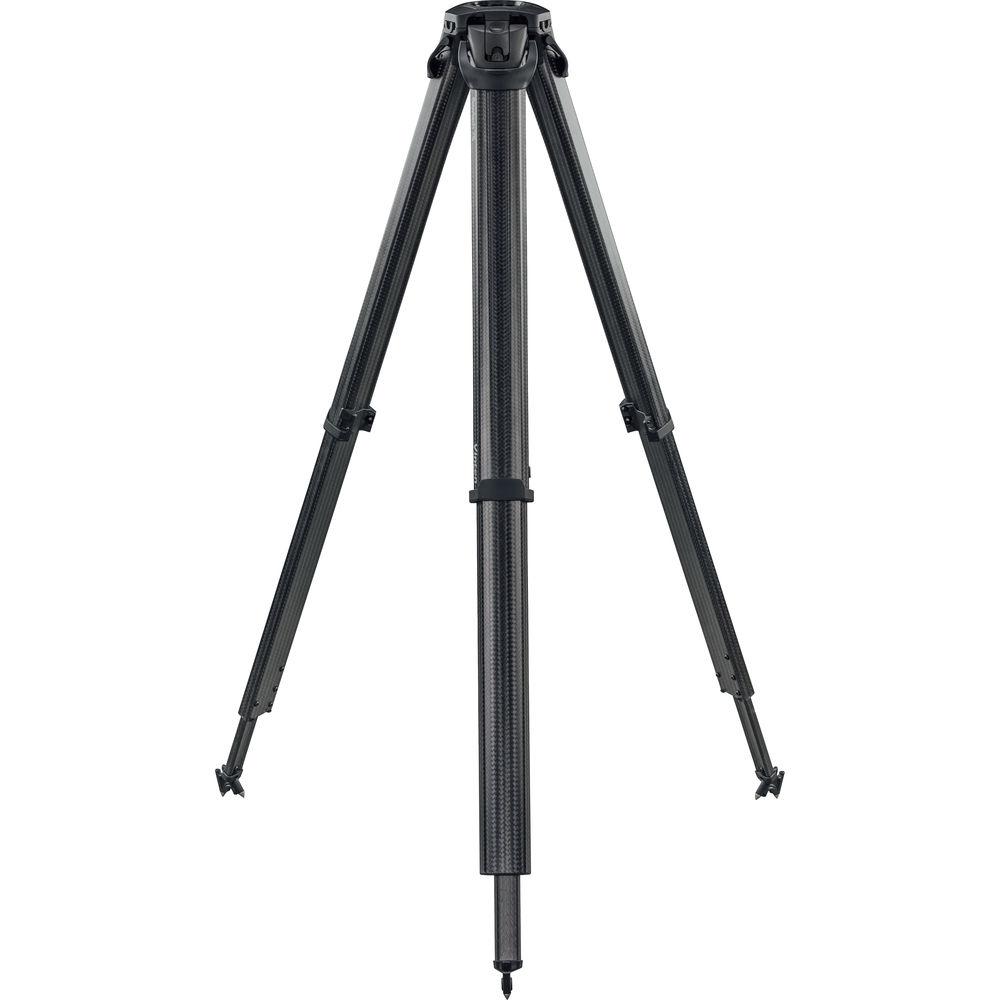

Legs - Dual-stage, carbon fiber, 75mm bowl tripod
- Weighs only 6.4 pounds but supports up to 44 pounds
- The design and construction of the legs provide tremendous torsional stability. In other words, the legs resist twisting when you pan the tripod head.

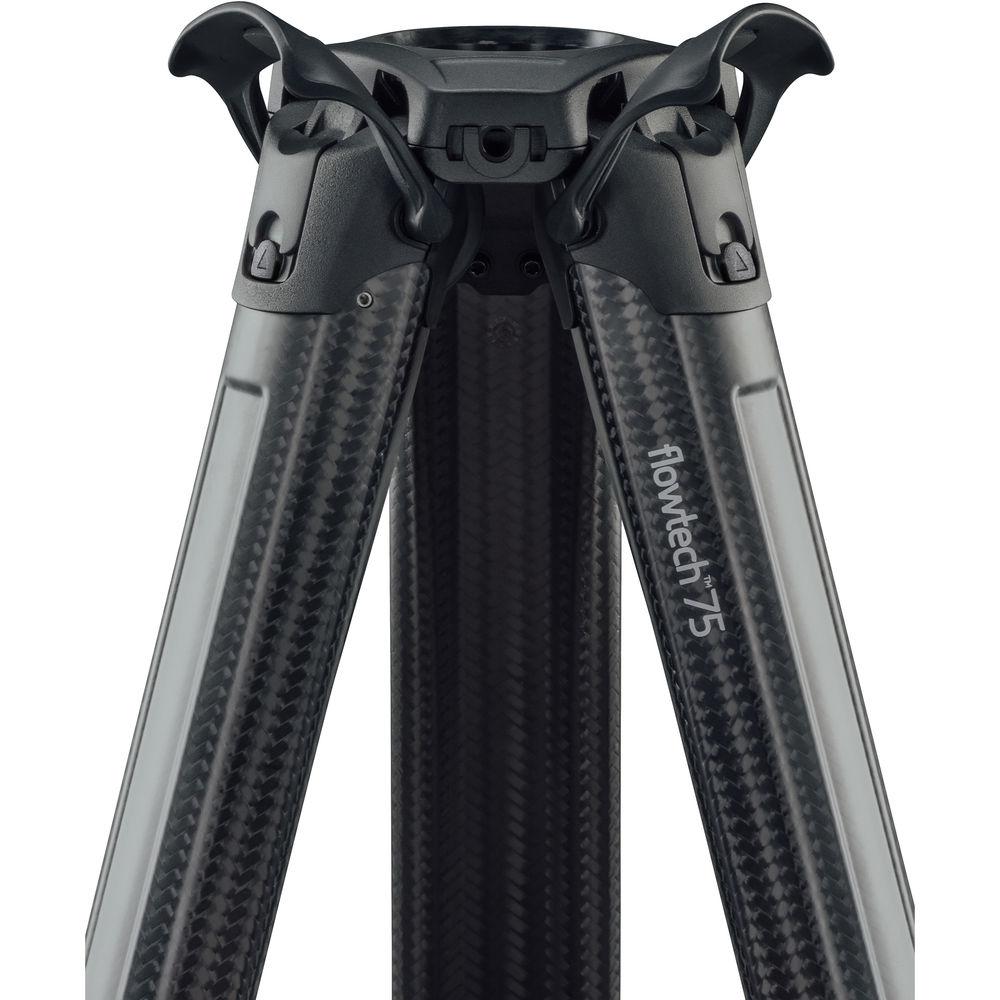

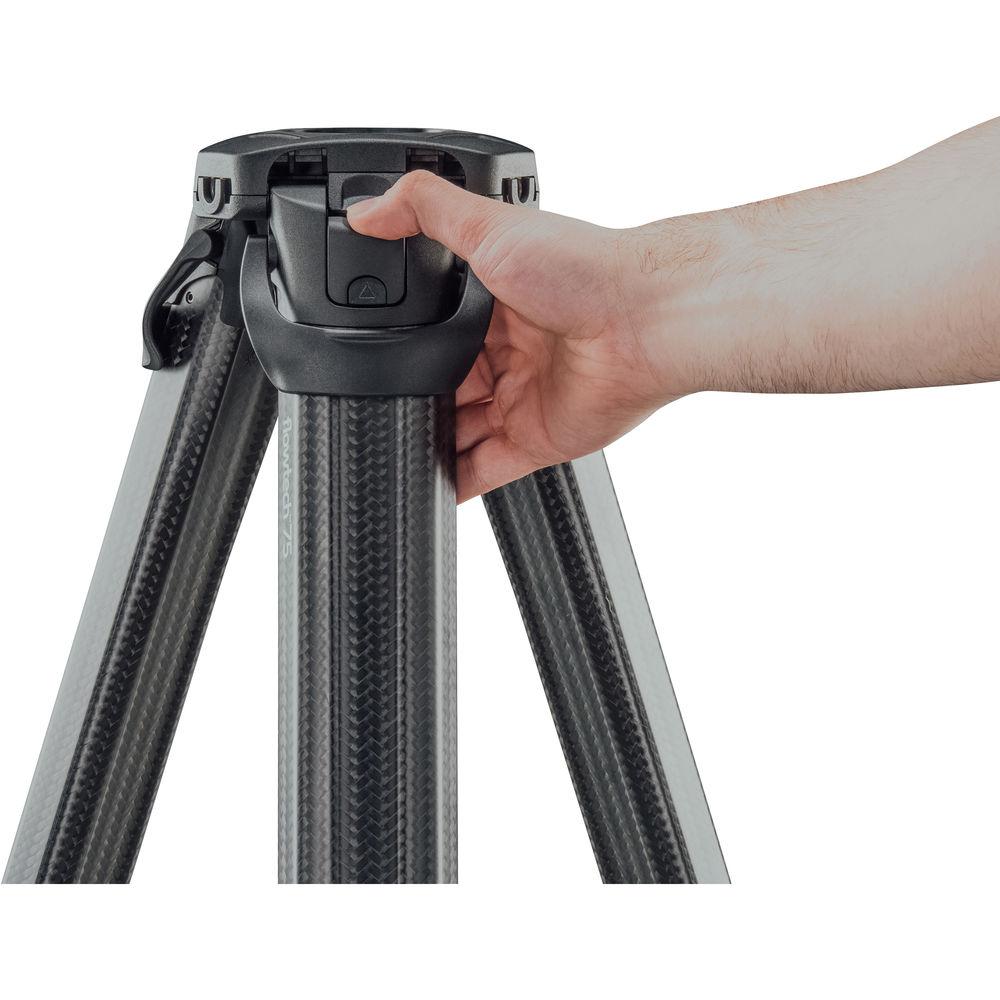

- Each leg features a single clamping lever lock design at the top of the leg, near the 75mm bowl. This allows you to loosen all three leg sections from a single location, saving you time while reducing the wear and tear on your body as you don't have to bend down to loosen a leg lock at the bottom to lower or raise the legs.

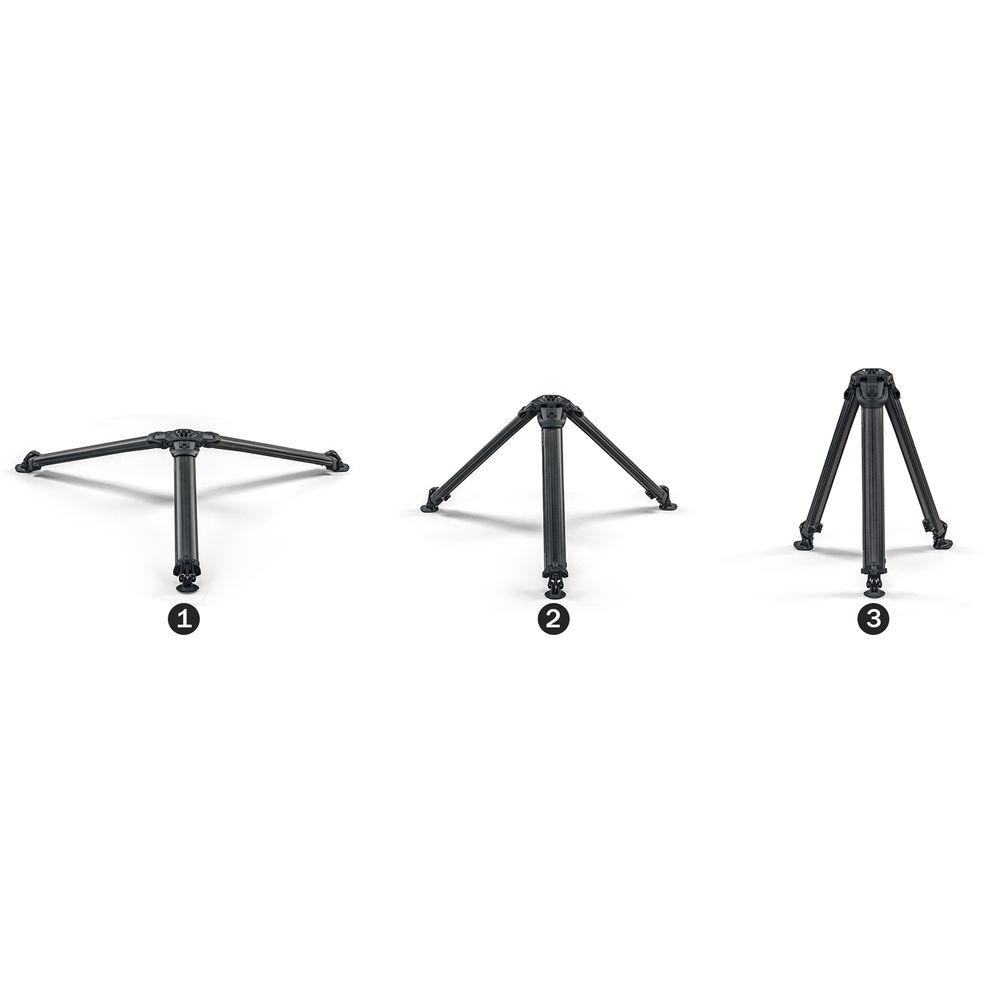

- The legs incorporate a locking mechanism that enables the legs to move completely freely, suitable when working with a spreader, or to lock at one of three angles, suitable for use when working without a spreader.
In the Box Vinten System Vision blue with Flowtech 75 Carbon Fiber Tripod Vision blue Pan and Tilt Fluid Video Head Flowtech 75mm Legs 3 x Rubber Feet Padded Bag User Manual- Flowtech 75 PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten System Vision blue with Flowtech 75 Carbon Fiber Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVinten Vision Blue Specs | | | Load Capacity | 4.6-11.0 lb / 2.1-5.0 kg at 2.2" / 55 mm center of gravity | | Base | 75 mm ball | | Tilt Range | ±90° | | Pan Range | 360° | | Pan Bar | Single fixed length | | Drag Control | Calibrated infinitely adjustable LF drag system | | Counterbalance | Infinitely adjustable Perfect Balance | | Leveling Bubble | Illuminated high contrast blue LED | | Operating Temperature | 5 to 86°F / -15 to 30°C | | Height | 4.8" / 12.1 cm | | Length | 5.1" / 12.9 cm | | Width | 5.8" / 14.8 cm | | Weight | 5.3 lb / 2.4 kg with pan bar, camera plate, and bowl clamp | | | | Leg Stages/Sections | 2-stage (3-section) | | Height Range | Without Mid-Level Spreader: 10.24 to 60.24" / 26 to 153 cm | | Collapsed Height | 26.8" / 68 cm | | Load Capacity | 44 lb / 20 kg | | Head Attachment Fitting | 75 mm bowl | | Material | Legs:
Carbon fiber
Head Attachment Fitting:
Aluminum | | Leg Lock Type | Lever clamp | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 43.0 x 10.0 x 10.0" |
