Product description

• Vision blue3 Fluid Head
  • Video Tripod for Filmmakers! - Sachtler Flowtech 75
  Featuring continuously adjustable counterbalance and tilt drag, the Vinten Vision blue3 Fluid Head is a suitable companion to cameras weighing from 6.6 to 14.6 pounds. Counterbalance and tilt drag can be set precisely to your setup so you don't have to deal with "almost" perfect balance. Cameras down to 4.6 pounds are supported with the separately available blueBridge accessory. Using the 75mm standard ball mount, this head can be balanced atop a tripod with a 75mm bowl. Using bubble level, you can properly frame your horizon lines for perfect horizontal panning. The bubble level itself is illuminated for visibility in dim environments. One press of the bubble level yields 15 seconds of illumination to save battery. The sliding balance plate included with this head is compatible with the included 1/4"-20 and 3/8"-16 screws for locking down DSLRs, mirrorless cameras, or camcorders. A safety catch ensures that your camera won't fall off the head while the plate is loose. For controlling the head, a fixed-length pan handle is included, and it can be mounted on either side of the head on locking rosettes.

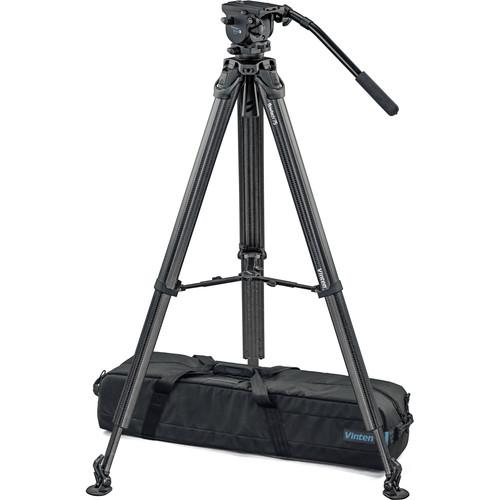

• Flowtech 75 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet The Vinten Flowtech 75 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet eschews the common single or double carbon fiber tube design and instead has redesigned the shape of the legs for improved torsional strength. The legs weigh under 7 pounds yet they can support a payload of up to 44 pounds, and extend from a minimum height of 24" to a maximum height of 61" when using the included removable mid-level spreader. Each leg features a single clamping lever that locks and unlocks the sections.

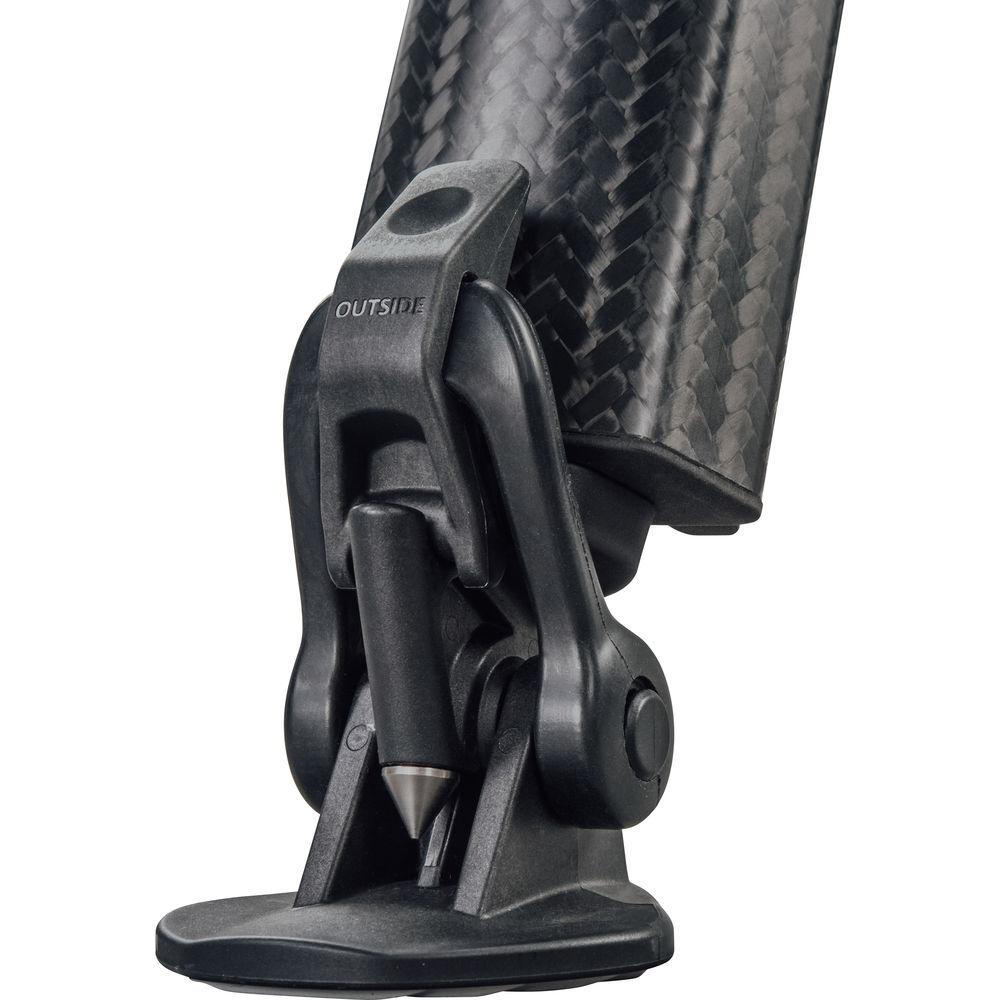

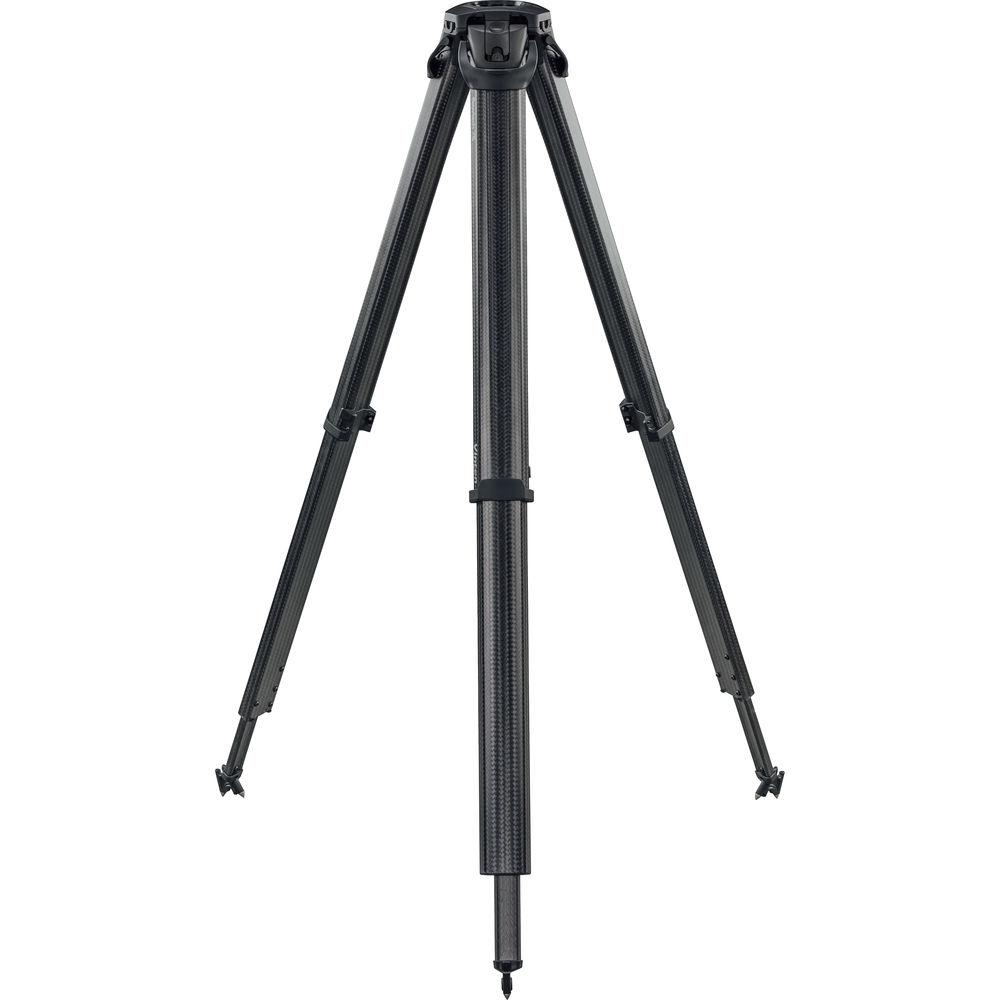

  Each leg extends or retracts independently from the other two, and when it is detached from the spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. You can remove the spreader completely and lock each leg in one of three positions, so you can work without a spreader if you wish. This enables you to spread the legs extremely wide for low shots, while the tripod legs maintain their torsional stability. The dual spikes at the end of each leg provide extra grip when working on softer ground, and you can snap rubber feet onto the dual spikes for better grip when working on hard or delicate surfaces.

  Features

  • Dual-stage, carbon fiber, 75mm bowl tripod
  • Weighs only 6.4 pounds but supports up to 44 pounds
  • The design and construction of the legs provide tremendous torsional stability. In other words, the legs resist twisting when you pan the tripod head.

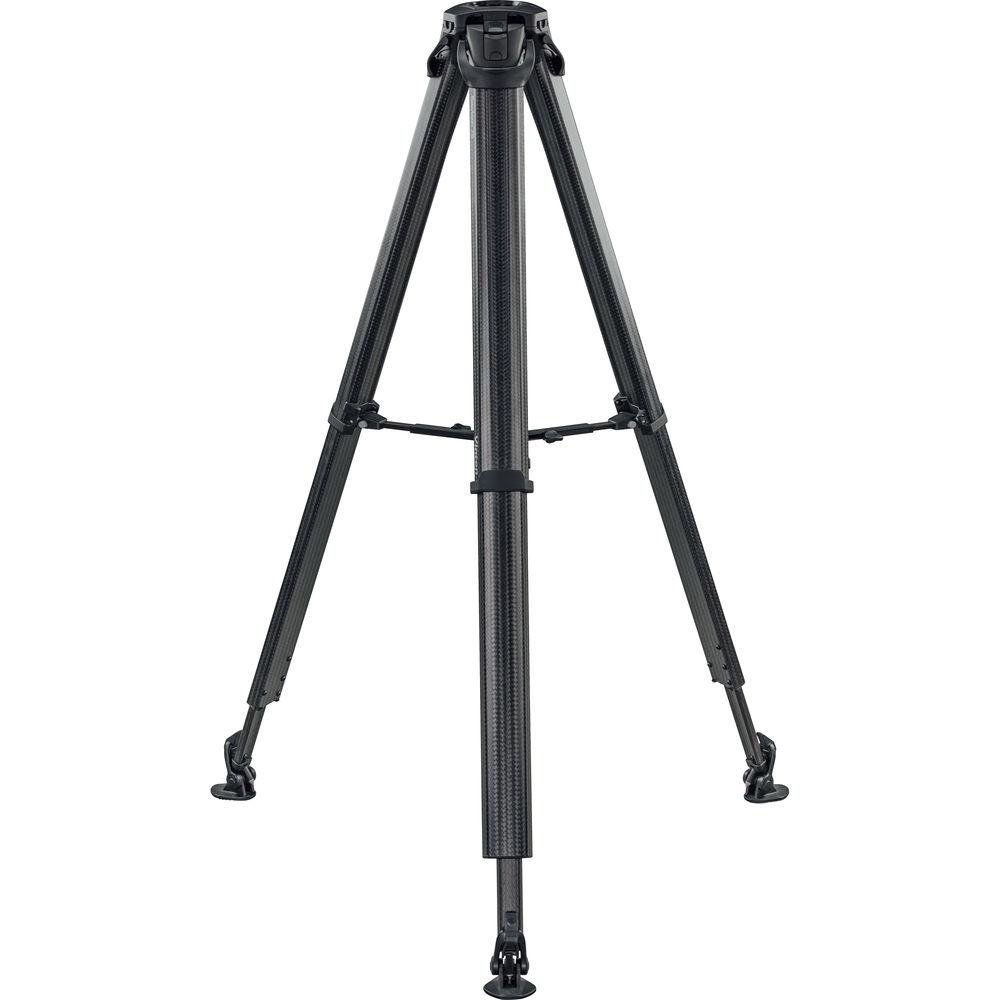

  • The included mid-level spreader allows you to work on uneven terrain such as stairs or rocks while preventing the legs from flying apart. When using the mid-level spreader, you can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes.

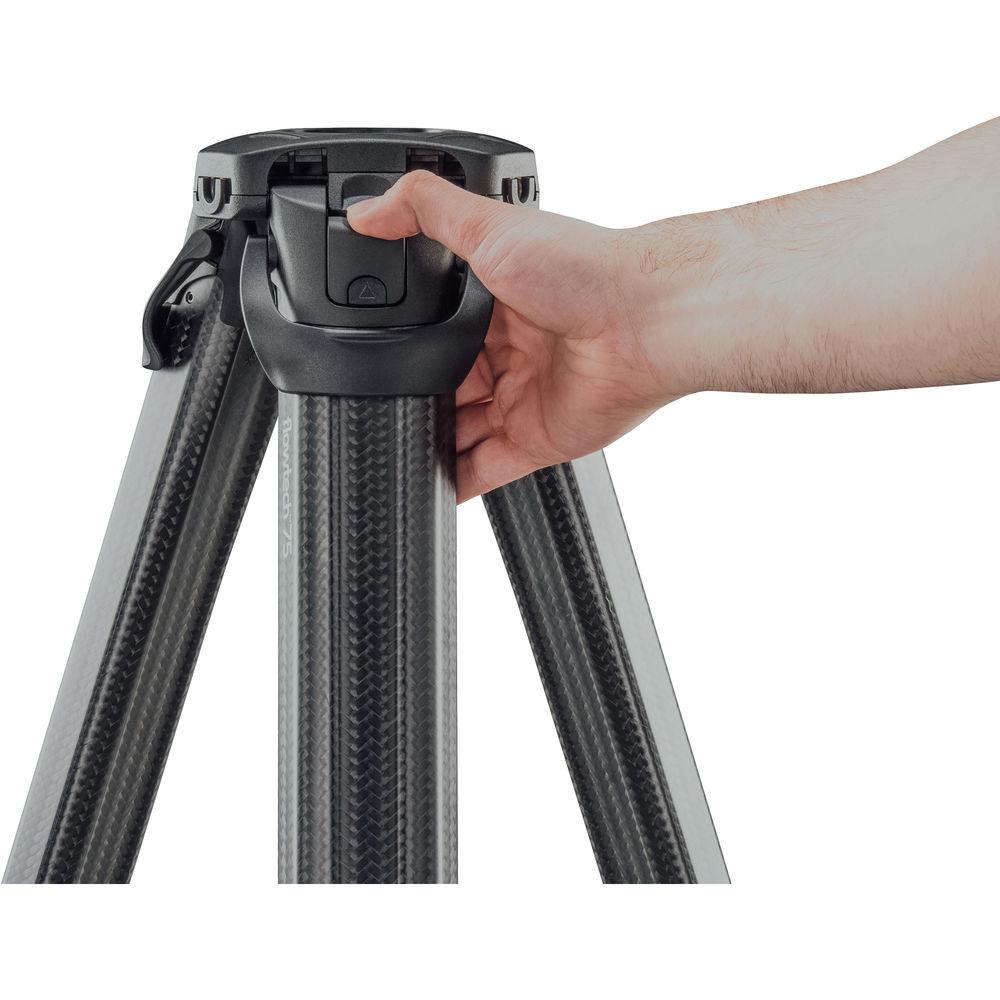

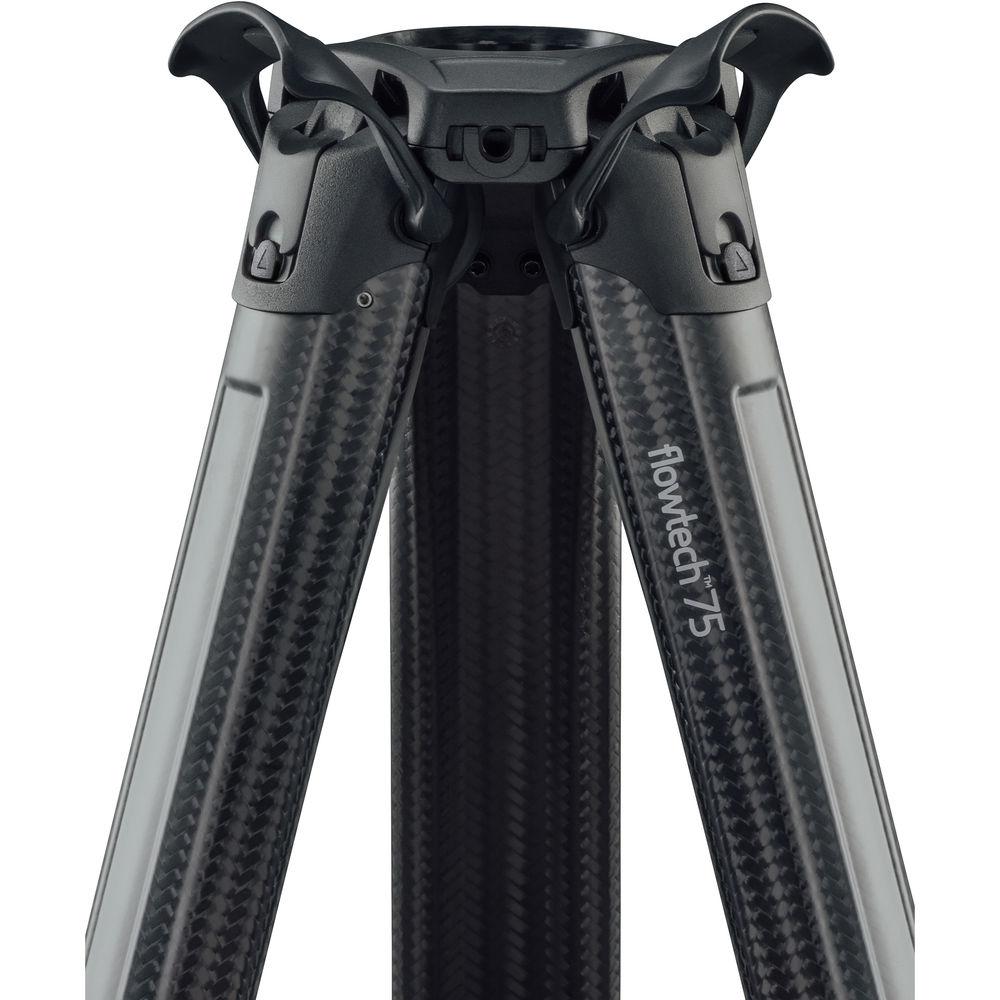

  • Each leg features a single clamping lever lock design at the top of the leg, near the 75mm bowl. This allows you to loosen all three leg sections from a single location, saving you time while reducing the wear and tear on your body as you don't have to bend down to loosen a leg lock at the bottom to lower or raise the legs.

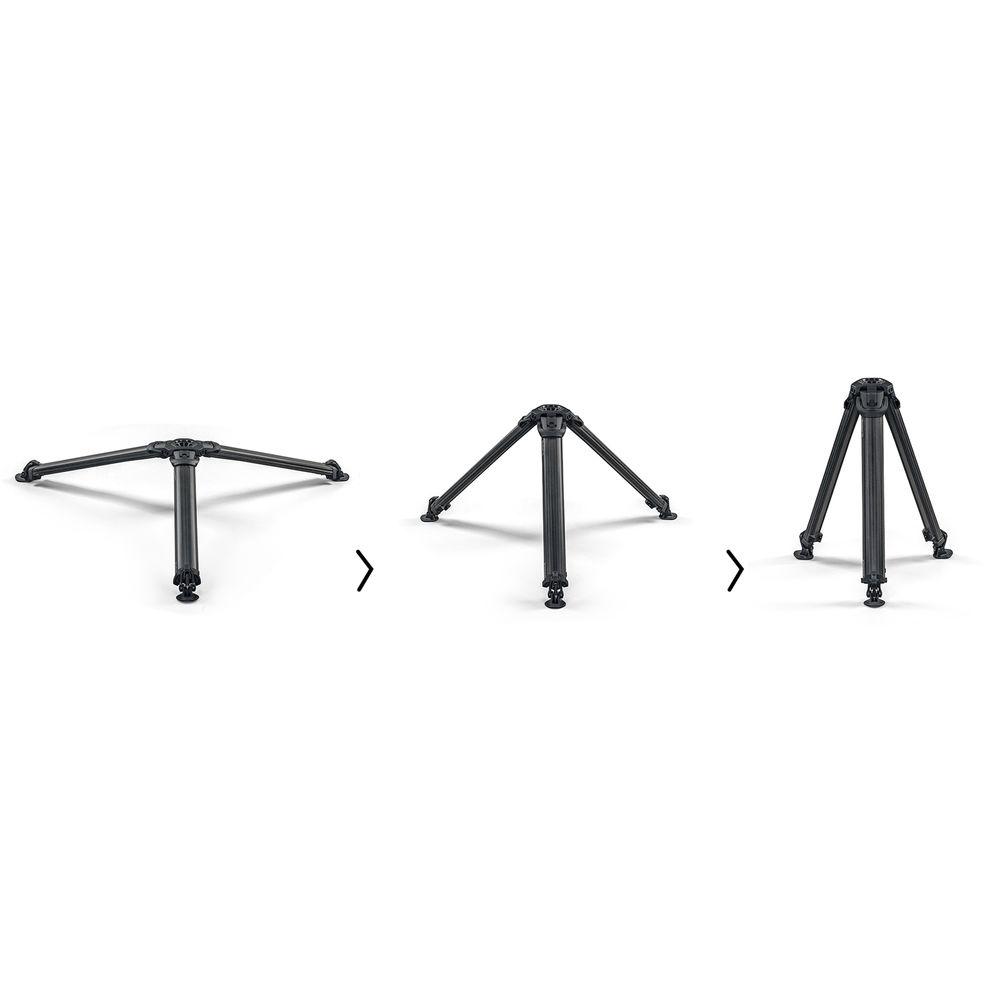

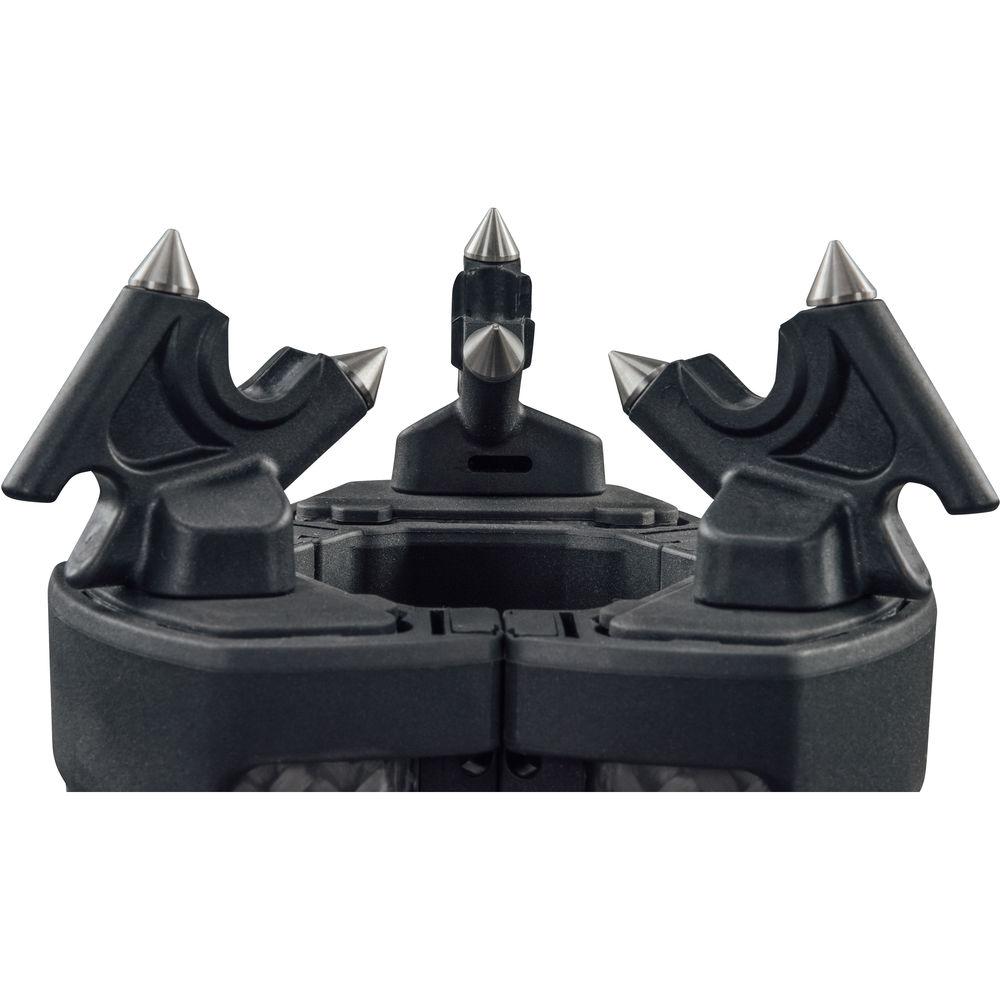

  • The legs incorporate a locking mechanism that enables the legs to move freely for working with a spreader, or to lock at one of three angles when working without a spreader.

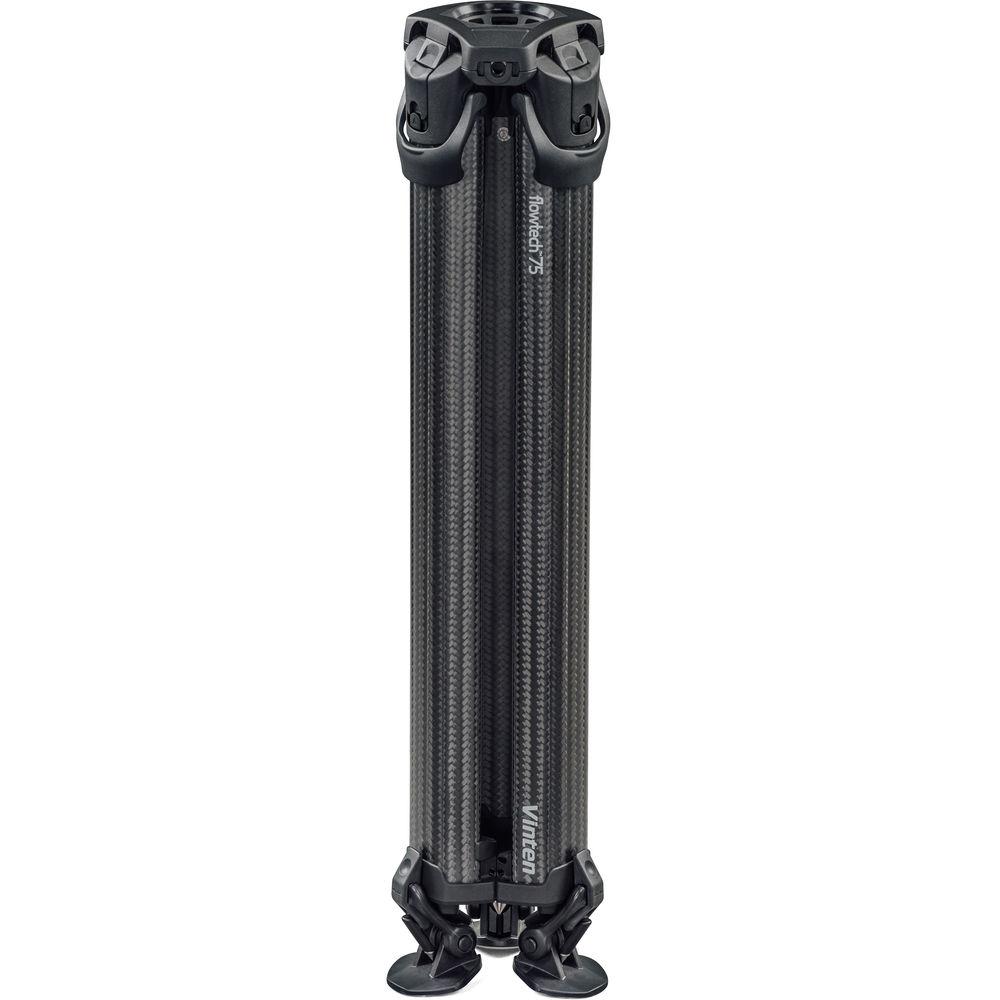

  • When closing the legs, there is room for the mid-level spreader to be folded up while remaining attached. The legs feature a magnetic locking system strong enough to hold them together during transport, but it also allows you to easily release the legs when you want to set them up.

• Camera Plate

• 1/4" Screw

• 2 x 3/8" Screw

• Pan Handle

• Bowl Clamp Knob

• Limited 1-Year Warranty

• Mid-Level Spreader

• 3 x Removable Rubber Feet

• Limited 1-Year Warranty

Also Includes

• Padded Bag

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Vinten System Vision blue3 Head with Flowtech 75 Carbon Fiber Tripod, Mid-Level Spreader, and Rubber Feet can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Vinten System Vision blue3 Head with Flowtech 75 Carbon Fiber Tripod, Mid-Level Spreader, and Rubber Feet can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Vinten System Vision blue3 Head with Flowtech 75 Carbon Fiber Tripod, Mid-Level Spreader, and Rubber Feet (PDF file, 0 MB)

Technical parameters

• Vision blue3 Fluid Head

  Camera Plate Features	Sliding Balance Plate

  Base Mount	75 mm Half Ball

  Drag Control	Tilt: Continuous
  Vertical Tilt	+90 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 71 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
