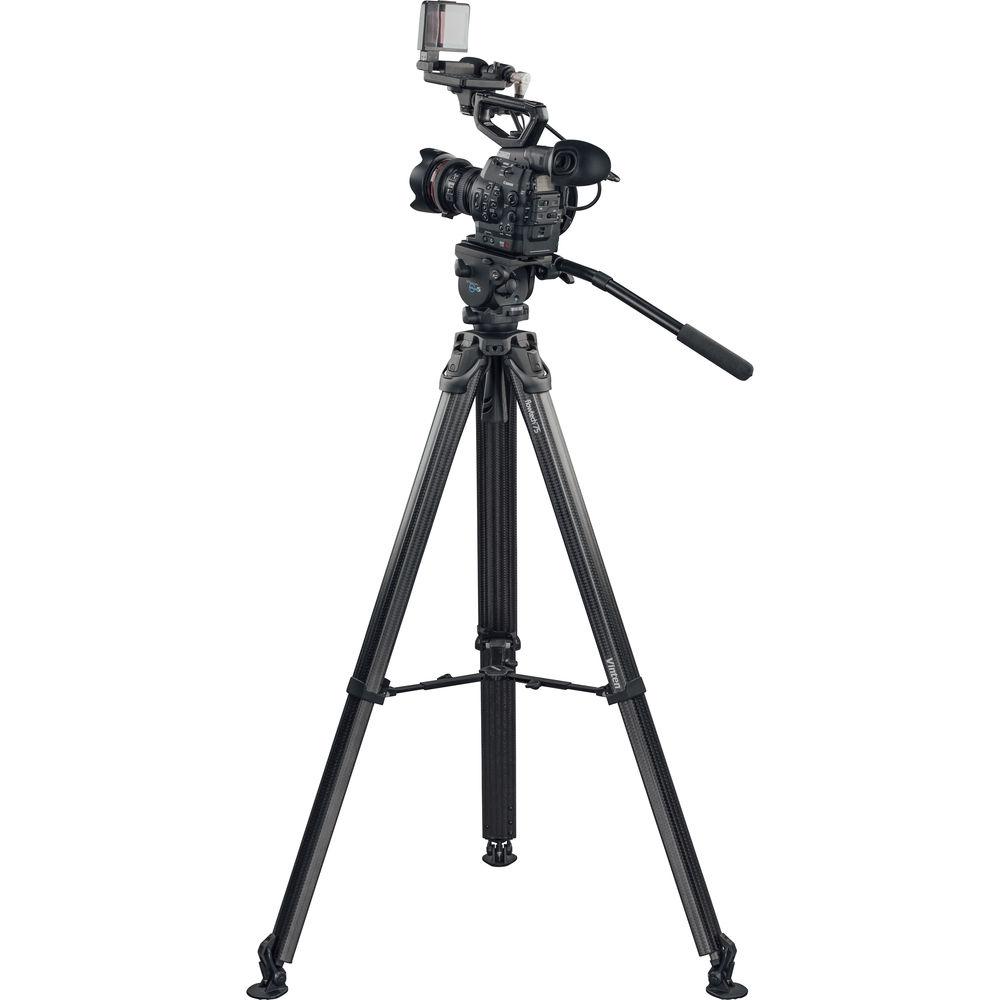

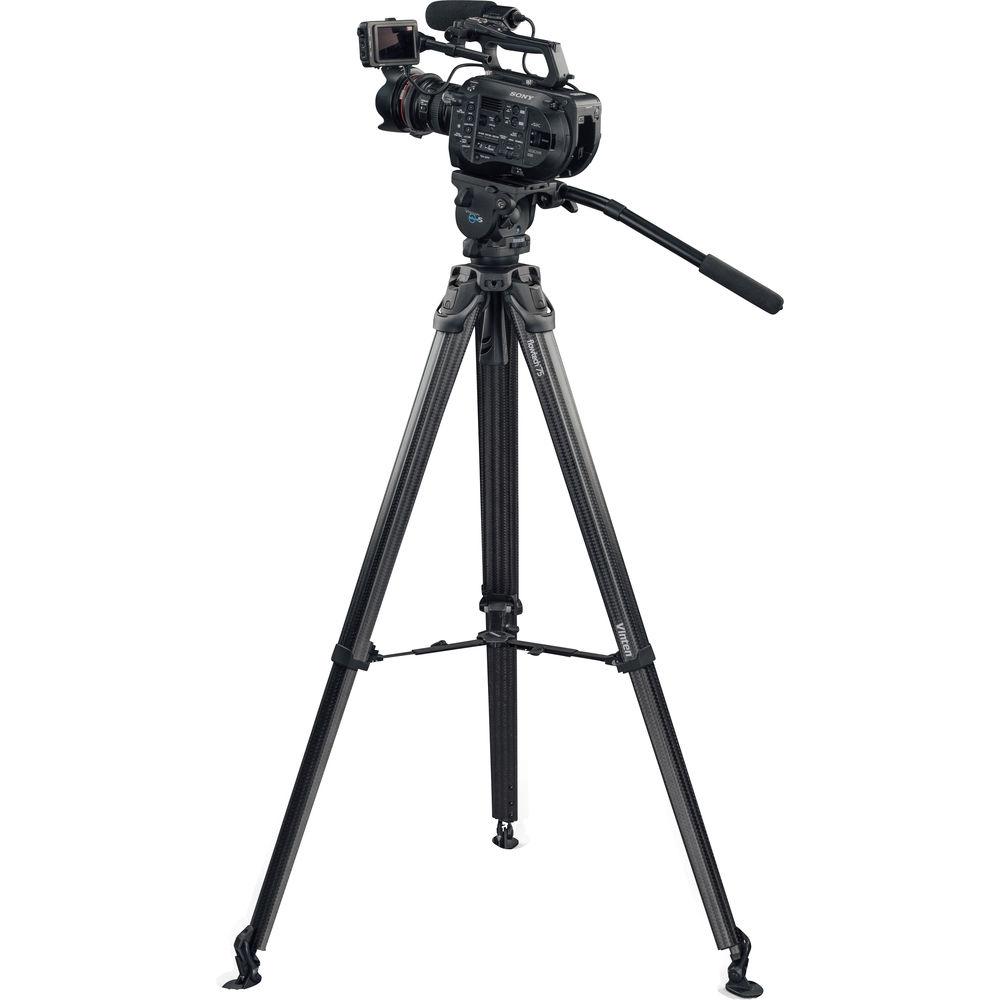

Product description Announcing the Flowtech from Sachtler: A New Innovation in Video Tripod Legs Read More This Vinten System Vision blue5 with Flowtech 75 Carbon Fiber Tripod, Mid-Level Spreader, and Rubber Feet supports cameras and accessories weighing from 12.1 to 26.5 pounds, and is well suited for medium to large camcorders, as well as DSLR/Mirrorless cameras in shoulder rigs with accessories. The head features a sliding balance plate to balance your camera, infinitely variable counterbalance adjustment and tilt drag. The head also features a tilt range of -90 to +90°.

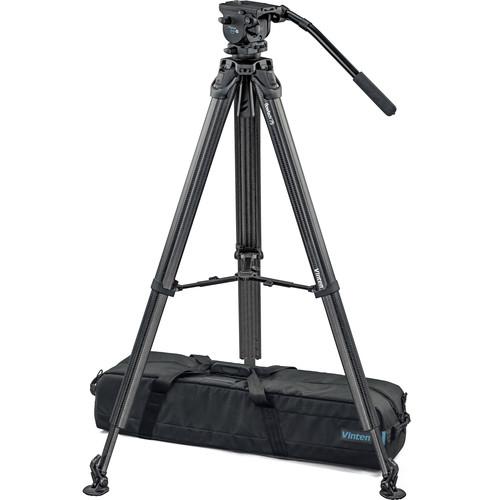

The included Flowtech legs are a lightweight set of tripod legs that can be used with or without the included mid-level spreader. The legs support up to 44 pounds, which means they can easily handle the weight of the included Vision blue5 head as well as your camera and accessories. They extend from approximately two feet to five feet, and are extremely resistant to twisting when you pan. Additionally, each leg features a single lock near the top of the leg that allows you to open the leg sections to raise or lower the leg. The included padded carry bag is for storing or transporting the head and legs. - Vision blue5 Pan and Tilt Tripod Head
- Video Tripod for Filmmakers! - Sachtler Flowtech 75
The Vinten Vision blue5 Pan and Tilt Tripod Head is a lightweight and compact pan and tilt head featuring a combination of continuous counterbalance and infinite drag. It provides a full +/-90° of smooth tilt movement with a counterbalance range of 12.1 to 26.5 lb at 100mm center of gravity, perfect for supporting the latest portable cameras. A blue illuminated leveling bubble offers the added advantage of quick and convenient setup. The head has a 75mm ball base. - Continuous Counterbalance and Infinite Drag
-
- Counterbalance range of 12.1 to 26.5 lb at 100mm center of gravity
- Full +/-90° of smooth tilt movement
- Illuminated leveling bubble
- 75mm ball base

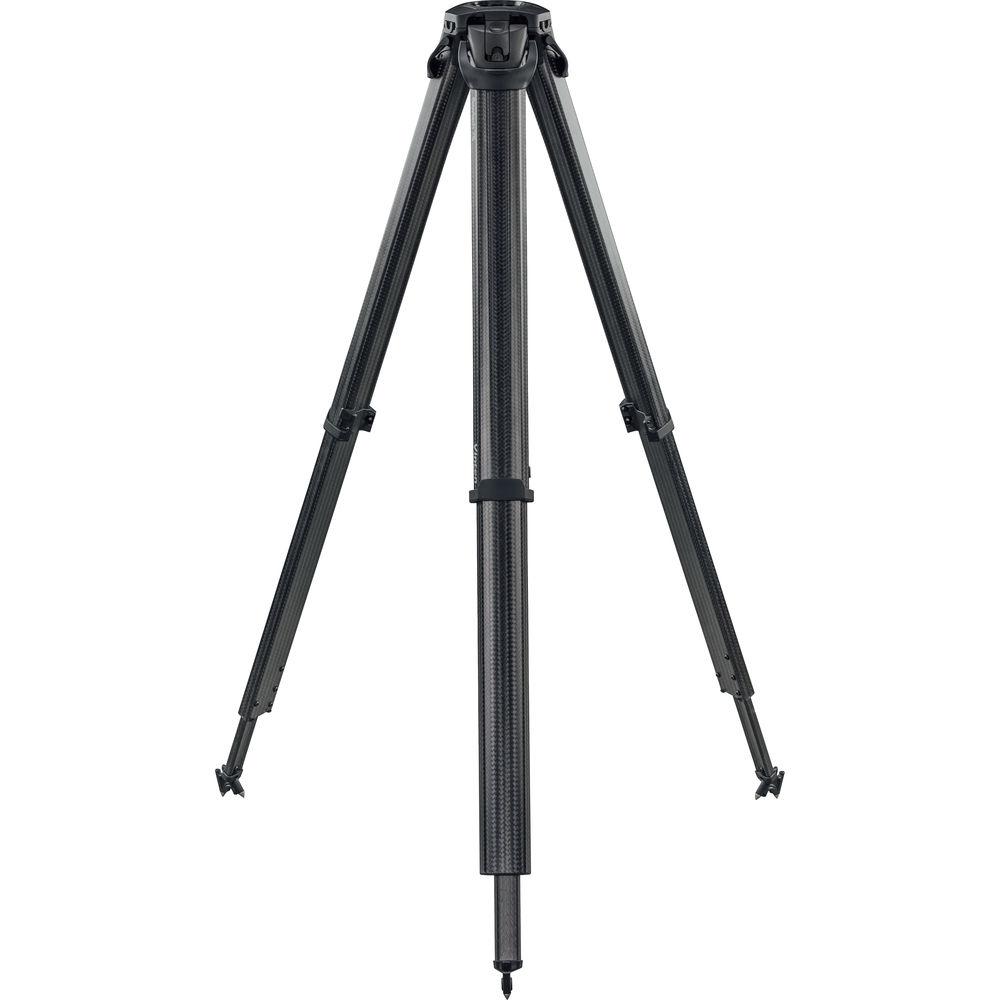

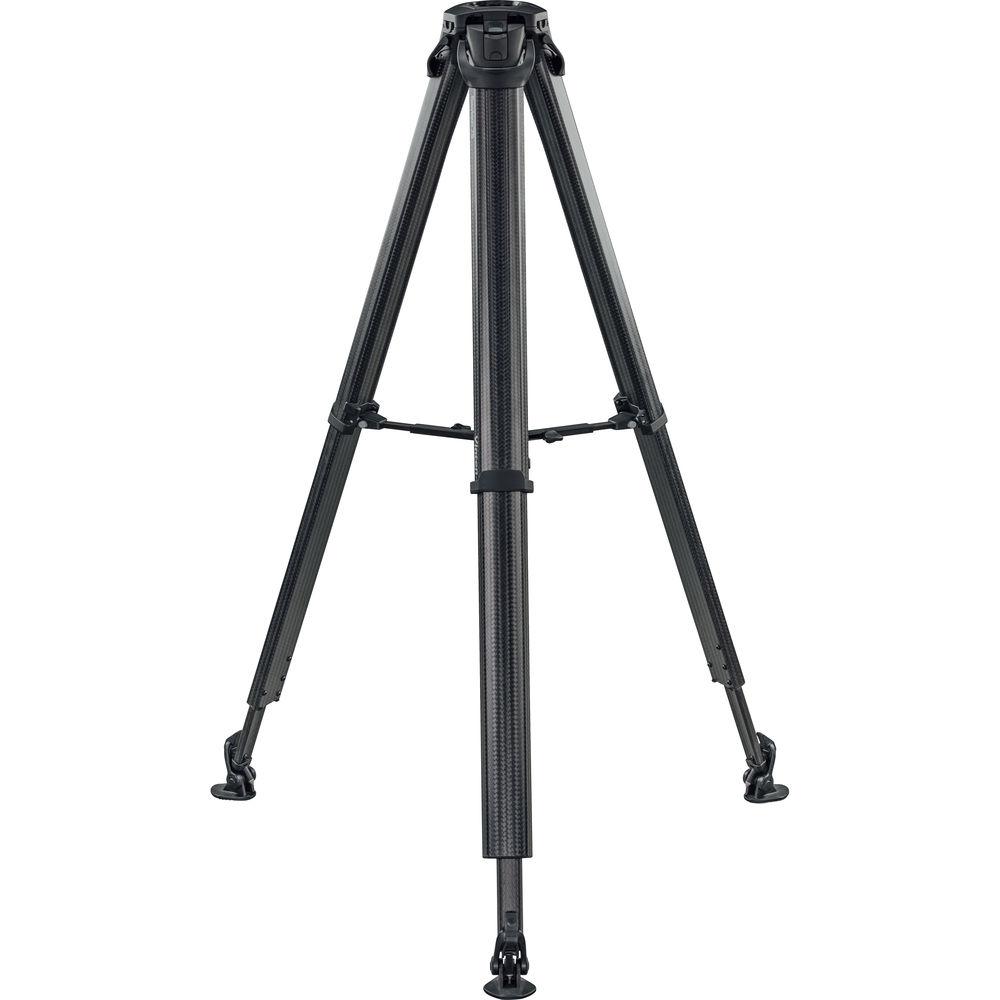

- Flowtech 75 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet The Vinten Flowtech 75 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet eschews the common single or double carbon fiber tube design and instead has redesigned the shape of the legs for improved torsional strength. The legs weigh under 7 pounds yet they can support a payload of up to 44 pounds, and extend from a minimum height of 24" to a maximum height of 61" when using the included removable mid-level spreader. Each leg features a single clamping lever that locks and unlocks the sections.

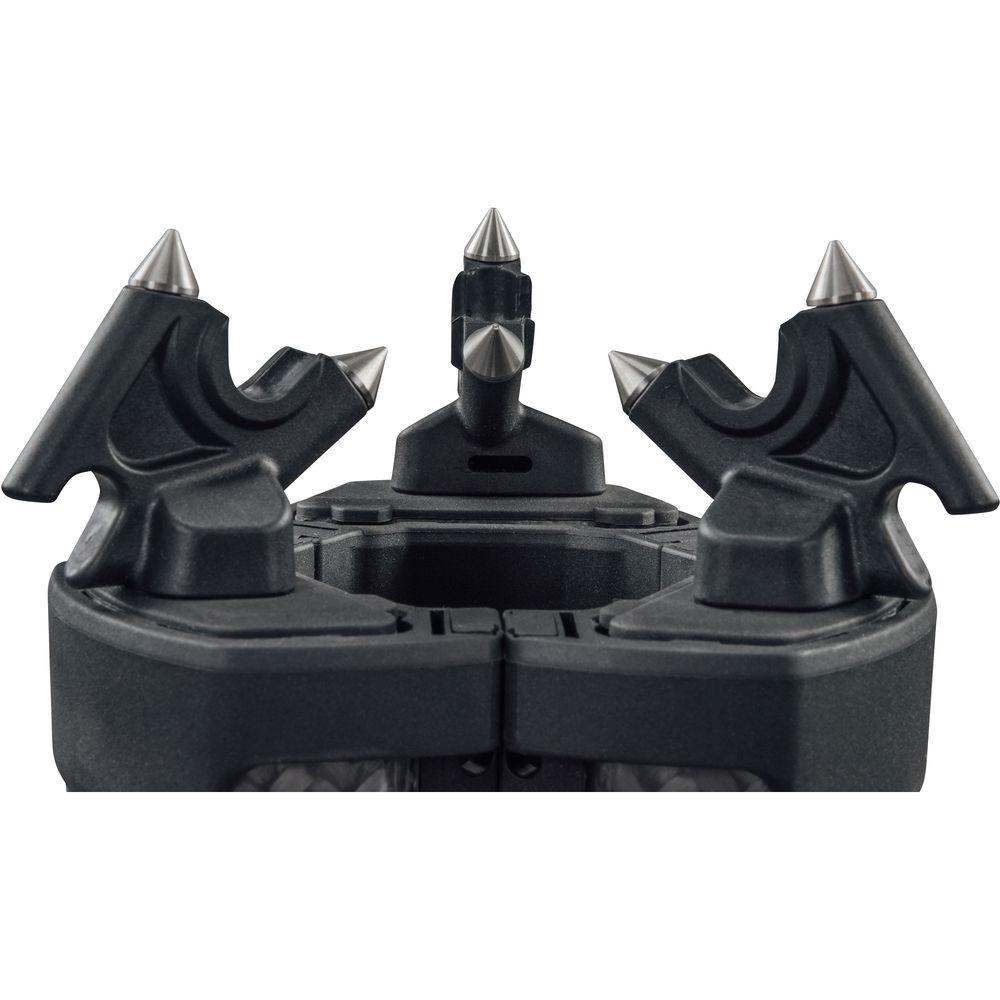

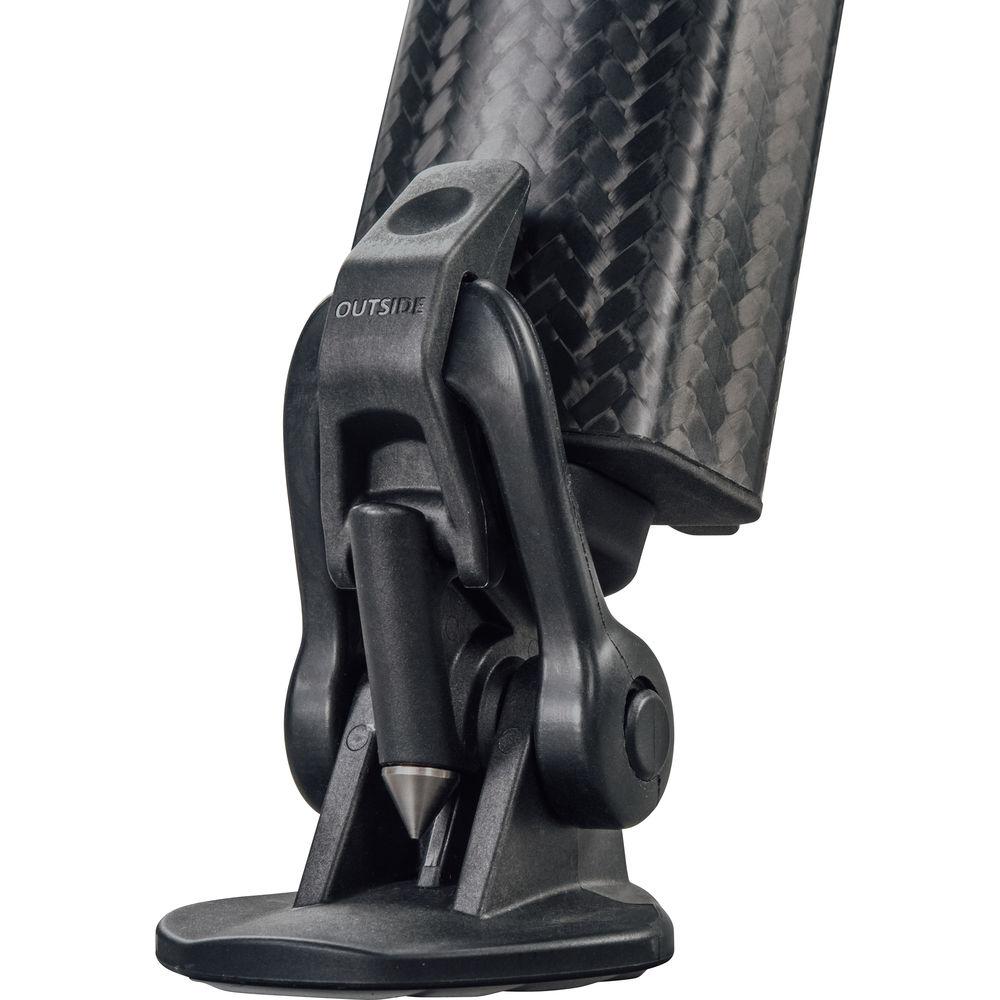

Each leg extends or retracts independently from the other two, and when it is detached from the spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. You can remove the spreader completely and lock each leg in one of three positions, so you can work without a spreader if you wish. This enables you to spread the legs extremely wide for low shots, while the tripod legs maintain their torsional stability. The dual spikes at the end of each leg provide extra grip when working on softer ground, and you can snap rubber feet onto the dual spikes for better grip when working on hard or delicate surfaces. Features - Dual-stage, carbon fiber, 75mm bowl tripod
- Weighs only 6.4 pounds but supports up to 44 pounds
- The design and construction of the legs provide tremendous torsional stability. In other words, the legs resist twisting when you pan the tripod head.
- The included mid-level spreader allows you to work on uneven terrain such as stairs or rocks while preventing the legs from flying apart. When using the mid-level spreader, you can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes.

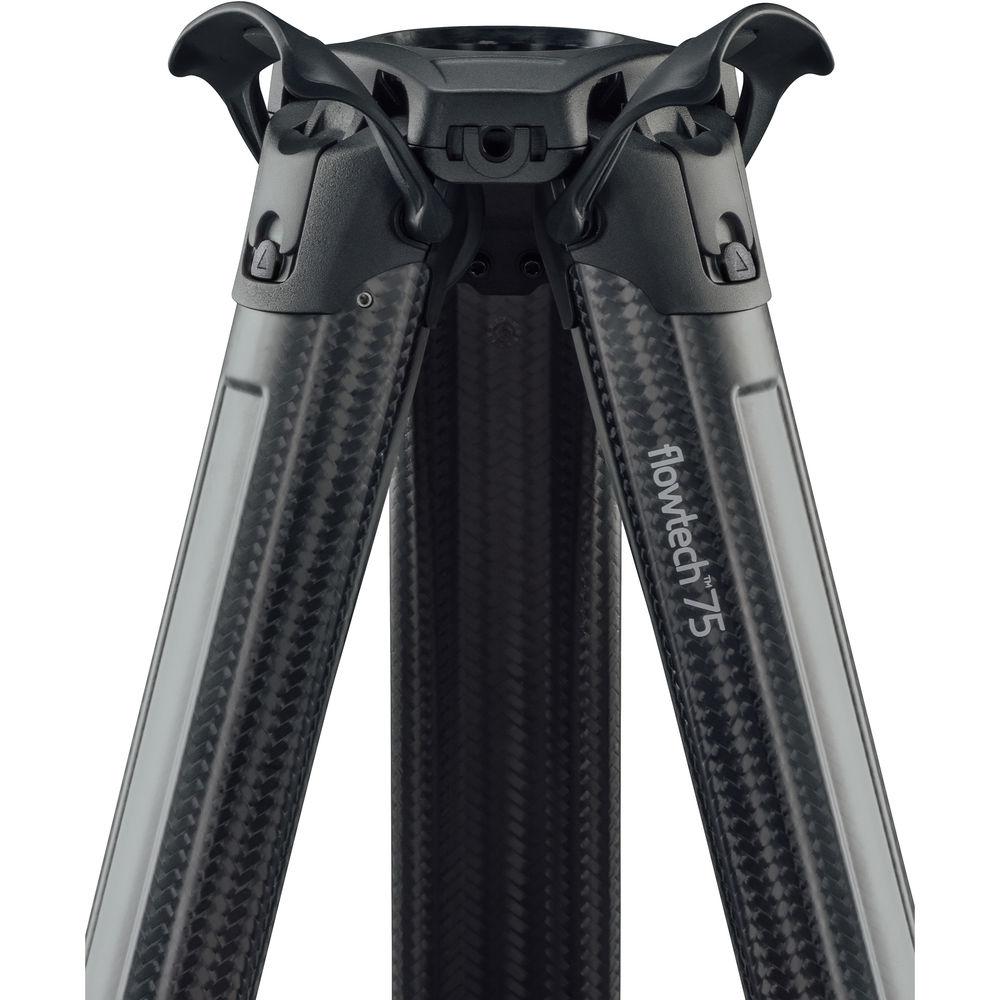

- Each leg features a single clamping lever lock design at the top of the leg, near the 75mm bowl. This allows you to loosen all three leg sections from a single location, saving you time while reducing the wear and tear on your body as you don't have to bend down to loosen a leg lock at the bottom to lower or raise the legs.
- The legs incorporate a locking mechanism that enables the legs to move freely for working with a spreader, or to lock at one of three angles when working without a spreader.

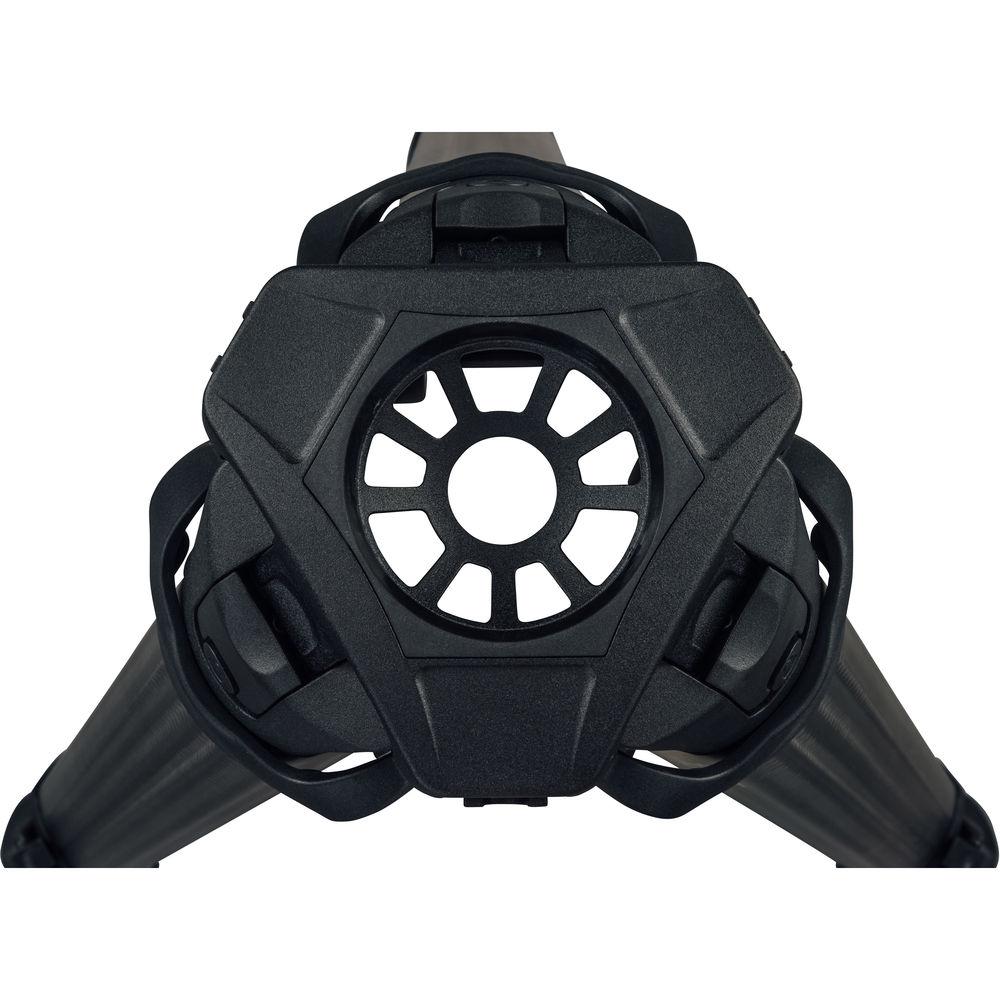

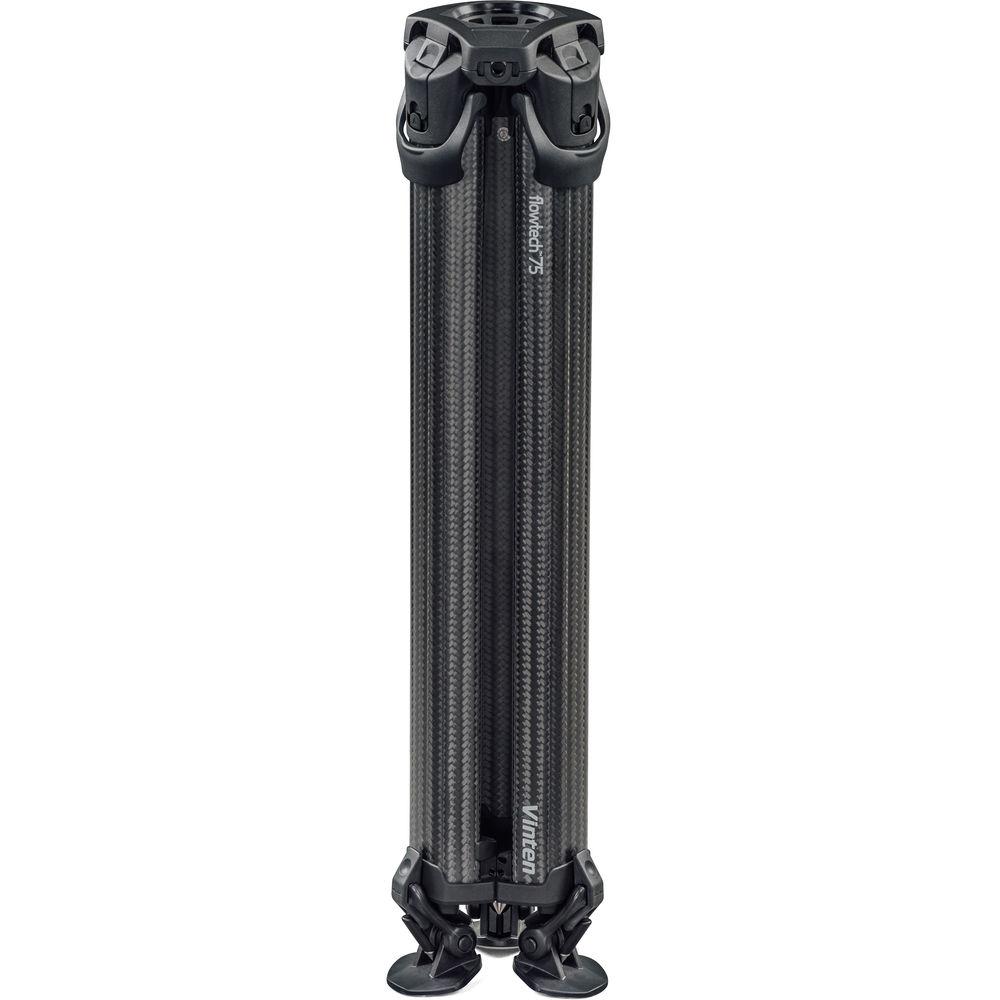

- When closing the legs, there is room for the mid-level spreader to be folded up while remaining attached. The legs feature a magnetic locking system strong enough to hold them together during transport, but it also allows you to easily release the legs when you want to set them up.
In the Box Bundle Items Vision blue5 Pan and Tilt Tripod Head - Camera Plate with 1/4"-20 Screw and Pin Assembly
- Limited 2-Year Warranty per Online Product Registration
Flowtech 75 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet rwxbtufuezd - 3 x Removable Rubber Feet
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten System Vision blue5 Head with Flowtech 75 Carbon Fiber Tripod, Mid-Level Spreader, and Rubber Feet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Vision blue5 Pan and Tilt Tripod Head
| | | Load Capacity | 12.1 to 26.5 lb / 5.5 to 12 kg at CoG 4" / 100 mm | | Counter Balance | Continuous | | | | Box Dimensions (LxWxH) | 18.1 x 9.8 x 8.1" | - Flowtech 75 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet
| | | Leg Stages/Sections | 2-stage (3-section) | | Height Range | With Mid-Level Spreader: 24.8 - 61.81" / 63 - 157 cm Without Mid-Level Spreader: 10.24 - 60.24" / 26 - 153 cm | | Collapsed Height | 26.8" / 68 cm | | Load Capacity | 44 lb / 20 kg | | Head Attachment Fitting | 75 mm bowl | | Material | Legs:
Carbon fiber
Head Attachment Fitting:
Aluminum | | Leg Lock Type | Lever clamp | | Weight | 6.4 lb / 2.9 kg |
