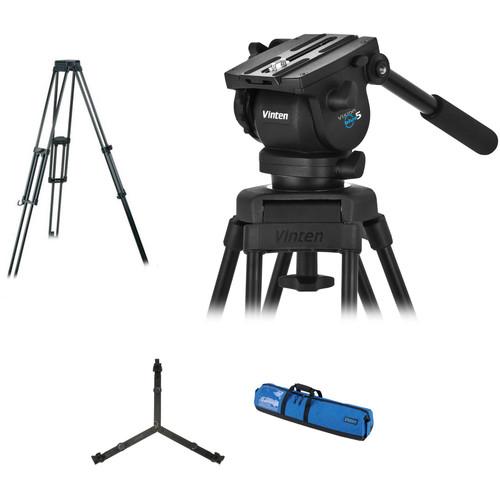

Vinten V5AS-AP1F Vision Pozi-Loc Aluminum Tripod

User Manual for Vinten V5AS-AP1F Vision Pozi-Loc Aluminum Tripod System

• Product category: Tripod Systems Vinten
• Brand: Vinten
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vinten Tripod Systems

Product description

• Vinten Vision blue5 Pan and Tilt Tripod Head The Vinten Vision blue5 Pan and Tilt Tripod Head is a lightweight and compact pan and tilt head featuring a combination of continuous counterbalance and infinite drag. It provides a full +/-90° of smooth tilt movement with a counterbalance range of 12.1 to 26.5 lb at 100mm center of gravity, perfect for supporting the latest portable cameras. A blue illuminated leveling bubble offers the added advantage of quick and convenient setup. The head has a 75mm ball base.
  Continuous Counterbalance and Infinite Drag
  • • Counterbalance range of 12.1 to 26.5 lb at 100mm center of gravity
    • Full +/-90° of smooth tilt movement
    • Illuminated leveling bubble
    • 75mm ball base
• Vinten V3822-0001 Pozi-Loc Aluminum Tripod Legs (Black) The Vinten V3822-0001 Pozi-Loc tripod is a precision-engineered single stage, aluminum tripod. It offers a 75mm-bowl and Pozi-Loc leg clamping system. This lightweight, compact tripod is quick and easy to set up and provides excellent operational flexibility.
  Aluminum Construction
  • This tripod is constructed of strong anodized tubular alloy, thermoplastic moldings and die-cast construction, providing the strongest and most durable material for demanding applications.
  Pozi-Loc Leg Clamps
  • The Pozi-Loc system is Vinten's innovative cam-operated clamping system. It ensures tripod reliability and safety and its positive action shows clearly when the tripod is locked.
  Black Color
  • This series of tripod offer a black color sceme for users wanting to change from Vinten's traditional white option.
  Clearance
  • A minimal clearance designed into the mechanical joints keeps the system rigid even when fast panning and tilting are necessary.
• Vinten 3363-3 On-Ground Tripod Spreader (Black) Lightweight Spreaders provide greater stability to Vision tripods. Their flexibility means that they can cope with uneven terrain and their hinged construction enables them to fold with the tripod. Quick-release straps ensure that they can be easily installed or removed if required.
• Vinten 3334-3 Soft Carrying Case (Blue, New) The blue, new Vinten 3334-3 Soft Carrying Case is a padded, weather-resistant 600-denier polyester PVC tripod bag made to carry Vinten Vision 3, Vision 6, Vision 8, or Vision 11 single-stage tripod systems. It is required for use with the Vinten 3372-3 tripod shipping tube.
  • Durable weather-resistant padded tripod case
  Pockets
  • • Clear external PVC pocket for document storage
    • Fully zipped internal pockets for pan bars, camera plates, and other accessories
    • Touch fastener sealed pocket for operator guides
  Carrying Options
  • • Pair of handles positioned to balance the system
    • Lightly padded handle at each end
    • Lightly padded, adjustable shoulder strap
  Compatibility
  • • Vinten Vision 3, 6, 8, and 11 single-stage tripod systems
    • Vinten single-stage tripod with head and spreader, up to 39" long

• Vision blue5 Pan and Tilt Tripod Head bduezwwqzyteazacfz
• Camera Plate with 1/4"-20 Screw and Pin Assembly
• Additional 1/4"-20 Screw
• 2 x 3/8"-16 Camera Screw
• Fixed-Length Pan Bar
• Bowl Clamp Knob
• Limited 1-Year Warranty
• Limited 2-Year Warranty per Online Product Registration

• V3822-0001 Pozi-Loc Aluminum Tripod Legs (Black) bduezwwqzyteazacfz

• 3363-3 Lightweight Calibrated On-Ground Tripod Spreader (Black)

• 3334-3 Soft Carrying Case (Blue, New)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Vinten Vision blue5 Pan and Tilt Tripod Head

  Drag Type	Fluid

  Load Capacity	12.1 to 26.5 lb / 5.5 to 12 kg at CoG 4" / 100 mm
  Counter Balance	Continuous

  Box Dimensions (LxWxH)	18.1 x 9.8 x 8.1"

• Vinten V3822-0001 Pozi-Loc Aluminum Tripod Legs (Black)

  Head Mount Type	75 mm Bowl
  Load Capacity	55.1 lb / 25 kg
  Maximum Working Height	57.3" / 145.5 cm
  Minimum Working Height	25.5" / 64.7 cm
  Folded Length	34" / 86.4 cm
  Materials	Aluminum
  Weight	6.2 lb / 2.8 kg

  Leg Lock Type	Rotating Locking Lever
  Leg Sections	2
  Feet Features	Spiked

  Box Dimensions (LxWxH)	35.0 x 7.2 x 7.2"

• Vinten 3363-3 On-Ground Tripod Spreader (Black)

  Construction	Plastic/Rubber
  Type	On-Ground
  Adjustable	Yes
  Minimum Length	15.0"
  Maximum Length	22.5"
  Weight	1.5 lbs

  Box Dimensions (LxWxH)	17.55 x 7.15 x 3.6"

• Vinten 3334-3 Soft Carrying Case (Blue, New)

  Carrying/Transport Options	Connecting Handles, End Grab Handle, Shoulder Strap
  Type of Closure	Zipper
  Exterior Material	Polyester
  Interior Material	Polyester
  Padded	Yes
  Exterior Dimensions	H: 11.0 x W: 9.0 x L: 40.0" / H: 27.9 x W: 22.9 x L: 101.6 cm
  Interior Dimensions	H: 12.0 x W: 14.0 x L: 39.0" / H: 30.5 x W: 35.6 x L: 99.1 cm
  Weight	3.42 lb / 1.55 kg

  Box Dimensions (LxWxH)	40.3 x 13.6 x 3.0"
