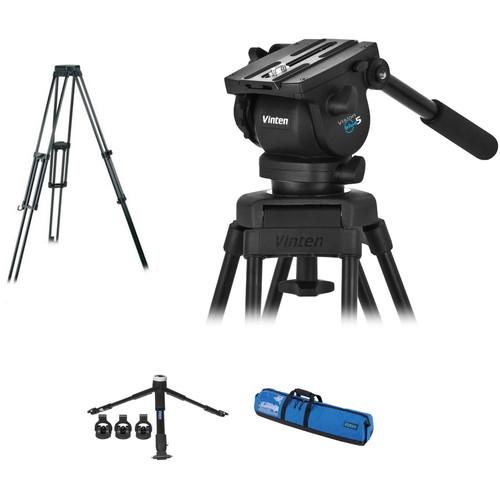

Product description The Vinten V5AS-AP1M Vision Pozi-Loc is an Aluminum, Single Stage tripod system with a Mid-Level Spreader, Vinten Vision blue5 head and a case. - Vinten Vision blue5 Pan and Tilt Tripod Head The Vinten Vision blue5 Pan and Tilt Tripod Head is a lightweight and compact pan and tilt head featuring a combination of continuous counterbalance and infinite drag. It provides a full +/-90° of smooth tilt movement with a counterbalance range of 12.1 to 26.5 lb at 100mm center of gravity, perfect for supporting the latest portable cameras. A blue illuminated leveling bubble offers the added advantage of quick and convenient setup. The head has a 75mm ball base.
- Continuous Counterbalance and Infinite Drag
-
- Counterbalance range of 12.1 to 26.5 lb at 100mm center of gravity
- Full +/-90° of smooth tilt movement
- Illuminated leveling bubble
- 75mm ball base
- Vinten V3822-0001 Pozi-Loc Aluminum Tripod Legs (Black) The Vinten V3822-0001 Pozi-Loc tripod is a precision-engineered single stage, aluminum tripod. It offers a 75mm-bowl and Pozi-Loc leg clamping system. This lightweight, compact tripod is quick and easy to set up and provides excellent operational flexibility.
- Aluminum Construction
- This tripod is constructed of strong anodized tubular alloy, thermoplastic moldings and die-cast construction, providing the strongest and most durable material for demanding applications.
- Pozi-Loc Leg Clamps
- The Pozi-Loc system is Vinten's innovative cam-operated clamping system. It ensures tripod reliability and safety and its positive action shows clearly when the tripod is locked.
- Black Color
- This series of tripod offer a black color sceme for users wanting to change from Vinten's traditional white option.
- Clearance
- A minimal clearance designed into the mechanical joints keeps the system rigid even when fast panning and tilting are necessary.
- Vinten 3781-3 Spread-Loc Mid-Level Spreader with Rubber Feet The revolutionary Spread-Loc is a fully adjustable, geared mid-level spreader, controlled by a single lock knob. In addition, the arms are individually extendable to provide a large spreader radius and facilitate use on uneven ground. The Spread-Loc spreader may be installed on any tripod provided with Spread-Loc attachment points. Fits all Pozi-Loc 75, 100 and 150mm bowl tripods and Torque-Safe ENG tripods - from October 2001
- Vinten 3334-3 Soft Carrying Case (Blue, New) The blue, new Vinten 3334-3 Soft Carrying Case is a padded, weather-resistant 600-denier polyester PVC tripod bag made to carry Vinten Vision 3, Vision 6, Vision 8, or Vision 11 single-stage tripod systems. It is required for use with the Vinten 3372-3 tripod shipping tube.
- Durable weather-resistant padded tripod case
- Pockets
-
- Clear external PVC pocket for document storage
- Fully zipped internal pockets for pan bars, camera plates, and other accessories
- Touch fastener sealed pocket for operator guides
- Carrying Options
-
- Pair of handles positioned to balance the system
- Lightly padded handle at each end
- Lightly padded, adjustable shoulder strap
- Compatibility
-
- Vinten Vision 3, 6, 8, and 11 single-stage tripod systems
- Vinten single-stage tripod with head and spreader, up to 39" long
In the Box - Vision blue5 Pan and Tilt Tripod Head
- Camera Plate with 1/4"-20 Screw and Pin Assembly
- Additional 1/4"-20 Screw
- 2 x 3/8"-16 Camera Screw
- Fixed-Length Pan Bar
- Bowl Clamp Knob
- Limited 1-Year Warranty
- Limited 2-Year Warranty per Online Product Registration
- V3822-0001 Pozi-Loc Aluminum Tripod Legs (Black)
- 3781-3 Spread-Loc Adjustable Mid-Level Spreader with Rubber Feet - for Pozi-Loc Tripod Legs
- 3334-3 Soft Carrying Case (Blue, New)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vinten V5AS-AP1M Vision Pozi-Loc Aluminum Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Vinten Vision blue5 Pan and Tilt Tripod Head
| | | Load Capacity | 12.1 to 26.5 lb / 5.5 to 12 kg at CoG 4" / 100 mm | | Counter Balance | Continuous | | | | Box Dimensions (LxWxH) | 18.1 x 9.8 x 8.1" | - Vinten V3822-0001 Pozi-Loc Aluminum Tripod Legs (Black)
| | | Head Mount Type | 75 mm Bowl | | Load Capacity | 55.1 lb / 25 kg | | Maximum Working Height | 57.3" / 145.5 cm | | Minimum Working Height | 25.5" / 64.7 cm | | Folded Length | 34" / 86.4 cm | | Materials | Aluminum | | Weight | 6.2 lb / 2.8 kg | | | | Leg Lock Type | Rotating Locking Lever | | Leg Sections | 2 | | Feet Features | Spiked | | | | Box Dimensions (LxWxH) | 35.0 x 7.2 x 7.2" | - Vinten 3781-3 Spread-Loc Mid-Level Spreader with Rubber Feet
| Construction | Plastic/Rubber | | Type | Mid-Level | | Adjustable | Yes | | Minimum Length | 15.0" | | Maximum Length | 19.7" | | Weight | 2.1 lbs | | | | Box Dimensions (LxWxH) | 19.1 x 4.85 x 4.6" | - Vinten 3334-3 Soft Carrying Case (Blue, New)
| Carrying/Transport Options | Connecting Handles, End Grab Handle, Shoulder Strap | | Type of Closure | Zipper | | Exterior Material | Polyester | | Interior Material | Polyester | | Padded | Yes | | Exterior Dimensions | H: 11.0 x W: 9.0 x L: 40.0" / H: 27.9 x W: 22.9 x L: 101.6 cm | | Interior Dimensions | H: 12.0 x W: 14.0 x L: 39.0" / H: 30.5 x W: 35.6 x L: 99.1 cm | | Weight | 3.42 lb / 1.55 kg | | | | Box Dimensions (LxWxH) | 40.3 x 13.6 x 3.0" |
